The axial fan listed here carries 12V/24v, power source Electric, documented exactly as the manufacturer publishes it. Made by Shenzhen Yunfan Power Co., Limited (10 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axial Fan
- Model Number: 8025s12l
- Power Source: Electric
- Voltage: 12V/24v
- Material: Plastic
- Blade Material: Plastic
- Speed: 3 000 RPM
Technical Specifications
| Blade Diameter | 3in |
|---|---|
| Voltage | 12V/24v |
| Speed | 3 000 RPM |
| Type | dc cooling fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Sleeve Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | YUNFANPOWER |
| Model Number | 8025s12l |
| Weight | 75g |
| Certification | ce |
| Product Name | DC Brussless Fan |
| Application | Humidifier |
| Size | 80x80x25mm |
| Selling Units | Single item |
| Single Package Size | 8X8X2.5 cm |
| Single Gross Weight | 0.090 kg |

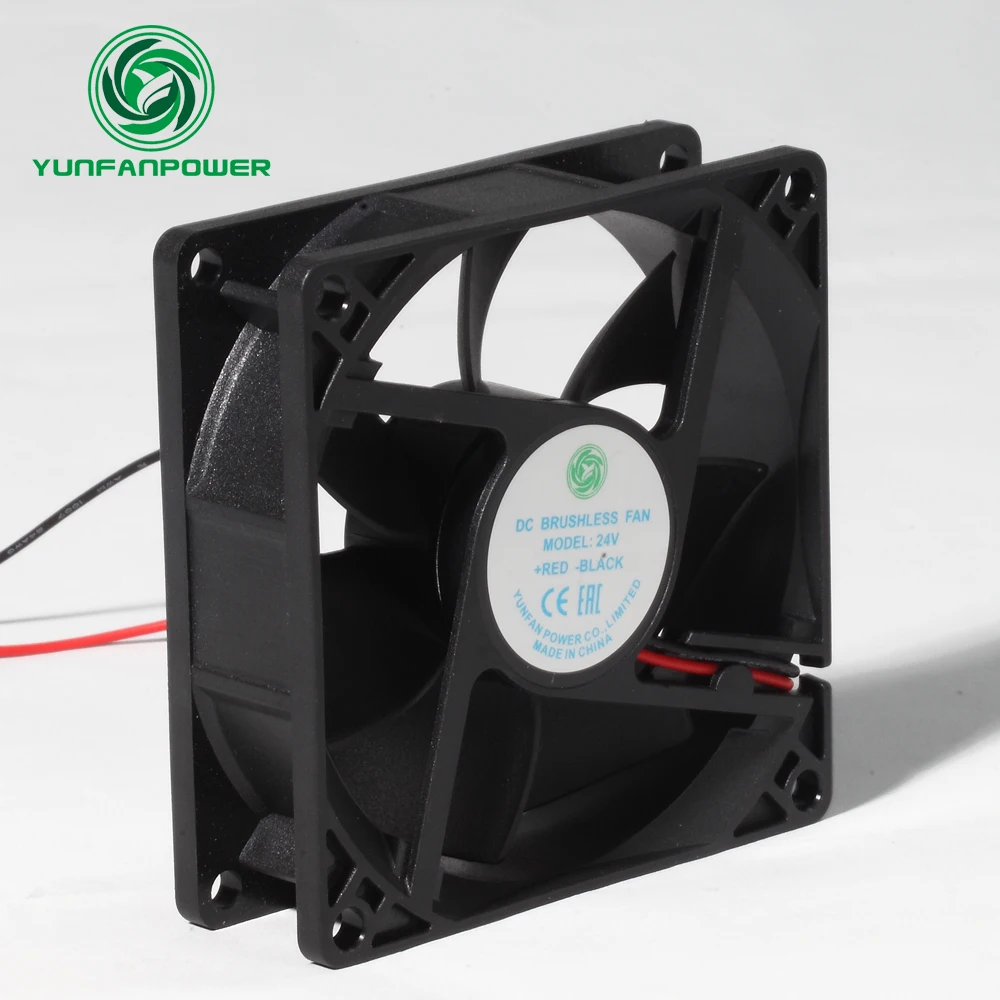

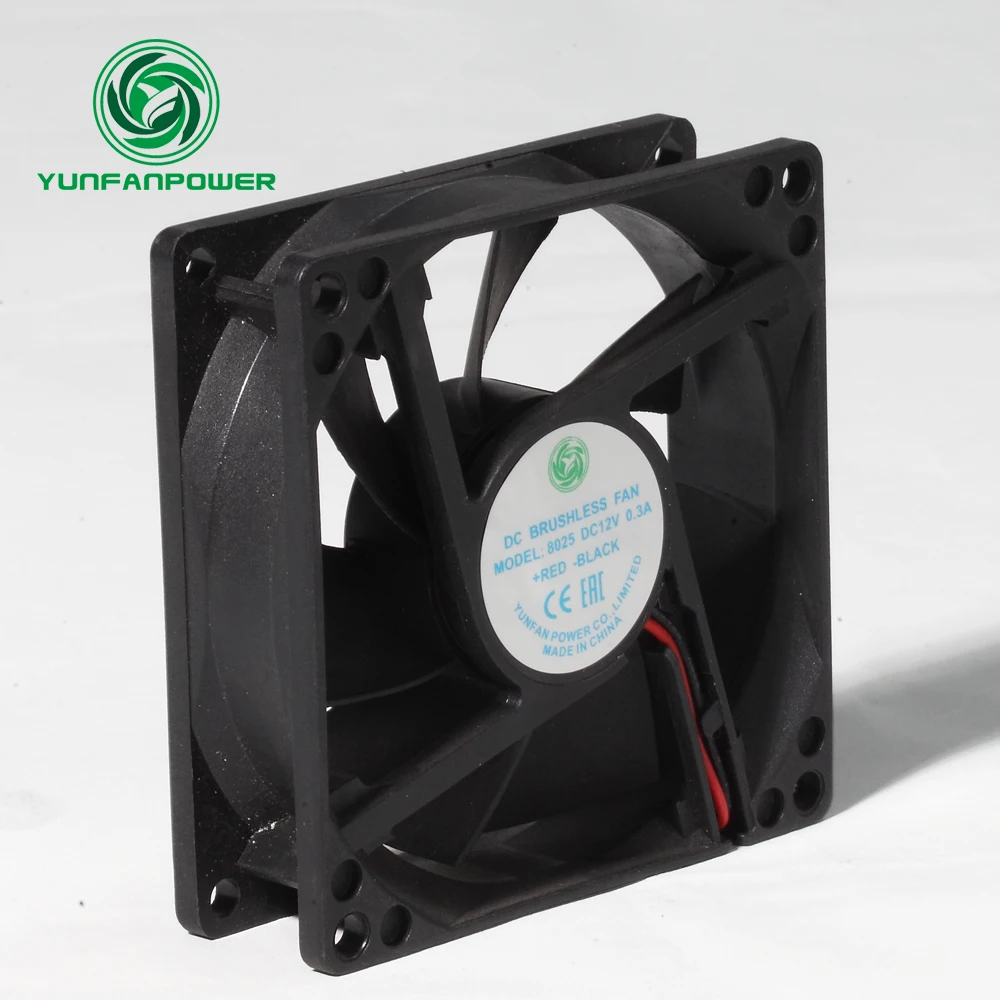

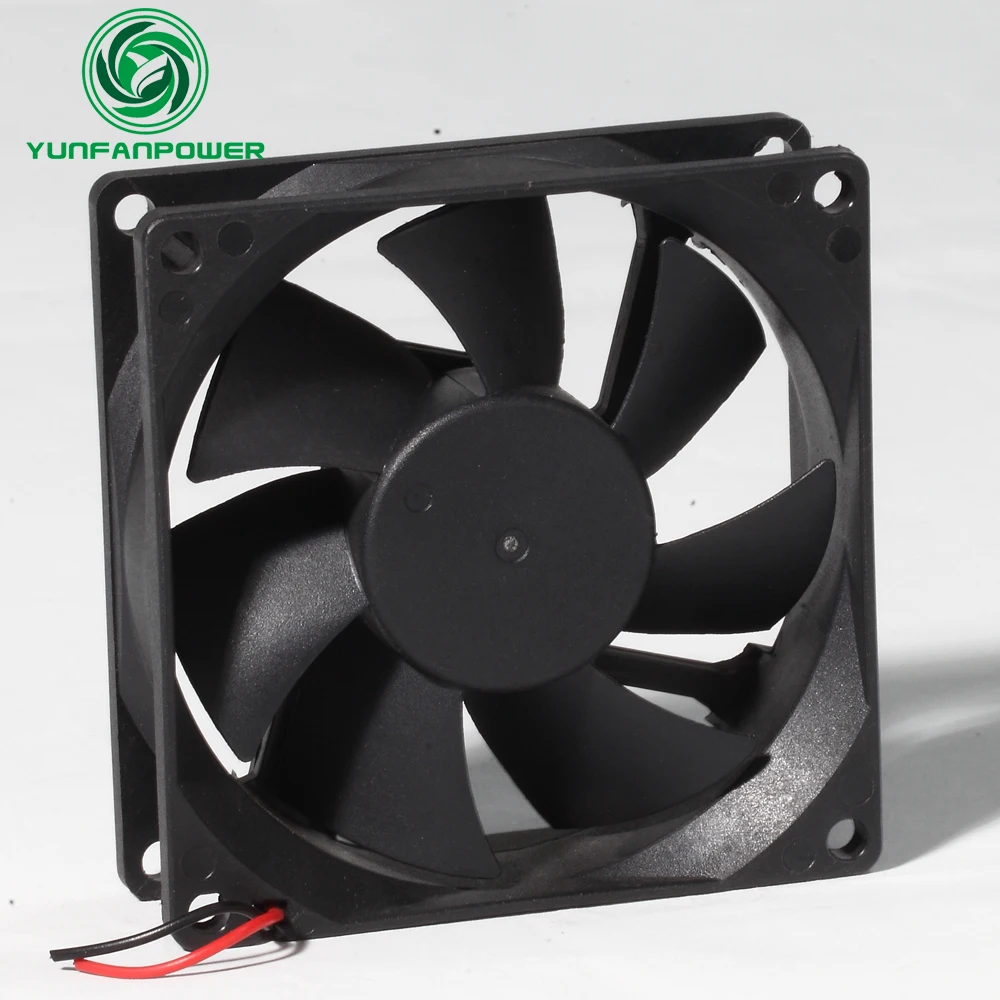

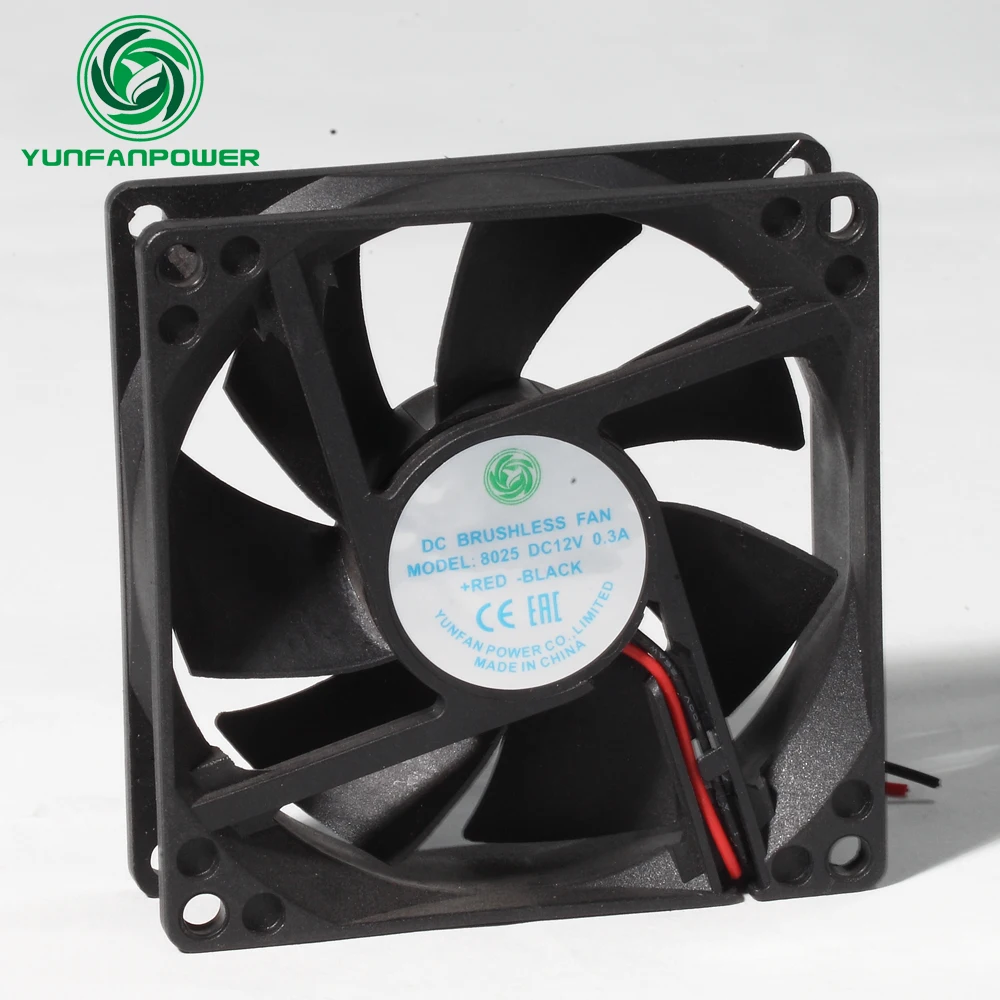

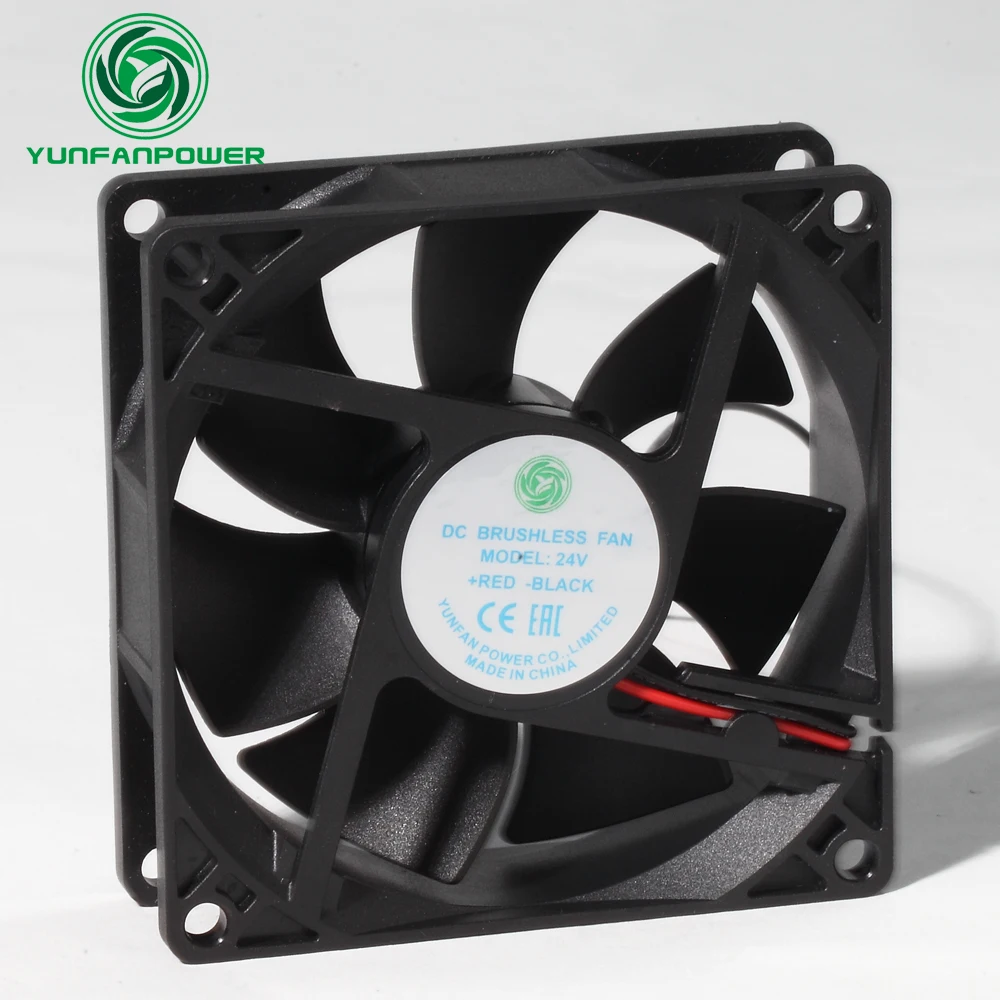

Product Details
Brand:Yun-Fan YUNFAN POWER CO.,LIMITED
Model: DC Fan 8025
Size: 80x80x25mm
Voltage:12V
Speed: 2000-4000 (R/min)
Weight: 75 (g)
Bearing type:Ball & Hydraulic & Sleeve
Life time: Ball type 50000 hours,
Hydraulic type 40000 hours
Sleeve type 30000 hours
Safety: Impedance Protected
Termination: Terminals or Lead Wire
Function : FGRDPWMSoft Start
A1: Yes,We are the factory.
Q2: What is DC Fan and AC fan?
A2: DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and72V.
AC fan is power by AC voltage,always is 110V,220V and 380V.
Q3: How to choose DC fan?
A3: 1 size of the fan samples:5015 (50*50*15mm)
2 Voltage 5V/12V/24V
3 current 0.17A
4 speed 3500RPM
5 air flow 3CFM
6 noise 30dBA
7 bearing type ball or sleeve
8 two wire or three wire 2wire
9 cable length 100mm
10 connector molex 2564
11 function FGRDPWMSoft Start ……
Q4: What is the delivery time?
A4: Sample lead time:3-5 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)

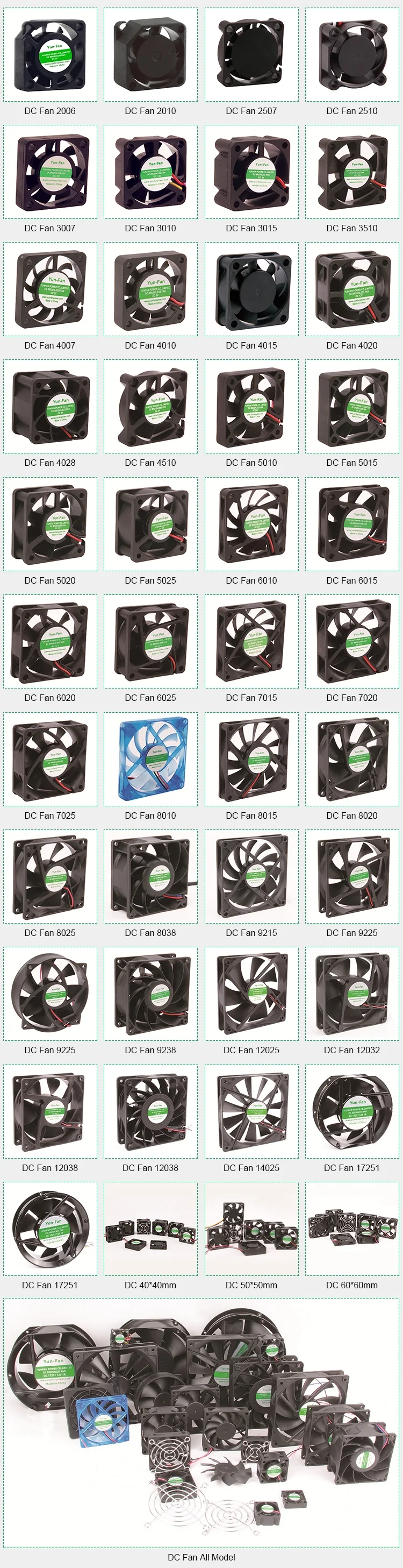

Q5: Can you tell me the normal DC Blower fan Model?
A5: 40*40*20mm 50*50*15mm 60*60*15mm
75*75*30mm 93*93*30mm 97*94*33mm 120*120*32mm
Ordering and Pricing
- Minimum order quantity: 2 box
- Volume pricing:
- 2–2999 box: US $0.9 / box
- 3000–4999 box: US $0.8 / box
- 5000–29999 box: US $0.7 / box
- 30000+ box: US $0.6 / box
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial fan?
The standard minimum order quantity is 2 box. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

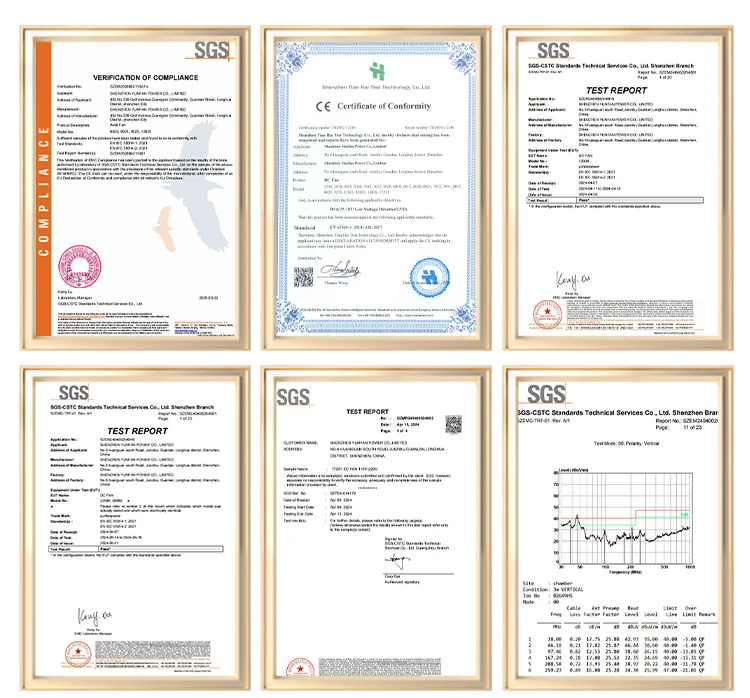

Which certifications does this axial fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial fan be supplied for my local voltage?
The standard configuration is 12V/24v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Yunfan Power Co., Limited, based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Yunfan Power Co., Limited range on HVACR Nexus.
