Key specification for this axial fan: 5V/12V/24V/48V, blade material Plastic. Everything below is reproduced from the factory data sheet. Made by Shenzhen Haixinghe Electroincs Co., Ltd. (17 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axial Fan

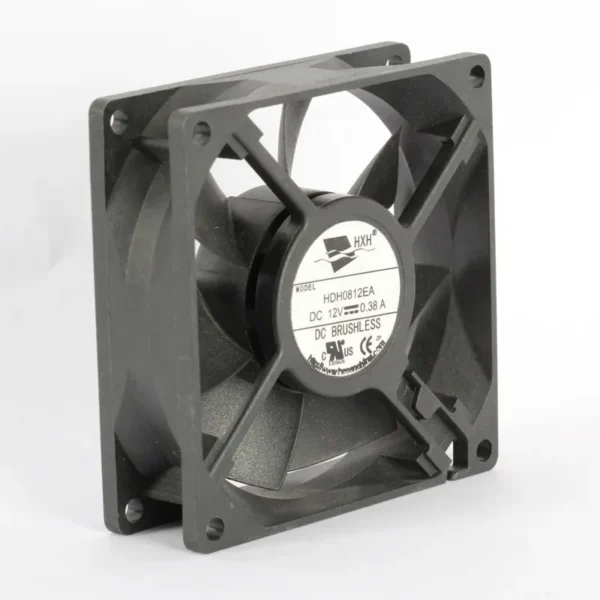

- Model Number: HDH0812EA
- Voltage: 5V/12V/24V/48V
- Blade Material: Plastic
- Noise Level: 22.1/26.7/30.9/37.2/40.9/42.0dBA
- Warranty: 1 Year
- Certification: ce RoHs UL
Technical Specifications
| Voltage | 5V/12V/24V/48V |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | DC |
| Mounting Type | screwing |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | HXH |
| Model Number | HDH0812EA |
| Name | air ventilator fan |
| Bearing Type | Ball/Sleeve/Hydraulic bearing |
| Fan Dimension | 80x80x25mm |
| Static Pressure | 1.75/2.65/3.38/4.85/6.58/9.40mmH2O |
| Noise Level | 22.1/26.7/30.9/37.2/40.9/42.0dBA |
| Applications | Server cabinet,UPS power,computer,CPU,etc. |
| Life (Ball Bearing) | 50000hrs |
| Life (Hydraulic Bearing) | 40000hrs |
| Life (Sleeve Bearing) | 30000hrs |
| Certification | ce RoHs UL |
| Type | Axial Flow Fan |
| Applicable Industries | computer,LED |
| Packaging Details | 135pcs/carton. |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Single Package Size | 17X11X10 cm |
| Single Gross Weight | 1.000 kg |
| Supply Ability | 40000 pieces per Day air cooling fan |
Product Details

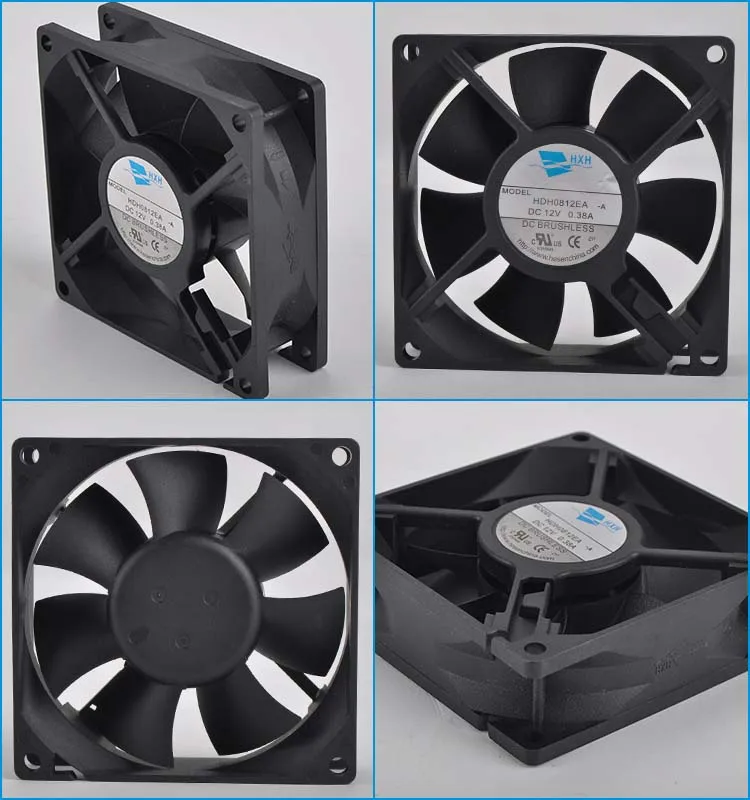

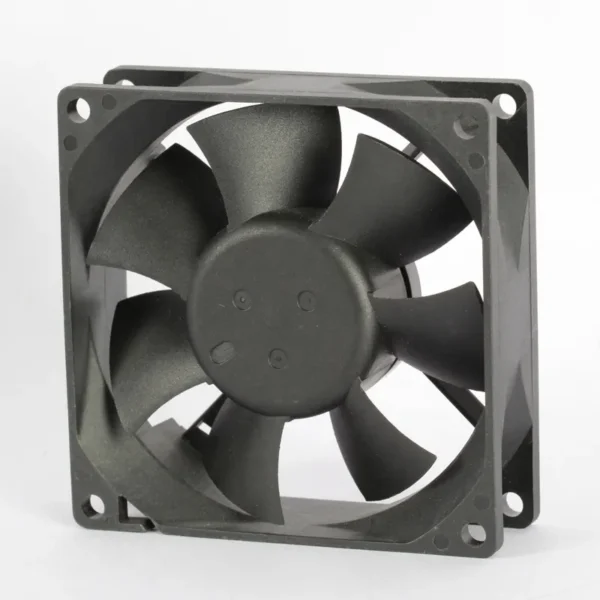

80mm *25mm DC axial fan CPU ,Auto-machine cooling fan

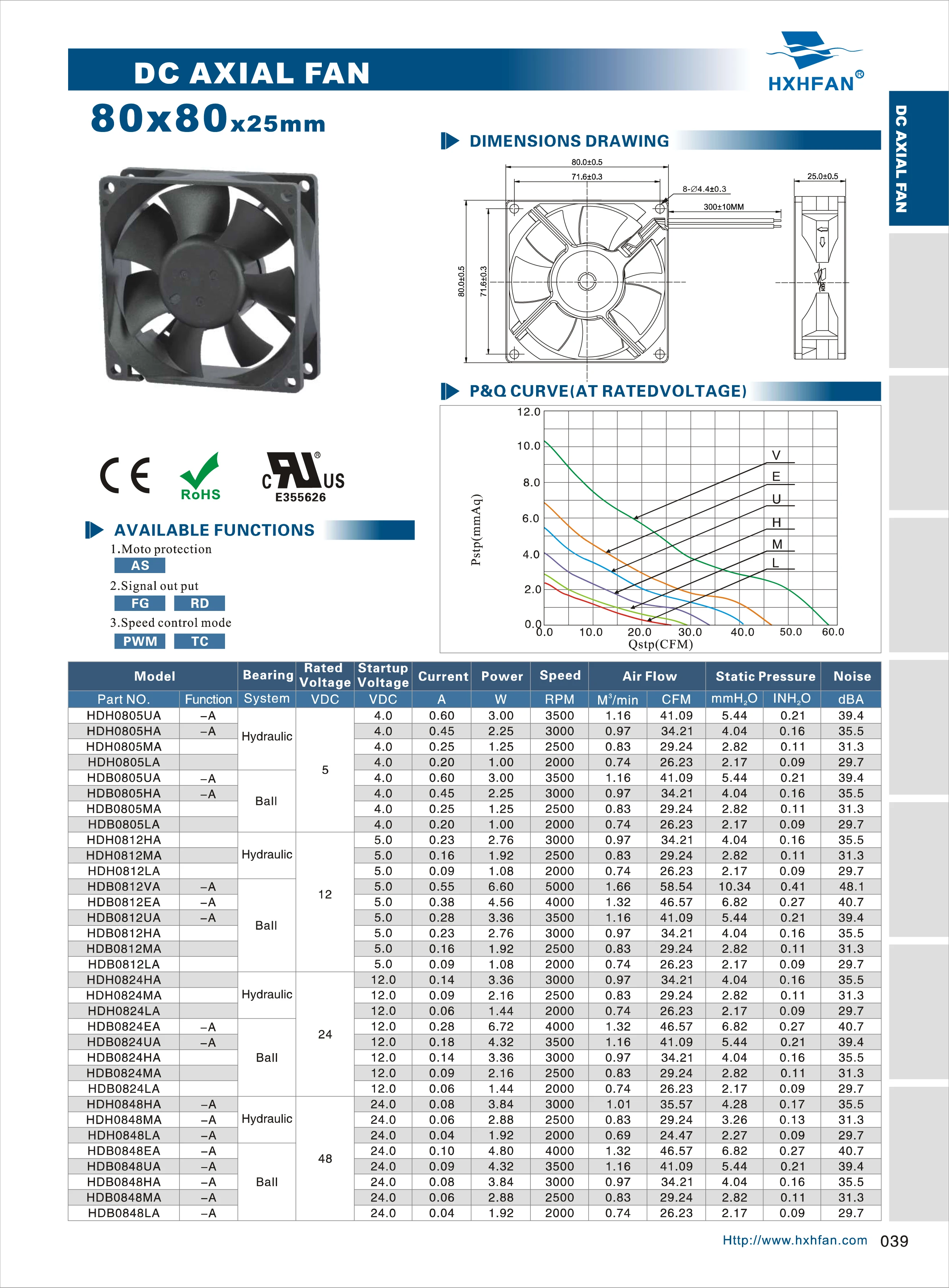

80 * 80 * 25mm fans with different specifications for your choice:
| 80×80×25MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0805UA | -A | Hydraulic | 5 | 4 | 0.60 | 3.00 | 3500 | 1.24 | 43.90 | 4.85 | 0.19 | 37.2 |
| HDH0805HA | -A | 4 | 0.45 | 2.25 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | ||
| HDH0805MA | 4 | 0.25 | 1.25 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | |||
| HDH0805LA | 4 | 0.20 | 1.00 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | |||
| HDB0805UA | -A | Ball | 4 | 0.60 | 3.00 | 3500 | 1.24 | 43.90 | 4.85 | 0.19 | 37.2 | |
| HDB0805HA | -A | 4 | 0.45 | 2.25 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | ||
| HDB0805MA | 4 | 0.25 | 1.25 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | |||
| HDB0805LA | 4 | 0.20 | 1.00 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | |||

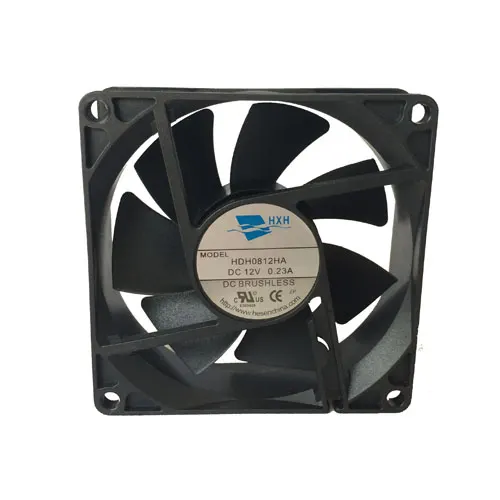

| HDH0812HA | Hydraulic | 12 | 5 | 0.23 | 2.76 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | |
| HDH0812MA | 5 | 0.16 | 1.92 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | |||
| HDH0812LA | 5 | 0.09 | 1.08 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | |||

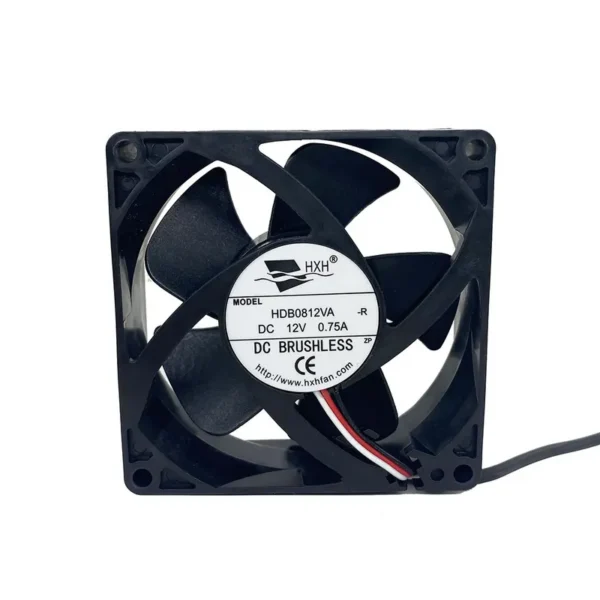

| HDB0812VA | -A | Ball | 5 | 0.55 | 6.60 | 5000 | 1.80 | 63.50 | 9.40 | 0.37 | 42.0 | |
| HDB0812EA | -A | 5 | 0.38 | 4.56 | 4000 | 1.40 | 49.50 | 6.58 | 0.26 | 40.9 | ||
| HDB0812UA | -A | 5 | 0.28 | 3.36 | 3500 | 1.24 | 43.90 | 4.85 | 0.19 | 37.2 | ||
| HDB0812HA | 5 | 0.23 | 2.76 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | |||
| HDB0812MA | 5 | 0.16 | 1.92 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | |||
| HDB0812LA | 5 | 0.09 | 1.08 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | |||
| HDH0824HA | Hydraulic | 24 | 12 | 0.14 | 3.36 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | |
| HDH0824MA | 12 | 0.09 | 2.16 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | |||
| HDH0824LA | 12 | 0.06 | 1.44 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | |||
| HDB0824EA | -A | Ball | 12 | 0.28 | 6.72 | 4000 | 1.40 | 49.50 | 6.58 | 0.26 | 40.9 | |
| HDB0824UA | -A | 12 | 0.18 | 4.32 | 3500 | 1.24 | 43.90 | 4.85 | 0.19 | 37.2 | ||
| HDB0824HA | 12 | 0.14 | 3.36 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | |||
| HDB0824MA | 12 | 0.09 | 2.16 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | |||
| HDB0824LA | 12 | 0.06 | 1.44 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | |||
| HDH0848HA | -A | Hydraulic | 48 | 24 | 0.08 | 3.84 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 |
| HDH0848MA | -A | 24 | 0.06 | 2.88 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | ||
| HDH0848LA | -A | 24 | 0.04 | 1.92 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | ||
| HDB0848EA | -A | Ball | 24 | 0.10 | 4.80 | 4000 | 1.40 | 49.50 | 6.58 | 0.26 | 40.9 | |
| HDB0848UA | -A | 24 | 0.09 | 4.32 | 3500 | 1.24 | 43.90 | 4.85 | 0.19 | 37.2 | ||
| HDB0848HA | -A | 24 | 0.08 | 3.84 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | ||
| HDB0848MA | -A | 24 | 0.06 | 2.88 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | ||
| HDB0848LA | -A | 24 | 0.04 | 1.92 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | ||
- 2012,7:Factory expansion again, Set up the radiator module division, passed UL certification.
- 2011.5:Factory expanded, moved to Dongguan and found Dongguan Hesen Industrial Co.,Ltd.
- 2007.4:Factory passed ISO9001 quality system certificate. CE certificate passed, manufacture all series of AC and DC FAN.
- 2004.5:Build Shenzhen Haixinghe Electronic Co., Ltd, creat our own brand "HXH".
- 2001.8:processing plant was given priority to with OEM, manufacture part of the model fan for part of the customers.
- 135pcs/carton, flexible wrapping and standard carton.
- 2-3 weeks after confirm your order and receive your payment.
- We ship goods to worldwide! Product will be ship by EMS, FedEx, DHL, or UPS.
- Please check with your local agency as you might be required to pay custom duty/tax on import of this goods, all custom duty/tax pay by buyer. We HXH do not responsible for any custom duty or import tax.
- All items will be packed safely by our professional logistic department, please check the product before Signoff, if your item is damaged or lost by Express, please Reject. Meanwhile, please contact us immediately so we can assist with correcting the problem A.S.A.P, And we will report to the Express and ask for refund.
1. What is a DC Axial Fan?
An DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. It blows air along the axis of the fan, or parallel to the track of the blade axis. Standard DC Axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm,120mm, 150mm, and 200mm.
2. How to choose a DC fan?
To choose a DC fan, you should consider the points below
a. fan voltage
b. fan current
c. fan speed
d. fan airflow
e. fan noise
f. fan lifespan
3. What is a bearing?
Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
4. How do we carry out quality control?
Usually, there are two ways to monitor reliability during the manufacturing process.
a. Early Life Test
This is used as a mean of process control aimed at identifying any latent manufacturing problems and determining the effectiveness of burn-in. Every day, 5 samples will be picked up randomly from one of the production lines for burn in at 50°C+/-5°C for 24 hours.
b. On-going Reliability Demonstration
This is a longer-term program aimed at providing data on continuous basis to demonstrate the reliability of product. 10 units per month are randomly collected from one of the production lines for burn-in for 168 hours at 50°C+/-5°C. Units are monitored and tested on daily basis. Failed units will be analyzed and corrective actions taken where necessary.
5. What can I do if we can not find the suitable fan model in the fan list?
Please contact us for customized fans.
If you want to learn more and get latest price pls add my trademanager or send inquiry to me i will be happy to service with you !
Ordering and Pricing
- Minimum order quantity: 200 piece
- Volume pricing:
- 200–999 piece: US $1 / piece
- 1000–4999 piece: US $0.9 / piece
- 5000+ piece: US $0.8 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial fan?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this axial fan carry?
It is supplied with ce RoHs UL documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial fan be supplied for my local voltage?
The standard configuration is 5V/12V/24V/48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
