Key specification for this axial flow cooling fan: voltage 380VAC, power source Electric. Everything below is reproduced from the factory data sheet. Made by Wenzhou Jason Fan Manufacturer Co., Ltd. (18 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Axial Flow Cooling Fan
- Model Number: FJ4D-450.FGV
- Power Source: Electric
- Voltage: 380VAC
- Dielectric Withstand Voltage: AC 1800V at 0.5mA 50/60Hz
- Material: Cast Iron
- Blade Material: Cast Iron
Technical Specifications
| Voltage | 380VAC |
|---|---|
| Speed | 1350RPM |
| Type | Wall-Mounted Axial Fan |
| Material | Cast Iron |
| Blade Material | Cast Iron |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | Jasonfan |
| Model Number | FJ4D-450.FGV |
| Motor Structure | External rotor motor 102mm |
| Safety | Thermally protected |
| Operation System | Dual high precise ball bearing |
| Dielectric Withstand Voltage | AC 1800V at 0.5mA 50/60Hz |
| Allowable Ambient Temperature Range | -25~+80 degree |
| Insulation | F Class |
| Protection Grade | IP44 |
| Unit Weight | 7.2kg |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

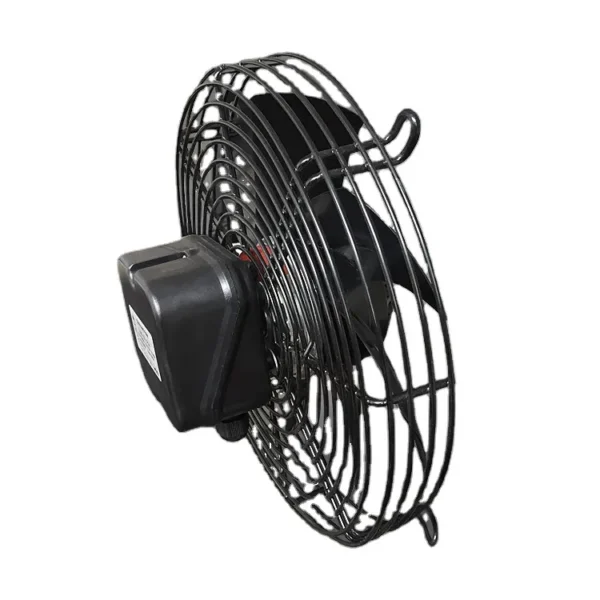

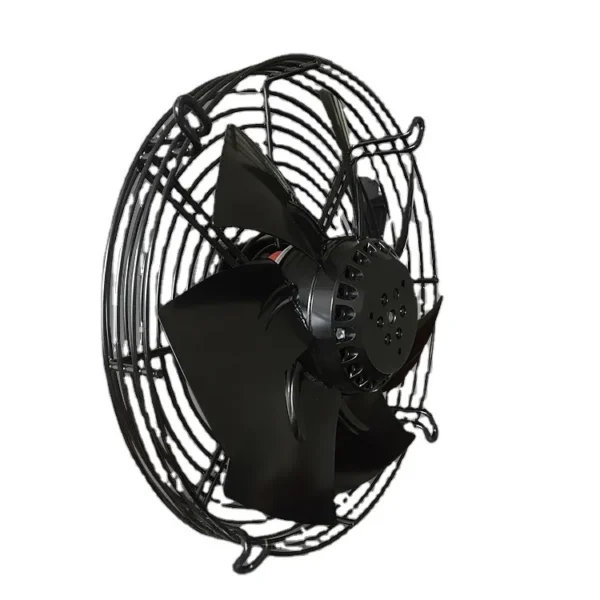

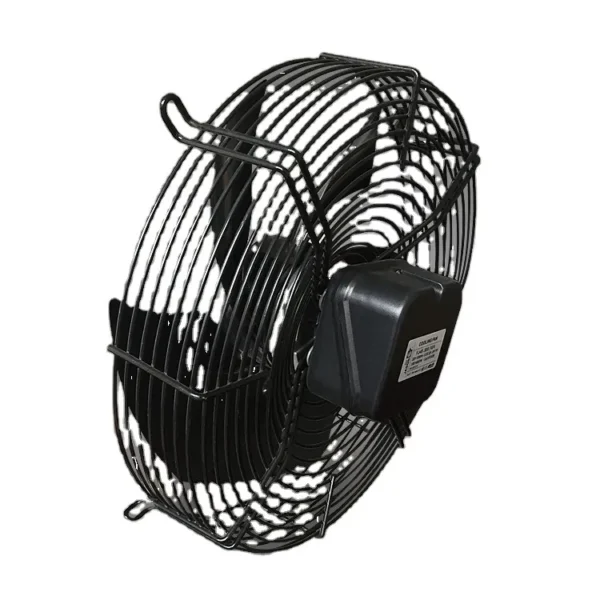

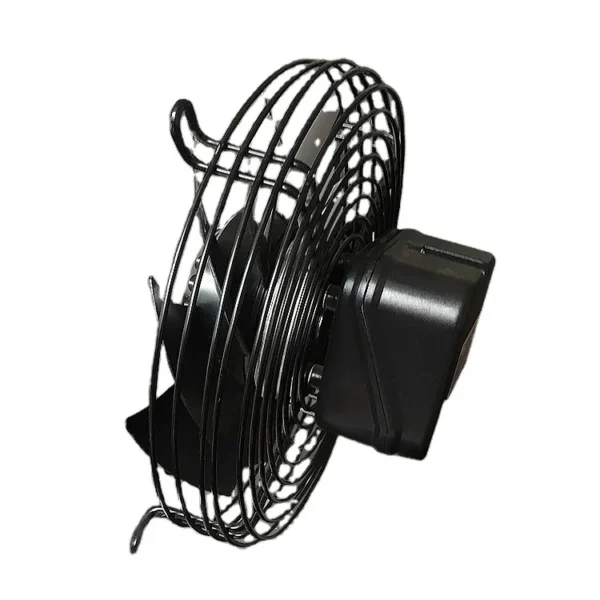

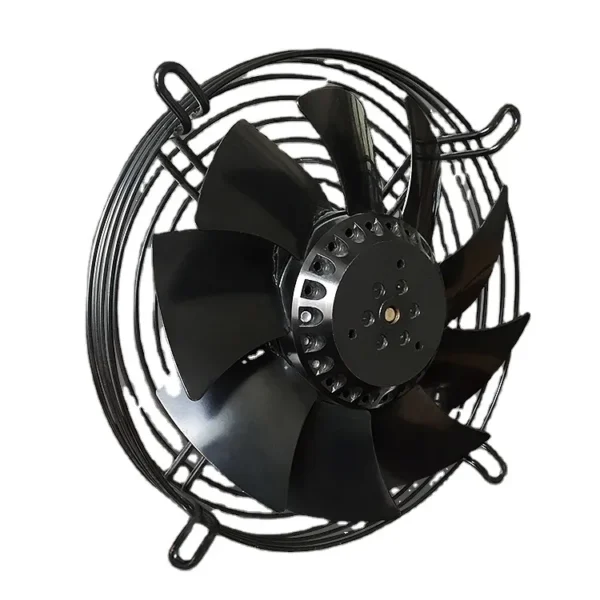

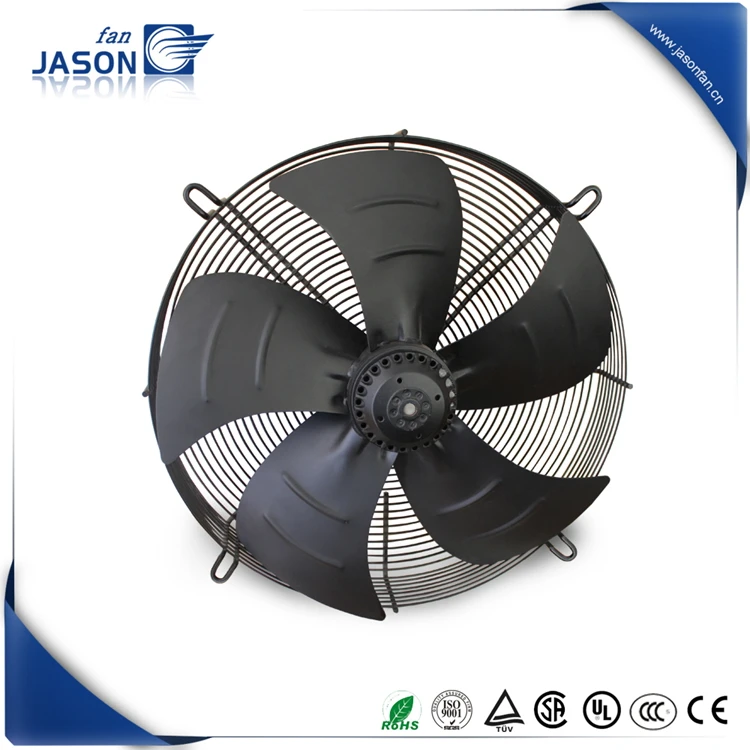

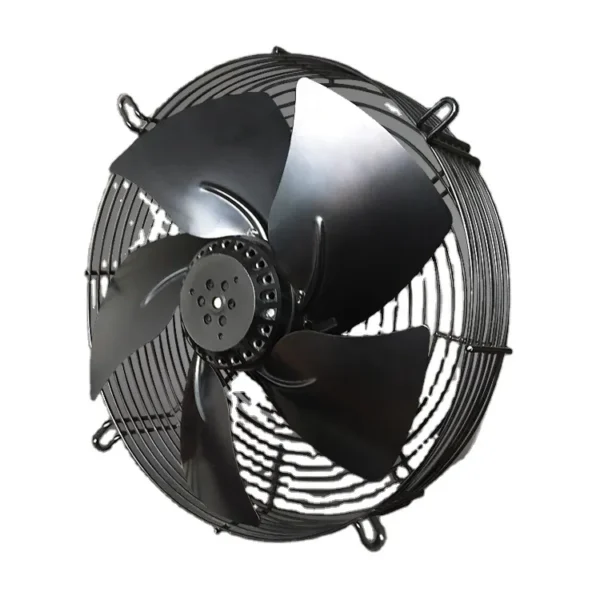

450mm 380V 3250CFM 1350RPM Industrial Ventilation Axial Flow Cooling Fan FJ4D-450.FGV for Cold Room and Chiller
Specification:
- Allowable Ambient Temperature Range: -30 ~ +80 Centigrade degree (Under unconcretionary)
- Dielectric withstanding voltage: AC 1800V at 0.5mA, 50/60HZ
- Insultaion Isolation Grade: F Protection Grade: IP 54
- Unit Weight: 7.2Kg
Material:
- Fixed guard: Steel wire is finished with black oven backed painting and anti-corrosion treatment.
- Impeller: pressed from metal armor plate, impellers are installed on rotor by press. surface is finished by black paint and anti-corrosion treatment.
- Bearing Type: Maintain-free NSK ball bearing.
- Power Supply Connection: Wire connection or terminal box set.
| Specifications | |
| Category | Axial fan |
| Type | FJ4D-450.FGV |
| Rated Voltage | 380V |
| Frequency | 50/60Hz |
| Current | 0.66A-0.91A |
| Input Power | 240W-340W |
| Speed | 1350RPM-1480RPM |
| Max Air Flow | 3250-3560CFM |
| StaticPressure | 75-105Pa |
| Noise | 68-71dB |
| Capacitor | 2.0/630uf |
| Weight | 7.2KG |
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yueqing City,Zhejiang Province, China, about 30 mins from Wenzhou Airport .Warmly welcome to visit us!
Q: What products do you make?
A: We have been producing AC cooling axial fans , Centrifugal fans, Filter fans etc since established in 2006.
Q: What information do you need in order to get a quotation?
A: Generally, we need the information like quantity, size, voltage , air flow to select a right or a similar fan for you and quote you.
Q: Can I have samples for testing before placing orders?
A: Yes. We suggest that our customers have some samples of their required fans for quality testing first.
Q: Can I have a discount for the quoted price?
A: Yes. The price is quoted based on the quantity.
Q: How is your quality control systerm?
A : Each fan needs to go though strict inspection by QC before delivery, or inspected by 3rd party who customer appoints.
Q: Does the product have CE,UL etc approval?
A : Yes. All of our products have CE,RoHS approval, some have UL approval.
Q: Can you make the fan with our company's logo?
A : Yes.
Q: What is your payment term?
A : TT,LC.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $66.5 / piece
- 50–199 piece: US $66.1 / piece
- 200+ piece: US $65.3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow cooling fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow cooling fan be supplied for my local voltage?
The standard configuration is 380VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
