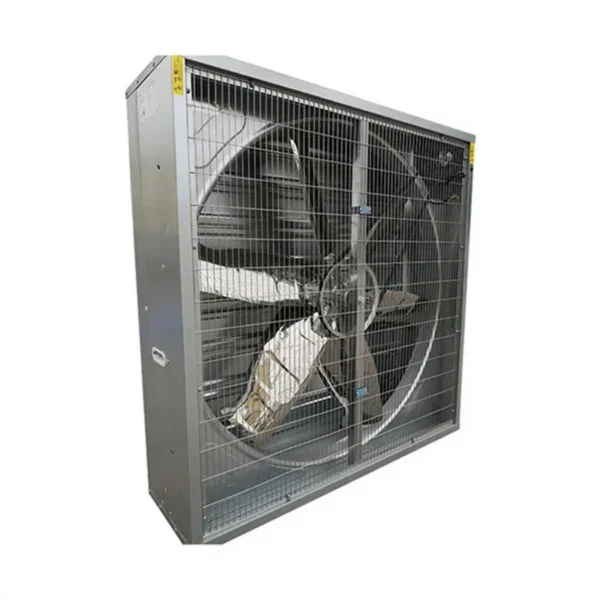

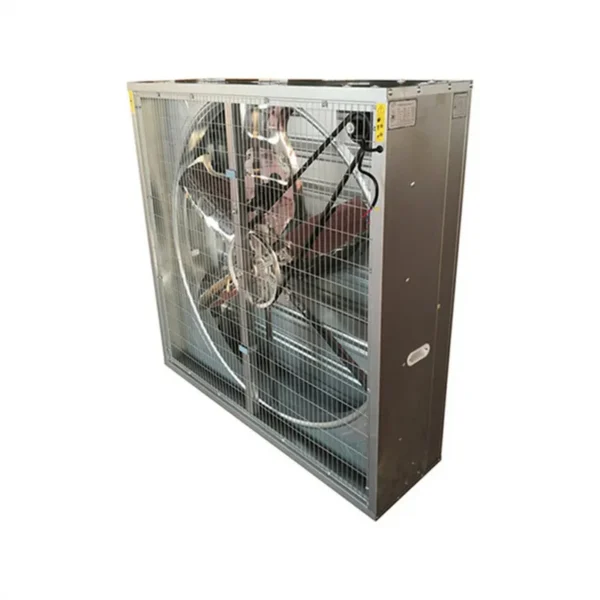

The axial flow exhaust fan listed here carries 380 V, air flow 55800m³/h, documented exactly as the manufacturer publishes it. Made by Shandong Muhe Machinery Co., Ltd. (15 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Axial Flow Exhaust Fan
- Model Number: MHB-1530
- Power Source: Electric
- Voltage: 380 V
- Air Flow: 55800m³/h
- Material: Stainless Steel
- Blade Material: Stainless Steel
Technical Specifications
| Blade Diameter | 55IN |
|---|---|
| Voltage | 380 V |
| Speed | 32900CFM |
| Type | Wall-Mounted Axial Fan |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | MUHE |
| Model Number | MHB-1530 |
| Product Name | HEAVY HAMMER EXHAUST FAN |
| Application | Exhaust Ventilation |
| Size | 1530*1530*400MM |
| Brand | MUHE |
| Certification | CE/ISO9001 |
| Air Flow | 55800m³/h |
| Motor Brand | Nosch XIZI |
| Noise | 55~75dB |
| Blade | 6 Pieces |
| Selling Units | Single item |
| Single Package Size | 153X40X153 cm |
| Single Gross Weight | 80.0 kg |
Product Details
Products Description
SHANDONG MUHE Poultry Farming
Animal Husbandry Equipment Poultry Farm Fan
Model (Drop Hammer) | Blade Dia(MM) | Blade Rotational Speed(RPM) | Air Flow (M³/H) | Noise (DB) | Input Power (W) | Rated Voltage (V) | Size High-Wide-Thickness(MM) |
MHB-620 | 500(20") | 1400 | 5700 | ≤ 60 | 370 | 220/380 | 620-620-370 |
MHB-800 | 710(28") | 650 | 18000 | ≤ 60 | 370 | 220/380 | 800-800-400 |
MHB-900 | 750(30") | 650 | 20000 | ≤ 60 | 550 | 220/380 | 900-900-400 |
MHB-1000 | 900(36") | 640 | 23000 | ≤ 60 | 550 | 220/380 | 1000-1000-400 |
MHB-1100 | 1000(39") | 600 | 32500 | ≤ 60 | 750 | 220/380 | 1100-1100-400 |
MHB-1220 | 1100(43") | 460 | 38000 | ≤ 60 | 1100 | 220/380 | 1220-1220-400 |
MHB-1380 | 1250(50") | 439 | 44000 | ≤ 60 | 1100 | 220/380 | 1380-1380-400 |
MHB-1530 | 1400(55") | 439 | 55800 | ≤ 60 | 1500 | 220/380 | 1530-1530-400 |
FAN MODEL | Dimention(MM) | ||||||||
A | B | C | D | E | |||||
MHB-620 (20") | 620 | 620 | 370 | 255 | 115 | ||||
MHB-800 (28") | 800 | 800 | 400 | 275 | 125 | ||||
MHB-900 (30") | 900 | 900 | 400 | 275 | 125 | ||||
MHB-1000(36") | 1000 | 1000 | 400 | 275 | 125 | ||||
MHB-1100(39") | 1100 | 1100 | 400 | 275 | 125 | ||||
MHB-1220(43") | 1220 | 1220 | 400 | 275 | 125 | ||||
MHB-1380(50") | 1380 | 1380 | 400 | 275 | 125 | ||||
MHB-1530(55") | 1530 | 1530 | 400 | 275 | 125 | ||||
Main Feature
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust;
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
Details Images
FAN BLADES
1. Material : Krupp 430 Stainless Steel, Thickness 1.2 mm
2. Diameter: 1250 mmAdvantage:
Large Air Flow, No Deformation, No fracture, No Dust, Attractive and Durable.
Note:
Blade Material Also Have Galvanized Sheet, Aluminum Alloy for Chooice.
BELT PULLEY
1. Material: High Strength Aluminum-Magnesium Alloy by Die-Casting.
2. Blast-Sanding Treatment, Eliminate Internal Stress to Improve Its Own Rigidity and Stability
Advantage:
Light Weight, Low Vibration ,Attractive appearance.
2. Blast-Sanding Treatment, Eliminate Internal Stress to Improve Its Own Rigidity and Stability
Advantage:
Light Weight, Low Vibration ,Attractive appearance.
DYNAMIC-BALANCE TESTER
Fan Blades Are Adjusted by Dynamic-Balance Tester, the Weight Tolerance of Each Blade is Controlled Within 1 g.
Advantage:
Ensure the Fan Smooth Running, Lower Vibration, Less Noise, Increase Stability.
Advantage:
Ensure the Fan Smooth Running, Lower Vibration, Less Noise, Increase Stability.

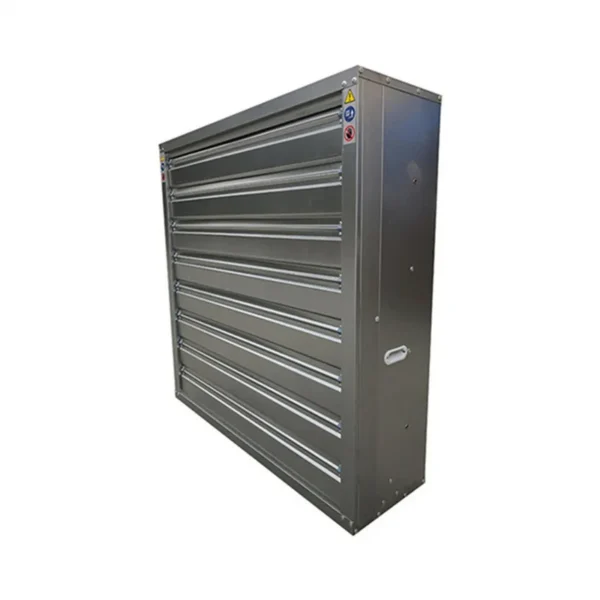

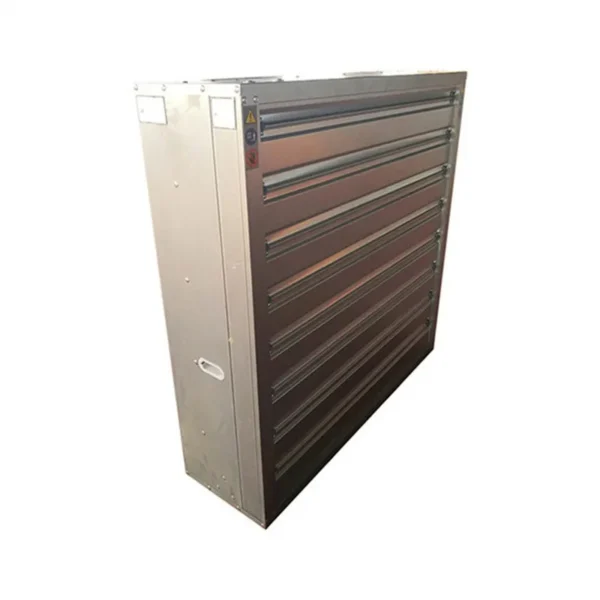

OPENING SYSTEM
1.Material: High Quality Nylon PA66
2.Guide Rod: 304 Stainless Steel with Special Material Outside, High Strength,No Rust, Reduce Friction.
3.Rivet: 304 Stainless Steel , Wear-Resisting, No Rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.
2.Guide Rod: 304 Stainless Steel with Special Material Outside, High Strength,No Rust, Reduce Friction.
3.Rivet: 304 Stainless Steel , Wear-Resisting, No Rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.
BEARING
Imported Double-Row Bearing With Special Waterproof Design.
Advantage:
High Strength, Low Noise, Free Maintenance and Long Service Life.
Advantage:
High Strength, Low Noise, Free Maintenance and Long Service Life.
BELT
Brand: Mitsuboshi Belt (Japanese)
Type: A type
Advantage:
Famous Brand; Long Service life;
Type: A type
Advantage:
Famous Brand; Long Service life;
Maintenance Free.
SAFE NET
Material: Hot-Dip Galvanized Wire is Coated With Plastic
Advantage:
Double Protection to Ensure Never Rust.
Advantage:
Double Protection to Ensure Never Rust.
BLADE SUPPORT BASE
1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-In Connection
Advantage:
Compare With The Traditional Welding Connection , Our New Type Aluminum Magnesium Alloy Base Has Greatly Reduced the Friction Coefficient, Fixed More Firmly,
2. Type: Plug-In Connection
Advantage:
Compare With The Traditional Welding Connection , Our New Type Aluminum Magnesium Alloy Base Has Greatly Reduced the Friction Coefficient, Fixed More Firmly,
MOTOR
1. Brand: Chinese Famous motor,
Siemens & ABB & WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor Voltage and Frequency can be Customized.
100% Cupper Wire
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor Voltage and Frequency can be Customized.
100% Cupper Wire
Shandong Muhe machinery Co., Ltd is a company that engages in the research of air-flow
dynamics and environmental control.lt specializes in designing and manufacturing temperature controlling machineny. through intensive cooperation with renowned universities in China, our company has established a research institute that combines the aspects of study, research and production in order to develop innovations in machinery involved with ventilation and heating as well as products for poultry facilities. With the help of CAD software and advanced technology abroad, we aim to design products that exhibit energy saving properties that operate with high efficiency, all while maintaining environmental friendliness.
Shandong Muhe Machinery Co., Ltd is a pioneer and leader in the industry of ventilating, cooling and heating equipment that is used in workshops, conservatories and standard poultry shacks.
Muhe provides products in six series, as well as over thirty types of devices to include poultry fans,cooling pads, negative pressure blowers,gardening fans, roofing automatic ventilation devices,axial flow fans, air fumnaces, various tvpes of feeding eauipment and So on. These products can be widely used in a variety of settings within both agriculture and industry.
dynamics and environmental control.lt specializes in designing and manufacturing temperature controlling machineny. through intensive cooperation with renowned universities in China, our company has established a research institute that combines the aspects of study, research and production in order to develop innovations in machinery involved with ventilation and heating as well as products for poultry facilities. With the help of CAD software and advanced technology abroad, we aim to design products that exhibit energy saving properties that operate with high efficiency, all while maintaining environmental friendliness.
Shandong Muhe Machinery Co., Ltd is a pioneer and leader in the industry of ventilating, cooling and heating equipment that is used in workshops, conservatories and standard poultry shacks.
Muhe provides products in six series, as well as over thirty types of devices to include poultry fans,cooling pads, negative pressure blowers,gardening fans, roofing automatic ventilation devices,axial flow fans, air fumnaces, various tvpes of feeding eauipment and So on. These products can be widely used in a variety of settings within both agriculture and industry.
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–29 set: US $130 / set
- 30–59 set: US $128 / set
- 60–299 set: US $127 / set
- 300+ set: US $120 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow exhaust fan?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this axial flow exhaust fan carry?
It is supplied with CE/ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial flow exhaust fan be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
