Axial flow fan — 110V, blade material Cast Iron. The complete factory specification follows. Made by Beijing Zihang Dahui Electronics Co., Ltd. (7 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Axial Flow Fan
- Model Number: HA1238B1LL
- Voltage: 110V
- Blade Material: Cast Iron
- Material: Cast Iron
- Warranty: 2 Years
- Place Of Origin: Beijing, China
Technical Specifications
| Voltage | 110V |
|---|---|
| Blade Material | Cast Iron |
| Electric Current Type | AC |
| Mounting Type | Free Standing |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Beijing, China |
| Brand Name | Hang Da Hui |
| Model Number | HA1238B1LL |
| Name | Axial Flow Fans 120x120x38 12038 120mm cooling fans AC |

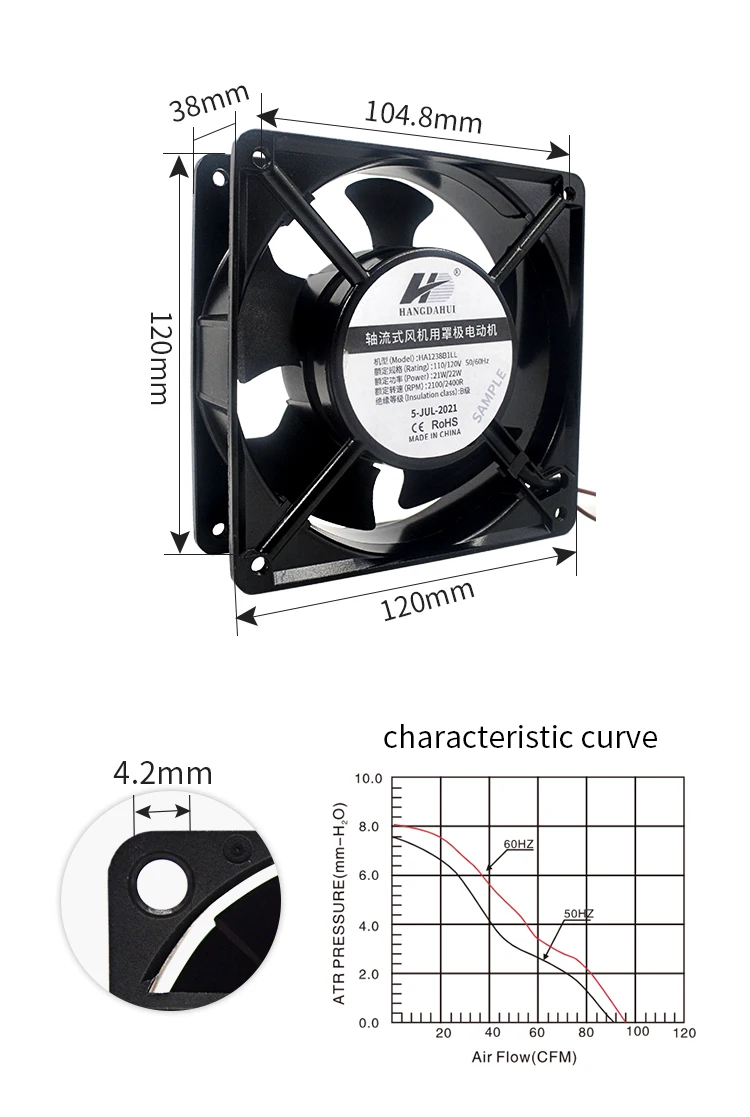

| Size | 120x120x38mm |
| Bearing Type | Ball |
| Material | Cast Iron |
| Motor Type | AC |
| Application | Case cabinet |
| Operating Temperature | -20°C-+70°C |
| Storage Temperature | -40°C-+90°C |
| Frame | Plastic (UL94V-0) |
| Packaging Details | Packaging: Usually we use standard export packaging. We can also according to the requirements of customers. Transportation: 1. Courier company: DHL, UPS, FEDEX, TNT is our main courier company. 2. Aviation: Delivery from the Beijing Airport to the air port of the customer’s destination city. 3. Shipping: Delivery from Tianjin Port. |
| Selling Units | Single item |
| Single Package Size | 15X10X15 cm |
| Single Gross Weight | 1.0 kg |
Product Details
4 inches 100V 110v 220v 230v Axial Flow Fans 120x120x38 12038 120mm cooling fans AC
| Model | Rated Voltage | Bearing System | Freq | Rated Gurrent | Speed | Input Power | Max.Air Flow | Max.static Pressure | Noise |
| VDC | HZ | A | RPM | W | CFM | MMH2O | dB | ||
| HA1238S(B)1HL | 110V | Sleeve/Ball | 50/60 | 0.24/0.22 | 2600/3000 | 23.0/21.0 | 80/91 | 6.80/8.50 | 42/46 |
| HA1238S(B)1ML | 110V | Sleeve/Ball | 50/60 | 0.15/0.14 | 2400/2700 | 17.0/14.0 | 72/83 | 5.10/6.80 | 39/42 |
| HA1238S(B)1LL | 110V | Sleeve/Ball | 50/60 | 0.11/0.10 | 2100/2400 | 10.0/9.0 | 66/72 | 3.20/5.10 | 35/39 |
| HA1238S(B)2HL | 220V | Sleeve/Ball | 50/60 | 0.24/0.22 | 2600/3000 | 23.0/21.0 | 80/91 | 6.80/8.50 | 42/46 |
| HA1238S(B)2ML | 220V | Sleeve/Ball | 50/60 | 0.15/0.14 | 2400/2700 | 17.0/14.0 | 72/83 | 5.10/6.80 | 39/42 |
| HA1238S(B)2LL | 220V | Sleeve/Ball | 50/60 | 0.11/0.10 | 2100/2400 | 10.0/9.0 | 33/72 | 3.20/5.10 | 35/39 |
| HA1238S(B)3HL | 380V | Sleeve/Ball | 50/60 | 0.07/0.06 | 2600/3000 | 23.0/21.0 | 80/91 | 6.80/8.50 | 42/46 |
Socket with control switch 12038 ac 110v 220v 380v
1 What are kinds of cooling fan or centrigugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan and blower fan.
2 What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3 How many types bearing of our cooling fan are there in our compnay at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000 hours.
4 How to detect the data of cooing fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5 How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $4.8 / piece
- 100–4999 piece: US $4.5 / piece
- 5000+ piece: US $3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 110V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
