Key specification for this axial flow fan: 48v 110v 240v 380v, blade material Plastic. Everything below is reproduced from the factory data sheet. Made by Shenzhen Caforre Technology Co., Ltd. (3 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Axial Flow Fan
- Voltage: 48v 110v 240v 380v
- Blade Material: Plastic
- Material: Plastic Blade
- Speed: 2300RPM-3000RPM
- Warranty: 1 Year
- Certification: CE
Technical Specifications
| Voltage | 48v 110v 240v 380v |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | AC |
| Mounting Type | Duct Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | Caforre |
| Material | Plastic Blade |
| Size | 150*150*51mm |
| Bearing Type | Sleeve |
| Noise | 45~50dBA |
| Speed | 2300RPM-3000RPM |
| Product Name | Exhaust Cooling Fan |
| Fan Type | Aixal Fan 6-blade Aluminium Alloy |
| Application | Industrial Equipment |
| Certification | CE |
| CertificationS | RoHS |
| Packaging Details | 150mm 15051 Ac Axial Flow Fan Exhaust Cooling Fan Packing details: Inside: Poly velvet Outside: Kmk reinforced carton Fan size: 150*150*51 mm Carton size: 400*340*358mm Piece: 20pcs/carton Net weight: 17kg/carton Gross weight: 18kg/carton |
| Selling Units | Single item |
| Single Package Size | 15X15X5.1 cm |
| Single Gross Weight | 1.200 kg |
| Supply Ability | 200000 pieces per Month |
Product Details

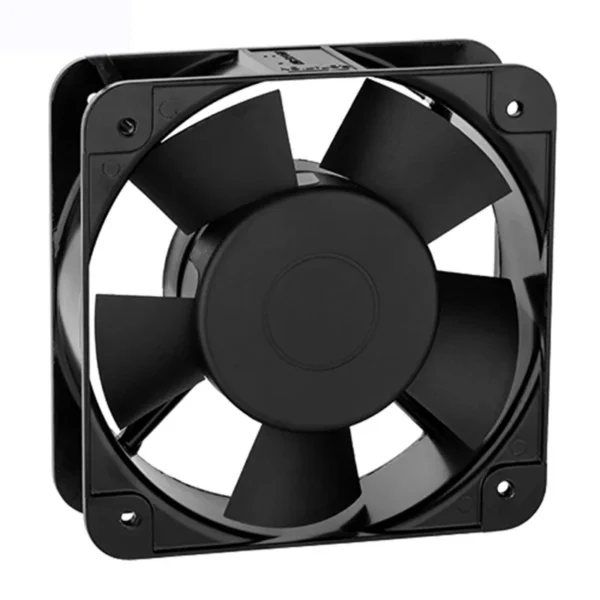

150mm 15051 Ac Axial Flow Fan Exhaust Cooling Fan
Model No : KFL15051
SIZE : 150×150×51mm
CONSTRUCTION :
1.Die-cast aluminum housing
2.Glass fiber reinforced plastic impeller,UL 94V-0 rating
3.High-temperature copper line
4.Insulation Impedance: 500MΩ
5.Resist strength: 2500V/S
6.Leader wire or terminal is available
OPERATING TEMPERATURE :
Ball Bearing -30℃ to + 75℃
Sleeve Bearing -10℃ to + 70℃
|
| Bearing
| Voltage (V) | Frequency (Hz) | Current (A) | Input Power (W) | Speed (RPM) | Air Flow | Static Pressure (mmH2O) | Noise (dB)-A | |
| (m3/min) | (CFM) | |||||||||
| KFL15051HA1 | Ball | 110/120 | 50/60 | 0.50/0.45 | 37/36 | 2600/3000 | 5.37/6.65 | 190/235 | 16.00/17.78 | 45/50 |
| KFL15051HA1 | Sleeve | 110/120 | 50/60 | 0.50/0.45 | 37/36 | 2600/3000 | 5.37/6.65 | 190/235 | 16.00/17.78 | 45/50 |
| KFL15051HA2 | Ball | 220/240 | 50/60 | 0.25/0.22 | 38/35 | 2600/3000 | 5.37/6.65 | 190/235 | 16.00/17.78 | 45/50 |
| KFL15051HA2 | Sleeve | 220/240 | 50/60 | 0.25/0.22 | 38/35 | 2600/3000 | 5.37/6.65 | 190/235 | 16.00/17.78 | 45/50 |
| KFL15051HA3 | Ball | 380 | 50 | 0.11 | 38 | 2600 | 5.37 | 190 | 16 | 45 |
| KFL15051HA3 | Sleeve | 380 | 50 | 0.11 | 38 | 2600 | 5.37 | 190 | 16 | 45 |
|
Shenzhen Caforre Technology co., ltd is a professional manufacturer, we are majored in producing, AC Tubular Axial Fan, DC Cooling fan,cross-flow fan,and professional waterproof cooling fan. The main using is in ventilation, IT, machine, home appliances, power supply, welding machine, medical equipment, communication equipment, instrument measuring appliance, cabinet, electric radiator, water pump, wall stove, oven, air disinfect fresh machine, humidifier, refrigerator, store system, drying machine etc.. |  |
Q1: Are you manufacturer?
A1: Yes, we are the manufacturer of mixer and filling lines over 15 year’s experience.
Q2:How can I know your machine has good quality?
A2:We will send video of the machine working condition, video chatting see our workshop and also you can come to visit our factory.
Q3:What is your advantage?
A3: 1)Competitive price; 2)Excellent technical support; 3)Great after-sale service; 4)Over 15 years experience
Q4:What is the payment terms?
A4:30% deposit, the balance before delivery.
Q5:How long of the delivery time?
A5: Normally 40-50 working days depend on the detail machine you request.
Q6:What is your warranty time?
A6:One year. Life-long maintenance services and technical support.
Q7:Can you offer overseas service?
A7: Yes, if request. We suggest online problem solving firstly, if the problem still shows we can arrange engineer to go to your factory to solve the issue.
Ordering and Pricing
- Minimum order quantity: 20 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this axial flow fan carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 48v 110v 240v 380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Caforre Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Caforre Technology Co., Ltd. range on HVACR Nexus.
