Key specification for this axial flow fan: 230v, 110v, power source Electric. Everything below is reproduced from the factory data sheet. Made by Ningbo Lionball Ventilator Co., Ltd. (22 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Axial Flow Fan
- Model Number: ECG500A230, ECG500A110
- Power Source: Electric
- Voltage: 230v, 110v
- Blade Material: Stainless Steel
- Warranty: 1 Year
- Certification: UL
Technical Specifications
| Voltage | 230v, 110v |
|---|---|
| Type | ac axial fan |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Field Maintenance and Repair Service |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | LIONBALL |
| Model Number | ECG500A230, ECG500A110 |
| Motor Technology | EC |
| Impeller | PA66 Plastic |
| Rotor | Steel |
| Type Of Protection | IP44 |
| Insulation Class | F |
| Approvals | CCC CE |
| Temperature | -20° -+50° |
| Technical Feature | 0-10V/PWM/RS-485 |
| Protection | Over voltage/Lock rotor |
| Certification | UL |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

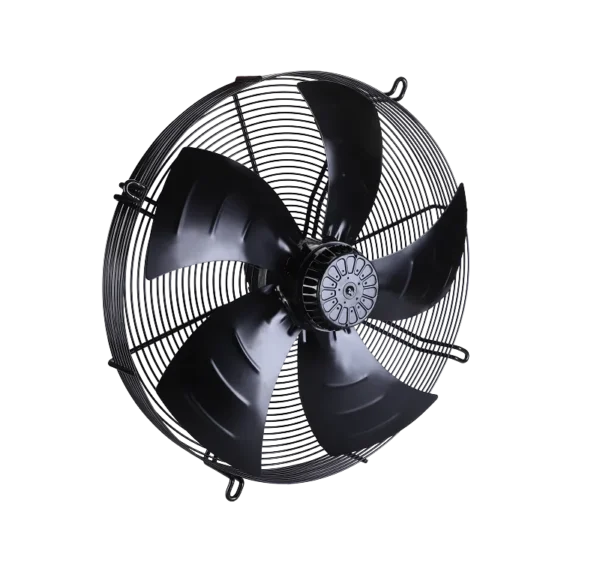

Professional factory 500mm EC vertical axial flow fan for freezing chamber
| MODEL | ECG500A230 | ECG500A110 |
| VOLTAGE(V) | AC 1~200~270 | AC 1~100~130 |
| FREQUENCY(HZ) | 50/60 | 50/60 |
| CURRENT(A) | 3.01 | 6.02 |
| INPUT POWER(W) | 247 | 247 |
| SPEED(RPM) | 1030 | 1030 |
| MAX AIR FLOW(M3/H) | 6049 | 6049 |
| No. | Frequency | Current | Power | Speed | Air flow | Static pressure |
| (Hz) | (A) | (W) | (r/min) | (m3/h) | (Pa) | |
| 1 | 50 | 1.11 | 136 | 750 | 2063 | 63 |
| 2 | 50 | 1.04 | 126 | 750 | 3131 | 11 |
| 3 | 50 | 0.93 | 111 | 750 | 3739 | 21 |
| 4 | 50 | 0.82 | 95 | 750 | 4423 | 0 |
| 5 | 50 | 2.09 | 266 | 900 | 1853 | 105 |
| 6 | 50 | 1.73 | 217 | 900 | 3524 | 63 |
| 7 | 50 | 1.60 | 200 | 900 | 4059 | 43 |
| 8 | 50 | 1.42 | 177 | 900 | 4711 | 21 |
| 9 | 50 | 1.25 | 155 | 900 | 5310 | 0 |
| 10 | 50 | 3.01 | 391 | 1030 | 3022 | 105 |
| 11 | 50 | 2.60 | 337 | 1030 | 4499 | 62 |
| 12 | 50 | 2.35 | 306 | 1030 | 4909 | 42 |
| 13 | 50 | 0.96 | 247 | 1030 | 6049 | 0 |
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500+ piece: US $35 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this axial flow fan carry?
It is supplied with CCC CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 230v, 110v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
