This axial flow fans is published with the manufacturer’s full specification — 12v/24v, blade material Plastic. Made by Shenzhen Yirongchuan Electronic Technology Co., Ltd. (10 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Axial Flow Fans
- Model Number: YRD6025
- Voltage: 12v/24v
- Blade Material: Plastic
- Noise Level: 26.7-36.8 dBA
- Warranty: 2 Years
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 12v/24v |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | DC |
| Mounting Type | Free Standing |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | YRC |
| Model Number | YRD6025 |

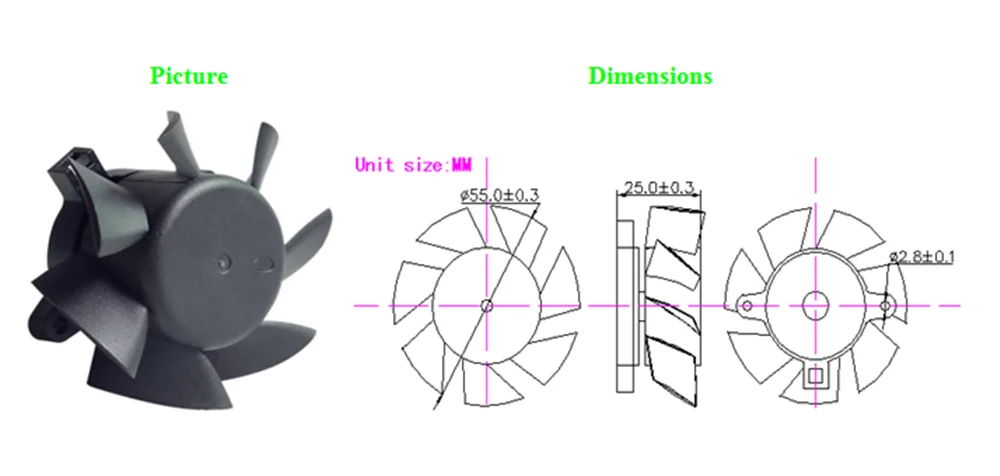

| Size | 60*60*25 mm |
| Function | FG/RD/TC/PWM |
| Lead Wire | UL type/Terminal |
| Bearing Type | Sleeve/Ball |
| Noise Level | 26.7-36.8 dBA |
| Color | Black |
| Product Name | 6025 60*60*25 mm Frameless DC Fan 12 volt 24 volt Radiator Cooling Fan |
| Packaging Details | Package as customer required. |
| Port Of Dispatch | Shenzhen/HK |
| Selling Units | Single item |
| Supply Ability | 500000 pieces per Month |
Product Details

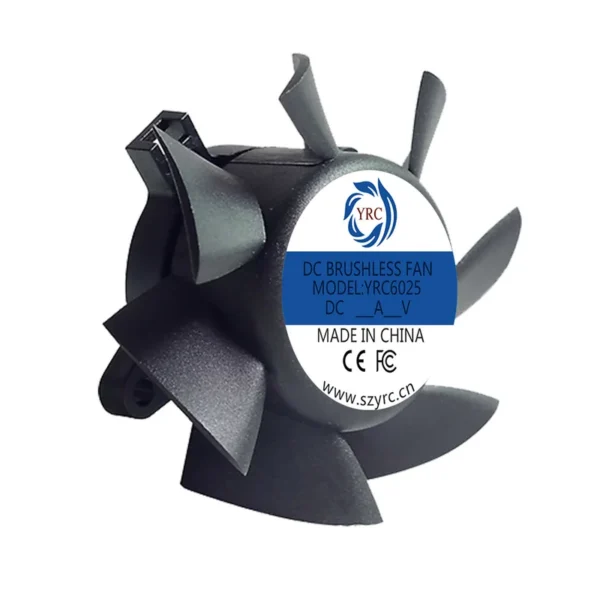

2 inch frameless 6025 12V 24V dc motor brushless axial fan for computer 60*60*25
1.Mini DC axial fan blade 12/24v available.
2.FG & RD function can be customized as customers required.
3.OEM & ODM service acceptable.

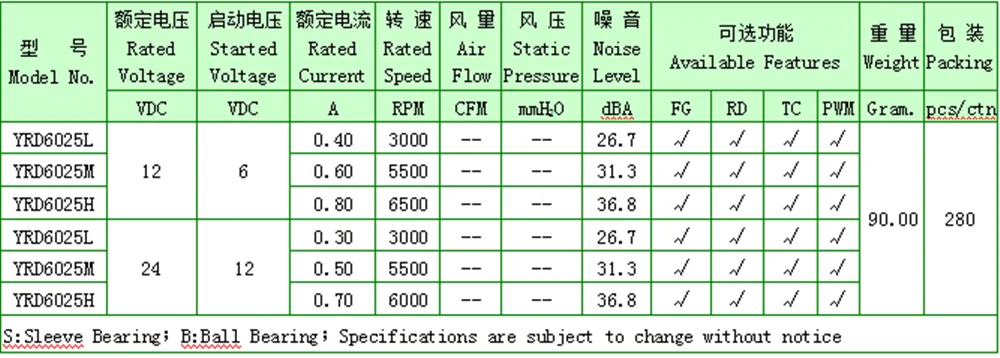

Specification
| Size | Air Volume | Size | Air Volume |
| 20*20*6mm | 0.77-1.41CFM | 60*60*15mm | 13.7-26.6CFM |
| 20*20*10mm | 0.62-1.24CFM | 60*60*25mm | 18.2-29.6CFM |
| 25*25*7mm | 1.3-2.3CFM | 60*60*38mm | 5.8-11.3CFM |
| 25*25*10mm | 1.5–3.1CFM | 70*70*10mm | 12-23.1CFM |
| 30*30*7mm | 2.16-3.41CFM | 70*70*15mm | 20.6-30.5CFM |
| 30*30*10mm | 3.2-5.2CFM | 70*70*20mm | 17.29-25.54CFM |
| 35*35*10mm | 3.1-6.1CFM | 70*70*25mm | 24.8-39.6CFM |
| 40*40*7mm | 3.2-5.4CFM | 80*80*10mm | 17.5-29.3CFM |
| 40*40*10mm | 5.1-7.9CFM | 80*80*15mm | 29.5-41.2CFM |
| 40*40*15mm | 3.7-5.6CFM | 80*80*20mm | 29-48.9CFM |
| 40*40*20mm | 4.9-8.4CFM | 80*80*25mm | 29.3-50.1CFM |
| 40*40*28mm | 9.8-15.7CFM | 90*90*25mm | 28.3-58.1CFM |
| 45*45*10mm | 4.5-7.22CFM | 92*92*25mm | 35.5-90.9CFM |
| 50*50*10mm | 5.5-10.9CFM | 120*120*25mm | 54.6-84.6CFM |
| 50*50*15mm | 7.1-10.1CFM | 120*120*32mm | 80.35-112.82CFM |
| 50*50*20mm | 12.6-18.9CFM | 120*120*38mm | 80.4-128.8CFM |
| 50*50*25mm | 8.6-16.1CFM | 120*120*38mm | 82.4-130.8 CFM |
| 60*60*10mm | 10.7-18.6CFM | 172*152*51mm | 116.1-166.5CFM |
| 60*60*20mm | 14.1-26.3CFM |
Packaging Details: Package as customer required.
- Delivery Detail: 3-20 days
With professionalism and passion, Shenzhen YiRongChuan Electronic Tech. Co., Ltd. was founded in 2005 as a producing & sales company. We have specialized in cooling fans for more than 10 years. Our main products including DC fans, AC fans, AC centrifugal fans, Water-Proof/Dust-Proof fans, EC inverter fans, Brushless motor etc. We always focusing on the R&D, production for we wanted to give our client a good shopping experience. And we committed to being the first brand of cooling fan industry in China.
We had built up standard product R&D and production system, such as: Reliability Laboratory, Noise Testing Room, Air Flow & Pressure Testing System, High-precision Dynamic Balance Equipment and self-development Smart Production Management System; meanwhile, we passed the ISO9001, our company strictly produce the product under ISO9001 management system. We are looking forward to your visit.
Production Process
Test Equipment
CERTIFICATE
1.How about the lifetime about fan?
Life Expectancy:
Dual Ball Bearing: 50000 hours
Sleeve Bearing: 30000 hours
Hydraulic Bearing: 30000 hours
2.What effects the quoted price for the fan?
The specification(size),bearing type and voltage.
3.Certification?
CE, ROHS,ISO9001 Approved.
4.Delivery time?
Sample lead time:3-5 days
Delivery lead time:2 weeks
5.Terms of payment?
Payment by T/T or Paypal .
100% payment for sample orders .
30% deposit and 70% balance before shipment .
6.Delivery ways ?
FedEx, DHL ,UPS,TNT Door to Door service ,By Air ,By Sea ,etc.
1. Warranty: 1 years with YRC Brand and 5 years with NMB-YRC.
2. Private Labelling: All of axial fans are able to be Private labeled.
3. Products Quality: 100% products inspection before delivery.
4. Customized Service: As we have our own molding department,
customized service can be provided.
5. Prompt customers Services: E-mail will be replied in 24 hours
6. Sample: available for you (low value sample is free, others is charged)
7. Finger protected cover or duct protected cover free for you with fans.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–4999 piece: US $2 / piece
- 5000+ piece: US $0.6 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fans?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fans be supplied for my local voltage?
The standard configuration is 12v/24v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Yirongchuan Electronic Technology Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Yirongchuan Electronic Technology Co., Ltd. range on HVACR Nexus.
