Key specification for this axial flow fans: voltage 380-480v, max airflow 235000m³/h (13800CFM). Everything below is reproduced from the factory data sheet. Made by Goodwind LLC (2 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Axial Flow Fans
- Model Number: YDA098DECGS
- Power Source: Electric
- Voltage: 380-480v
- Max Airflow: 235000m³/h (13800CFM)
- Blade Material: Aluminum Alloy
- Material: High-strength double-layer Fiberglass
Technical Specifications
| Fan Type | Exhaust Fan |
|---|---|
| Type | exhaust fan |
| Blade Diameter | 98inch |
| Voltage | 380-480v |
| Speed | 300RPM |
| Blade Material | Aluminum Alloy |
| Material | High-strength double-layer Fiberglass |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Control Methods | App Control |
| Mounting Type | Wall Fan |
| Warranty | 3 Years |
| After-Sales Service Provided | Online support |
| Place Of Origin | Texas, United States |
| Brand Name | Bonawind |
| Model Number | YDA098DECGS |
| Installation | Eye bolts are pre-installed for chains |
| Frame Size | 2870*2870*750mm(L*W*H/mm)113"*113"*29.5" |
| Rotation Speed | 310r/min |
| Product Name | 98” Exhaust fan with roll up door |
| Max Airflow | 235000m³/h (13800CFM) |
| Blade | riveted in one time, good balance and low noise |
| Protection Level | IP55 |
| Noise | ≤72dB |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

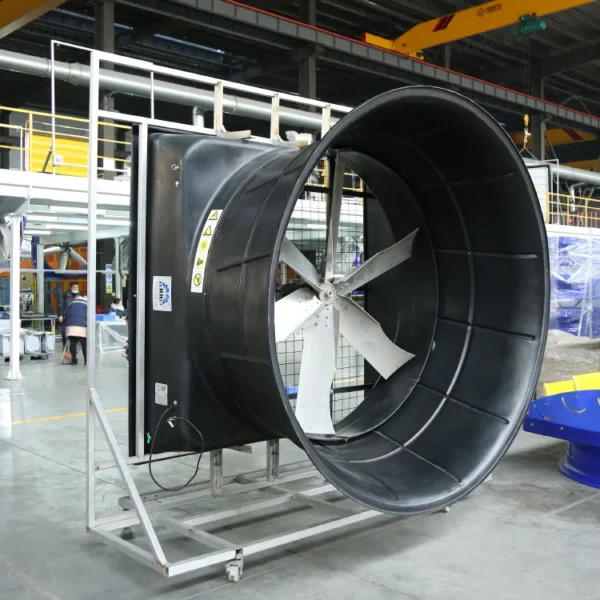

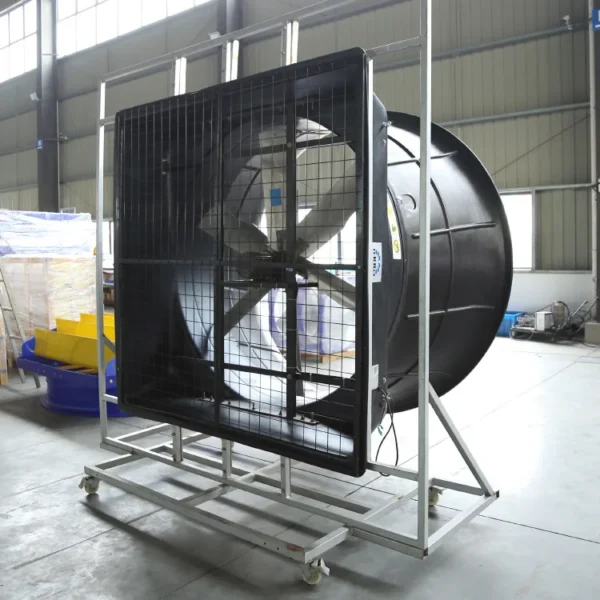

BONAWIND 98INCH EXHAUST FANKEY UPGRADES AND FEATURES

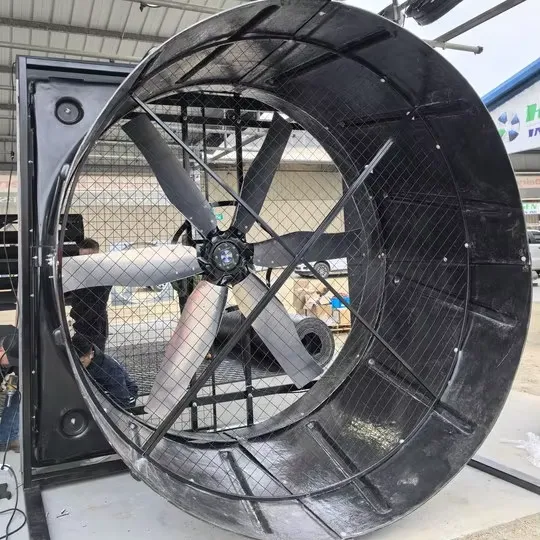

1.Design: High-strength fiberglass housing, corrosion-resistant, structurally robust, and long-lasting. 2.Motor Performance: Outer rotor permanent magnet brushless DC motor, highly efficient, energy-saving, low-noise, stable, and reliable. 3.Blade Material: Full aluminum alloy blades, lightweight yet strong, delivering high and even airflow with long service life. 4.Control System: Compatible with the Bonawind IoT APP system for intelligent speed control, real-time monitoring, and convenient adjustments. 5.Installation: Wall-mounted design for easy installation and convenient maintenance.
Product Name | 98’’Exhaust fan |
Frame Size | 113”*113”*28.7” |
Frame Material | High-strength double-layer Fiberglass |
Installation | Eye bolts are pre-installed |
Power | 3PH/380-480V/50-60HZ |
Max Airflow | 13800CFM |
Rotation Speed | 300r/min |
Current | 10A |
Input Power | 5000w |
Air Volume/W | 47m³/h |
Protection Level | IP55 |
Noise | ≤70dB |
1.Can be equipped with the Bonawind Internet of Things APP system. 2.Insulated and Rust-Free Housing. 3.Outer rotor permanent magnet brushless DC motor. 4.Full alloy fan blades ensure the strength of the blades while providing strong and
uniform airflow. 5.To quickly expel indoor stale air and enable fresh air to circulate inside, creating a
continuous indoor airflow.
uniform airflow. 5.To quickly expel indoor stale air and enable fresh air to circulate inside, creating a
continuous indoor airflow.

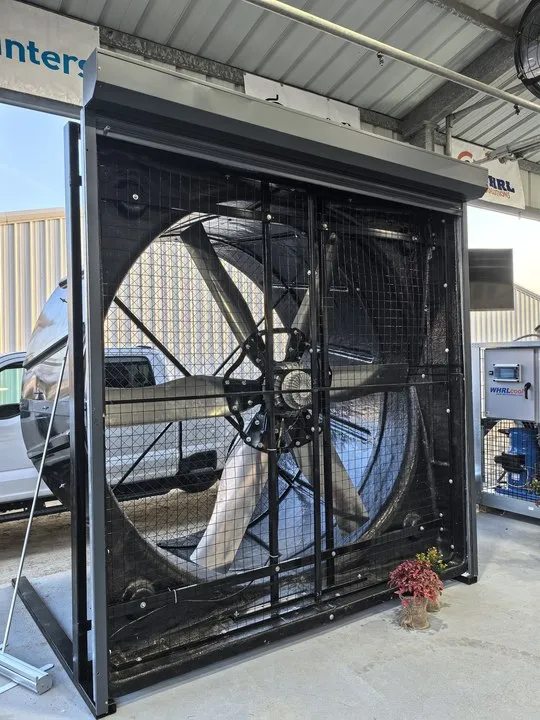

6.A roll up door is Equipped.
With Bonawind’s versatile design, our 98'' Exhaust Fan can be customized to meet your specific requirements, including single-phase or three-phase motors configured for the appropriate voltage in your region, as well as blade materials and installation options. Please contact us to tell us your needs, and we will gladly provide the best solutions.
''Bonawind'' brand established in 2002, recognized for high-quality industrial ventilation solutions.The advantages can be summarized as follows:
Fair Price All products are sold directly from the manufacturer, eliminating middlemen and giving customers maximum cost-effectiveness. Stable Quality With over 23 years of experience, Bonawind has an expert technical team, mature production processes, and reliable suppliers to ensure consistent product quality. Professional Service Our enthusiastic sales team is available 24/7, with responsive after-sales staff ready to provide efficient and comprehensive support. Independent Spare Parts Support Bonawind operates its own spare parts service, offering fast and comprehensive parts procurement to save your time. 100% full inspection of every fan, 23 quality inspection processes, which include noise, vibration, blade speed, air volume, concentric performance, efficiency, etc.
Good heat dissipation, high efficiency, large torque, and more durable.
Driven by innovation, we hold over 20 patents and serve customers in more than 110 countries. Our commitment to excellence is reinforced by a rigorous in-house quality management system, ensuring top-tier standards in every product.
Goodwind has actively participated in exhibitions in the USA, Germany, and other European countries. We are committed to serving all esteemed industries all over the world.
We sincerely hope to work together with you and establish a win-win cooperation in the future. Thank you very much for visiting our website, and we hope you find products you like. When you contact us, we will provide the following professional and enthusiastic services:
Q: Are your fans manufactured by the original factory? A: Yes, Bonawind is the official leading manufacturer of high-quality industrial and commercial fans in the USA. Q: What is the delivery time? A: Delivery is usually made within 30 working days after receiving the deposit. Q: What payment terms are acceptable? A: Typically, we accept a 30% advance payment by T/T, and the remaining 70% is payable after the fan is completed. Q: What is the transportation method? A: Our fans are mainly transported by sea or land, depending on your location and order quantity. Q: Why should I purchase from Bonawind instead of other suppliers? A:We are a factory, reducing intermediary costs and lowering your procurement expenses. We continuously innovate, adopt new technologies, and develop new fan models to meet market demands. Bonawind products are recognized for high quality and reliability, with many models certified by CE and ISO.
Our fans have been sold globally, covering Europe, North America, South America, and Southeast Asia, and are widely trusted by customers. Q: What is the warranty period? A: 3-year warranty. Q: Do you accept customized fans? A: Yes, we accept customized fans, including options for size, voltage, motor type, blade material, and OEM/ODM branding.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $8545 / piece
- Ships from: US
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fans?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fans be supplied for my local voltage?
The standard configuration is 380-480v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
