Key specification for this ball bearing: 110V/120V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Zhengzhou Airmoving Technology Co., Ltd. (7 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ball Bearing
- Model Number: AM8025H1
- Power Source: Electric
- Power: 12Watts
- Voltage: 110V/120V
- Material: Aluminum Alloy
- Blade Material: Plastic
Technical Specifications
| Voltage | 110V/120V |
|---|---|
| Speed | 2500 RPM |
| Type | Adjustable Blade Axial Fan |
| Material | Aluminum Alloy |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 5 year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Henan, China |
| Brand Name | AM |
| Model Number | AM8025H1 |
| Product Name | AC Brussless Fan |
| Size | 80X80X25MM |
| Frame Material | Aluminum |
| Rated Speed | 2500RPM |
| Lead Wire | 2Wire |
| Power | 12Watts |
| Number Of Blades | 7 |

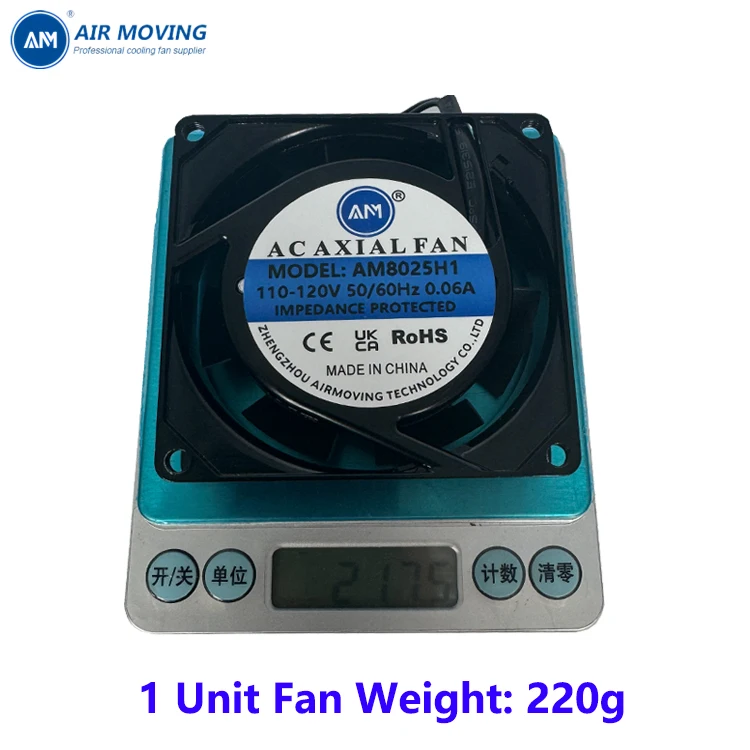

| Weight | 230g |
| Certification | Ce RoHS |
| Selling Units | Single item |
| Single Package Size | 9X9X5 cm |
| Single Gross Weight | 0.250 kg |
Product Details
AM8025H1B 110V 120V Ball Bearing AC Metal Cooling Axial Fan 8025 Muffin Fan 80mm x 25mm Ventilation Exhaust Fan Aluminum Frame Coil copper wire
They are having in stock and can be ready to ship immediately.
They are factory direct and can provide customized sample testing.
Please Browse Following You Can Learn Much More……
Part 1 : Why Choose Us?
1. Manufacturer-supplied
2. Quality Assurance
3. Support Customization
4. Large Quantities Are Preferred
5. The Specifications Are Complete
6. Wide Range Of Applications
7. After-sales Friendly
8. Efficient and Professional Communication From Sales Team & Technical Team

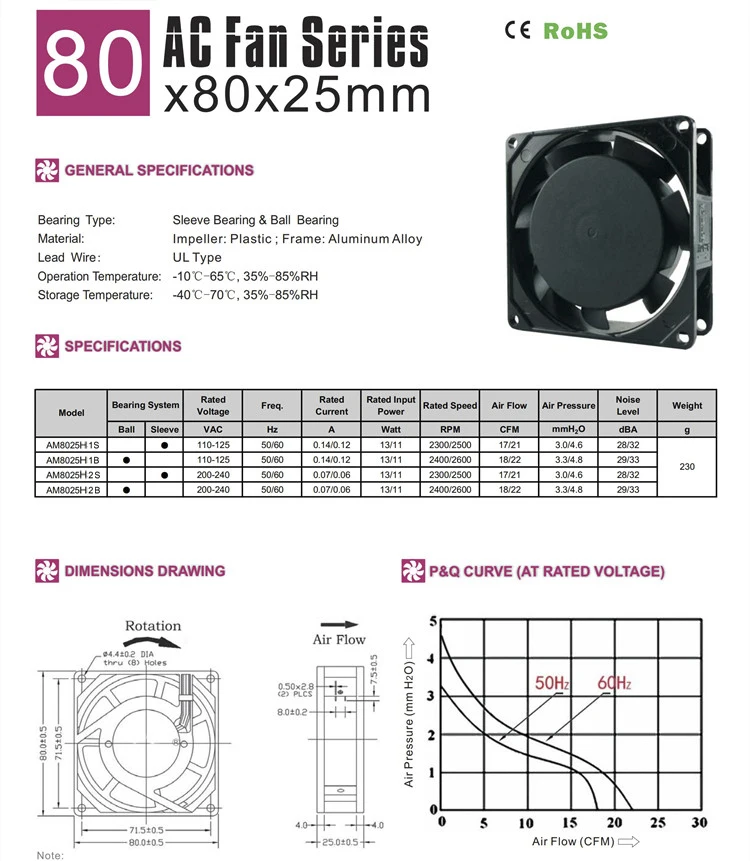

Part 2: Fan Basic Specifications:
1.Brand: AM
2.Model: AM8025H1B
3.Cooling Method: Air
4.Airflow Direction: Axial Flow

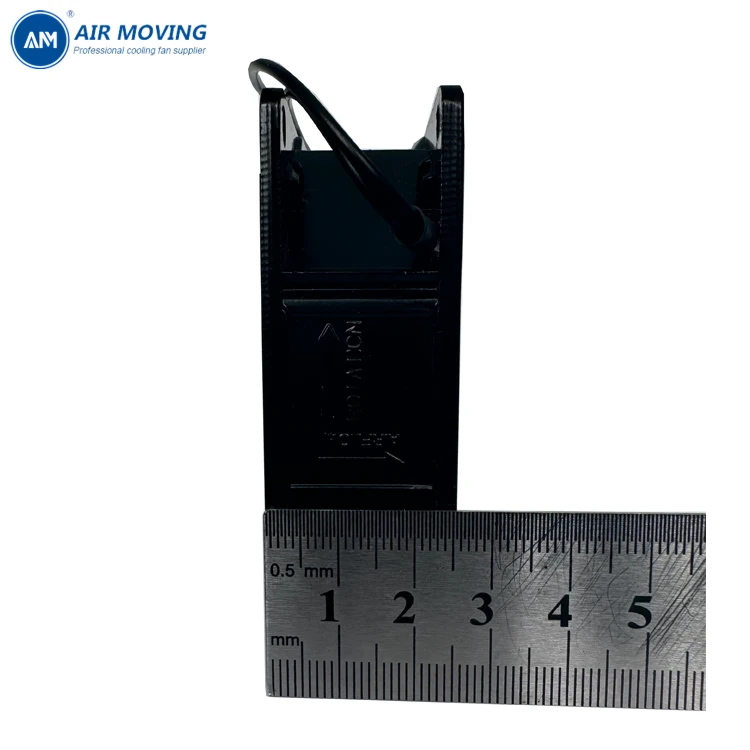

5.Product Dimensions: 80 x80x 25mm
6.Voltage: 110-120 Volts (AC)
7.Current: 0.13A
8.Noise Level: 30 dBA
9.Maximum Rotational Speed: 2500 RPM
10.Material: Impeller:Plastic; Frame:Aluminum Alloy
11.Bearing System: Ball Bearing
12.Lead Wire: 2 Wires
13.Cable Length: 25cm
14.Power Mating Connector Type: No Connector
15.Customizable Items: Voltage,Current,Speed,Bearing(Ball,Sleeve), Cable(2,3,4,5 Wires), Cable Length,Power Mating Connector Type(2,3,4,5PIN),Blade&Housing Material(Ordinary, Environmentally Friendly, Fireproof),Label(You can put your own label)
More About This Fan:
1. Dimension: 80mm(L) x 80mm(W) x25mm(H). Rated Voltage 110-120V,Speed 2500RPM,High-quality Impeller:Plastic; Frame:Aluminum Alloy.
2. High Quality: AM fan 110V 120V Air Circulating Fan Low Watt Consumption.
3. with its compact size of 80mm x 25mm, this fan is perfect for small spaces where airflow is essential. The fan operates on AC power and is available in multiple voltage options, including 110V, 115V, 120V, making it suitable for use in a wide range of countries and regions.
4.Application scenarios:Popular uses include audio video receiver ,heat generating goodies cabinet,server rack,storage shed,server room,garage,tanning beds, LED signs, server racks, industrial machinery, arcade systems, and more.

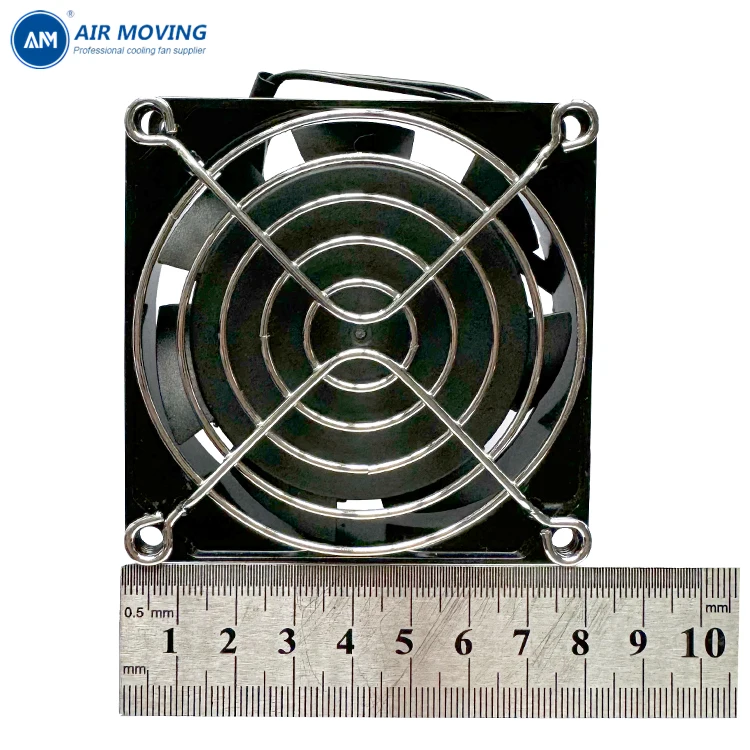

5. Provide grills on both sides of the fan.Designed for projects that requires cooling or ventilation.Great replacement for old fan on wetsuit dryer.Replacement fans for 110-120v welder.Put this in networking equipment closet to help keep temps down.Cooling the air pump for pond.
6.The fan can be customized according to requirements: silent, moisture-proof, waterproof IP55 IP65 IP68, reverse polarity protection, blocked rotor protection, overvoltage and overcurrent protection, automatic restart, slow start, FG signal speed measurement, RD alarm function, PWM speed regulation and other functions. Environmentally friendly fireproof material.

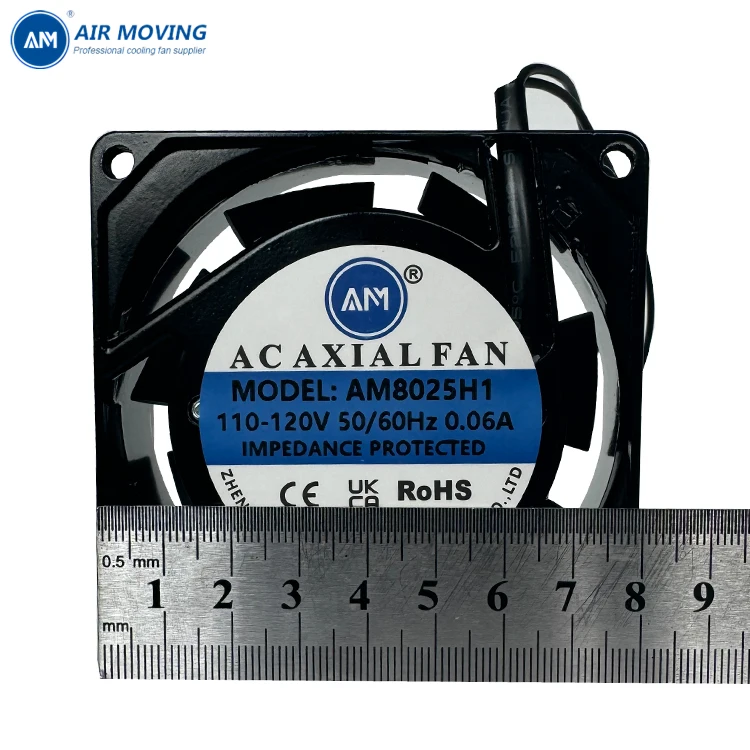

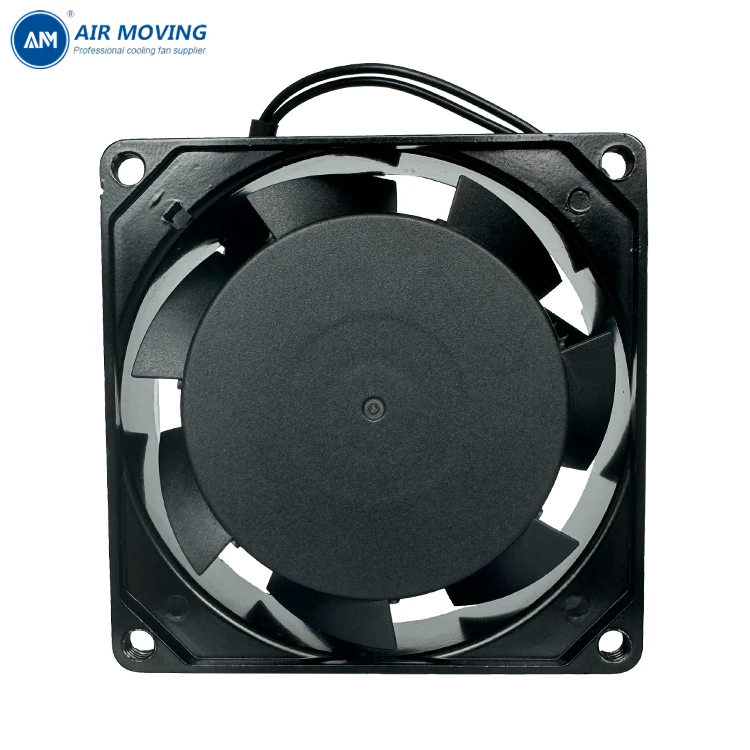

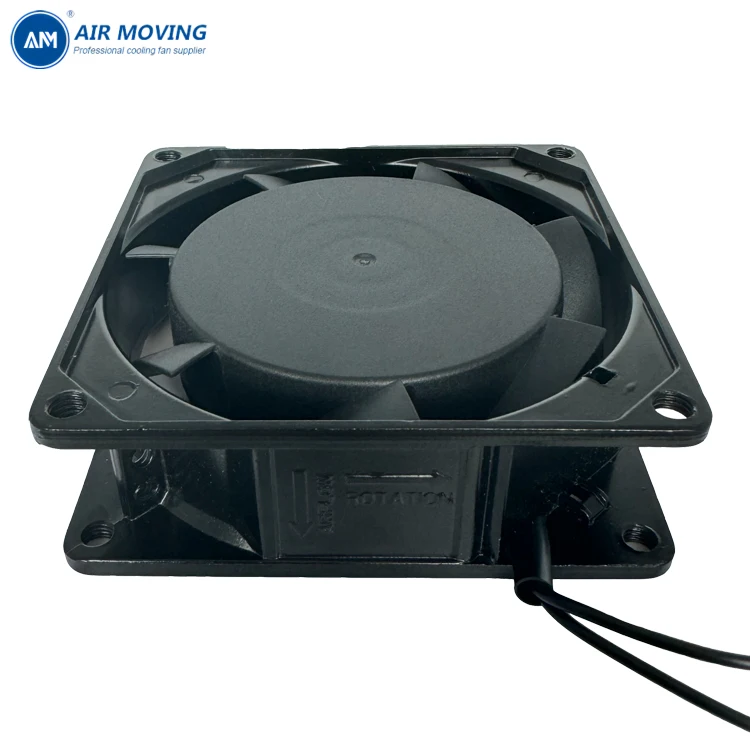

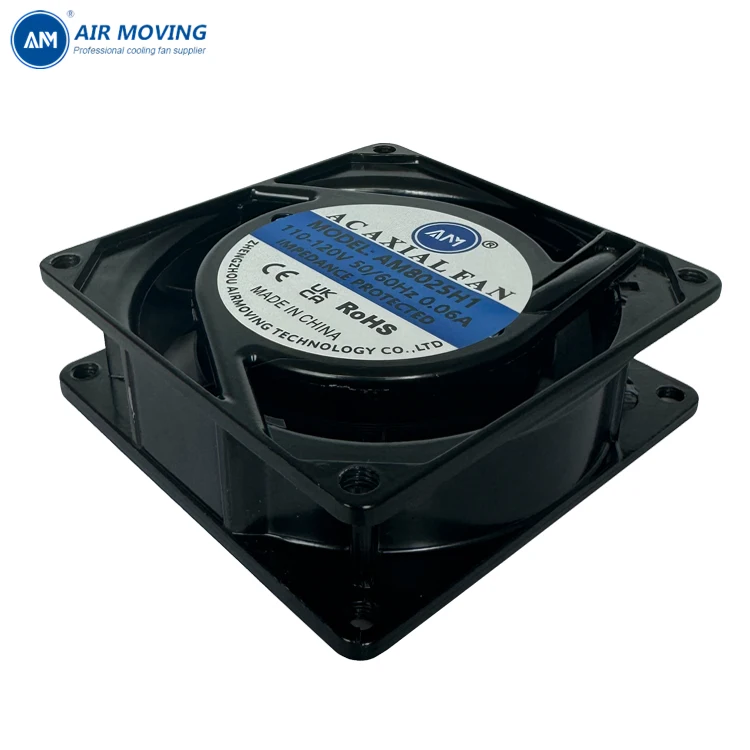

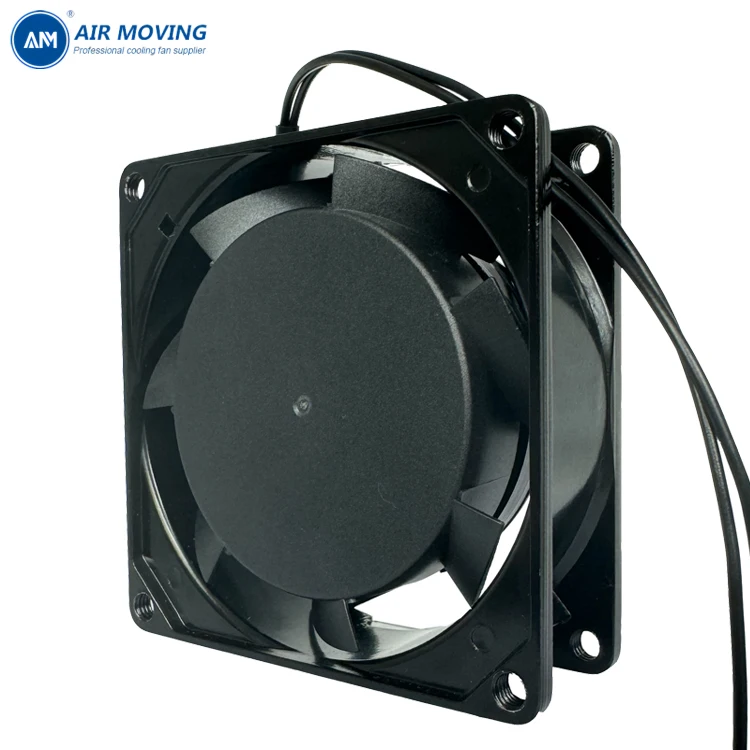

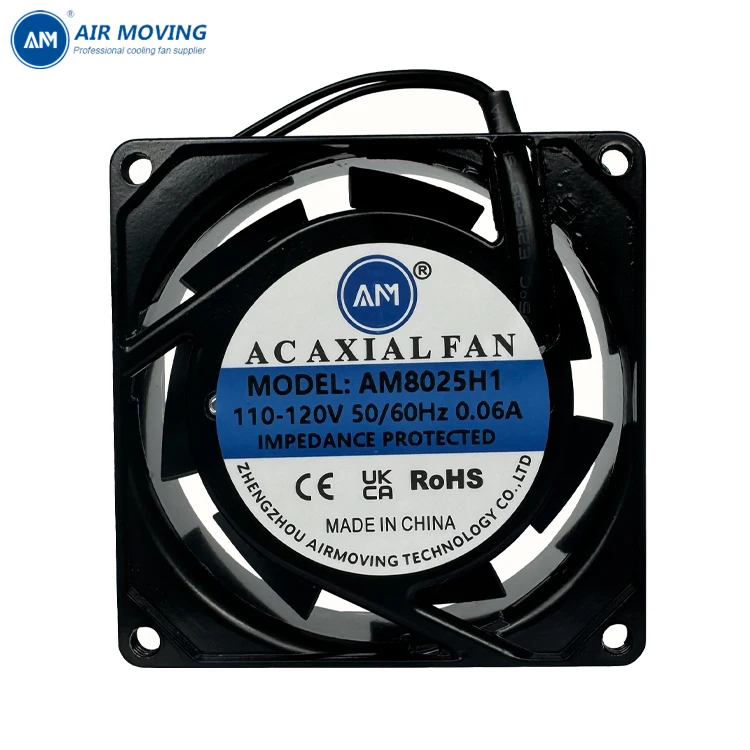

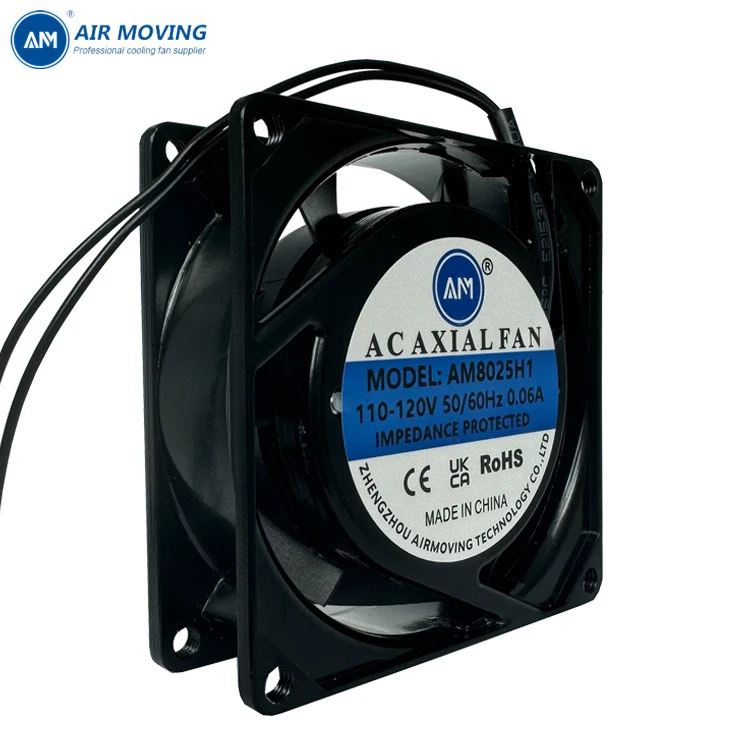

Part 3: Fan Pictures Share.
Fan Model NO. : AM8025H1B
Part4: Fan Packing and Carton Specifications.
Carton Packing with Paper Cards
Fan Model NO. : AM8025H1S
Carton Meas: 46X21X22CM
Quantity Per Carton: 60pcs
Carton Gross Weight: 14kg
Part5: How to Contact US ?
1. If You Are Registered As An Alibaba Buyer Member
You Can Online Add Our TradeManager ID: amfan
2. If You Are An Internet Traveler and Are Looking For Other Fan Products of Interest.
Welcome to Our Alibaba Store: https: //amfan.en.alibaba.com
Or Visit Our Website: www.am-fan.com
3. If You Prefer to Communicate Via Email. Please Contact Our Email ID
4. Other Ways You May Like to Contact Us: Phone, Wechat, WhatsApp We also have them.
Part6: How To Customize?
Customized Process:
How to choose the most suitable fan?
A. Look at the current—— the same speed, the same voltage, the same air volume. A cooling fan with low current is better. Because the lower the current, the lower the fan loss, that is, the less energy consumption.
B. Listen to the noise—— the same speed, the same voltage, the lower the noise of the cooling fan, the better, because the low noise is mainly related to the fan blades, bearings, oil, assembly structure, etc.
The better the design of the fan blade shape, the greater the air volume and the lower the noise, which is a technical process and a test of the ability of technicians.
The higher the accuracy of the bearing, the smaller the friction with the shaft core, the more accurate the size matching, and the lower the noise, which is very related to the material of the bearing.
If the noise is low, it means that the friction is small, the life of the bearing and shaft core will be longer, and the life of the DC fan will also be longer.
C. Measuring vibration —— the same specification and speed of the fan, the heat dissipation fan with low vibration is better, the smaller the vibration, the more stable the fan operation, the smaller the loss of the bearing and the shaft core, and the longer the service life.
More Customization Options:
1.More Fan Measurements
For AC / DC / EC / Blower Fans We Can Provide Measurements: 15-280mm
Please Click Here
2. Operating Voltage:110V,115V,120V
3. Current: Customized to Your Needs
4. Speed:High speed 2600RPM,Medium speed 2500RPM,Low speed2400 RPM.
5. Bearing Types:Sleeve Bearing,Ball Bearing
A. Sleeve Bearing (estimated life of 10,000 hours) use sliding friction sleeves, and blade shafts use lubricating oil in sleeves as lubricants and drag reducers. Advantages: low noise, not suitable for long-term operation.
B. Ball Bearing (estimated life of 50,000 hours) adopts the form of rolling friction, and there are several tiny steel balls in the bearing that rotate around the shaft, so the friction is very small, and there is no oil leakage. Advantages: stable operation, suitable for long-term operation, long service life.
6. Impeller&Housing Material: Plastic Impeller and Aluminum Alloy Frame, Metal Impeller or Metal Frames For Special Needs.
7. Fan Label: You can put your own label.
8. Cable Length: Regular Cord Length: 15CM, 20CM, 25CM, 30CM, or Customized to Your Needs.
9. Fan Motor Coil Material:
Part7: High-volume Orders Delivery and Shipping?
Step1: Plywood Pallets Are Used, Which Meet the Import and Export Requirements.
Step2: Stack Cartons Onto Pallets.
Step3: Wrap Plastic Film and Reinforce the Carton.
Step4: Paste the Marks & Numbers.
Step5: Packing Belts Secure Cartons and Pallets.
Step6: Outbound Delivery.
Step7: Waiting for Shipment.
Part8: Small Quantity or Sample Order Delivery and Shipping?
Part9: Learn More About Us……
Part10: FAQ
Q1: Are you a fan trading company or manufacturer ?
A: We are an alibaba approved fan factory located in Zhoukou City, Henan.
Q2: How long is your delivery time?
A: normally 7-10 days. when purchase quantity is over stock, it needs 15-20 days.
Q3: Do you provide samples ? are they free?
A: Yes, we can afford samples free of charge. for freight, pls let us know more about you, we will make free delivery for special customers.
Q4: How can you guarantee your product quality?
A: We are executing ISO 9001 quality control system to produce fans including selective raw materials, strict production formula and 100% testing before fans leave our factory.
Q5: Can you produce customized fans?
A: Yes, that's one of our advantage. We can start from one piece sample.
Q6: What is your fans' warranty?
A: Five years for ball bearing fans, two years for sleeve bearing fans.
One Tips :
AM8025H1 110V 120V Ball Bearing AC Metal Cooling Axial Fan 8025 Muffin Fan 80mm x 25mm Ventilation Exhaust Fan Aluminum Frame Coil copper wire
1. They are having in stock and can be ready to ship immediately.
2. They are factory direct and can provide customized sample testing.
Welcome To Place An Order And Inquire Online At Any Time……
Contact
Jonny SALES MANAGER
ZHENGZHOU AIRMOVING TECHNOLOGY CO.,LTD
TEL/WECHAT/WHATSAPP:+8618638134078
www.am-fan.com
More Products:
| DC FAN | DC FAN | AC FAN | BLOWER | FILTER |
| 25X25X10mm | 80x80x25mm | 80x80x25mm | 30x30x10mm | 80mm metal cover |
| 30x30x10mm | 80x80x38mm | 92x92x25mm | 40x40x10mm | 90mm metal cover |
| 40x40x10mm | 92x92x25mm | 92x92x38mm | 40x40x20mm | 120mm metal cover |
| 50x50x10mm | 92x92x38mm | 120x120x25mm | 50x50x15mm | 80mm plastic filter |
| 50x50x15mm | 120x120x25mm | 120x120x38mm | 60x60x25mm | 90mm plastic filter |
| 60x60x15mm | 120x120x38mm | 172x150x50mm | 75x75x30mm | 120mm plastic filter |
| 60x60x20mm | 120x38mm turbo | 180x180x60mm | 97x97x33mm | 80mm ventilation filter |
| 60x60x25mm | 172x150x50mm | 200x200x60mm | 120x120x32mm | 90mm ventilation filter |
| 70x70x15mm | 200x200x60mm | 225x225x80mm | 140x140x25mm | 120mm ventilation filter |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ball bearing?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ball bearing carry?
It is supplied with Ce RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ball bearing be supplied for my local voltage?
The standard configuration is 110V/120V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
