Key specification for this aluminium axial fan: 220V/380V, power source Electric. Everything below is reproduced from the factory data sheet. For a binding price and lead time, send the volume you need and where it ships to.

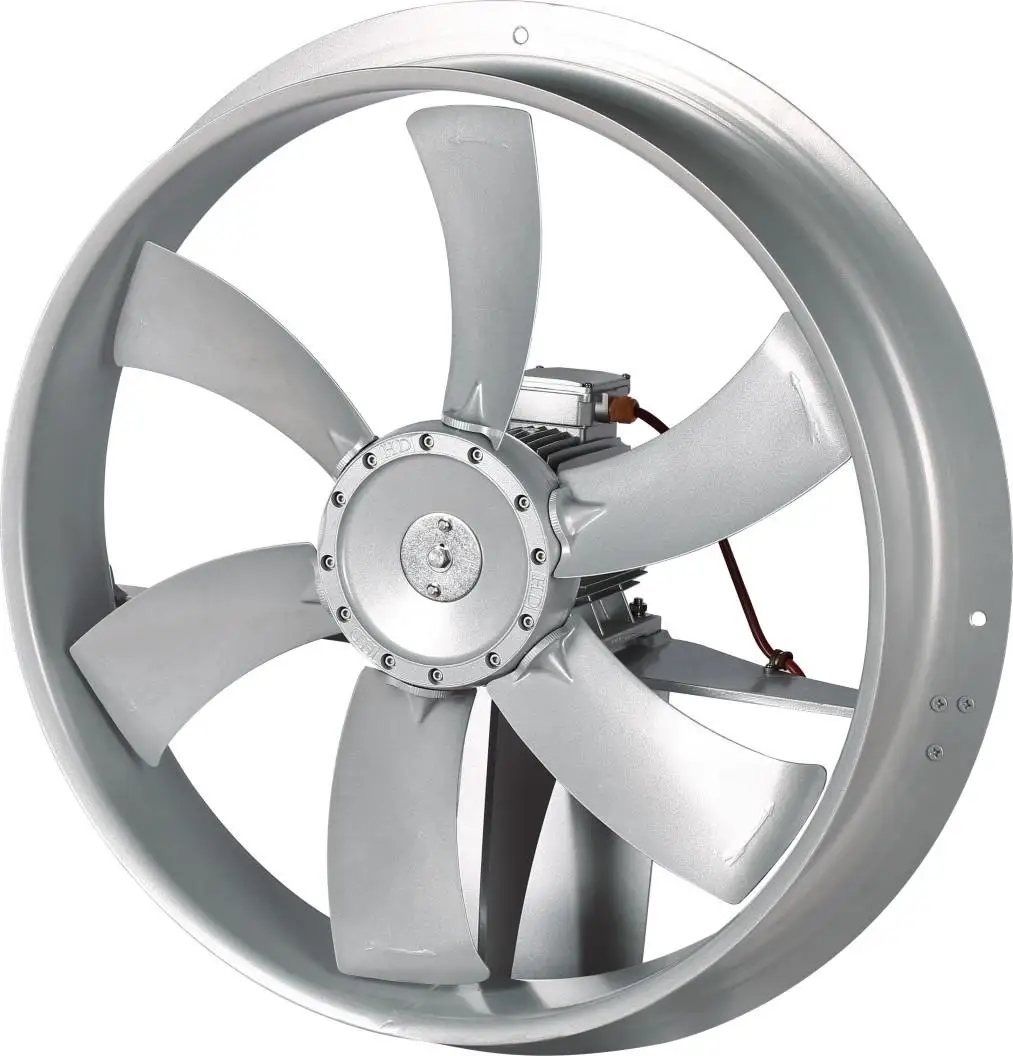

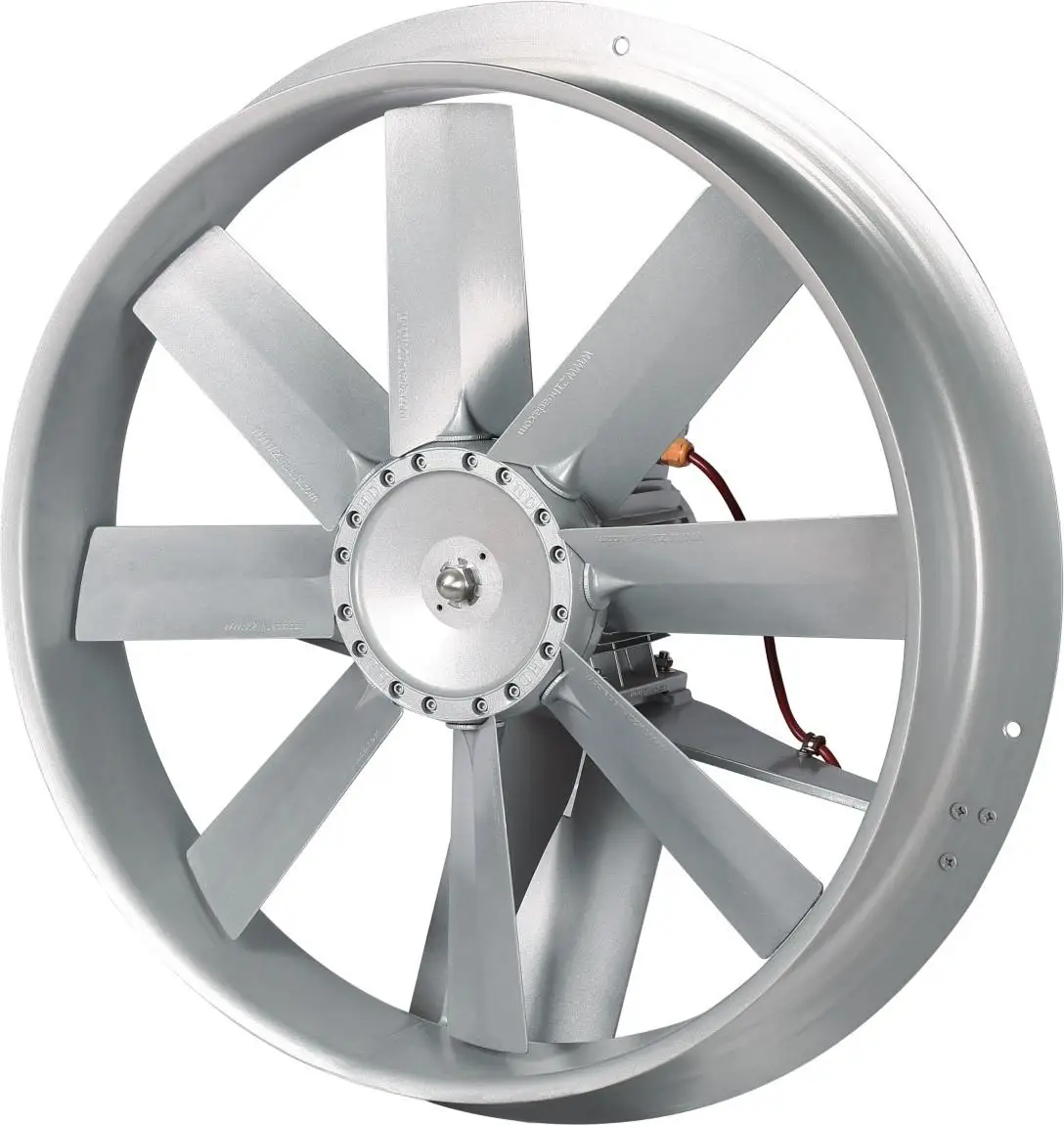

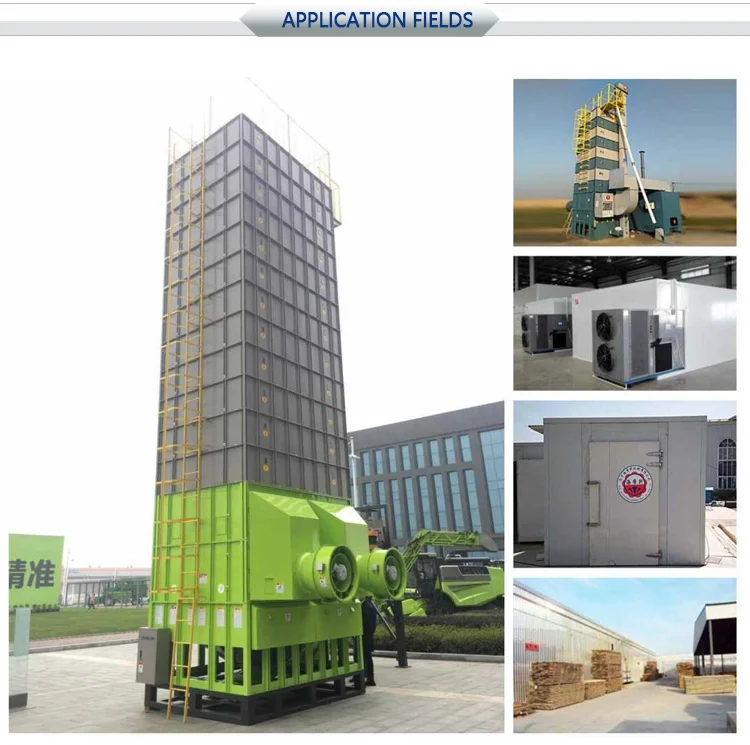

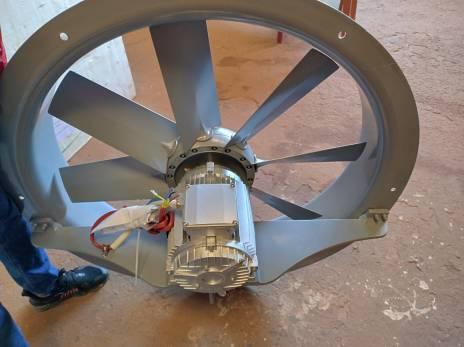

The GKW aluminium axial fan is specified for drying rooms and ovens where a plastic-bladed fan would soften and a steel one would add unnecessary mass. Cast aluminium blades hold their profile at elevated temperature while keeping rotating inertia low, so the ball-bearing motor starts cleanly and runs cool. Four impeller diameters from 400mm to 700mm cover most circulation duties, on either 220V single-phase or 380V three-phase supply.
Key Features of This Aluminium Axial Fan
- Model Number: GKW-5
- Power Source: Electric
- Voltage: 220V/380V
- Blade Material: aluminum
- Warranty: 1 Year
- Place Of Origin: Fujian, China
Technical Specifications
| Voltage | 220V/380V |
|---|---|
| Mounting Type | Free Standing |
| Type | ac axial fan |
| Warranty | 1 Year |
| Power Source | Electric |
| Blade Material | aluminum |
| Bearing Type | Ball Bearing |
| Customized Support | OEM, ODM |
| After-Sales Service Provided | Free Spare Parts |
| Place Of Origin | Fujian, China |
| Brand Name | Huada |
| Model Number | GKW-5 |
| Selling Units | Single item |
| Single Package Size | 58X58X25 cm |
| Single Gross Weight | 32.000 kg |
|
Item No.
|
Speed （rpm)
|
Airflow(m³/h)
|
Total pressure (Pa)
|
Hydrostatic(Pa)
|
Motor No.
|
Power(kw)
|
Noise(dB)
|
No. of blades
|
|
4
|
2900
|
3000-5000
|
110-200
|
60-180
|
712-2
|
0.55
|
≤74
|
6
|
|
4000-6500
|
160-250
|
70-200
|
801-2
|
0.75
|
≤74
|
6
|
||
|
4500-7000
|
200-280
|
80-210
|
802-2
|
1.1
|
≤75
|
6
|
||
|
1450
|
2000-3500
|
60-70
|
30-55
|
711-4
|
0.25
|
≤66
|
6
|
|
|
2500-4000
|
70-78
|
35-55
|
712-4
|
0.37
|
≤68
|
6
|
||
|
2800-4300
|
72-80
|
36-58
|
801-4
|
0.55
|
≤70
|
6
|
||
|
5
|
1450
|
5500-7000
|
130-145
|
70-105
|
801-4
|
0.55
|
≤71
|
6
|
|
6000-8500
|
138-150
|
80-100
|
802-4
|
0.75
|
≤74
|
6
|
||
|
6
|
1450
|
7500-11500
|
140-160
|
80-130
|
90S-4
|
1.1
|
≤76
|
6
|
|
8000-13500
|
160-180
|
80-135
|
90L-4
|
1.5
|
≤78
|
6
|
||
|
7
|
1450
|
10000-17500
|
180-220
|
140-175
|
90L-4
|
1.5
|
≤79
|
6
|
|
12000-20000
|
200-250
|
145-180
|
100L1-4
|
2.2
|
≤80
|
6
|
||
|
8
|
1450
|
15000-25000
|
180-270
|
100-260
|
100L1-4
|
2.2
|
≤81
|
6
|
|
17000-27000
|
210-300
|
120-260
|
100L2-4
|
3
|
≤82
|
8
|
||
|
20000-30000
|
240-330
|
125-265
|
112M-4
|
4
|
≤86
|
8
|
||
|
960
|
13000-20000
|
110-145
|
53-105
|
100L-6
|
1.5
|
≤78
|
8
|
|
|
15000-22000
|
120-155
|
500-100
|
112M-6
|
2.2
|
≤80
|
8
|
||
|
9
|
1450
|
20000-34000
|
240-340
|
160-320
|
112M-4
|
4
|
≤86
|
8
|
|
22000-36000
|
250-350
|
150-310
|
132S-4
|
5.5
|
≤87
|
8
|
||
|
960
|
13000-22000
|
100-140
|
70-120
|
112M-6
|
2.2
|
≤82
|
8
|
|
|
15000-24000
|
12–160
|
70-136
|
132S-6
|
3
|
≤83
|
8
|
||
|
10
|
1450
|
23000-36000
|
250-400
|
160-370
|
132S-4
|
5.5
|
≤87
|
8
|
|
28000-40000
|
270-420
|
165-380
|
132M-4
|
7.5
|
≤88
|
8
|
||
|
960
|
20000-31500
|
150-220
|
90-170
|
132M1-6
|
4
|
≤85
|
8
|
|
|
21000-33000
|
160-230
|
90-176
|
132M2-6
|
5.5
|
≤86
|
8
|
Frequently Asked Questions
What is the minimum order quantity for this aluminium axial fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this aluminium axial fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220V/380V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
