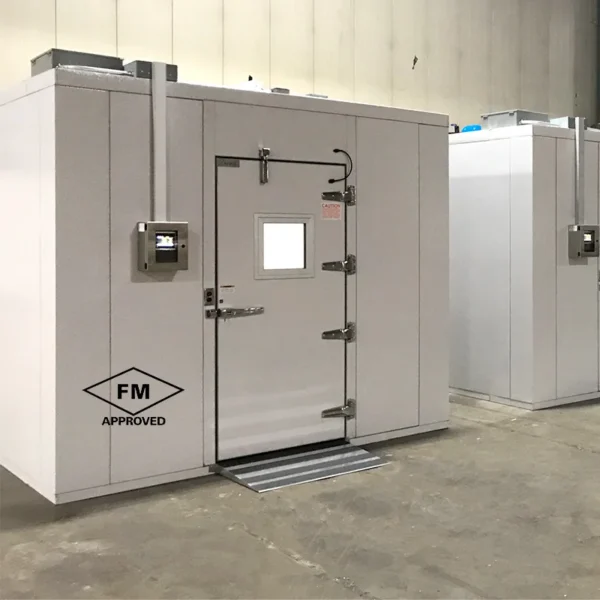

This blast freezer is published with the manufacturer’s full specification — 380v, cooling capacity 50ton. Made by Changzhou Yanghu Refrigeration Equipment Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Blast Freezer
- Voltage: 380v
- Cooling Capacity: 50ton
- Warranty: 2 Years
- Place Of Origin: Jiangsu, China
- Feature: Container
- Type: Cold Room/Freezer Room
Technical Specifications
| Cooling Capacity | 50ton |
|---|---|
| Temperature | -45-20 |
| Compressor Brand | TECUMSEH, Copeland, Bristol, Performer, Bitzer, Daikin, Hitachi, Other, Maneurop, Fusheng, DORIN, Sanyo, Emerson, Frascold, Xumei |
| Voltage | 380v |
| Panel Thickness | 100 mm, 200 mm, 120 mm, 75mm, Other, 50 mm, 150 mm |
| Machinery Test Report | Provided |
| Warranty | 2 Years |
| Feature | Container |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Key Selling Points | Eco-Friendly |
| Place Of Origin | Jiangsu, China |
| Dimension(L*W*H) | custom |
| Functions | keep fresh |
| Type | Cold Room/Freezer Room |
| Insulation | polyurethane |
| Fire Retardant | B2 grade |
| Two Metal Sides Color | ral standard |
| Design | Auto CAD |
| Compressor | Bizer /copeland /Hanbell |
| Packaging Details | prefab houses made in china : film/ wooden case / plywood case |
| Port Of Dispatch | Shanghai |
| Selling Units | Single item |
| Single Package Size | 300X300X300 cm |
| Single Gross Weight | 300.0 kg |
| Supply Ability | 2000 sets per Month expanding |
Product Details

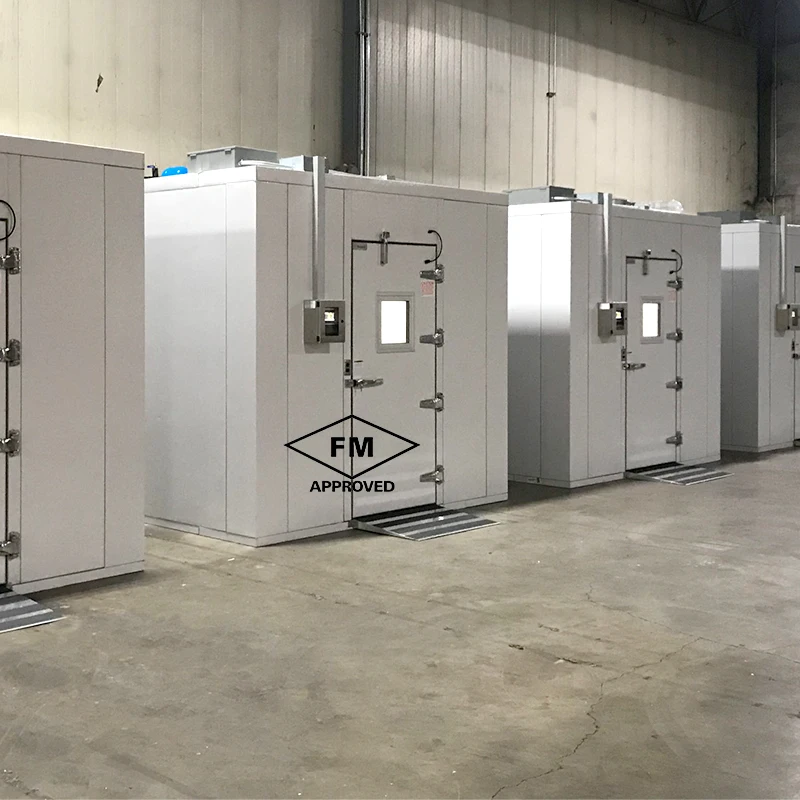

Our insulation panels has been FM certified

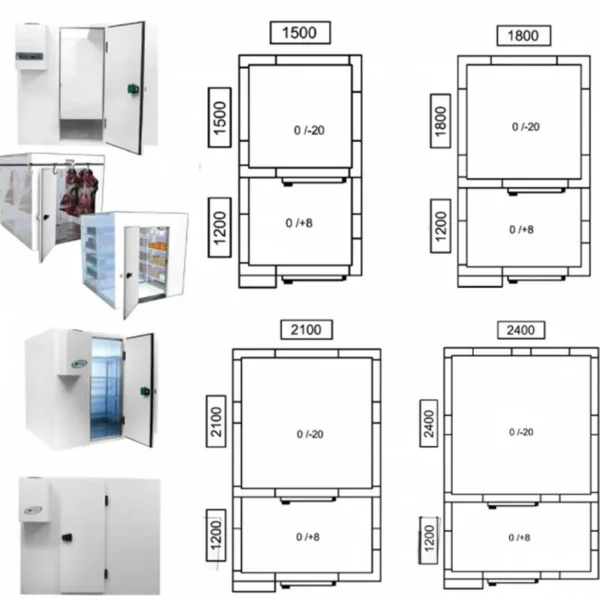

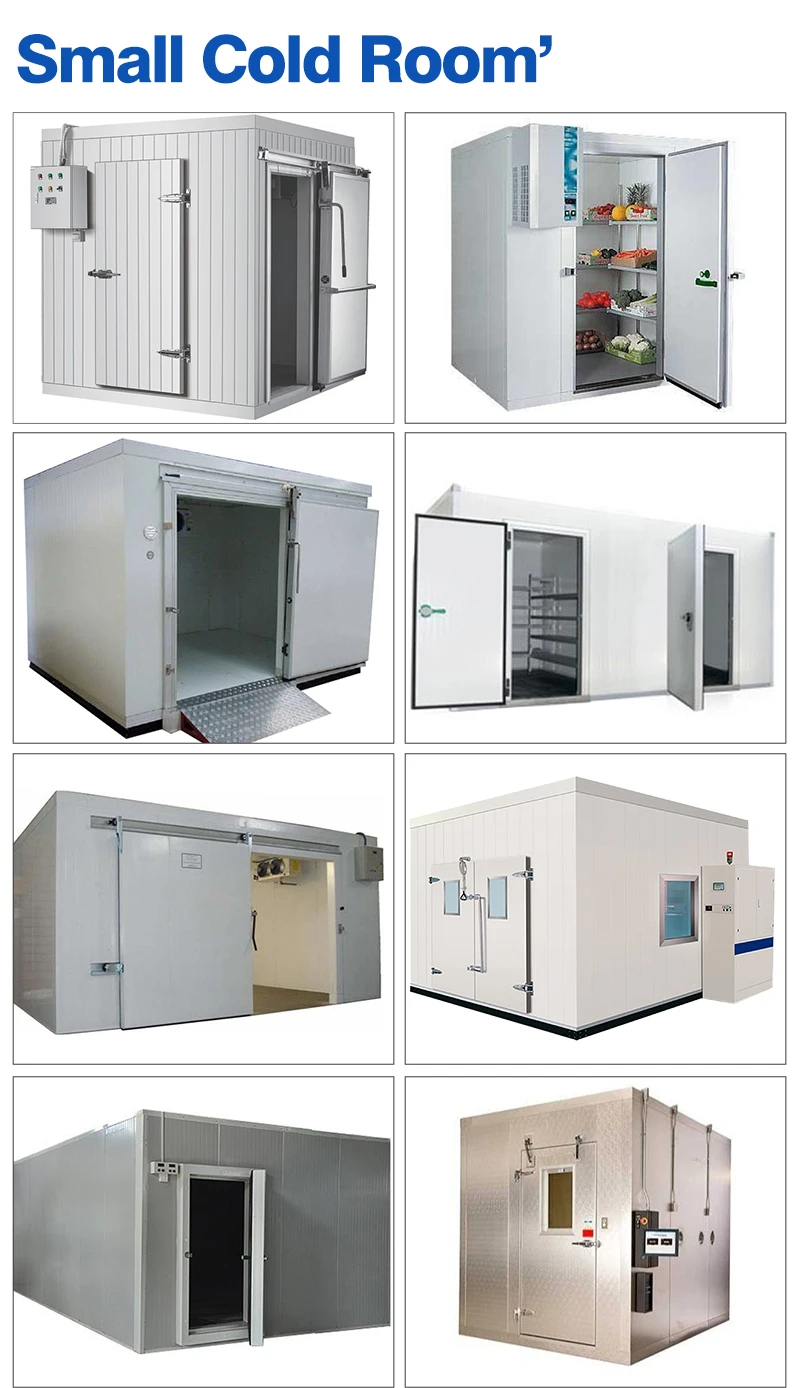

Cold room parameters
Dimension | Length(m)*Width(m)*Height(m) customization |
Refrigeration unit | Copeland/Bitzer etc. |
Refrigeration type | Air cooled/water cooled/evaporation cooled |
Refrigerant | R22,R404a,R447a,R448a,R449a,R507a |
Defrost Type | Electric defrosting |
Voltage | 220V/50Hz,220V/60Hz,380V/50Hz,380V/60Hz,440V/60Hz optional |
Panel | New material polyurethane insulation panel,43kg/m3 |
Panel thickness | 50mm,75mm,100mm,150mm,200mm |
Type of door | Hanged door,sliding door,double swing electric sliding door,truck door |
Temp. of room | -60℃~+20℃ optional |
Functions | Fruit,vegetable,flower,fish,meat,chicken,medicine,chemical,electronics,etc. |
Fittings | All necessary fittings are included,optional |
Place to assemble | Indoor/out door(concrete construction building/steel construction building) |
How to get suitable cold room, the following factors should be fully considered:
1.What is the application of the cold room?
It will affect the temperature of cold room needed to be, and the choice of thickness of pu panel and material covered on panel.
2.What is the size of the cold room?
It will affect the choice of condensing unit and air cooler, basing on the cold room temperature.
3.Which country will the cold room be located in? How about the climate?
It will affect the choice of voltage and condenser, if the temperature is high all the year, we need to choose condenser with
bigger evaporation area.
For custom cold storage please click to contact us..1.What is the application of the cold room?
It will affect the temperature of cold room needed to be, and the choice of thickness of pu panel and material covered on panel.
2.What is the size of the cold room?
It will affect the choice of condensing unit and air cooler, basing on the cold room temperature.
3.Which country will the cold room be located in? How about the climate?
It will affect the choice of voltage and condenser, if the temperature is high all the year, we need to choose condenser with
bigger evaporation area.
Application for example | Application for example |
cold storage goods | tempreture range |
processing room | 10C |
fruit, vegetable, dry food | 0C~-5C |
medicine, cake, pastry, chemical material | 0C~-5C |
ice storage room | -5~-10C |
fish, meat storage | -18~-25C |
deep freezer | -25C~-35C |

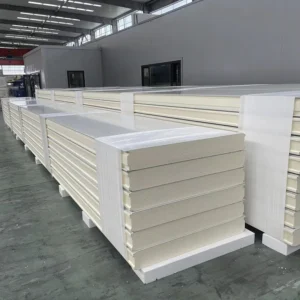

cold room panel
PU PANEL
1. Self-extinguish within 3 to 5 seconds
2. Light weight
3. Non-toxic
4. Anti-corrosion and moistureproof
5 fluorine free environmental protection, non-volatile, to ensure food safety. Strong enough to protect the panel from bending and breakage
7. Beautiful and smooth appearance, percentage of closed area & GT; 8. Low thermal conductivity of 0.018~0.023W/(m-K), half of EPS, good thermal insulation effect
9. Safe and long life
2. Light weight
3. Non-toxic
4. Anti-corrosion and moistureproof
5 fluorine free environmental protection, non-volatile, to ensure food safety. Strong enough to protect the panel from bending and breakage
7. Beautiful and smooth appearance, percentage of closed area & GT; 8. Low thermal conductivity of 0.018~0.023W/(m-K), half of EPS, good thermal insulation effect
9. Safe and long life
PIR PANEL
1. Better insulation property.
2. Better fire retardant class, could match B1 class fire retardant.
3. CFC material.
3. CFC material.
Thickness | Application Temperature |
50MM | Above 15° |
75MM | Above 5~15° |
100MM | Above -5~5° |
120MM | Above -18~-5° |
150MM | Above -40~-18° |

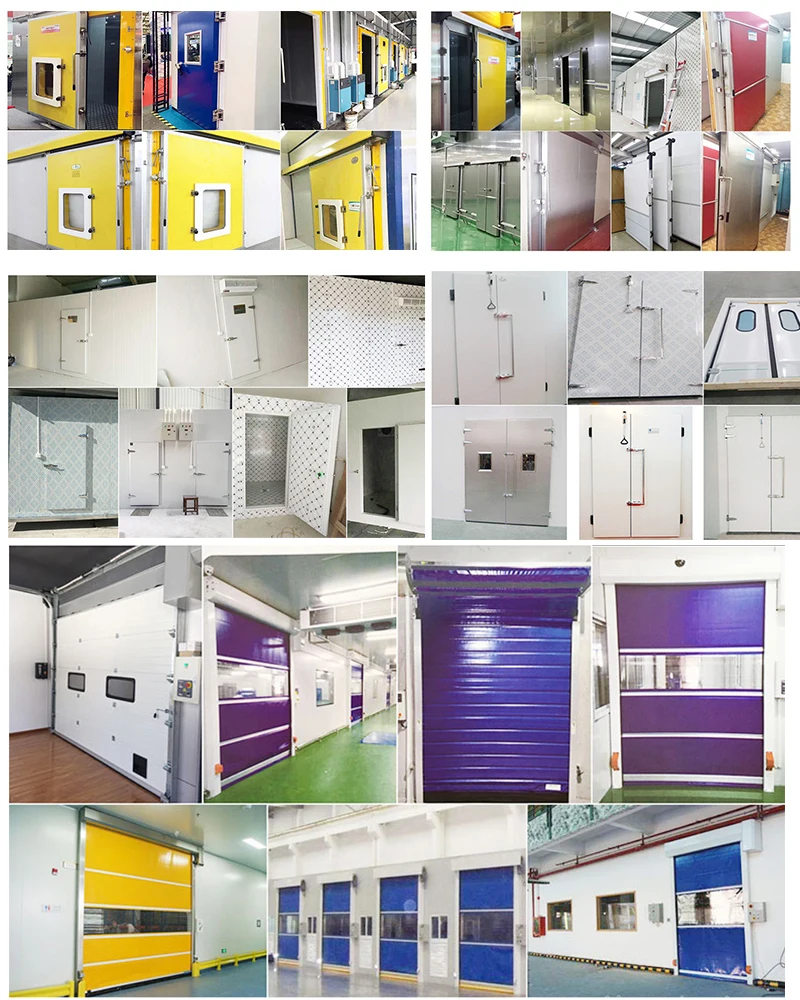

cold room door show
The customization of cold storage door needs to be combined with the needs of cold storage,
please click to contact professional and technical personnel to learn more;
Our custom engineering cases
Walmart
Walmart, COSTCO projects with metro supermarket project photos
Period from production to installation:2 months
Temperature:-18℃～20℃ 0℃～4℃
Panel specifications:7.5cm 15cm pu plug-in panel
Temperature:-18℃～20℃ 0℃～4℃
Panel specifications:7.5cm 15cm pu plug-in panel
HDL
DHL is a famous global delivery and logistics group, Deutsche Post DHL company, DHL is global Courier, intercontinental transportation and air freight leader, is the world's first shipping and contract logistics provider. DHL provide customers from the file to the full range of logistics solutions of supply chain management.Period from production to installation:2 months
Temperature:-18℃～-20℃ 0℃～5℃ -35℃
Panel specifications:20cm /15cm/10cm pu plug-in panel

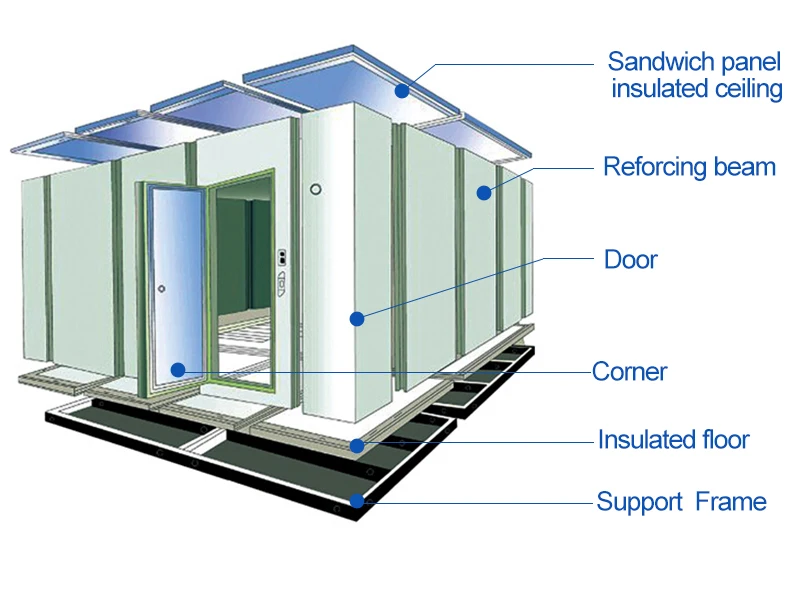

Cold room panels:Top-panel+wall panel
Temperature:-18℃～-20℃ 0℃～5℃ -35℃
Panel specifications:20cm /15cm/10cm pu plug-in panel
Cold room panels:Top-panel+wall panel
shanghai henfu cold storage
This project for the Shanghai heng fu co., LTD in cold chain logistics of the operation of jiading district, Shanghai flagship store.
Period from production to installation:2 months
Temperature:-25℃～-10℃ 0℃～5℃
Panel specifications:50cm /15cm/10cm pu plug-in panel
Cold room panels:Top-panel+wall panel.
Temperature:-25℃～-10℃ 0℃～5℃
Panel specifications:50cm /15cm/10cm pu plug-in panel
Cold room panels:Top-panel+wall panel.
ManyStar Logistics Company Limited.
ManyStar Logistics Company Limited is a focus is engaged in food storage, cold storage, sorting, regional distribution of the temperature control, main less-than-one carload transport, distribution processing and information management of integrated Logistics service enterprises.
Period from production to installation:1.5 months
Temperature:-20℃～-5℃
Panel specifications:7.5cm /15cm pu plug-in panel
Cold room panels:Top-panel+wall panel.
Temperature:-20℃～-5℃
Panel specifications:7.5cm /15cm pu plug-in panel
Cold room panels:Top-panel+wall panel.
AICE
ManyStar Logistics Company Limited is a focus is engaged in food storage, cold storage, sorting, regional distribution of the temperature control, main less-than-one carload transport, distribution processing and information management of integrated Logistics service enterprises.
Period from production to installation:1.5 months
Temperature:-20℃～-5℃
Panel specifications:7.5cm /15cm pu plug-in panel
Cold room panels:Top-panel+wall panel.
Temperature:-20℃～-5℃
Panel specifications:7.5cm /15cm pu plug-in panel
Cold room panels:Top-panel+wall panel.
ManyStar Logistics Company Limited.
ManyStar Logistics Company Limited is a focus is engaged in food storage, cold storage, sorting, regional distribution of the temperature control, main less-than-one carload transport, distribution processing and information management of integrated Logistics service enterprises.
Period from production to installation:1.5 months
Temperature:-20℃～-5℃
Panel specifications:7.5cm /15cm pu plug-in panel
Cold room panels:Top-panel+wall panel.
Temperature:-20℃～-5℃
Panel specifications:7.5cm /15cm pu plug-in panel
Cold room panels:Top-panel+wall panel.
Fruit and vegetable trading center of 6000 square meters.
Yixing city ocean creek green ring vegetable professional cooperatives has built production base 2000 mu of steel frame greenhouse vegetables and fruit and vegetable trading center of 6000 square meters, unified planning, unified technical guidance, unified sales, household management, grading packing the three series of two points.
Period from production to installation:1.5 months
Temperature:-2℃～-15℃
Panel specifications:10cm pu plug-in panel
Cold room panels:Top-panel+wall panel.
Temperature:-2℃～-15℃
Panel specifications:10cm pu plug-in panel
Cold room panels:Top-panel+wall panel.
Title goes here.
Anhui prosperous industry project is located in huo Qiu Changji modern agricultural demonstration zone, by jilin province town fei county Long Cheng poultry processing technology co., LTD., Inner Mongolia assets feather industry co., LTD., hangzhou joint-venture Fang Xiang feather products co., LTD. The project total investment 280 million yuan, covers an area of 60 mu, total construction area of 47020 square meters, the entire project is divided into two parts. The first phase of investment 180 million yuan, slaughter processing workshop for the construction of duck, goose, only 11 million slaughter of duck, goose, Cold storage, a capacity of 6000 tons. Phase ii project plans to invest 100 million yuan, for the construction of feather processing workshops, poultry meat products deep processing and supporting facilities, and for the expansion of the cold storage.
Period from production to installation:1.5 months
Temperature:-18℃～-12℃
Panel specifications:15cm pu plug-in panel
Cold room panels:Top-panel+wall panel.
Temperature:-18℃～-12℃
Panel specifications:15cm pu plug-in panel
Cold room panels:Top-panel+wall panel.
About us
Changzhou Yanghu Refrigeration Equipment Co., LTD
We are Yanghu Refrigeration in China since 1997. In the early years, C.E.O Mr. Qin invested to produce air coolers, condensing units. And then we turned to produce cold room panel and cold room door at last since 2002. From then on, We accumulated rich experience and gained good reputation by serving diverse industries’ cold room needs. Passing FM approval proves we are a real and reliable manufacturer of sandwich panels for cold rooms . Advance auto production lines ensure a fast delivery time. No matter you need the full set of the cold room or PU sandwich panel or door. Of course, we could provide a one-stop cold room solution from negotiation, to design, transaction, production, delivery, installation, and after-sales. Every member of our team has at 4 years of experience in the refrigeration field. You would get the ideal answer about the cold rooms only if you share your details with us.
Company Information
Certificate
FAQ
1: Can the power supply be single phase?
A: Yes,we will according you need and provide suitable plan.2: Do you make testing and commissioning before you deliver the machine?
A: Yes, all of our machines will be tested and commissioned at least 3 days to ensure sufficient output and stable performance
before delivery. When you get the machine, you just need to connect water and power supply.
3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4: Who are we?
A:We are based in JIANGSU, CHINA, start from 1996. We have two factories and nearly 100 employees.
Our main market is North America,South Asia ,Mid East,Southesat Asia,South America.And our cooperative partners have
METRO,DHL,STARBUCKS,COFCO and so on .
5:Do you accept the third party inspection?
A:Yes. We accept.
6: What is the terms of payment?
A:T/T,L/C,all support.
7:What brand compressor can you offer?
A:Normally with original New Bitzer and Copeland compressor. Famous in the world.
8:How to get a quote from you?
A：You can contact us by email, phone, Alibaba TM, WhatsApp, and so on 24*7 and you will get reply within anytime.
9:Do you offer designing service for us?
A:Yes, we could design full solution drawings as your requirements. They use software such as Auto CAD. We will be glad to
establish sincere business cooperation with you in the near future
10: What are the advantages of the FM sandwich panel?
A:The chemical raw material formula of insulation core layer has passed the test of FM company, its fire prevention and insulation
index exceeds the general panel requirement, such as accidental fire, can guarantee the insurance compensation of FM company.
11: Is it possible to suggest suitable panel specifications?
A: For cold storage, we need to know the location of the project, indoor temperature and temperature difference between inside and
outside. We have a professional technical team to provide you with a full range of early services, including design and
consultation.
12: What certifications do you have for your panel ?
A:Our polyurethane products have obtained U.S. FM certification, as well as ISO9001 international quality system certification and
ISO14001 international environmental management certification.
13:What kind of payment ways do you accept?
FOB/CIF/CFR/EXW
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
B:30% TT as deposit and 70% LC at sight
14:What if we still need accessories?
A:Can provide u-shaped groove base, inside and outside corners, aluminum profile and other accessories.
15: Can you make color order ?
A: Yes. We can according to your requirements.
16: How to install after the goods arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee,
air tickets, accommodation, wages will be paid by buyers.
Ordering and Pricing
- Minimum order quantity: 1 square meter
- Volume pricing:
- 1–4 square meter: US $2390 / square meter
- 5–9 square meter: US $2100 / square meter
- 10+ square meter: US $1800 / square meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blast freezer?
The standard minimum order quantity is 1 square meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the blast freezer be supplied for my local voltage?
The standard configuration is 380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
