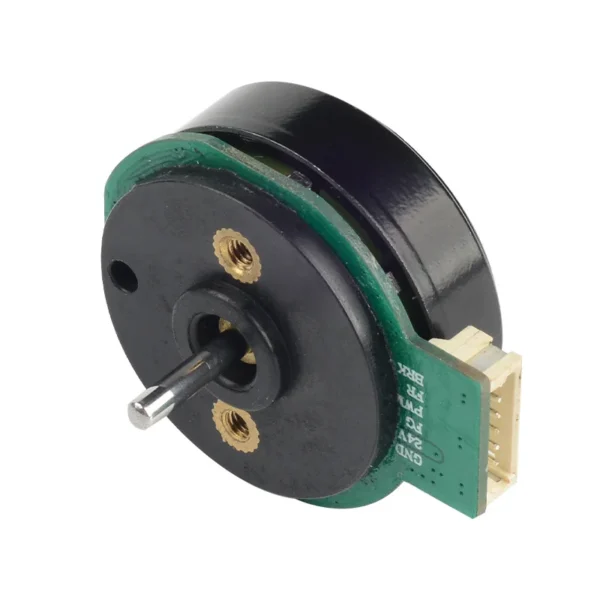

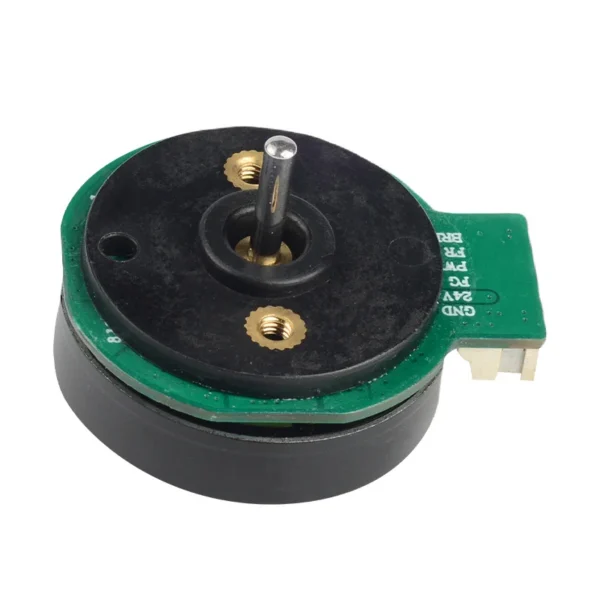

Bldc motor — 8V~26V, 1W~.20w. The complete factory specification follows. Made by Shenzhen Xindonghui Technology Co., Ltd. (10 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Bldc Motor
- Model Number: BL2913O
- Rated Power: 1W~20W
- Power: 1W~.20w
- Rated Voltage: 8V~26V
- Speed Rpm: 5000~15000
- Speed(RPM): 10000
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Voltage | 8V~26V |
| Rated Power | 1W~20W |
| Speed Rpm | 5000~15000 |
| Speed(RPM) | 10000 |
| IP Rating | IP55 |
| Efficiency | IE 1 |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Frame | 28.7mm |
| Motor Mounting Type | Panel Mount |
| Protect Feature | Drip-proof |
| Usage | Home Appliance, Smart Home |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 0.06 |
| Model Number | BL2913O |
| Torque | 20~100g.cm |
| Place Of Origin | Guangdong, China |
| Brand Name | Xin Dong Hui Motor |
| Product Name | DBL2913O |
| Keywords | Brushless Motor |
| Motor Type | DC Brushless Three Phase |
| Diameter | 29mm |
| Length | 13mm |
| Feture | Long Life Time |
| Rotation | CW/CCW |
| Power | 1W~.20w |
| Weight | 30g |
| Selling Units | Single item |
| Single Package Size | 4X4X3 cm |
| Single Gross Weight | 1.0 kg |

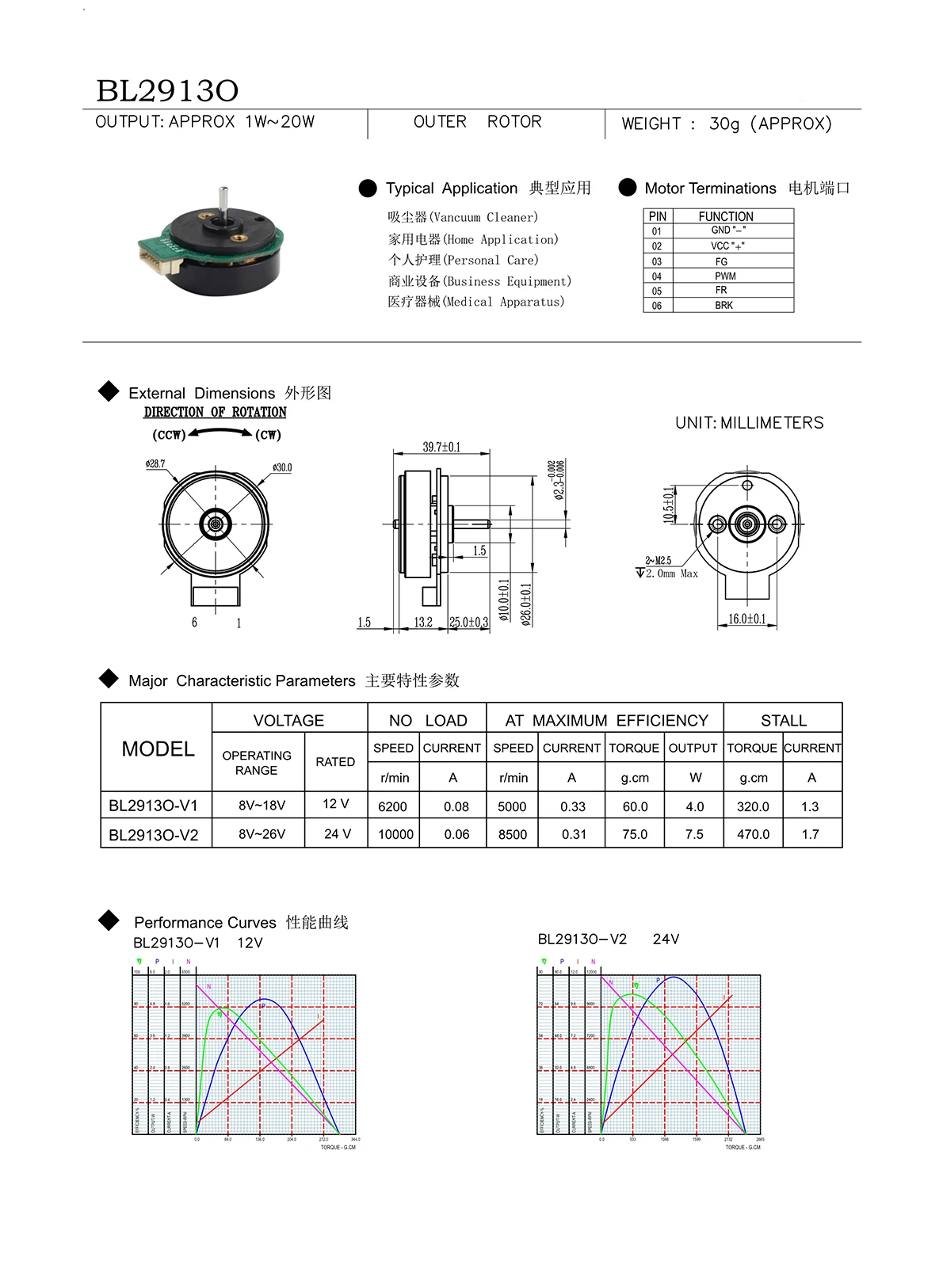

Product Details
ITEM | VALUE |
Motor Type | brushless motor |
Motor Model No | BL2913O |
Size(Dimensions) | D28.7*13mm |
Operating Voltage | 8V~26V DC |
No Load Speed | 5000~10000 r/min |
Load Torque | 50g.cm~100g.cm |
Typical Application | Power Tools, Home Appliance, Smart Home, Personal Care |
Shaft Length | Customized |
Shaft shape | D-Cut |
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Volume pricing:
- 1000+ piece: US $8.95 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this bldc motor?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the bldc motor be supplied for my local voltage?
The standard configuration is 8V~26V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
