This bldc motor is published with the manufacturer’s full specification — 24v, power source Electric. Made by Guangzhou Yuexiu District Weikeheng Electronic Firm (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Bldc Motor
- Model Number: D1751S24B6CZ-16
- Power Source: Electric
- Voltage: 24v
- Material: Aluminum Alloy
- Blade Material: PBT
- Frame Material: Die-cast Aluminum Alloy (Silver Finish)
Technical Specifications
| Voltage | 24v |
|---|---|
| Speed | 3500 – 4500 RPM |
| Type | High-Temperature Axial Fan |
| Material | Aluminum Alloy |
| Blade Material | PBT |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Guangdong, China |
| Brand Name | Nidec |
| Model Number | D1751S24B6CZ-16 |
| Color | Black |
| Dimensions | 172 x 172 x 51 mm (6.77 x 6.77 x 2.0 inch) |
| Max. Static Pressure | 250 – 320 Pa |
| Insulation Class | Class A |
| Dielectric Strength | 5mA Max. at 500V AC 60Hz for 1 minute |
| Operating Temp. | -10°C to +70°C (14°F to 158°F) |
| Life Expectancy | 70,000 Hours (L10 at 40°C) |
| Weight | Approx. 850g (1.87 lbs) |
| Frame Material | Die-cast Aluminum Alloy (Silver Finish) |
| Selling Units | Single item |
| Single Package Size | 26X15X18 cm |
| Single Gross Weight | 0.764 kg |
Product Details
- High-strength die-cast aluminum for maximum impact resistance.
- Superior heat dissipation through the metal body for high-load industrial use.
- Optimized 172mm large blade design delivering constant high-volume cooling.
- Engineered to handle intense heat in heavy-duty inverters and server racks.
- Supports 70,000+ hours of reliable 24/7 mission-critical operation.
- Equipped with a rugged sealed connector for fast and reliable device integration.
Parameters | Detailed Specifications (Industrial Grade) |

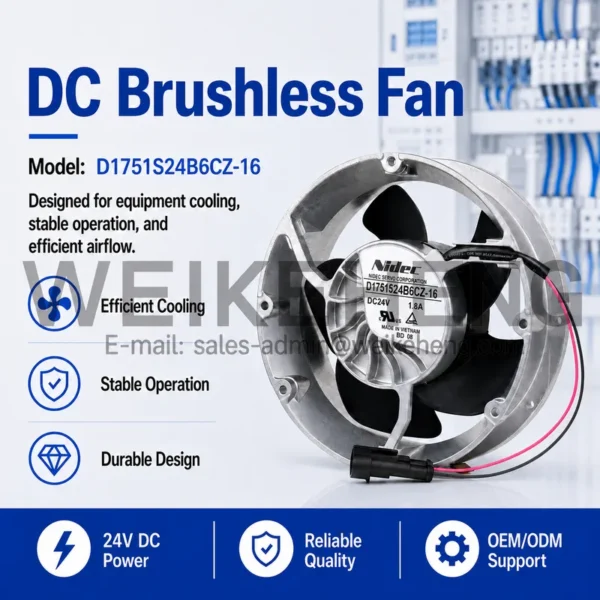

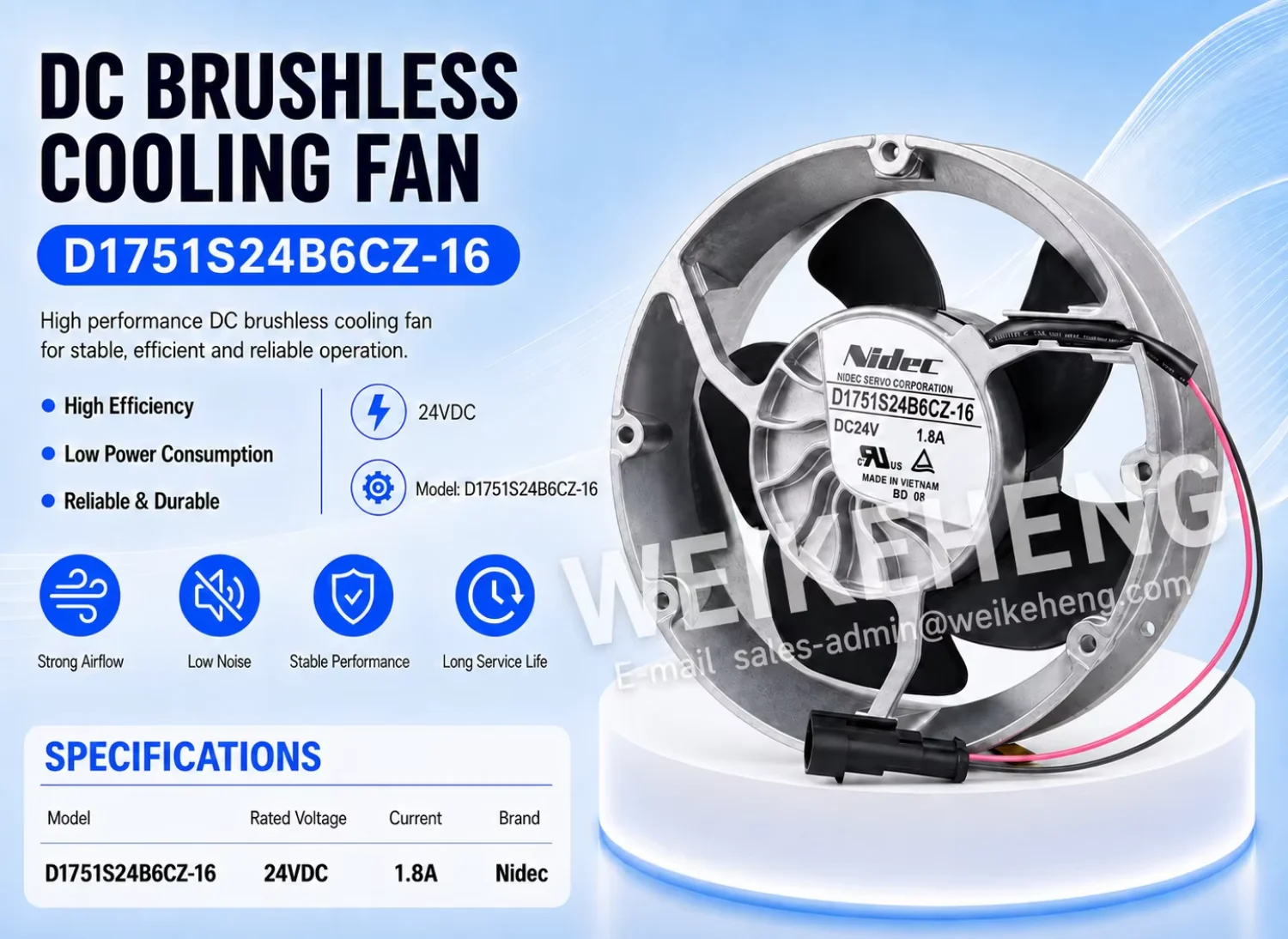

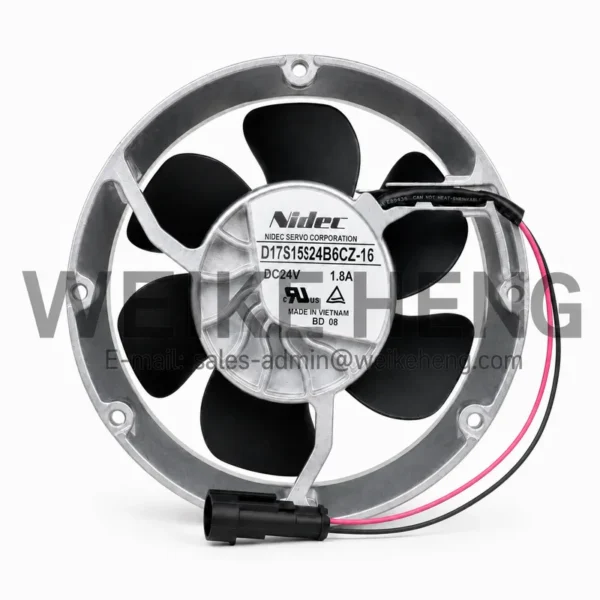

Model Number | D1751S24B6CZ-16 (Nidec Servo) |

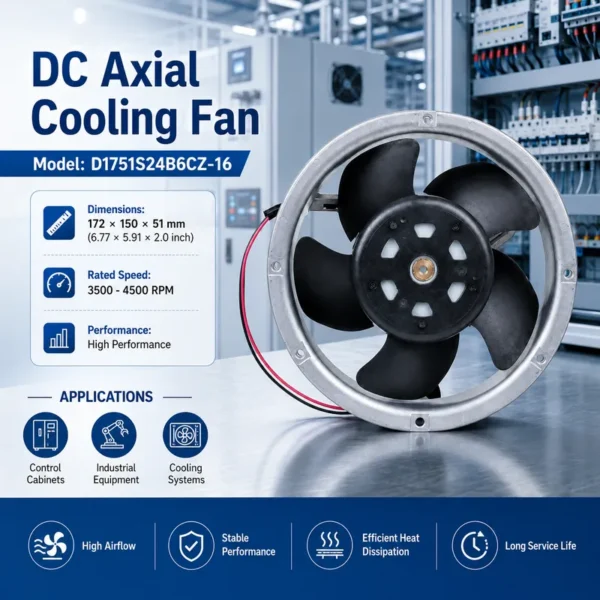

Dimensions | 172 x 172 x 51 mm (6.77 x 6.77 x 2.0 inch) |
Rated Voltage | DC 24V (Industrial Standard) |
Operating Voltage | 14.0V – 27.6V DC |
Rated Speed (RPM) | 3500 – 4500 RPM (High Performance) |
Rated Current | 1.8 Amps (Stable Output) |
Power Consumption | 43.2 Watts |
Max. Airflow | 220.0 – 250.0 CFM (Hurricane Level) |
Max. Static Pressure | 250 – 320 Pa (High Static Pressure) |
Keywords | Inverter Cooling, Radiator Fan, Exhaust Fans High Speed, Industrial Fan 24V |
Server, distribution box, industrial control cabinet heat dissipation & ventilation Frequency converter, welding machine, charging pile, air compressor cooling Workshop & warehouse ventilation, smoke exhaust Oven, disinfection cabinet, dehumidifier, air cooler Energy storage cabinet, photovoltaic inverter, power battery heat dissipation Printer, injection molding machine, machine tool equipment cooling Communication base station, outdoor power cabinet dustproof & heat dissipation Ventilation, temperature and humidity control |
Louver Vent Cover ZL-801~ZL-806
cabinet cooling fan ventilation and heat dissipation. Multiple sizes available.
Custom Protective Cover
sizes:15/17/18/20/25/30/35/36/38/40/45/50/52/60/70/80/92/120/125/127/136/140/150/160/172/200/220/280mm
Custom Dust Cover
efficiency, simple to mount and clean.
separately. We will keep you updated with the exact delivery schedule once confirmed.
appoint your preferred freight forwarder for shipment.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–199 piece: US $40.5 / piece
- 200–499 piece: US $38.5 / piece
- 500–999 piece: US $35 / piece
- 1000+ piece: US $32 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this bldc motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the bldc motor be supplied for my local voltage?
The standard configuration is 24v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Yuexiu District Weikeheng Electronic Firm, based in China. The company 2 years as a verified Alibaba.com supplier, Trading Company. Browse the full Guangzhou Yuexiu District Weikeheng Electronic Firm range on HVACR Nexus.
