Key specification for this blower: type EC Motor. Everything below is reproduced from the factory data sheet. Made by Ningbo Biote Mechanical Electrical Co., Ltd. (19 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Blower
- Model Number: /
- AC Voltage: /
- Warranty: Other
- Place Of Origin: Zhejiang, China
- Protect Feature: /
- Type: EC Motor
Technical Specifications
| Phase | Single-Phase |
|---|---|
| AC Voltage | / |
| Type | EC Motor |
| Protect Feature | / |
| Efficiency | / |
| Warranty | Other |
| Model Number | / |
| Brand Name | BIOTE |
| Place Of Origin | Zhejiang, China |
| Frequency | 50Hz |
| Product Name | EC Motor |
| Selling Units | Single item |
| Single Package Size | 44X33X22 cm |
| Single Gross Weight | 12.0 kg |
Product Details
High power factor:The permanent magnet motor rotor has no induction current excitation, the stator winding presents a resistive load, the motor power factor is above 0.95, and no reactive power compensation is required.
High return on electricity saving:Depending on the load conditions, instead of asynchronous motors, the comprehensive power saving rate is 15%-30%.
Small current:Compared with 3-phase asynchronous, the current is reduced by more than 20%, and no reactive power compensation is required. When the company plans the layout in the store, it can greatly reduce the investment in cables and transformers.
Low temperature rise:There is no copper loss in the rotor winding, no reactive current in the stator winding, and the temperature rise is lower than that of the asynchronous motor by more than 20k.
Good control performance:The permanent magnet synchronous motor is easy to control, has no speed slip, good dynamic response performance, precise speed control, and has greater advantages in occasions with high speed requirements.
Model | Power | Voltage | Frequency | Series | Rotating Speed | Insulation Class | Factor | Degree of Protection |
TYJX-90L | 1.1kW | 220V | 50Hz | 16 | 500 | f | 0.95 | IP55 |
TYJX-90L | 0.6kW | 220V | 50Hz | 16 | 650 | f | 0.95 | IP55 |
TYJX-90L | 0.75kW | 220V | 50Hz | 16 | 650 | f | 0.95 | IP55 |
TYJX-90L | 0.75kW | 220V | 50Hz | 16 | 650 | f | 0.95 | IP55 |
TYJX-90L | 0.4kW | 380V | 50Hz | 16 | 720 | f | 0.95 | IP55 |
TYJX-90L | 0.75kW | 380V | 50Hz | 16 | 650 | f | 0.95 | IP55 |
TYJX-90L | 0.6kW | 110V | 50Hz | 16 | 650 | f | 0.95 | IP55 |
TYJX-90L | 0.6kW | 220V | 50Hz | 16 | 450 | f | 0.95 | IP55 |
TYJX-90L | 0.6kW | 220V | 50Hz | 16 | 650 | f | 0.95 | IP55 |
TYJX-90L | 1.1kW | 220V | 50Hz | 16 | 1420 | f | 0.95 | IP55 |
TYJX-100L | 0.75kW | 220V | 50Hz | 20 | 530 | f | 0.95 | IP55 |
TYJX-100L | 1.1kW | 220V | 50Hz | 20 | 520 | f | 0.95 | IP55 |
TYJX-100L | 1.5kW | 220V | 50Hz | 20 | 530 | f | 0.95 | IP55 |
TYJX-100L | 1.5kW | 220V | 50Hz | 20 | 460 | f | 0.95 | IP55 |
TYJX-100L | 2.2kW | 220V | 50Hz | 20 | 700 | f | 0.95 | IP55 |
TYJX-100L | 2.2kW | 220V | 50Hz | 20 | 1440 | f | 0.95 | IP55 |
TYJX-100L | 3kW | 220V | 50Hz | 20 | 1440 | f | 0.95 | IP55 |
TYJX-100L | 1.1kW | 380V | 50Hz | 20 | 600 | f | 0.95 | IP55 |
TYJX-100L | 0.4kW | 220V | 50Hz | 20 | 720 | f | 0.95 | IP55 |
TYJX-100L | 0.75kW | 380V | 50Hz | 20 | 530 | f | 0.95 | IP55 |
TYJX-100L | 1.1kW | 380V | 50Hz | 20 | 520 | f | 0.95 | IP55 |
TYJX-100L | 1.5kW | 380V | 50Hz | 20 | 530 | f | 0.95 | IP55 |
TYJX-100L | 1.5kW | 380V | 50Hz | 20 | 460 | f | 0.95 | IP55 |
TYJX-100L | 2.2kW | 380V | 50Hz | 20 | 600 | f | 0.95 | IP55 |
TYJX-100L | 2.2kW | 380V | 50Hz | 20 | 1440 | f | 0.95 | IP55 |
TYJX-100L | 3kW | 380V | 50Hz | 20 | 1440 | f | 0.95 | IP55 |
TYJX-100L | 1.1kW | 380V | 50Hz | 20 | 530 | f | 0.95 | IP55 |
TYJX-100L | 0.4kW | 380V | 50Hz | 20 | 720 | f | 0.95 | IP55 |
TYJX-100L | 3kW | 220V | 50Hz | 20 | 1440 | f | 0.95 | IP55 |
TYJX-100L | 2.5kW | 380V | 50Hz | 20 | 1000 | f | 0.95 | IP55 |
TYJX-100L | 1.5kW | 380V | 50Hz | 20 | 1000 | f | 0.95 | IP55 |
TYJX-112M | 0.75kW | 380V | 50Hz | 20 | 450 | f | 0.95 | IP55 |
TYJX-112M | 1.1kW | 220V | 50Hz | 20 | 720 | f | 0.95 | IP55 |
TYJX-112M | 1.5kW | 220V | 50Hz | 20 | 720 | f | 0.95 | IP55 |
TYJX-112M | 1.8kW | 220V | 50Hz | 20 | 720 | f | 0.95 | IP55 |
TYJX-112M | 0.75kW | 220V | 50Hz | 20 | 550 | f | 0.95 | IP55 |
TYJX-112M | 1.1kW | 220V | 50Hz | 20 | 500 | f | 0.95 | IP55 |
TYJX-112M | 0.75kW | 220V | 50Hz | 20 | 450 | f | 0.95 | IP55 |
TYJX-112M | 0.75kW | 380V | 50Hz | 20 | 450 | f | 0.95 | IP55 |
TYJX-112M | 0.55kW | 220V | 50Hz | 20 | 450 | f | 0.95 | IP55 |
TYJX-112M | 1.1kW | 380V | 50Hz | 20 | 450 | f | 0.95 | IP55 |
TYJX-112M | 1.8kW | 220V | 50Hz | 20 | f | 0.95 | IP55 | |
TYJX-112M | 0.75kW | 220V | 50Hz | 20 | 550 | f | 0.95 | IP55 |
TYJX-112M | 1.1kW | 220V | 50Hz | 20 | 500 | f | 0.95 | IP55 |
WHY CHOOSE BIOTE
A.Certificates passed:All tests passed for most of our motors and can supply reports.
B.Fast feedback for customers:24 hours reply for all customers' inquiries.
C. Competitive prices.
D. Quality guarantee:We have shipped much motors to Italy, Spain, and other European and USA customers with high quality.
E. Fast and Timely delivery:Usually 10-15 days for goods production.
F. Professional Technical support and After-sale service.
G.Customized service for kind of motor according to your requirement.

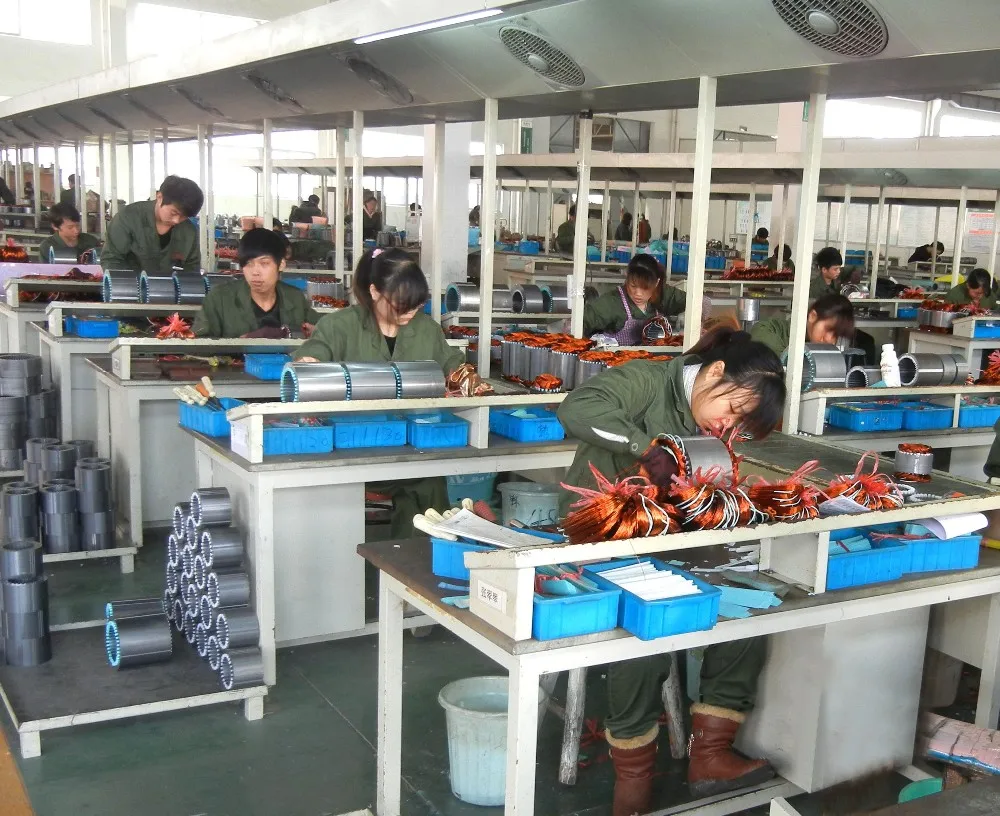

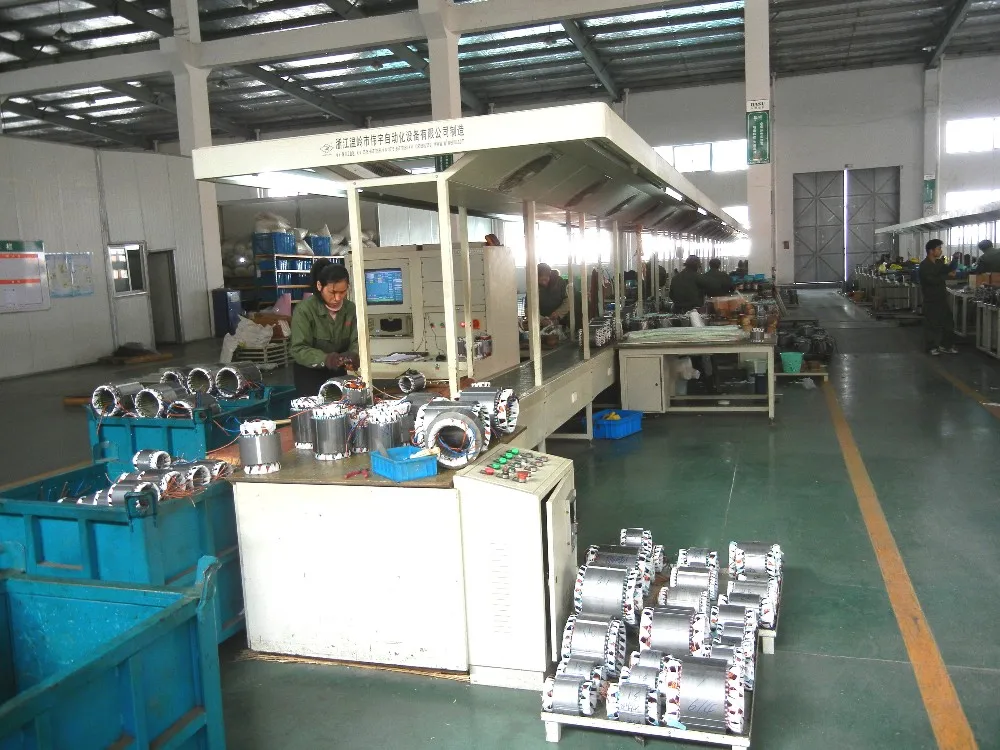

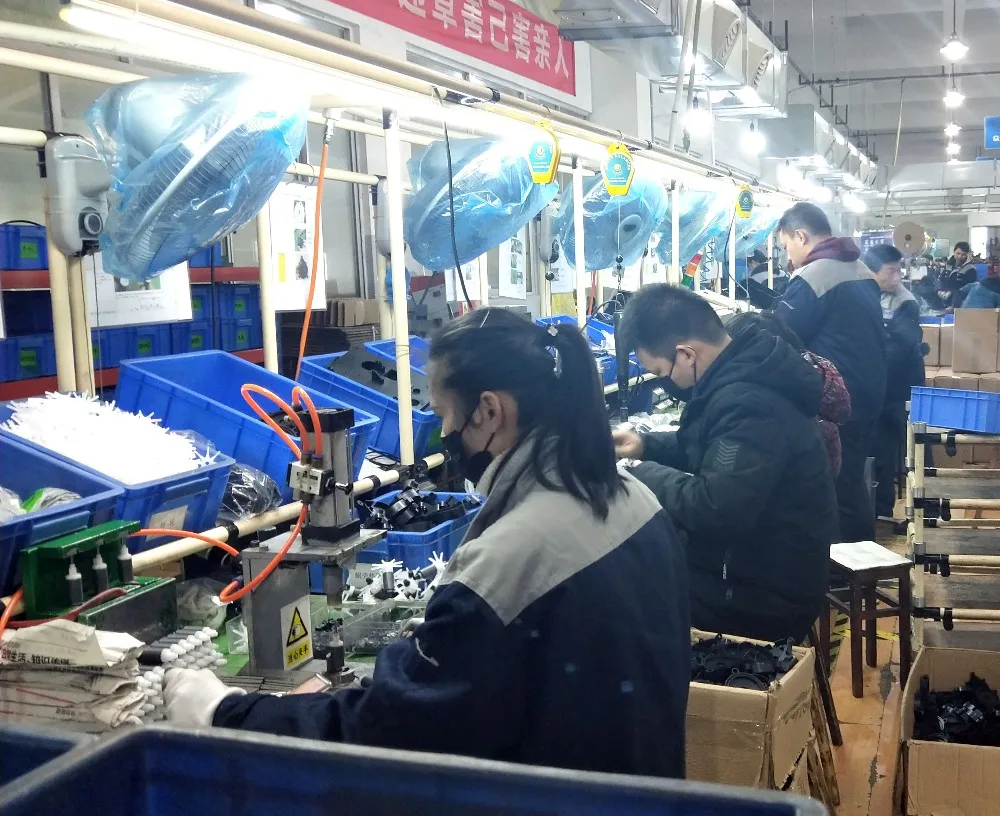

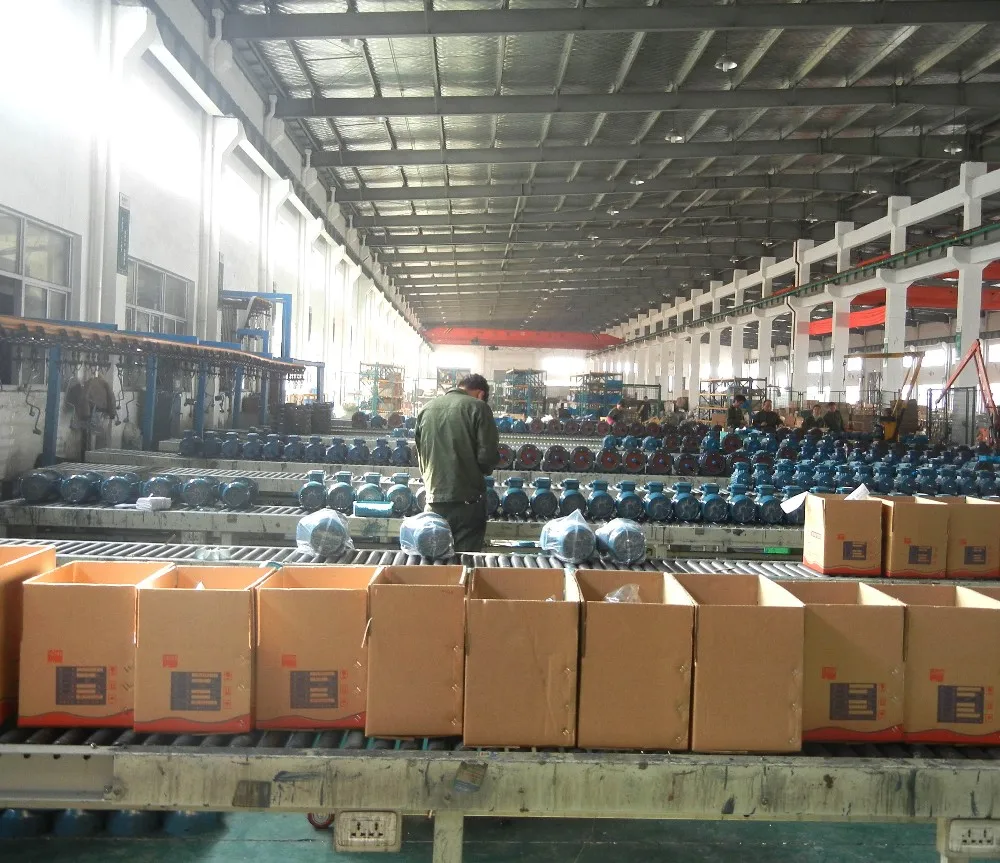

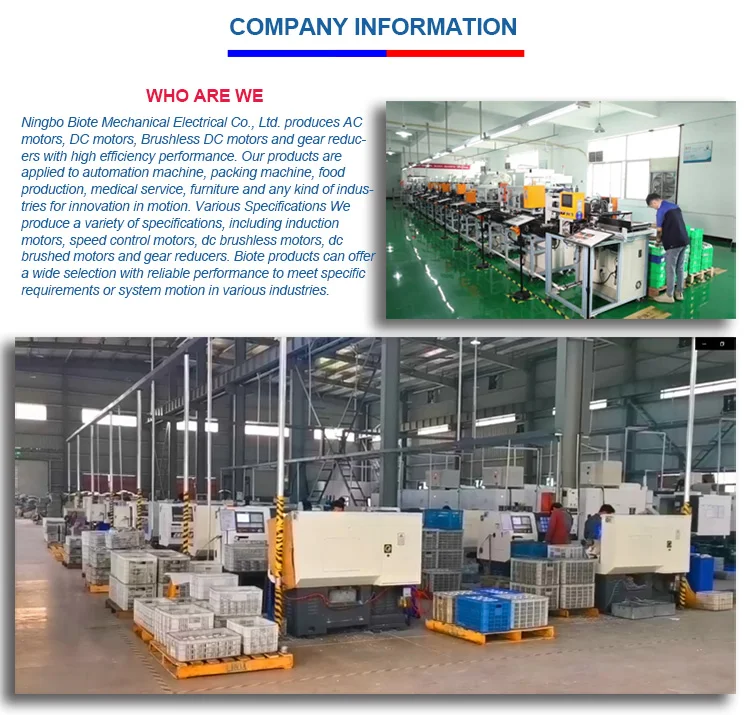

Workshop

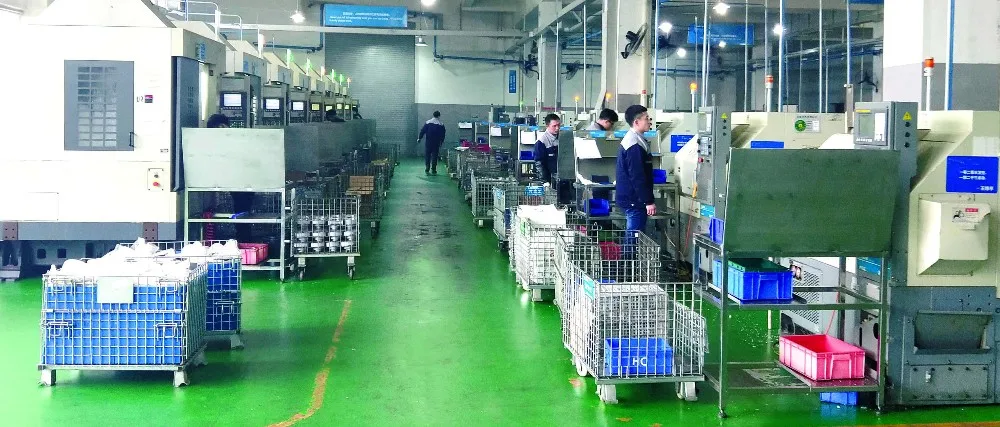

Stamping Machinery, CNC-Machinery, Vacuum Pressure Impregnating, Plating Machinery. and so on.
Q1: What kind motors you can provide?
A1: For now, we mainly provide permanent magnet brush dc motors, brushless dc motor, dc gear motor, micro dc motor, ac gear motor, planetary gear motor, with diameter range in 42~110mm. NEMA dc motor. NEMA dc Motor. stainless steel motor
Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style.
Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.
Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.
Q5:How about your delivery time?
A5: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.

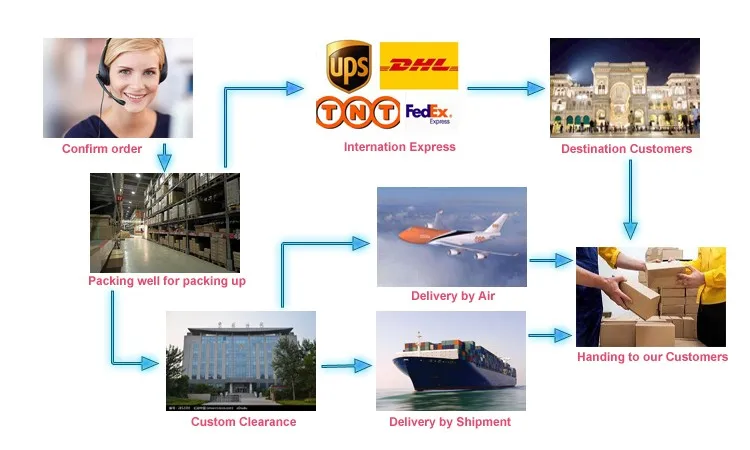

THE SAMPLE BY EXPRESS OR AIR
LCL=LESS THAN CONTAINER LOAD, FCL=FULL CONTAINER LOAD, BY SHIPMENT

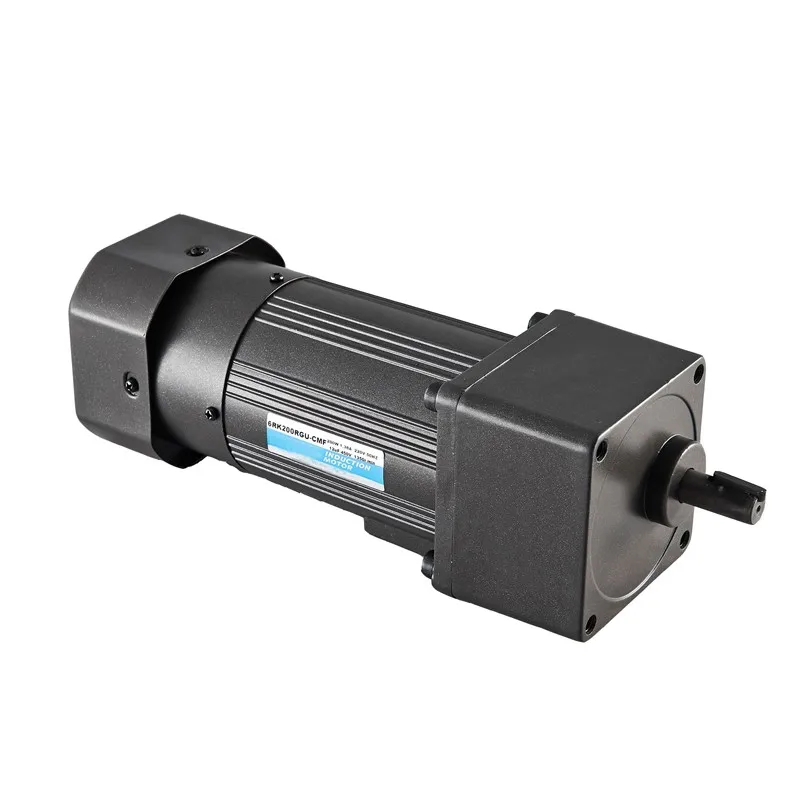

Brake motor
15W. 25W. 40W. 60W. 90W. 120W. 140W. 180W 200W. 250W, Custom made.

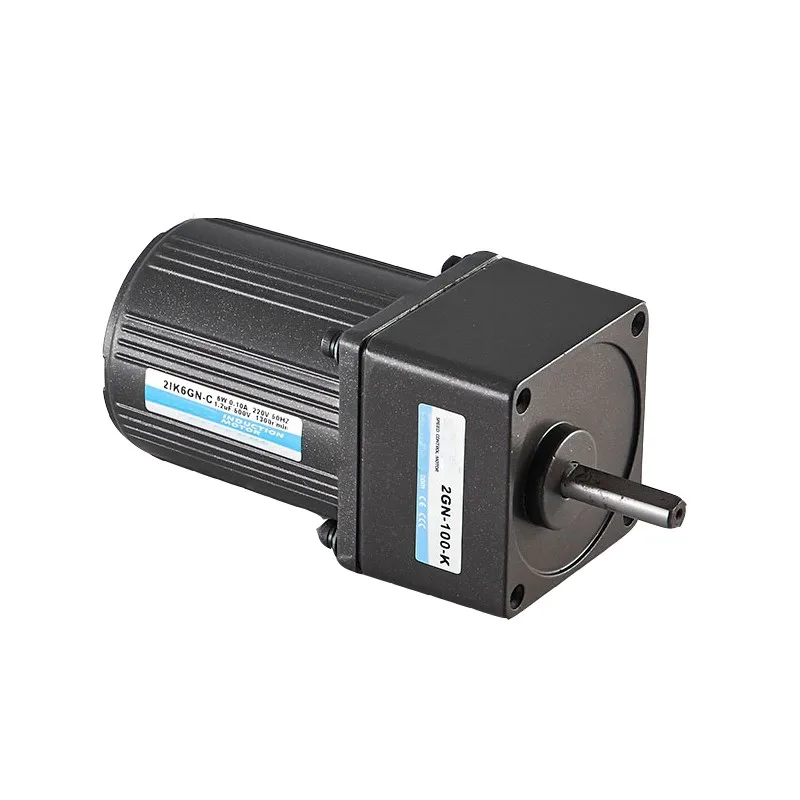

Reversible Motor
15W. 25W. 40W. 60W. 90W. custom made
Brake Speed Control Motor
25W. 40W. 60W. 90W. 120W. 140W. 180W 200W. 250W, Custom made.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–99 piece: US $318 / piece
- 100+ piece: US $269 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blower?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Other warranty. Spare parts and technical support remain available after the warranty period.
Can the blower be supplied for my local voltage?
The standard configuration is /. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Biote Mechanical Electrical Co., Ltd., based in China. The company 19 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Ningbo Biote Mechanical Electrical Co., Ltd. range on HVACR Nexus.
