This ec motors is published with the manufacturer’s full specification — type Servo Motor, 1500rpm~8000rpm. Made by Changzhou Smart Automation Motor Manufacturing Co., Ltd. (15 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Ec Motors
- Model Number: 90zyt
- Speed(RPM): 1500rpm~8000rpm
- Place Of Origin: Jiangsu, China
- Protect Feature: Drip-proof
- Type: Servo Motor
- Single Gross Weight: 0.0 kg
Technical Specifications
| Commutation | Brush |
|---|---|
| Speed(RPM) | 1500rpm~8000rpm |
| Efficiency | IE 1 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Protect Feature | Drip-proof |
| Usage | Car, Fan, Home Appliance, machinery |
| Continuous Current(A) | customed |
| Model Number | 90zyt |
| Torque | 1-2Nm(0-0in) |
| Place Of Origin | Jiangsu, China |
| Brand Name | Smart Automation |
| Packaging Details | standard export package |
| Port Of Dispatch | SHANGHAI |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10000 pieces per Month |
Product Details
Motor technical parameter:
Shaft HRC 36~40 ; NSK ball bearing
Protection class IP 50 Hard ferrite magnet, 4- poles
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
LONG LIFE, HEAVY DUTY
90ZYT01 SERIES
|
Rated Voltage/Speed |
Rated Torque(N.m) |
motor length(mm) |
Output(W) |
|
24V 4000RPM |
1.1 |
155 |
461 |
|
24V 3000RPM |
1.1 |
155 |
346 |
|
24V 2000RPM |
1.1 |
155 |
230 |
|
24V 1500RPM |
1.1 |
155 |
173 |
|
12V 4000RPM |
1.1 |
155 |
461 |
|
12V 3000RPM |
1.1 |
155 |
346 |
|
12V 2000RPM |
1.1 |
155 |
230 |
|
12V 1500RPM |
1.1 |
155 |
173 |
90ZYT02 SERIES
|
Rated Voltage/Speed |
Rated Torque(N.m) |
motor length(mm) |
Output(W) |
|
24V 4000RPM |
1.5 |
199 |
628 |
|
24V 3000RPM |
1.5 |
199 |
471 |
|
24V 2000RPM |
1.5 |
199 |
314 |
|
24V 1500RPM |
1.5 |
199 |
236 |
|
12V 4000RPM |
1.5 |
199 |
628 |
|
12V 3000RPM |
1.5 |
199 |
471 |
|
12V 2000RPM |
1.5 |
199 |
314 |
|
12V 1500RPM |
1.5 |
199 |
236 |

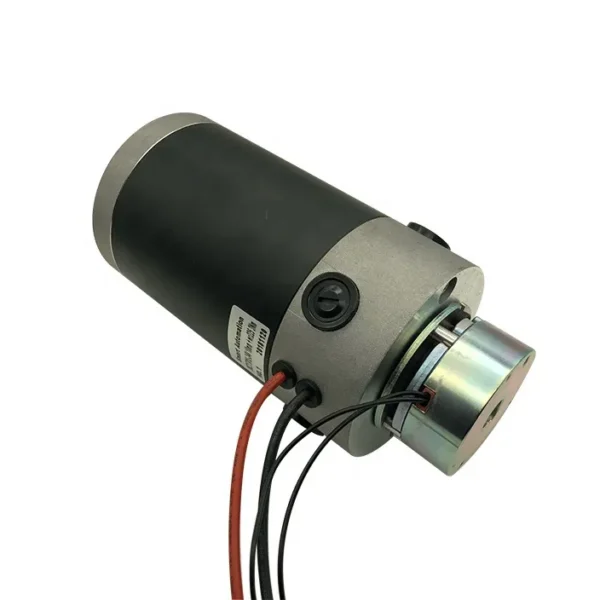

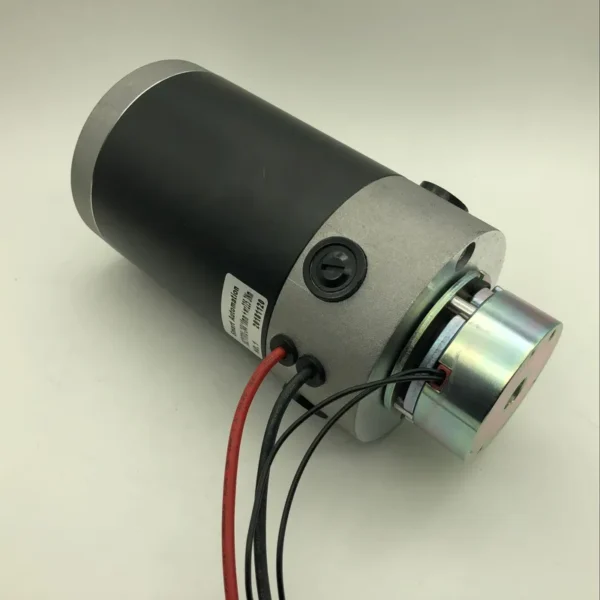

MOTORS WITH BRAKE
|
main applications of dc motor |
|
|
|
|
|
|
|
|
|
Industry |
Content |
Industry |
Content |
|
Medical equipment |
Hand-held surgical instruments |
Aerospace Industry |
Electric seat adjustment post |
|
|
|
||
|
Surgical robot |
Flight recorders |
||
|
|
|
||
|
Micro-injection pump; Peristaltic pump |
Autopilot |
||
|
|
|
||
|
Dialyzer |
Air-conditioning system |
||
|
|
|
||
|
Automatic dosing system |
Space Robot |
||
|
|
|
||
|
Radiation therapy equipment |
|
||
|
|
|
||
|
Diagnostic equipment and testing instruments |
|
||
|
Robot |
Humanoid robot |
Auto industry |
Adjustable shock absorbers |
|
|
|
||
|
Service robots |
Emission abatement system |
||
|
|
|
||
|
Teaching Robots |
Electronic steering |
||
|
|
|
||
|
|
Electronic tachometer
|
||
|
Industrial Automation |
Precision Positioning System |
Communications Equipment |
Antenna System |
|
|
|
||
|
Handling System |
Copier / printer / plotter |
||
|
|
|
||
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
Ordering and Pricing
- Minimum order quantity: 5 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ec motors?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Changzhou Smart Automation Motor Manufacturing Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Changzhou Smart Automation Motor Manufacturing Co., Ltd. range on HVACR Nexus.
