The blue coated evaporator listed here carries type Evaporator, documented exactly as the manufacturer publishes it. Made by Zhejiang Xingchang Fan Co., Ltd. (9 years on the platform, typical reply >24h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Blue Coated Evaporator
- Tube Material: Copper
- Fin Material: Hydrophilic Aluminum Foil
- Warranty: 2 Years
- Place Of Origin: Zhejiang, China
- Application: heat exchanger
- Type: Evaporator
Technical Specifications
| Application | heat exchanger |
|---|---|
| Type | Evaporator |
| Warranty | 2 Years |
| Place Of Origin | Zhejiang, China |
| Tube Material | Copper |
| Fin Material | Hydrophilic Aluminum Foil |
| Packaging Details | wooden cases, iron crack |
| Port Of Dispatch | NINGBO, SHANGHAI |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 300 units per Month |

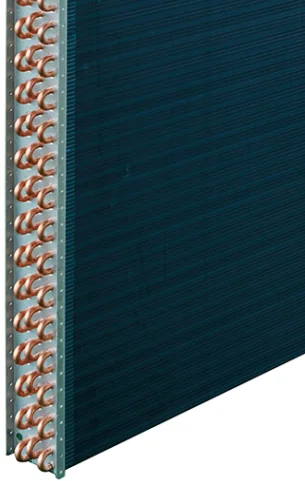

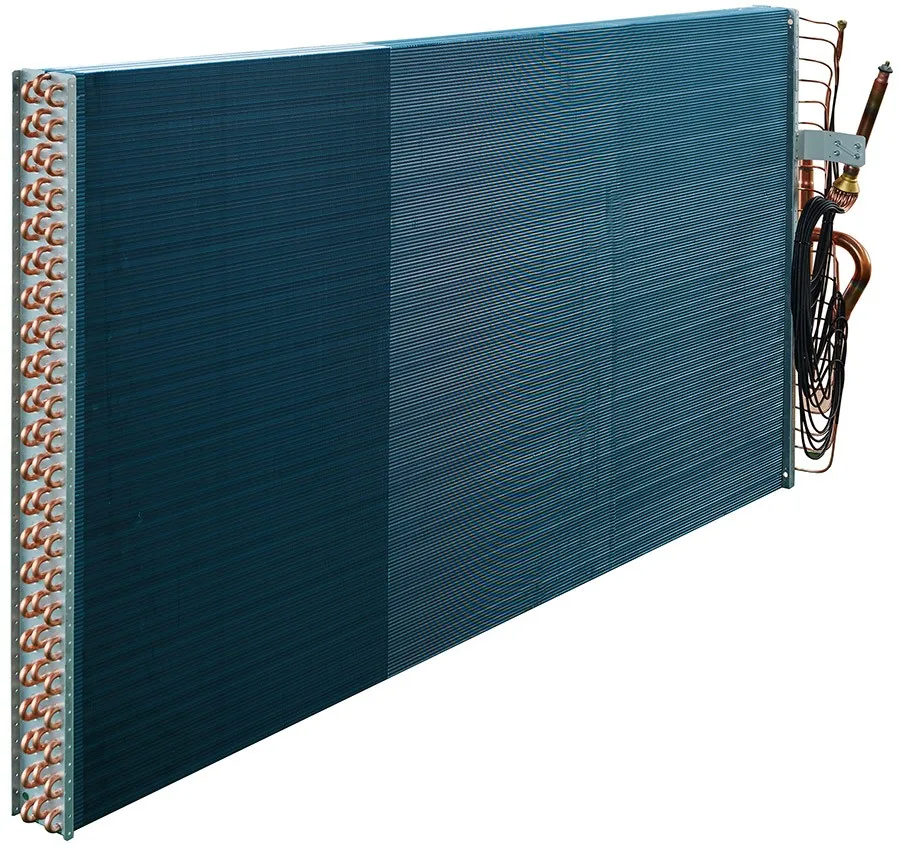

Product Details
We are the manufacturers of fin coils which are used in the applications of cooling, heating and dehumidifying equipment. We are able to design, duplicate and produce various sized of coils with full range of fin dies from 7 mm to 15.88 mm, fin coils up to 12 mm length. We can offer various coil circuiting as well as face split and intertwined circuit designs.
|
Tubes and Fins:
|
||
|
Tube material:
|
Copper
Aluminum
|
|
|
Fin core size(mm):
|
1950(L)*1117.6(W)* 66(H)
|
|
|
Fin material :
|
Sin wave type
Hydrophilic Aluminum (Blue)
|
|
|
Fin die O.D (mm):
|
Φ9.52 * 25.4 * 22
|
|
|
Other available Tube Geometry (Tube O.D, P / R /H – mm):
|
||
|
Φ7 mm
|
21 / 12.7 / 10.5
21 / 18.19 / 10.5
21 / 13.0 / 10.5
|
|
|
Φ7.94mm
|
25.4 / 19.5 / 12.7
|
|
|
Φ9.525 mm |
25 / 21.65 / 12.5
25.4 / 19.05 / 12.7
25.4 / 22 / 12.7
|
|
|
Φ12.7 mm
|
35 / 30.31 / 17.5
40.48 / 35.06 / 20.24
|
|
|
Φ15.88 mm
|
38 / 32.91 / 19
|
|
|
Tube Geometry(mm)
|
Fin pattern
|
FPI(mm)
|
|
Φ7 — 21 / 12.7 / 10.5
|
Plain, Bridge
|
12-23
|
|
Φ7 — 21 / 18.19 / 10.5
|
Sine wave, Lance
|
13.5-21
|
|
Φ7 — 21 / 13.0 / 10.5
|
Plain, Louver
|
1.20-2.0
|
|
Φ7.94 –25.4 / 19.5 / 12.7
|
Plain, Lance, Sine wave
|
8-21
|
|
Φ9.525 — 25 / 21.65 / 12.5
|
Louver, Triangle wave
|
13-21
|
|
9.525 / 25.4 / 19.05 / 12.7
|
Plain, Louver, Sine wave
|
10-21
|
|
Φ9.525 — 25.4 / 22 / 12.7
|
Louver, Sine wave (18R)
Plain, Lence, Sine wave (36 R) Triangle wave (24 R) |
9-21
9-21
2.5-6
|
|
Φ12.7 — 35 / 30.31 / 17.5
|
Louver, Sine wave
|
8.5-14
|
|
Φ12.7 — 40.48 / 35.06 / 20.24
|
Triangle wave
|
2.5-6
|
|
Φ15.88 –38 / 32.91 / 19
|
Plain, Bridge
|
6.5-13
|

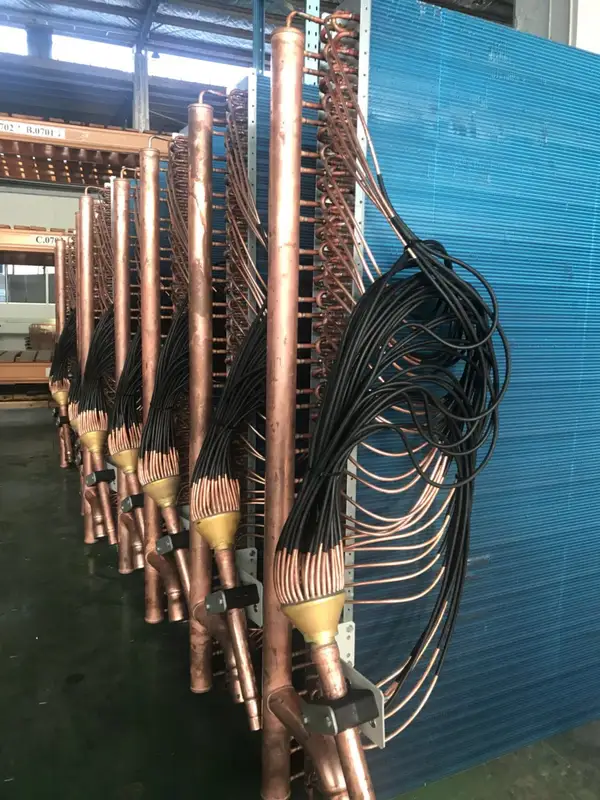

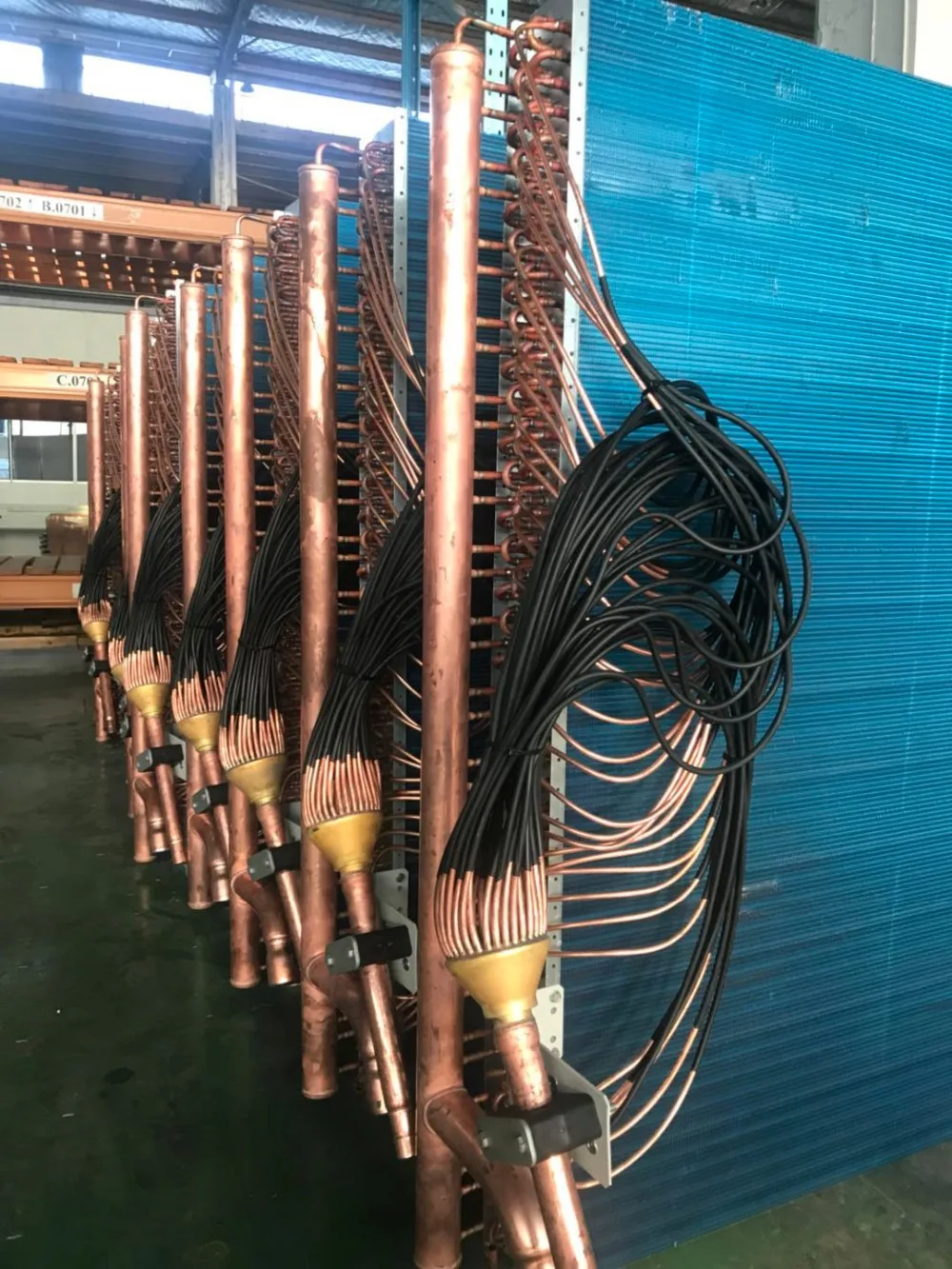

Headers and capillary tubes:

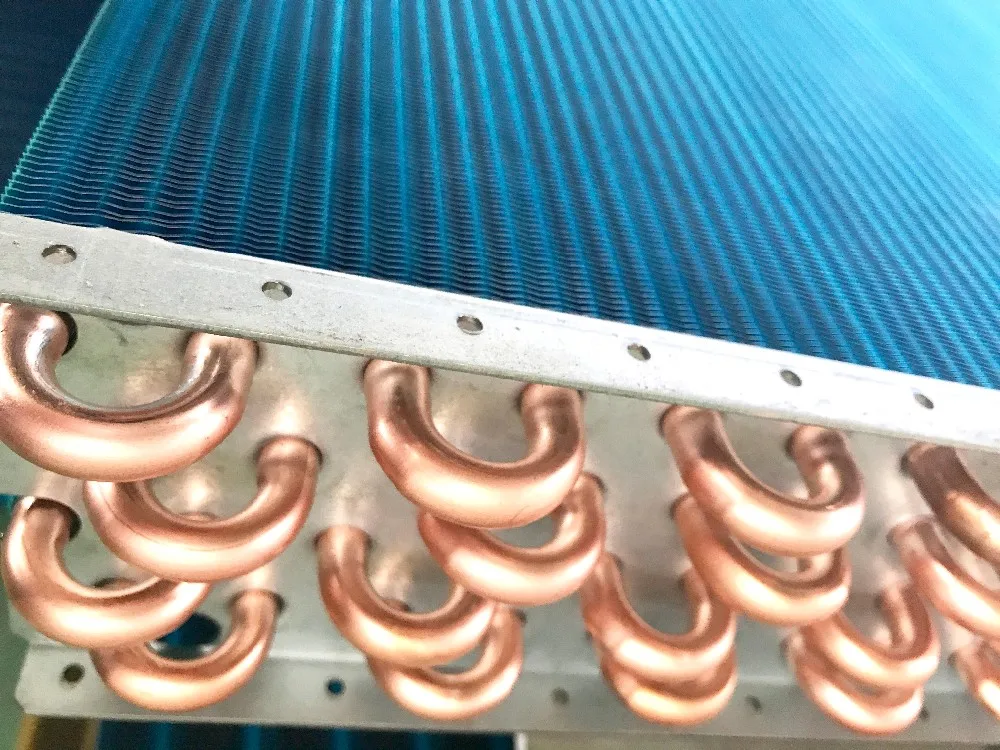

End plate and elbows:

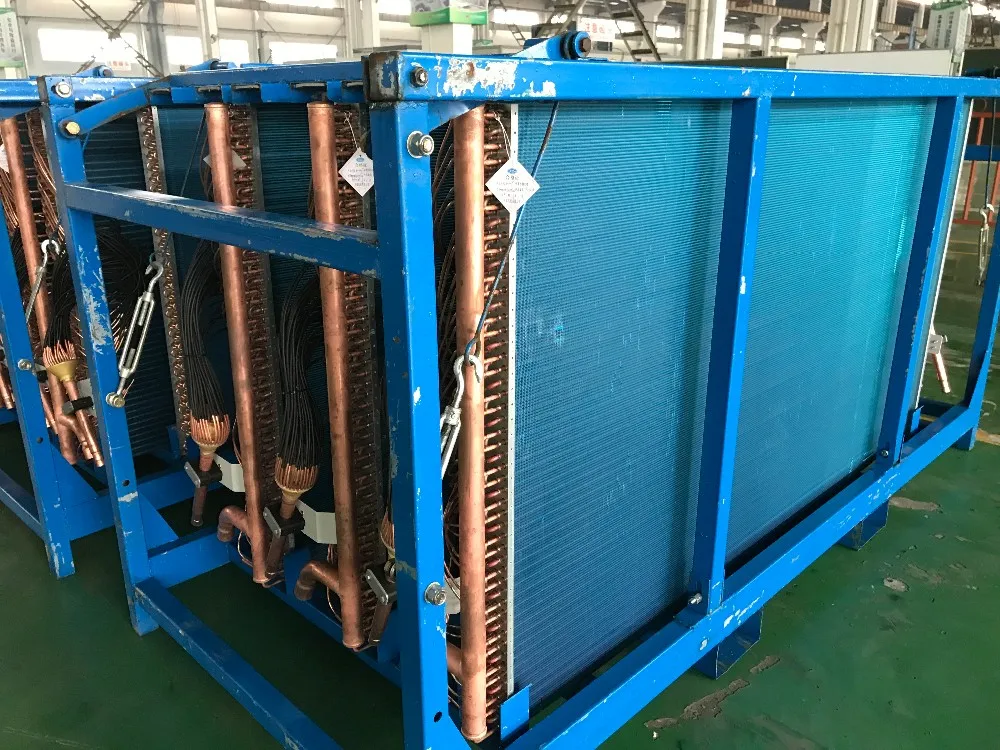

Iron rack
For short distance transportation , we use iron rack to be well packaged and delivery without any damage.

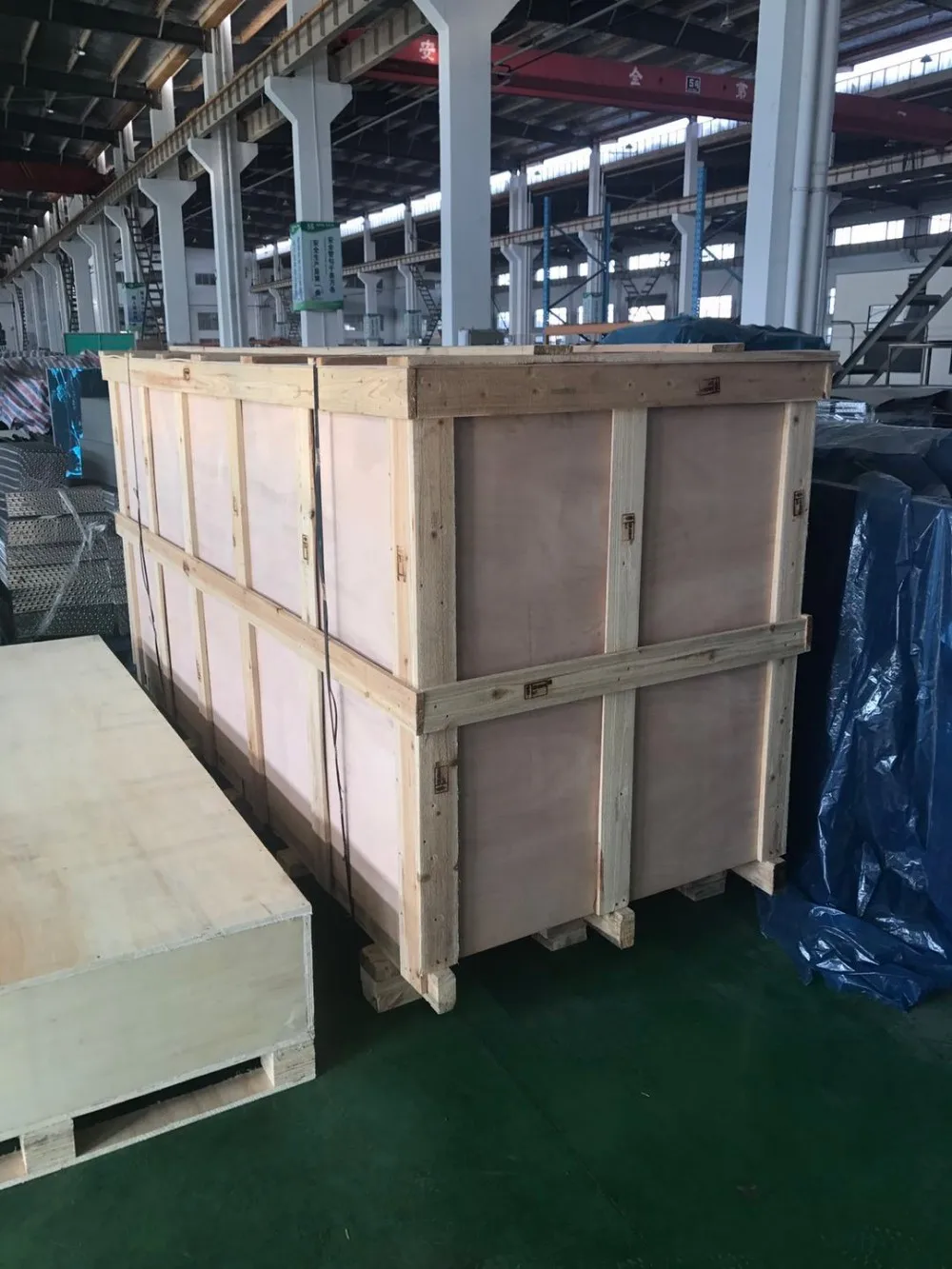

Wooden cases.
For oversea shipment or container load, we use wooden crate to protect whole parts in case any damage.
Ordering and Pricing
- Minimum order quantity: 20 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blue coated evaporator?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
