Box shape ball bearing — power source Electric, blade material Stainless Steel. The complete factory specification follows. Made by Shandong Xinyu Runhua Machinery Co., Ltd. (4 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Box Shape Ball Bearing
- Power Source: Electric
- POWER: 1.1KW
- Voltage: 120 V, 380V,220V,230V,415V or as your request
- Blade Material: Stainless Steel
- Warranty: 2 Years
- Certification: ce, CCC, ISO9001
Technical Specifications
| Voltage | 120 V, 380V,220V,230V,415V or as your request |
|---|---|
| Type | exhaust fan |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong |
| Brand Name | XINYURUNHUA |
| Application | Factory Farm Greenhouse Poultry |
| Frequency | 50HZ/60HZ |
| POWER | 1.1KW |
| Certification | ce, CCC, ISO9001 |
| Size | 1380*1380*450mm |
| Motor | 100% Cooper Motor |
| Blade Diameter | 1250MM |
| Color | Zinc coated |
| Motor Protection Grade | IP55 |
| Selling Units | Single item |
| Single Package Size | 1X1X1 cm |
| Single Gross Weight | 1.0 kg |
Product Details
Products Description
Product Features:
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,
utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow.
XINYURUNHUA Heavy hammer type fans is mainly composed of blades, belt pulley and flange, blade hub, belt, bearing, blade support,shutters, frame, protection mesh, motor and other components. The motor drives the blades to generate airflow. To prevent outdoor dust and foreign matter from entering, and to avoid the effects of rain, snow and wind.
Model | Diameter biades | Air flow | Import power | Noise |
710 -(28inch) | 710mm | 18600 | 370w | ≤64 |
900 -(35inch) | 900mm | 21000 | 750w | ≤64 |
1000-(40inch) | 1000mm | 36800 | 750w | ≤64 |
1250 -(50inch) | 1250mm | 44000 | 1100w | ≤64 |
1400 -(55inch) | 1400mm | 54000 | 1500w | ≤64 |
Title goes here.
A———–1380mm
B———–1380mm
C———–400mm
Title goes here.
D———–140mm
E———–828mm
F———–276mm
Details Images
Motor
1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when
shortage of electricity.
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when
shortage of electricity.

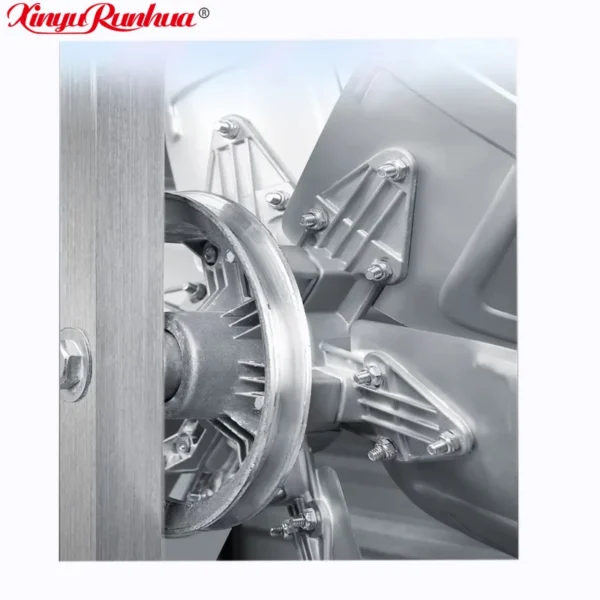

Fan Belt pulley
Fan Belt pulley Greenhouse exhaust fan ,Poultry house farm fan,Mining cooling fan industrial poultry extractor axial fans Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to reinforcing rib to increased strength. No broken . Long service life.
Fan Blades
1. Material : 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option

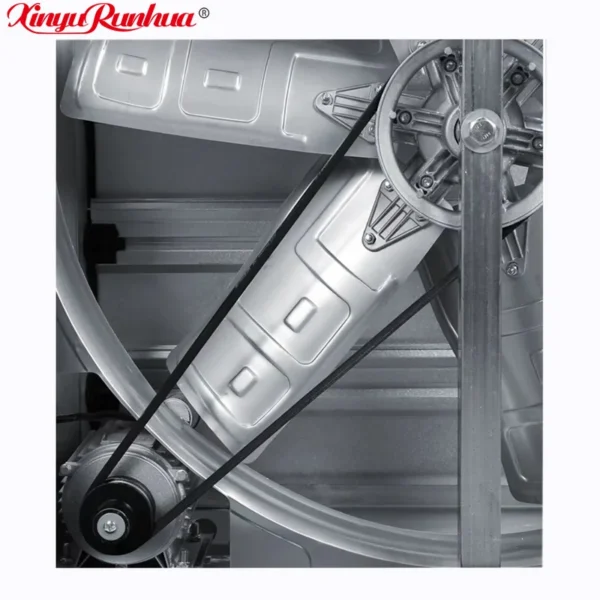

Belt
Brand: Mitsuboshi belt (Japanese)
Type: B type, B88
Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.
Type: B type, B88
Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.
Safe Net
Material: Hot-dip galvanized wire is coated with Plastic
Advantage:
Double Protection to ensure never rust.
Advantage:
Double Protection to ensure never rust.
Company Profile
Shandong Xinyu Runhua Machinery Co., Ltd. is a leading manufacturer of ventilation and control system, a well-known manufacturer of ventilation and refrigeration equipment, heating equipment and livestock machinery. Our company integrates research and development, production, sales and maintenance services, specialized in manufacturing poultry and greenhouse exhaust fans, feed silo, evaporative cooling pads, circulating fans, axial flow fans, feeding and drinking system,etc for more than 10 years.
We provide our customers with high-quality and affordable livestock machines. Each machine is adjusted and precisely tested before leaving our factory, making it easier for customers to install and produce the best possible results. At the same time, we can also provide OEM or ODM services for customers. All products have passed strict quality control and have passed the certificates such as CE and ISO9001 and are widely used in agriculture, greenhouse, animal husbandry, textile and other industries.
We provide our customers with high-quality and affordable livestock machines. Each machine is adjusted and precisely tested before leaving our factory, making it easier for customers to install and produce the best possible results. At the same time, we can also provide OEM or ODM services for customers. All products have passed strict quality control and have passed the certificates such as CE and ISO9001 and are widely used in agriculture, greenhouse, animal husbandry, textile and other industries.
We have a preferential price and quick attentive service. Our products have been sold in Asia,Middle East，Africa, North America,including the United States, India, Vietnam, the Philippines, Russia, Thailand and other countries. We will put our best products recommended to more countries, and develop more distributors in many countries around the world. We are honored to with more international friends develop cooperation.
Packaging And Shipping
XINYURUNHUA Products have been exported to more than 70 countries in Asia, Europe, America, Australia, etc. Global service, Annual sales over $ 30 million. Small parts are packed in cartons and packed by manual forklift trucks.
Certifications
XINYURUNHUA has been granted certificates such as CE,ISO and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”YUMANCANG'' and "XINYURUNHUA".
Exhibition
XINYURUNHUA Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous improvement in communication with customers.
Our Service
XINYURUNHUA has more than 10 years of professional design and production experience, more than 300 efficient R & D and production team.
SPre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Sample testing support.
* Visit our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Engineers are available to service machinery overseas.
Successful Project
High quality Industrial Factory/Poultry farm Greenhouse Ventilation Exhaust Fan with low price.
XINYURUNHUA Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry,poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
FAQ
Q： Is your company a manufacturer or a trading company?
A：We are the biggest and professional manufacturer of ventilation equipmentcooling equipment and Heating equipment for poultry,workshop and greenhouse in China.
Q：Can you make our own brand?
A:Yes we can provide OEM&ODM Service.We can put your own logo on the products.
Q: What is your minimum order quantity?
A: We can accept small quantitybut the freight will be hiah
Q: What voltage you can do?
A:Our normal voltages is 380V-50HZ-3PhaseThe voltage and Frequency can be customized.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $109 / piece
- 100+ piece: US $79 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this box shape ball bearing?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this box shape ball bearing carry?
It is supplied with ce, CCC, ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the box shape ball bearing be supplied for my local voltage?
The standard configuration is 120 V, 380V,220V,230V,415V or as your request. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Xinyu Runhua Machinery Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shandong Xinyu Runhua Machinery Co., Ltd. range on HVACR Nexus.
