Key specification for this brushless fan: 115V, power 38-50W. Everything below is reproduced from the factory data sheet. Made by Suzhou Runhao Motor Co., Ltd. (10 years on the platform, typical reply ≤13h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Brushless Fan
- Model Number: QSM38-50W(115V)
- Power: 38-50W
- Voltage: 115V
- Speed(RPM): 1800RPM
- Warranty: 10Years
- Place Of Origin: Jiangsu, China
Technical Specifications
| Commutation | Brushless |
|---|---|
| Speed(RPM) | 1800RPM |
| Efficiency | 85% |
| Type | Micro Motor |
| Construction | Permanent Magnet |
| Protect Feature | Thermally Protected |
| Usage | Fan |
| Warranty | 10Years |
| Continuous Current(A) | 0.55A |
| Model Number | QSM38-50W(115V) |
| Torque | Could be customized |
| Place Of Origin | Jiangsu, China |
| Brand Name | QM Power |
| Application | liquor stores and bars/coolers/ice machines/fast food/vending machines |
| Voltage | 115V |
| Name | Fan Motor |
| Protection Class | IP65 |
| Power | 38-50W |
| Product Name | Hot Sale 115v DC Brushless Fan Motor for Air Conditioner |
| Color | Black |
| Function | Driving Fans |
| RPM | 1800 |
| Packaging Details | 12pcs/carton 24cartons/pallets 20pallets/20FT container |
| Port Of Dispatch | shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 20000 pieces per Month 115v dc motor |
Product Details

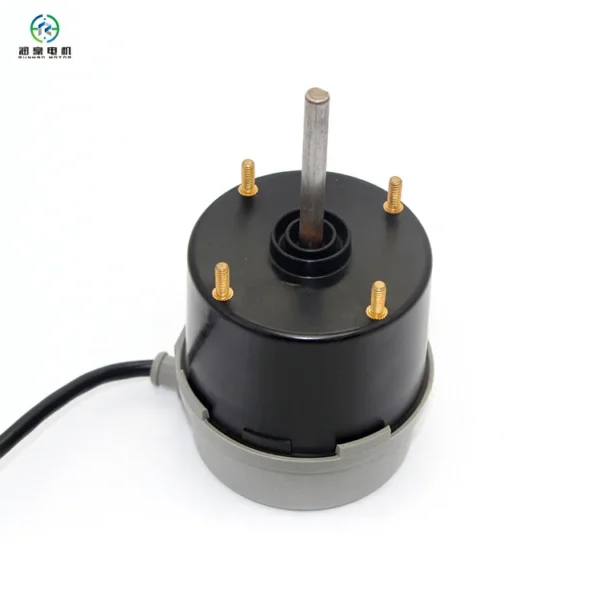

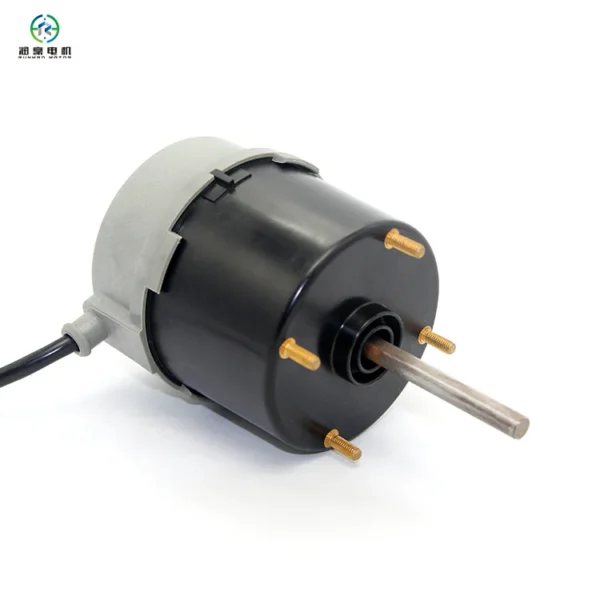

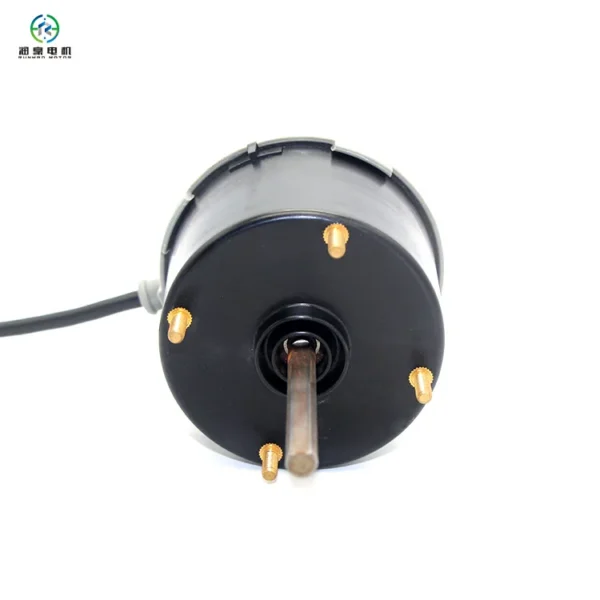

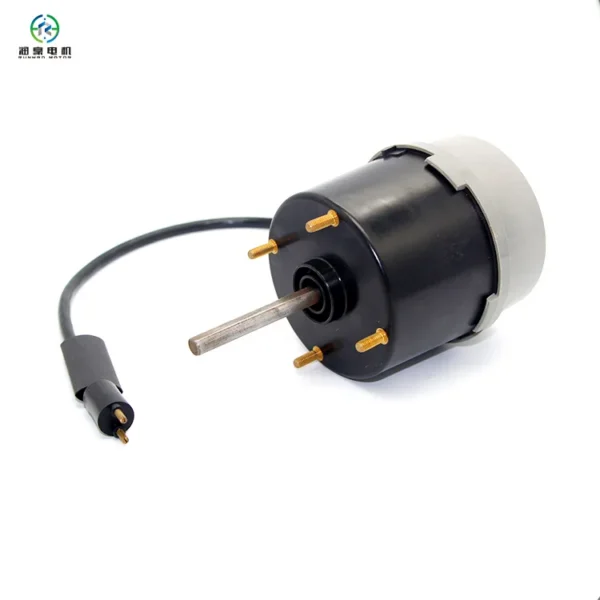

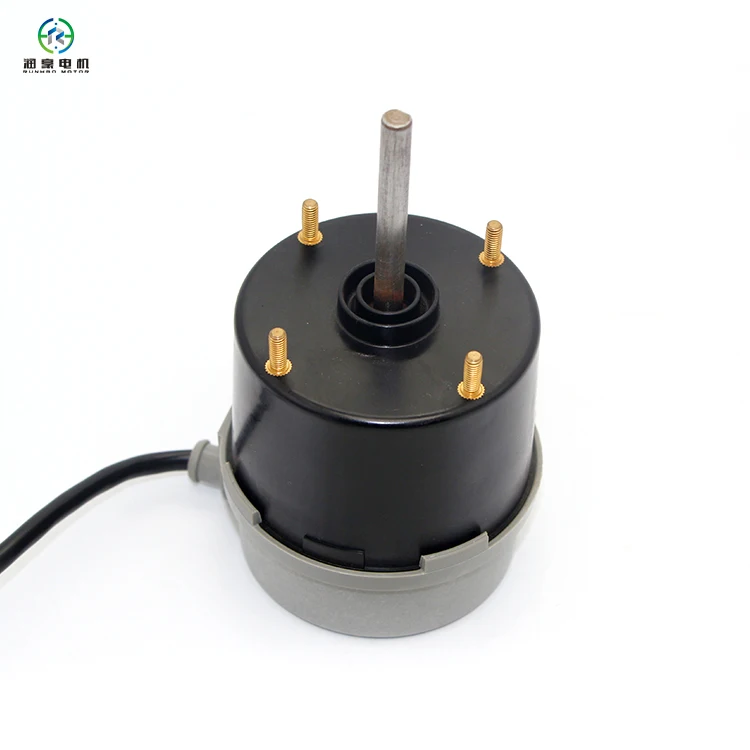

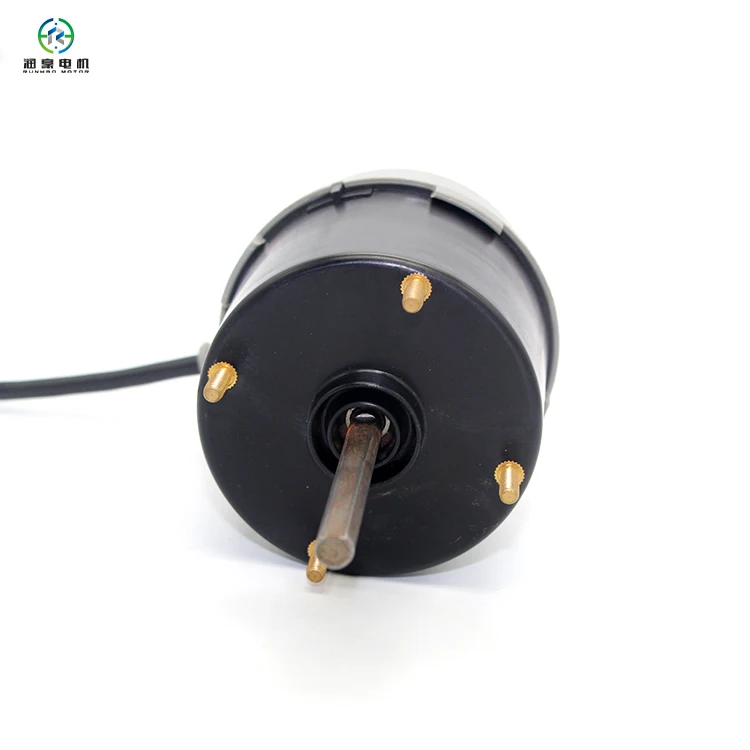

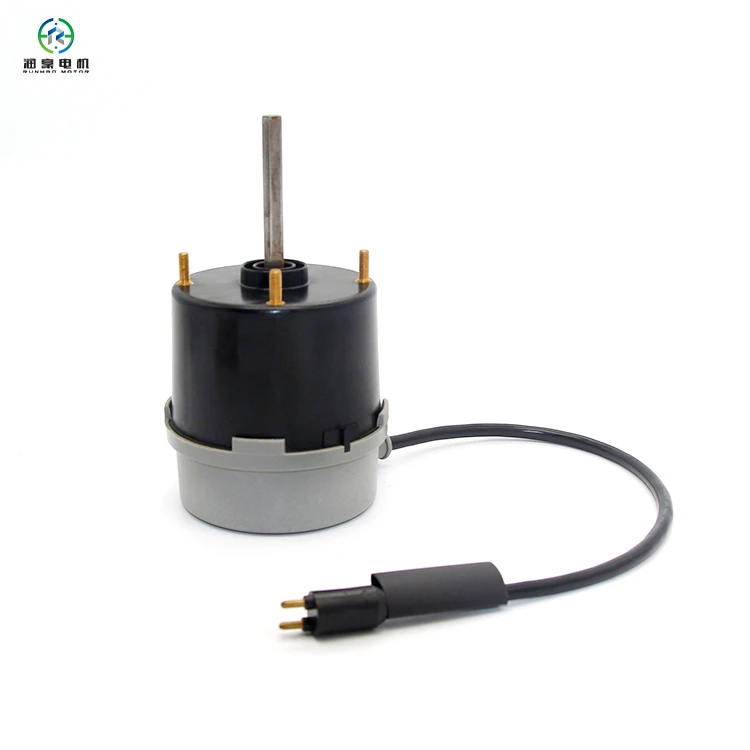

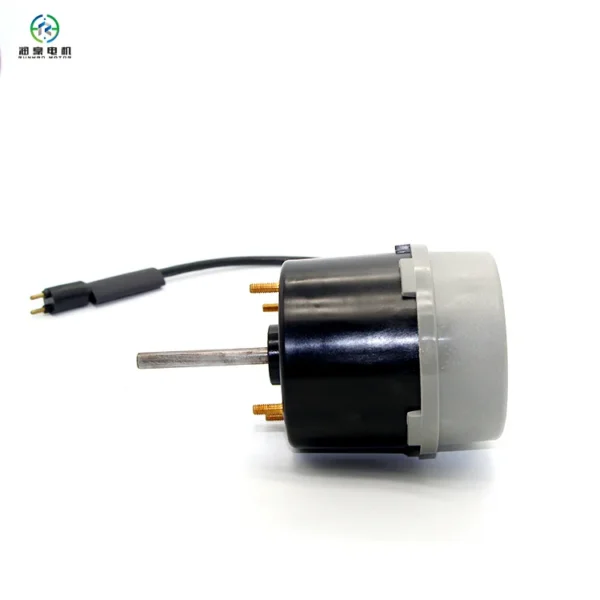

Hot Sale 115v DC Brushless Fan Motor for Air Conditioner
| Model: | QSM50-1A-CC |
| Customer model | 30076-00 |
| Volts | 115 V |
| Voltage Range | 95-132 |
| Running Current (Amps) | 0.53 |
| Locked Rotor Current (Amps) | 3 |
| Horse Power | 1/15 HP |
| Watts | 38 – 50 |
| RPM | 1800 |
| Frequency | 60 Hz |
| Rotation (opposite end of shaft) | CCW |
| Phase | 1 |
| Temp | -40 to +55 C |
| Protection | Thermally Protected |
| CSA / UL File Number | E465664 |
| Class | Class A (105 C) |
| Motor Type | Continuous Air Over |

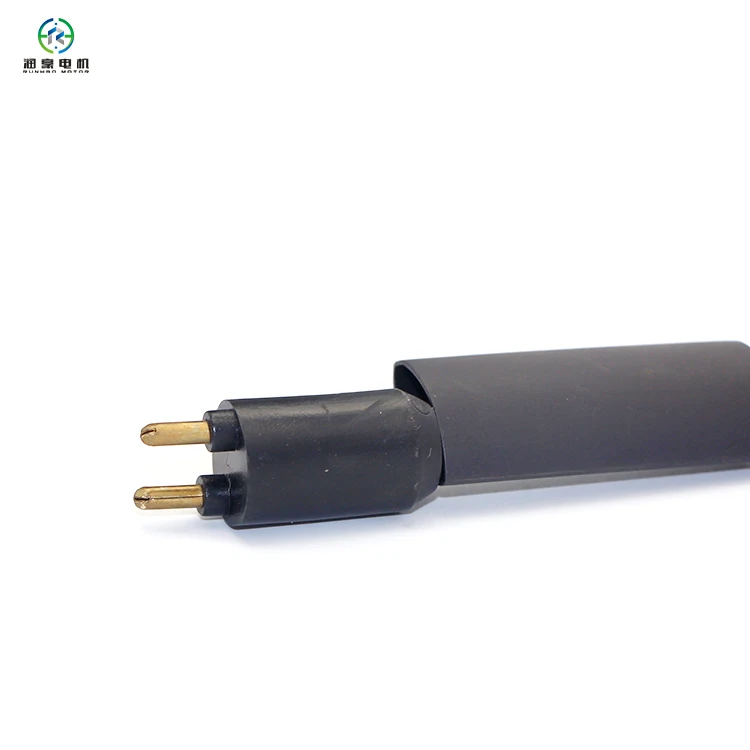

| Plug | 2 Pin Lyall M-2-24 |
| Cable Length | 16 Inches long |
| Cable Rating | 300V, 105C 18/2 CSA |
| Cable Rating | 300V, 105C 18/2 UL |
| Shaft diameter | 8mm / .3149 in |

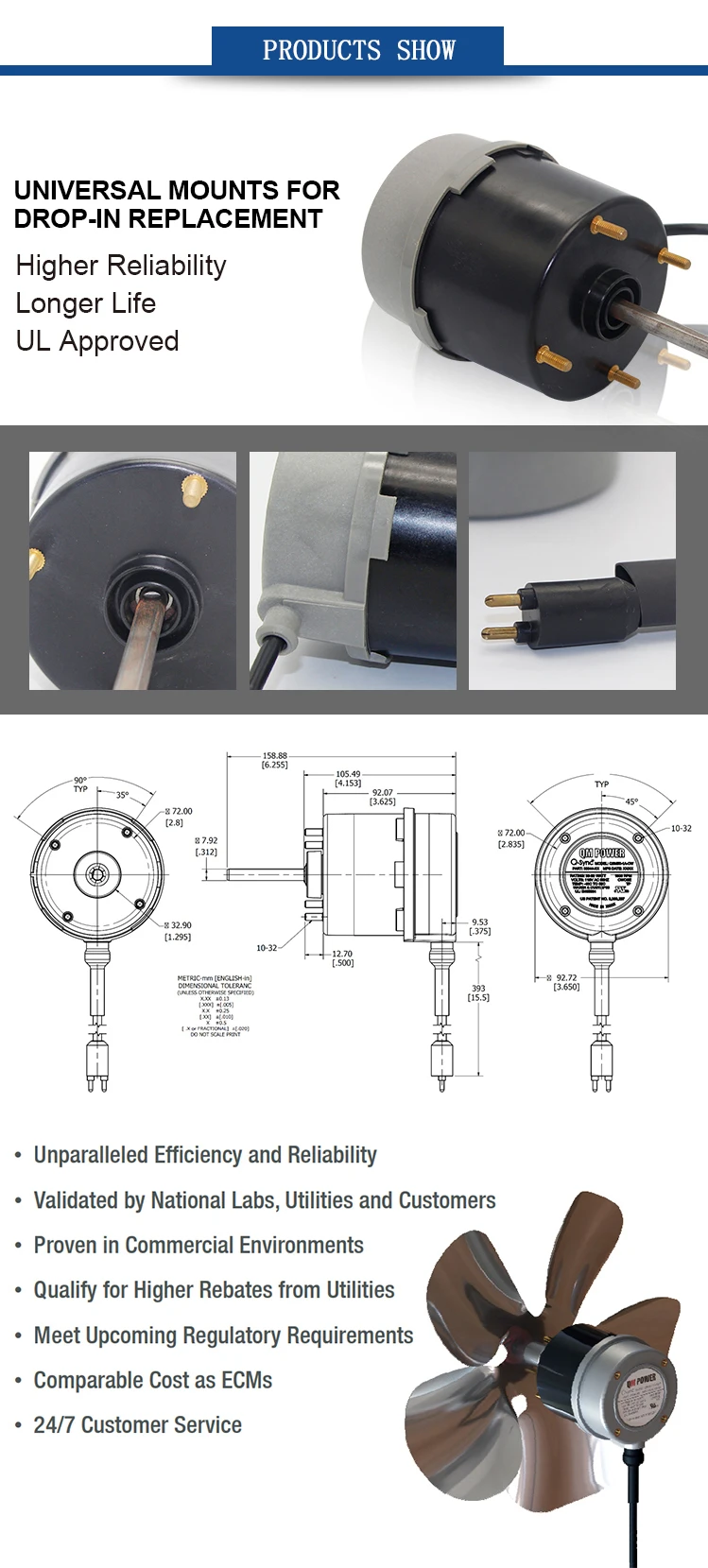

| Mounting Pattern | 4 Hole Front Mount |
| Mounting Pattern | 4 Hole Rear Mount |
| Mounting Stud Size | 10-32 |
| Moisture Protection | IP65 |
| Fan Blade Pitch | 12 In, 18 deg |
|
|
|
| Efficiency @50W (rated power) | 83% |
| Power Factor | 0.92 |
| Amps | 0.43 |
| Volts | 115 |
|
|
|
| Efficiency @38W (rated power) | 82% |
| Power Factor | 0.96 |
| Amps | 0.53 |
| Volts | 115 |
Ordering and Pricing
- Minimum order quantity: 480 piece
- Volume pricing:
- 480+ piece: US $23 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this brushless fan?
The standard minimum order quantity is 480 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 10Years warranty. Spare parts and technical support remain available after the warranty period.
Can the brushless fan be supplied for my local voltage?
The standard configuration is 115V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Suzhou Runhao Motor Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou Runhao Motor Co., Ltd. range on HVACR Nexus.
