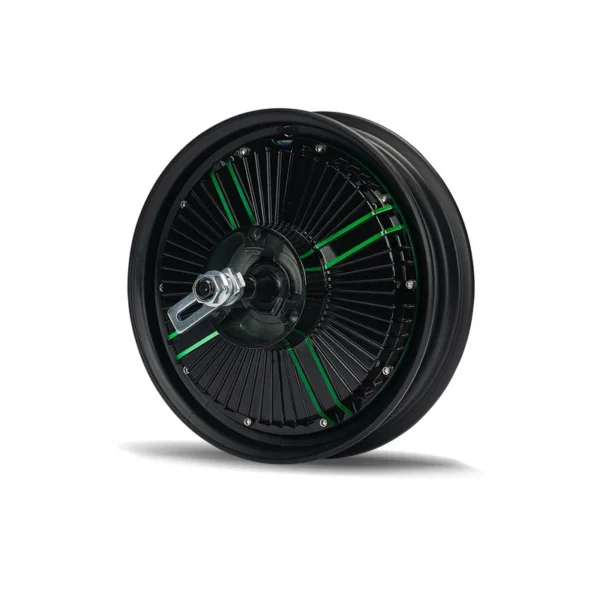

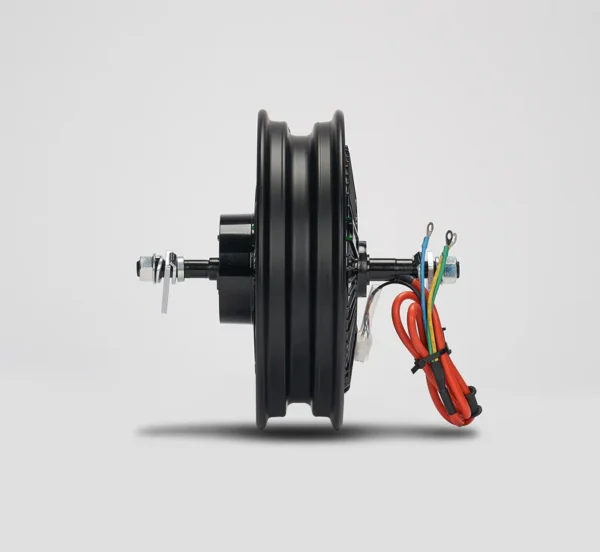

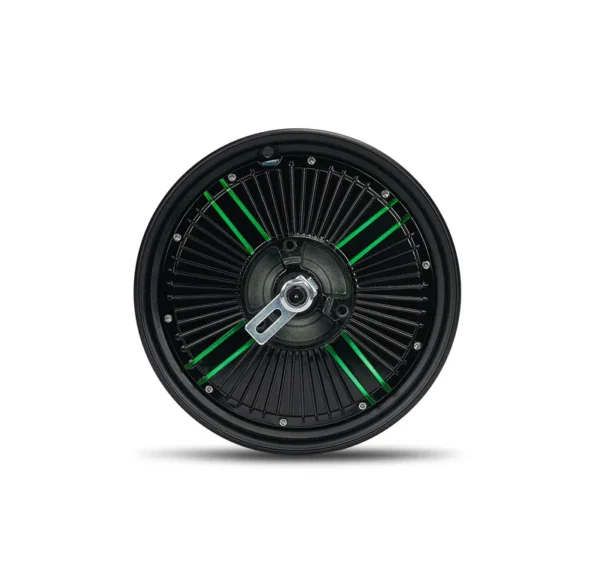

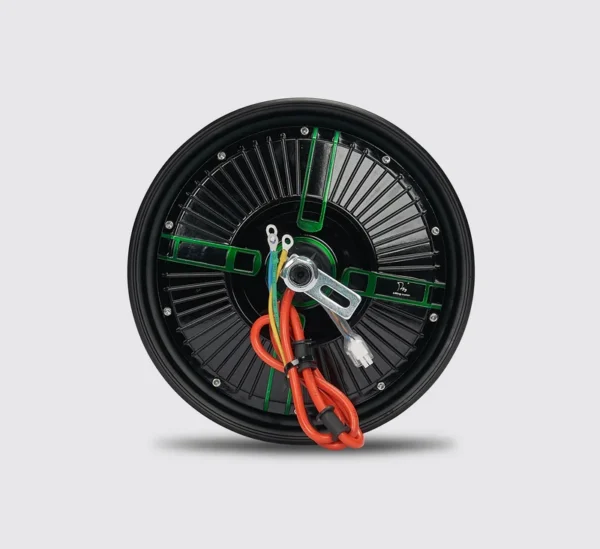

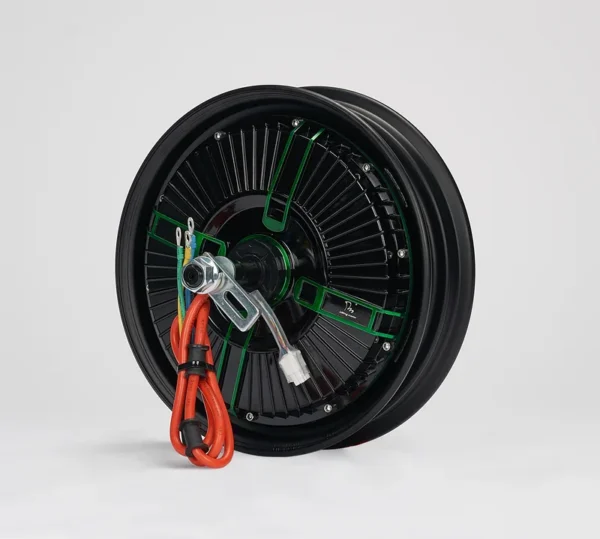

This powerful bldc hub motor is published with the manufacturer’s full specification — 60V, type Brushless Motor. Made by Wuxi Lingming Electric Drive Technology Co., Ltd. (4 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Powerful Bldc Hub Motor
- Model Number: LM-BM02
- Rated Power: 1200W
- Rated Voltage: 60V
- Speed(RPM): 550rpm
- Speed With Load: 45km/h
- Rated Rotation Speed: 550rpm
Technical Specifications
| Commutation | Brushless |
|---|---|
| Speed(RPM) | 550rpm |
| Efficiency | ≥87% |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Protect Feature | Waterproof IP67 |
| Usage | Electric Bicycle, Electric Scooter |
| Warranty | 3Years |
| Continuous Current(A) | 20A |
| Model Number | LM-BM02 |
| Torque | 118N.m(87.03lb.ft) |
| Place Of Origin | Jiangsu, China |
| Brand Name | lingming |
| Product Name | 12inch 1200W 35H 118N.m brushless DC electric motorcycle hub motor |
| Application | Electric scooter/bike/motorcycle |
| Maximum Torque | 118N.m |
| Speed With Load | 45km/h |
| Rated Rotation Speed | 550rpm |
| Rated Voltage | 60V |
| Rated Power | 1200W |
| Magnet Height | 35mm |
| Certification | CCC, CQC |
| Selling Units | Single item |
| Single Package Size | 34.3X34.3X38.4 cm |
| Single Gross Weight | 11.81 kg |
Product Details
| Specification | Motor Type: Hub Motor | Brake: 110 Drum Brake |
| Rated Voltage : 60V | Style: two rounds | |
| Magnet Height : 35mm | Stator : iron core | |
| Place of Origin : Jiangsu, China | Color : black/silver | |
| Bearing : double | Certification: CCC, CQC | |
| Waterproof :IP67 | Weight: 11.12kg | |
| Technical Data | Rated voltage | 60v |
| Efficiency | ≥87% | |
| Maximum power | 2000W | |
| Rated power | 1200W | |
| Maximum current | 40A | |
| Continuous current | 25A | |
| Rated Rotation Speed | 550rpm | |
| RPM without load | 600rpm | |
| Speed with load | 45km/h | |
| Maximum torque | 118N.m |
· High-performance aeronautical material silicon steel sheet is used to minimize iron loss.
· Using aircraft-grade material – neodymium magnet will never demagnetize.
· Adopt oxygen-free pure copper varnished wire, small resistance, high temperature resistance.
· Fast speed up
· High torque
· Low noise
· Excellent waterproof performance IP67
· Small temperature rise, fast heat dissipation
· Long service life
· Power saving and long range
Wuxi Lingming Electric Drive Technology Co., Ltd is funded and established by Wuxi New Force Motor Technology Co., Ltd which is located in city of Wuxi, Jiangsu Provice, one of the largest electric vehicle (scooter) production centers. Its main business is specialized in manufacturing of various kinds of brushless dc motor as well as developing and application for all kinds of electric vehicles, such as bicycle, motorcycle, scooter, and tricycle.
With 8 years of efforts, under the leadership of experienced engineering team, the company scale of business has been developed greatly. Now the space of Wuxi New Force Motor Company is expended to 20,000 square meters, and more than 300 people are working for the company and its current annual production capacity has reached 2.5 million sets. Our products are widely used by first and second tier brands of electric scooters in China, such as TAILIN, AIMA, YADEA, SLANE and WULING Industry. We believe that Lingming Electric Drive can be the best supplier of motor and controller with the support and trust from customers and New Force Motor Company.
Advantages:
1. Professional R&D team
2. Strong production capacity and high quality: annual output≥2000000
3. Fluence in autocad, catia and solidwork for 3D drawings.
4. In house CNC devices, fast prototyping.
5. Matured suppliers chain guarantee quick delivery.
Ordering and Pricing
- Minimum order quantity: 50 unit
- Volume pricing:
- 50–99 unit: US $79 / unit
- 100+ unit: US $75.5 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this powerful bldc hub motor?
The standard minimum order quantity is 50 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this powerful bldc hub motor carry?
It is supplied with CCC, CQC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the powerful bldc hub motor be supplied for my local voltage?
The standard configuration is 60V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuxi Lingming Electric Drive Technology Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Wuxi Lingming Electric Drive Technology Co., Ltd. range on HVACR Nexus.
