Brushless motor — voltage DC 12V, Dc 24V, air flow 13.7~22.8 CFM. The complete factory specification follows. Made by Henan Youchuang Electrical Equipment Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Brushless Motor
- Model Number: YCD6015B12H/YCD6015B24H
- Power Source: Electric
- Power (Watts): 1.2~3.4W
- Voltage: DC 12V, Dc 24V
- Air Flow: 13.7~22.8 CFM
- Material: Aluminum Alloy

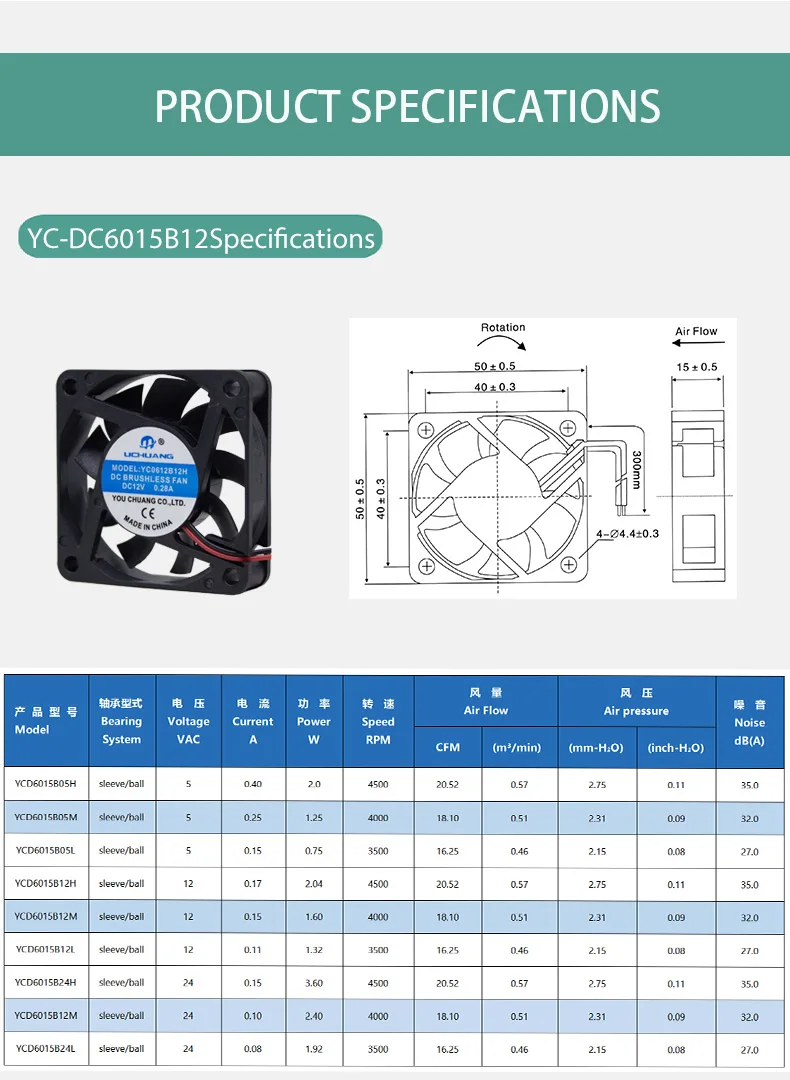

Technical Specifications
| Voltage | DC 12V, Dc 24V |
|---|---|
| Speed | 5000 RPM |
| Type | dc cooling fan |
| Material | Aluminum Alloy |
| Blade Material | PBT |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Customized Support | OEM, ODM |
| Place Of Origin | Henan, China |
| Brand Name | UCHUANG |
| Model Number | YCD6015B12H/YCD6015B24H |

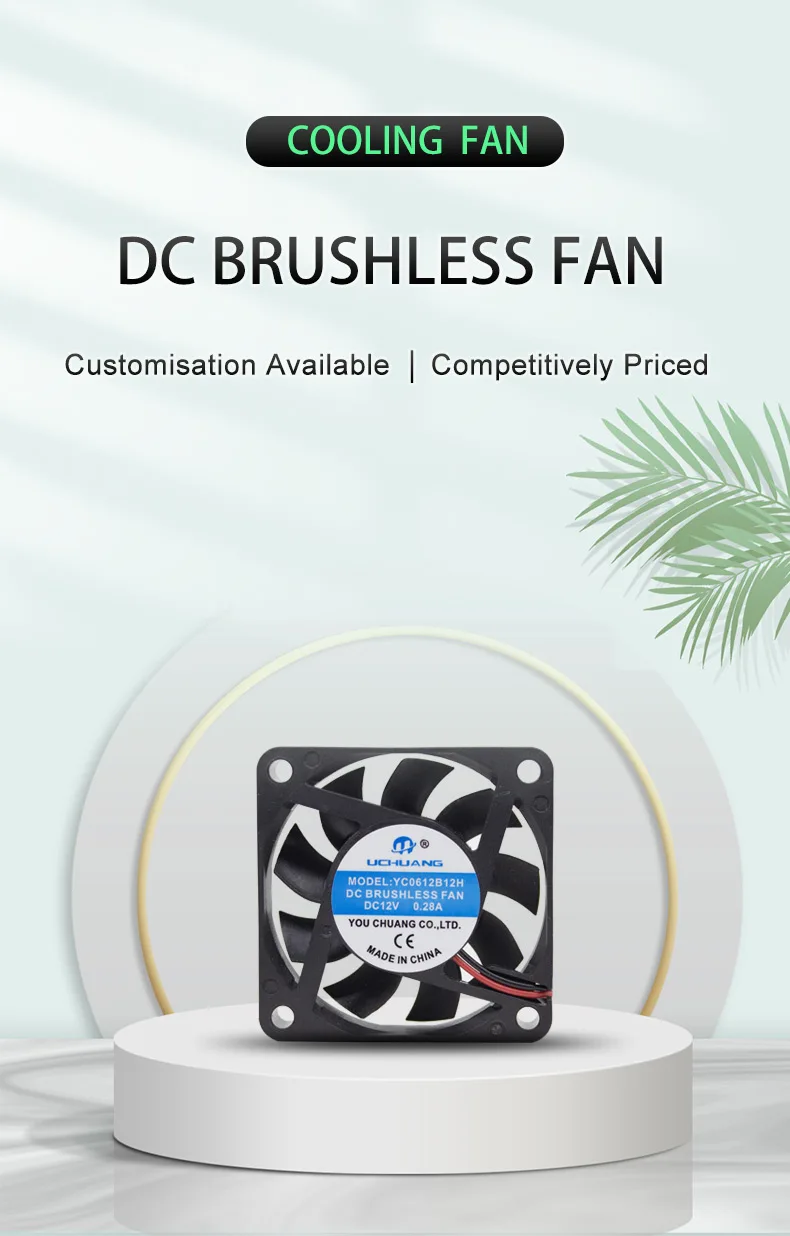

| Product Name | DC Cooling Fan |
| Size | 60x60x15mm |
| Power (Watts) | 1.2~3.4W |
| Air Flow | 13.7~22.8 CFM |
| Noise | 24~36 dBA |
| Expectancy Life | 30000 Hours |
| Description | Long service life, high rotational speed, large air volume |
| Application | Large machinery and equipment, air purification, welding machines |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |

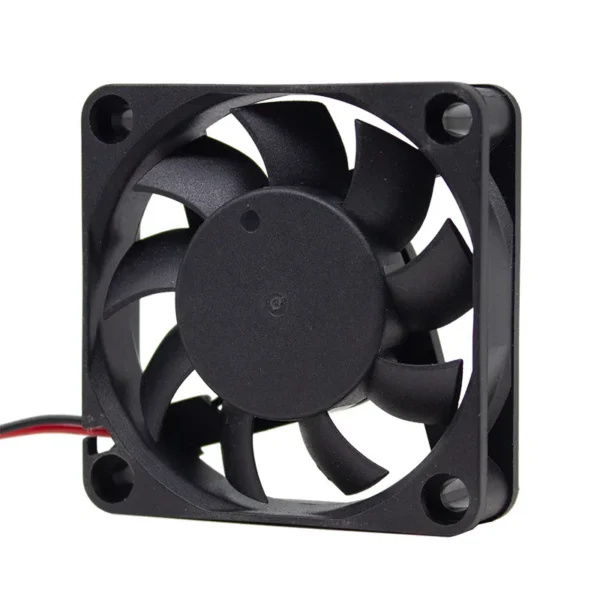

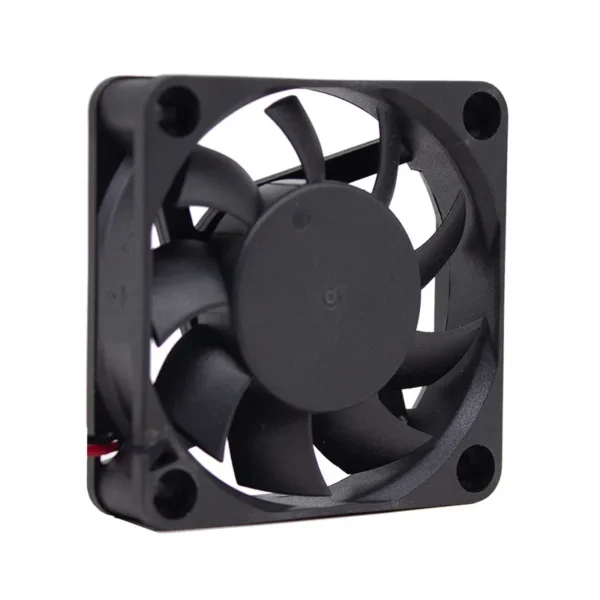

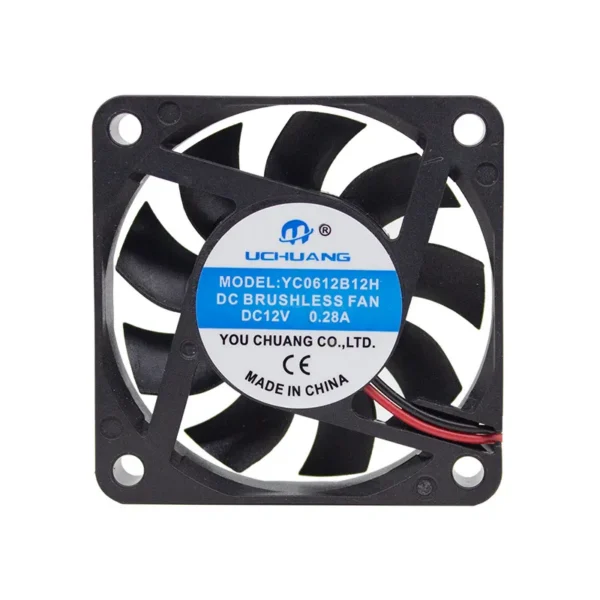

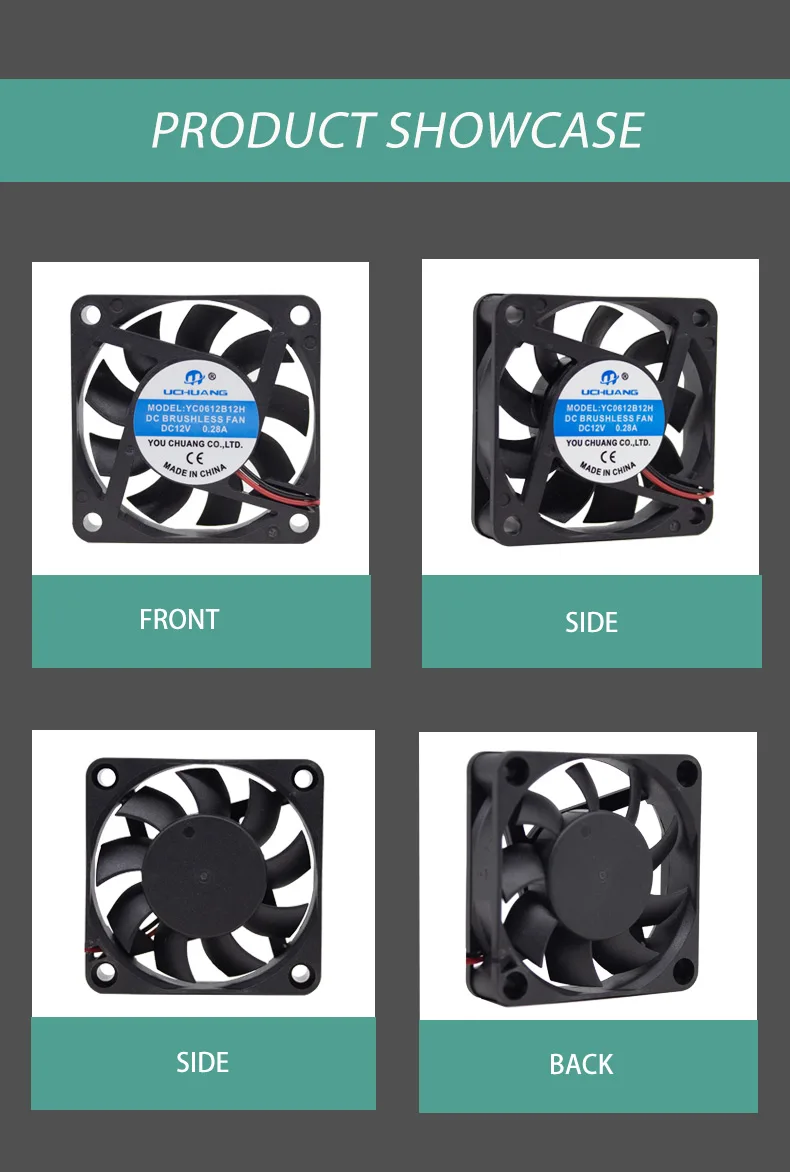

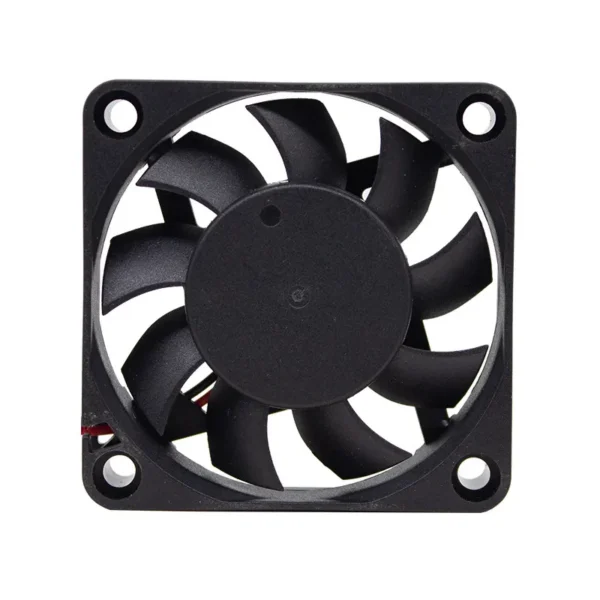

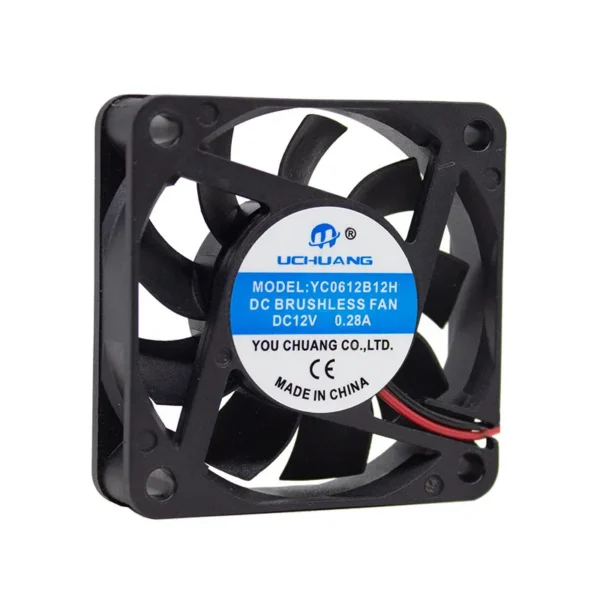

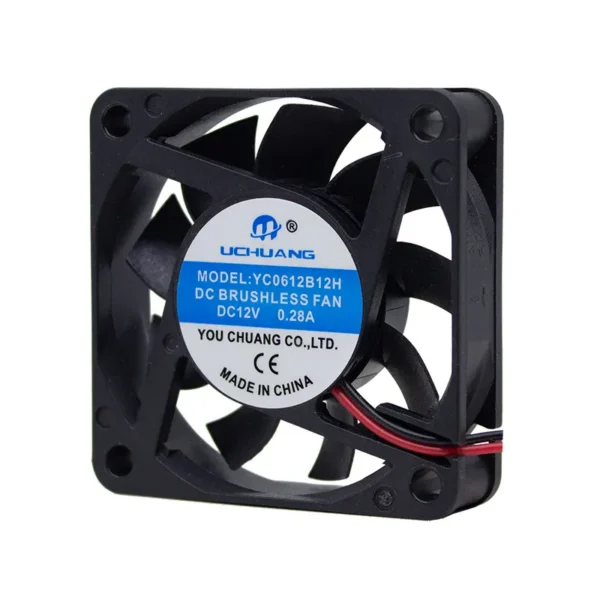

Product Details
Type | DC Brushless Fan |
Model | YCD6015 |
Dimensions | 60mm x 60mm x 15mm |
Rated Voltage | 12V/24V |
Bearing Type | Ball bearing |
Air Flow | 13.7~22.8 CFM |
Connector | 2 Wire (without connector) |
Motor Type | Brushless DC Motor |
Applications | Telecommunications industry, industrial equipment, electrical cabinets, air purification, network equipment, welding equipment,household appliances, medical equipment, mechanical automation, new energy vehicles,etc. |
Fan Series ( 25X25X7MM~280X280X80MM)
Model | Size (MM) | Air Flow ( CFM) | Model | Size (MM) | Air Flow ( CFM) |
YCD2507 | 25X25X7 | 1.54~2.81 | YCD7020 | 70X70X20 | 25.92~43.20 |
YCD2510 | 25X25X10 | 1.35~2.51 | YCD7025 | 70X70X25 | 26.94~44.90 |
YCD3007 | 30X30X7 | 1.98~3.64 | YCD8010 | 80X80X10 | 14.49~21.74 |
YCD3010 | 30X30X10 | 2.52~4.10 | YCD8015 | 80X80X15 | 23.23~46.47 |
YCD3507 | 35X35X7 | 3.46~7.88 | YCD8020 | 80X80X20 | 24.52~53.94 |
YCD3510 | 35X35X10 | 3.93~7.02 | YCD8025 | 80X80X25 | 30.92~68.02 |
YCD4007 | 40X40X7 | 4.32~8.65 | YCD8038 | 80X80X38 | 37.06~92.66 |
YCD4010 | 40X40X10 | 7.06~11.29 | YCD9225 | 92X92X25 | 33.42~58.48 |
YCD4015 | 40X40X15 | 5.80~11.36 | YCD9232 | 92X92X32 | 53.4~78.1 |
YCD4020 | 40X40X20 | 7.53~10.76 | YCD9238 | 92X92X38 | 57.65~105.69 |
YCD4028 | 40X40X28 | 11.36~16.23 | YCD12025 | 120X120X25 | 48.48~96.95 |
YCD4510 | 45X45X10 | 3.22~5.51 | YCD12032 | 120X120X32 | 131.4~184.9 |
YCD5010 | 50X50X10 | 7.94~14.74 | YCD12038 | 120X120X38 | 100.71~214.90 |
YCD5015 | 50X50X15 | 9.71~16.17 | YCD14025 | 140X140X25 | 60.34~86.20 |
YCD5020 | 50X50X20 | 8.09~16.18 | YCD14038 | 140X140X38 | 69.75~97.27 |
YCD6010 | 60X60X10 | 10.28~17.13 | YCD15050 | 150X150X50 | 171.73~274.76 |
YCD6015 | 60X60X15 | 11.01~28.62 | YCD17250 | 172X150X50 | 171.73~373.68 |
YCD6020 | 60X60X20 | 11.43~19.05 | YCD20060 | 200X200X60 | 514.6~748.6 |
YCD6025 | 60X60X25 | 16.76~43.10 | YCD20070 | 200X200X70 | 335~550 |
YCD6038 | 60X60X38 | 36.73~50.15 | YCD22580 | 225X225X80 | 581~623 |
YCD7010 | 70X70X10 | 15.23~23.06 | YCD25489 | 254X254X89 | 138.7~194.3 |
YCD7015 | 70X70X15 | 16.24~27.06 | YCD28080 | 280X280X80 | 998.1~1094.2 |
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–1999 piece: US $1.68 / piece
- 2000–4999 piece: US $1.38 / piece
- 5000–9999 piece: US $1.28 / piece
- 10000+ piece: US $1.18 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.

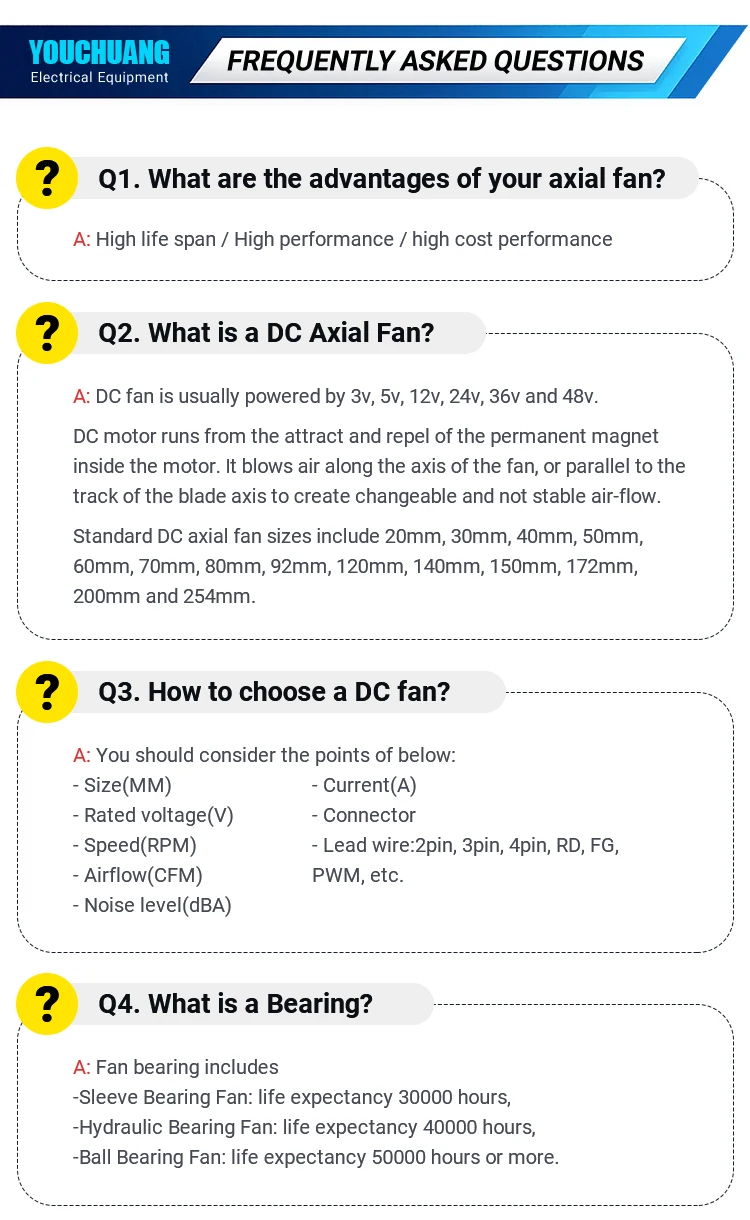

Frequently Asked Questions
What is the minimum order quantity for this brushless motor?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the brushless motor be supplied for my local voltage?
The standard configuration is DC 12V, Dc 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

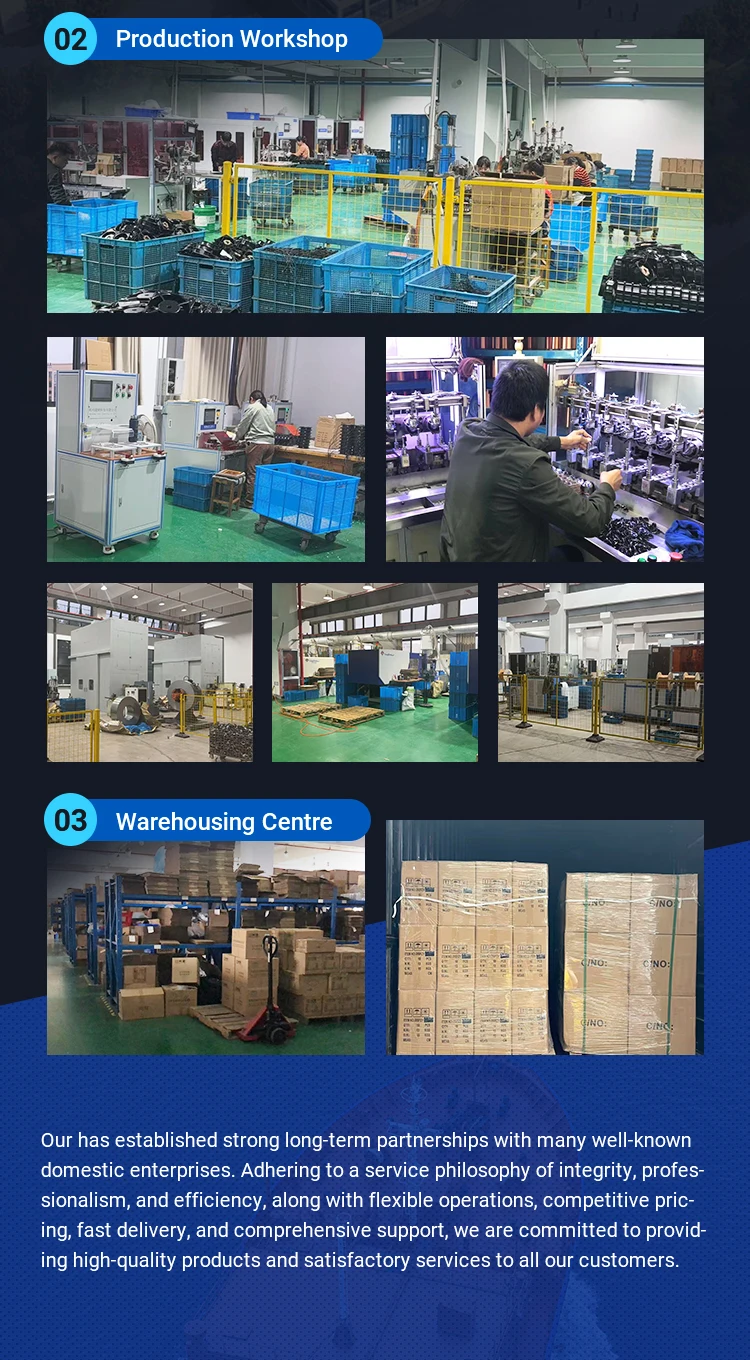

About the Manufacturer
This product is produced by Henan Youchuang Electrical Equipment Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Youchuang Electrical Equipment Co., Ltd. range on HVACR Nexus.
