This brushless speed controller is published with the manufacturer’s full specification — input power supply 5S-12S LIPO, model number 5-12S120A_ESC. Made by Dongguan Maxkgo Technology Co, Ltd. (3 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Brushless Speed Controller
- Model Number: 5-12S120A_ESC
- Input Power Supply: 5S-12S LIPO
- Place Of Origin: Guangdong, China
- Product Type: Brushless Motor Electronic Speed Controller (ESC)
- Size: 78.8mm*34.6mm*21.8mm
- Single Package Size: 7.88X3.46X2.18 cm
Technical Specifications
| Model Number | 5-12S120A_ESC |
|---|---|
| Place Of Origin | Guangdong, China |
| Brand Name | MAXKGO |
| Product Type | Brushless Motor Electronic Speed Controller (ESC) |
| Continuous Current | 120A |
| Instantaneous Current | 150A |
| Weight | 89.2g |

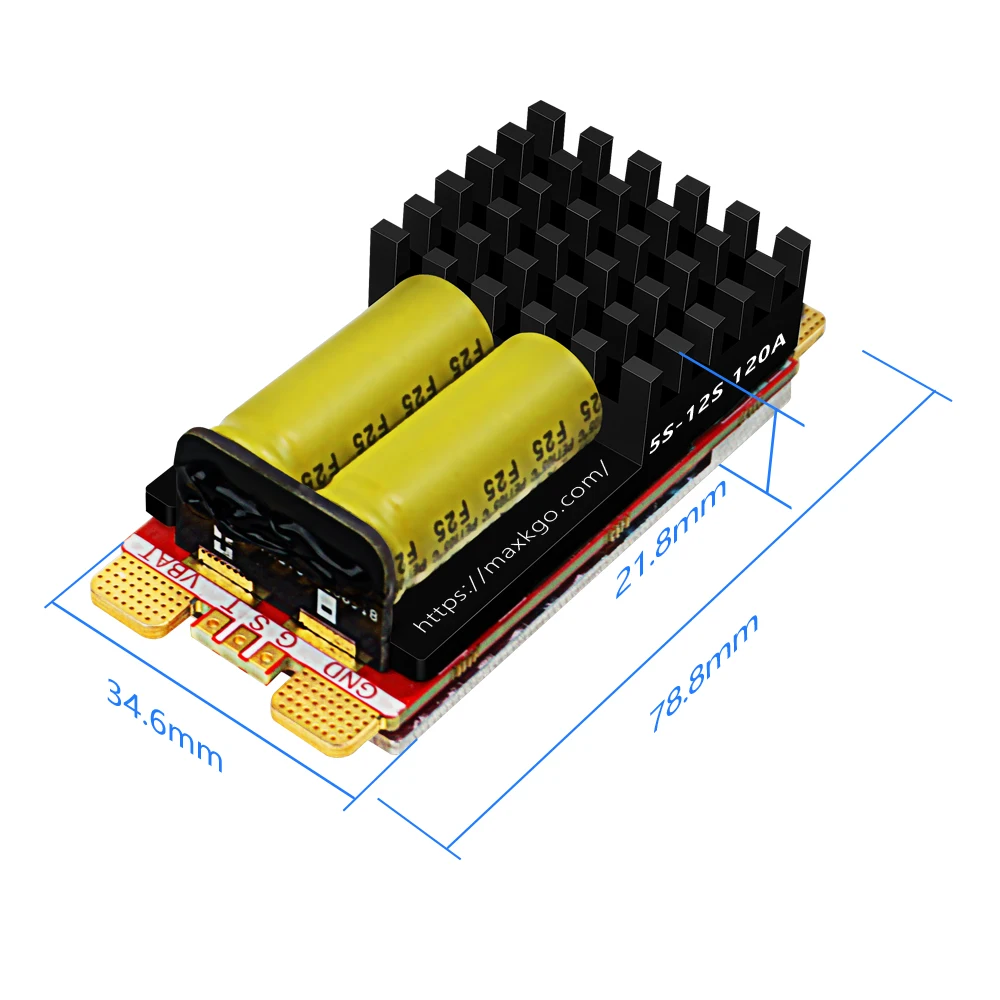

| Size | 78.8mm*34.6mm*21.8mm |
| Input Power Supply | 5S-12S LIPO |
| Firmware Version | MAXKGO_12S_F421 |
| Firmware Upgrade | Supports AM32.ca online upgrade |
| Communication Protocol | Dshot 300,Dshot 600,Servo PWM |
| Signal Feedback | TX line feeds ESC voltage, current, temp & motor speed feedback |
| Selling Units | Single item |
| Single Package Size | 7.88X3.46X2.18 cm |
| Single Gross Weight | 1.000 kg |
Product Details

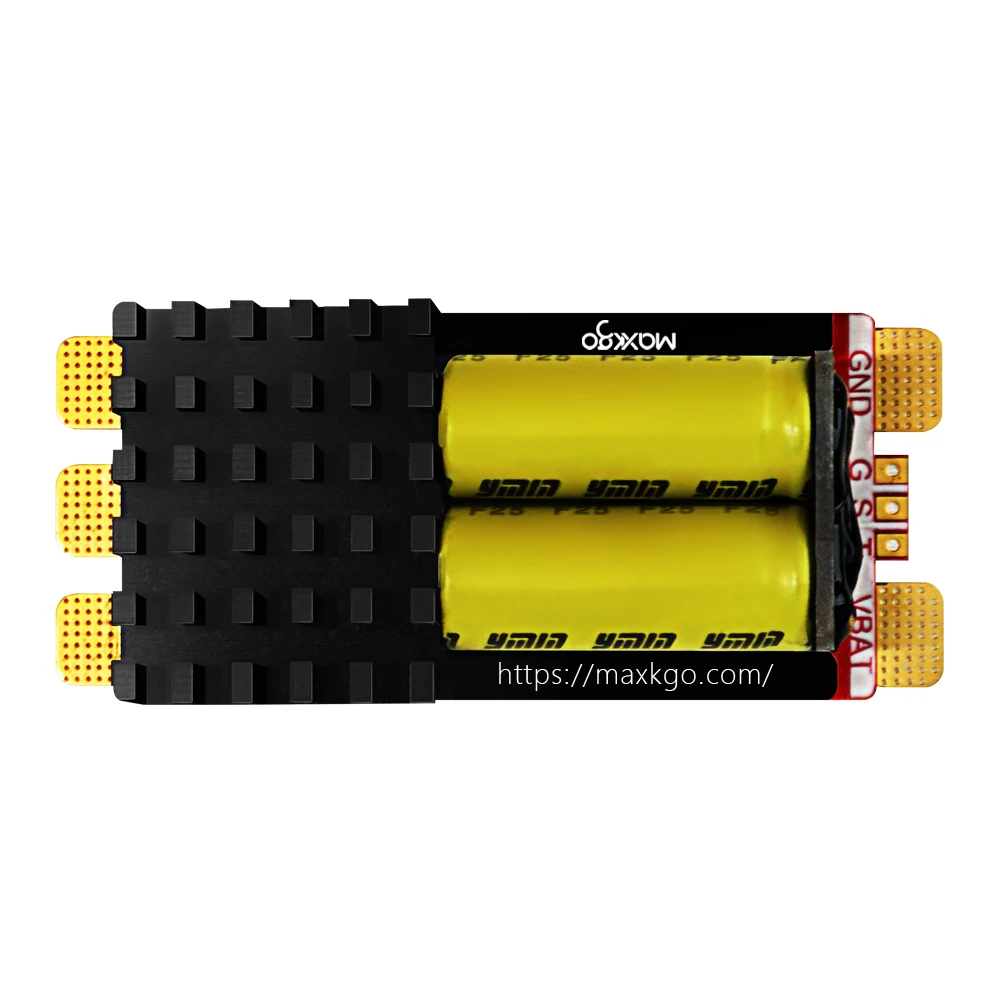

5-12S120A_ESC
Description:
The 5-12S120A_ESC is a high-performance brushless electronic speed controller (ESC) that supports 5-12S lithium battery input and has a continuous current of 120A. It is widely used in racing drones, Multi Axis UAVs, fixed-wing model aircraft, Multi–rotor model aircraft, RC model cars, model boats, and more.

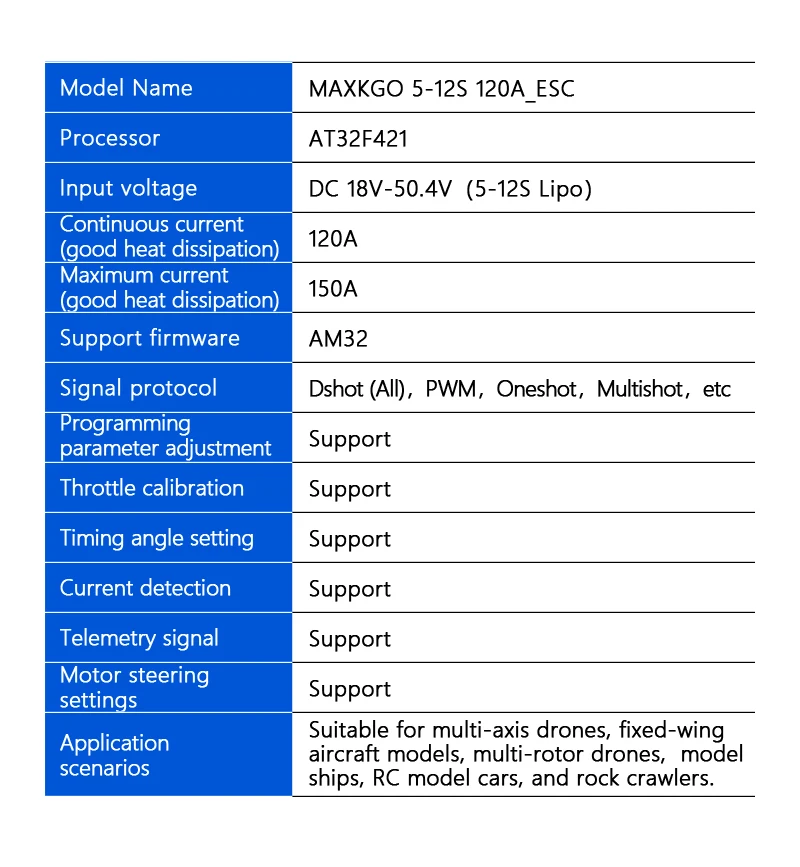

5-12S120A_ESC Parameter:
Product type:Brushless Motor Electronic Speed Controller (ESC)
Continuous Current:120A
Instantaneous Current:150A
Weight:89.2g

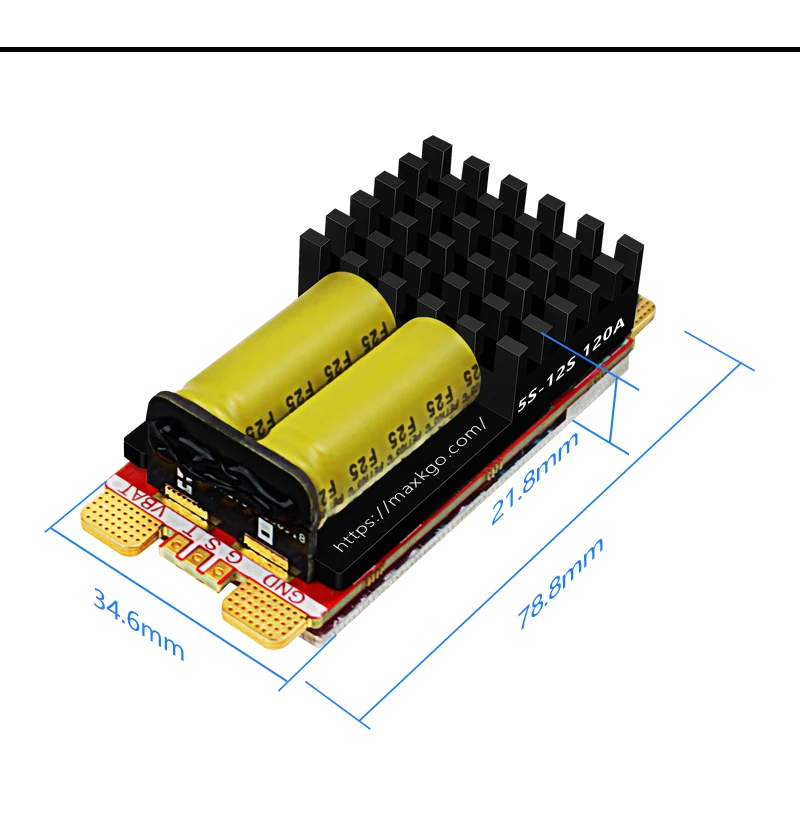

Size:78.8mm*34.6mm*21.8mm
Input Power Supply:5S-12S LIPO
Firmware Version:MAXKGO_12S_F421
Firmware Upgrade:Supports AM32.ca online upgrade
Communication Protocol: Dshot 300,Dshot 600,Servo PWM

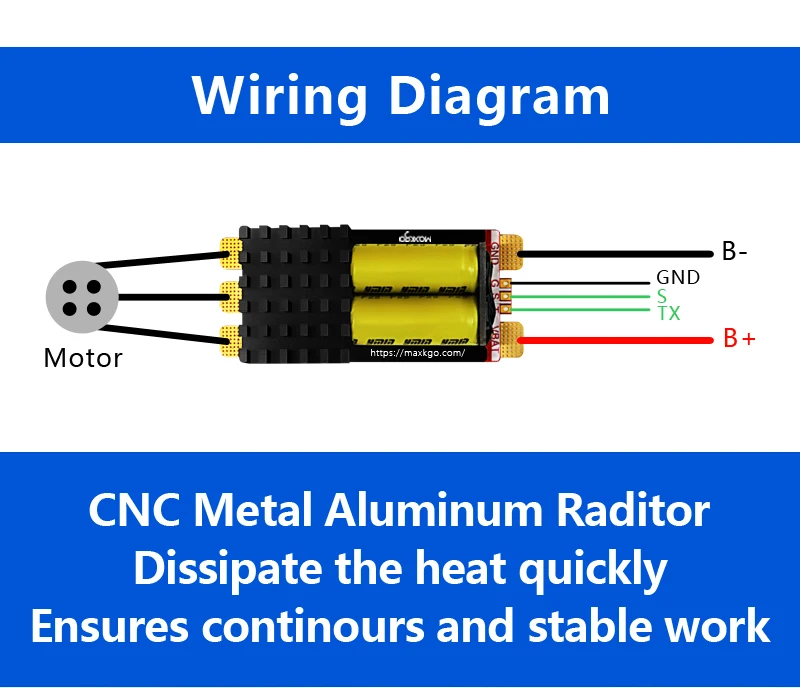

Signal Feedback:The TX wire/signal wire feeds back the ESC voltage, current, temperature, and motor speed
5-12S120A_ESC Features:

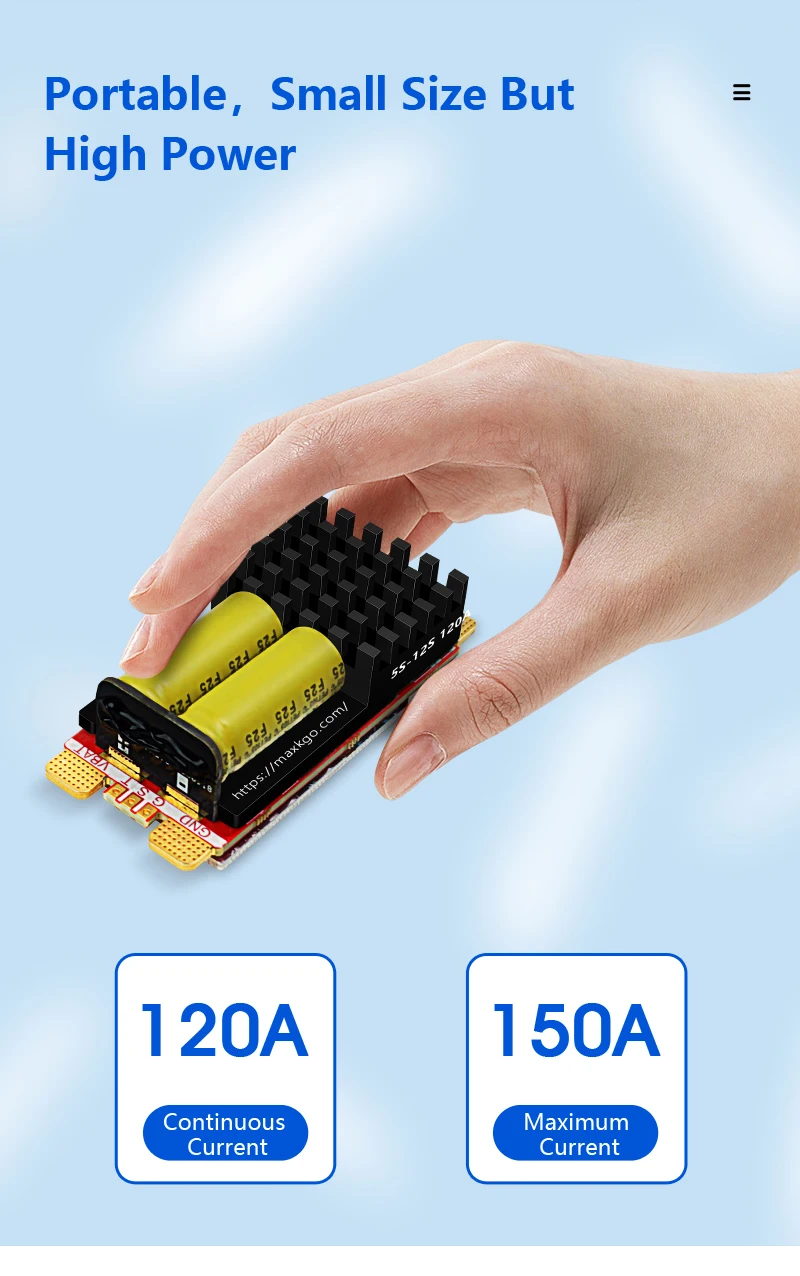

MINI Size
Supports various protection functions: low-voltage protection, temperature protection, locked-rotor protection, and low-speed protection

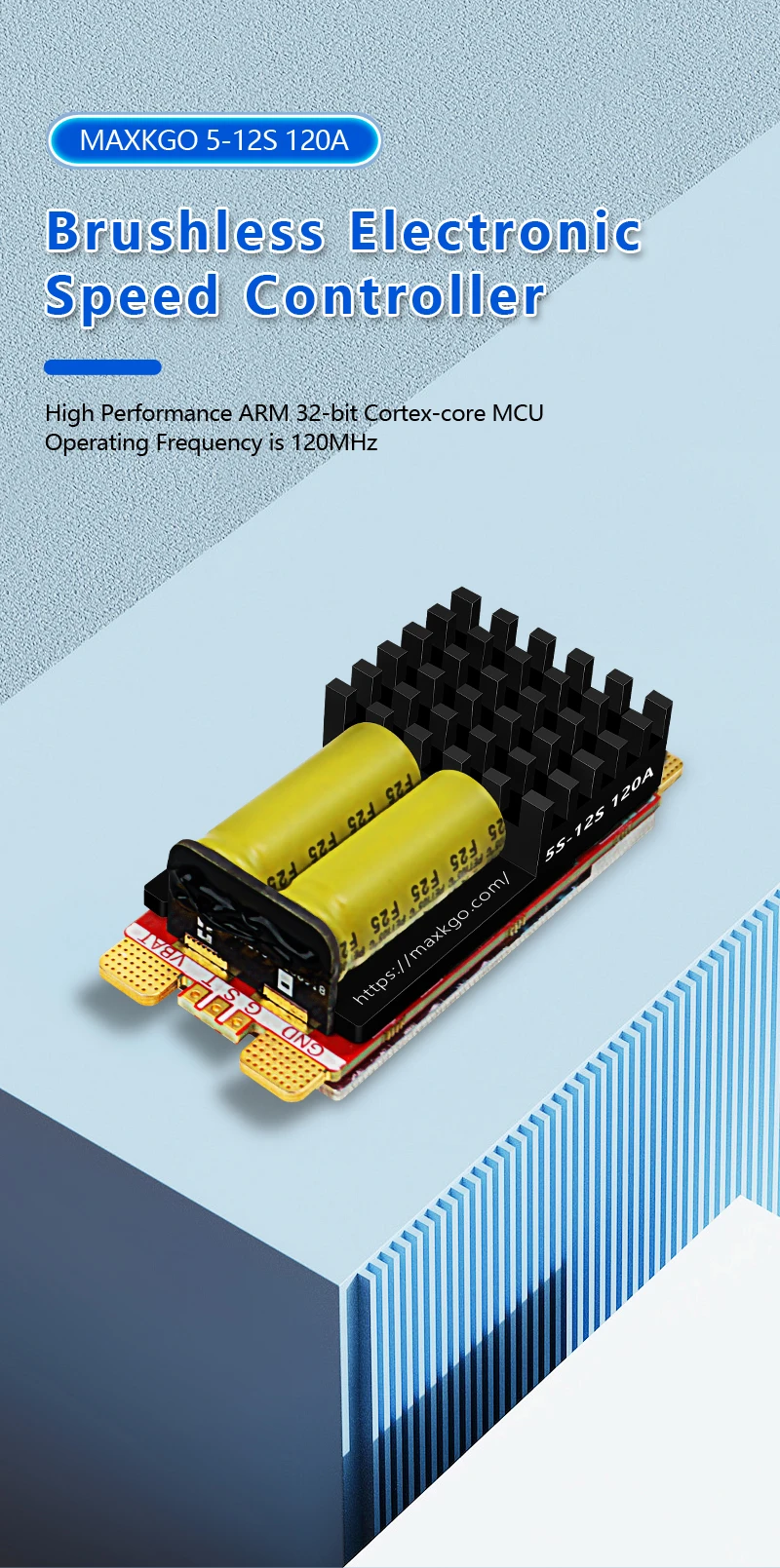

High-performance ARM 32-bit Cortex-core MCU with an operating frequency of 120 MHz
5-12S120A_ESC Application Fields:
Multi Axis UAV (Unmanned Aerial Vehicle)
Fixed-wing model aircraft
Multi–rotor model aircraft
RC model car
Model boat

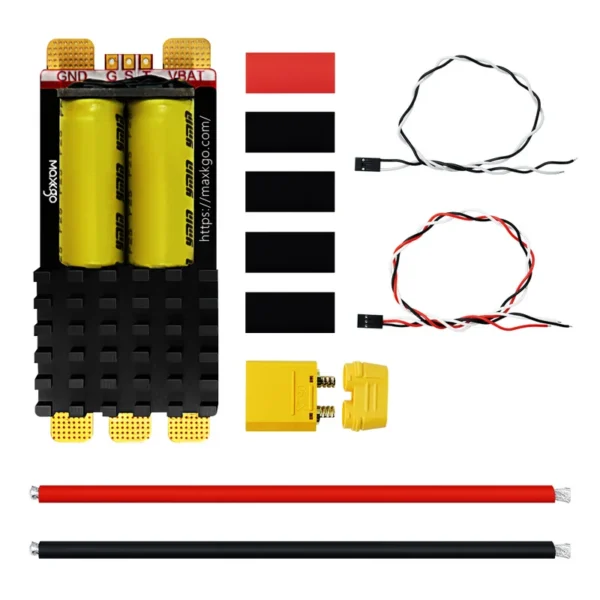

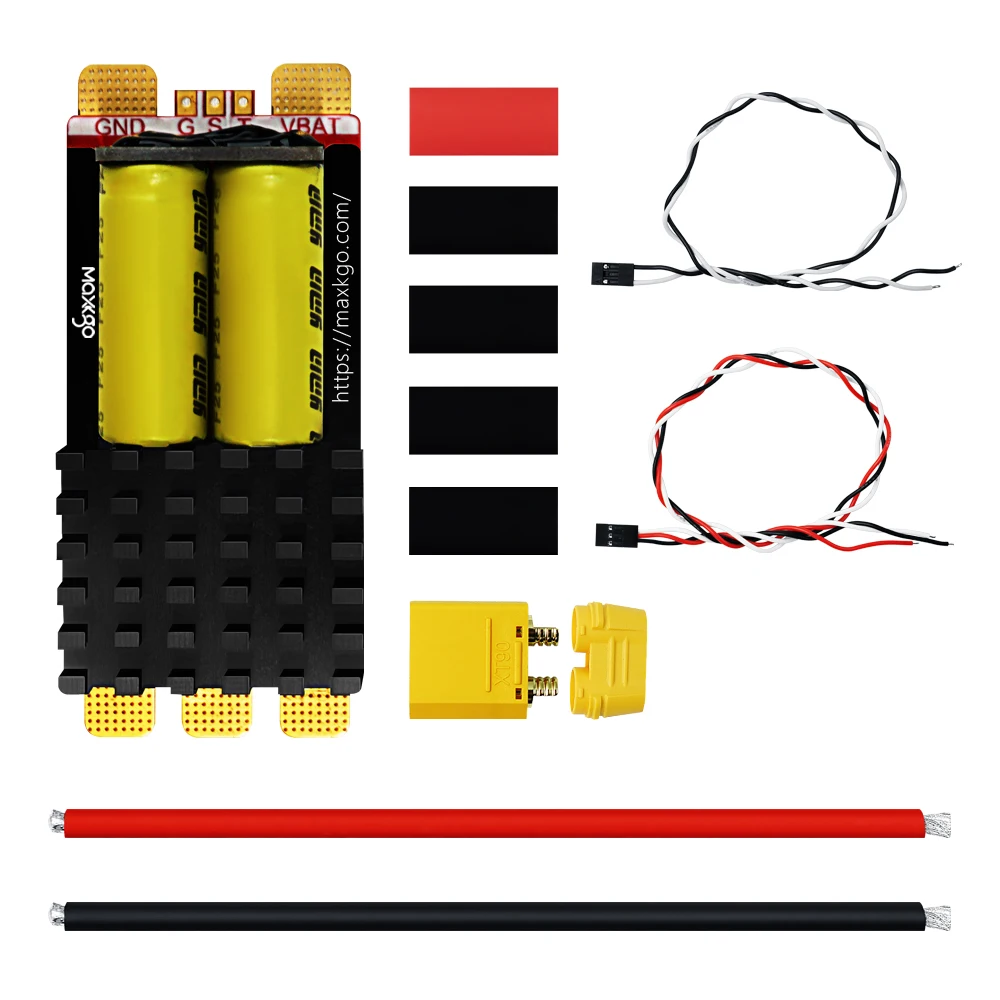

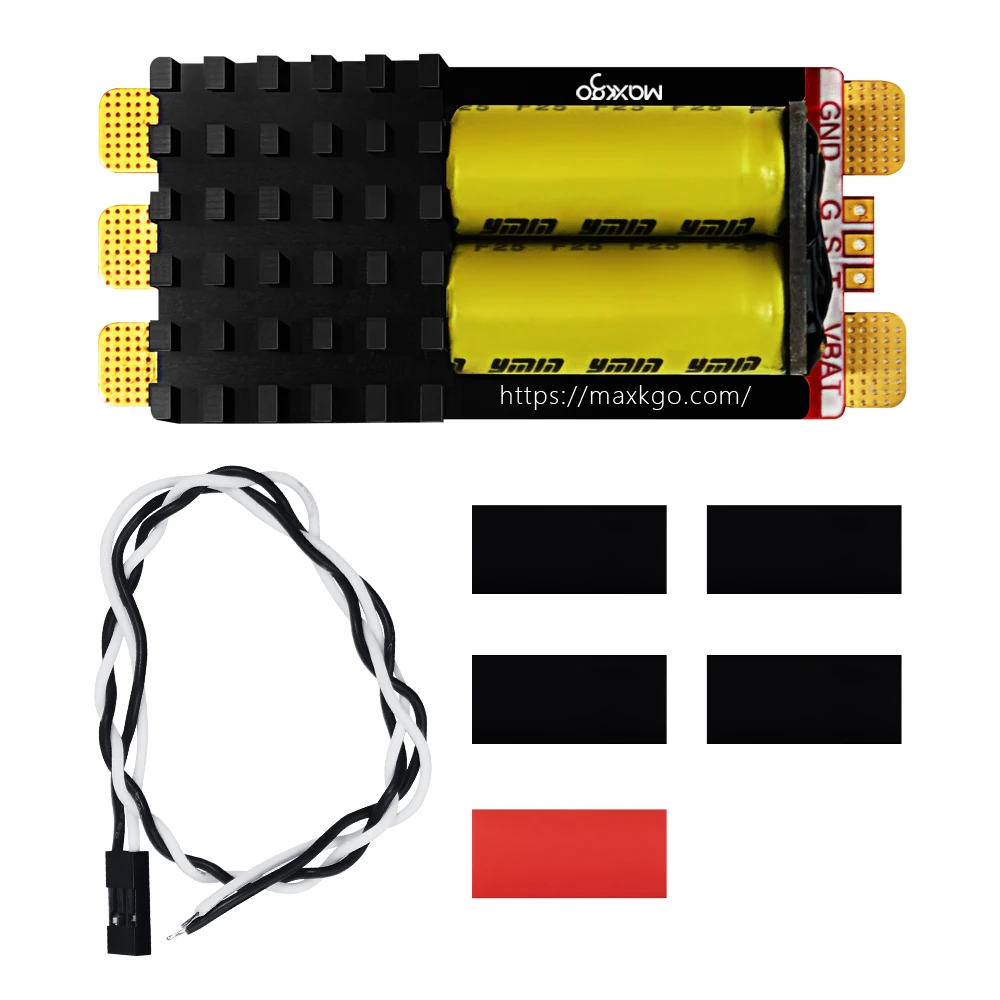

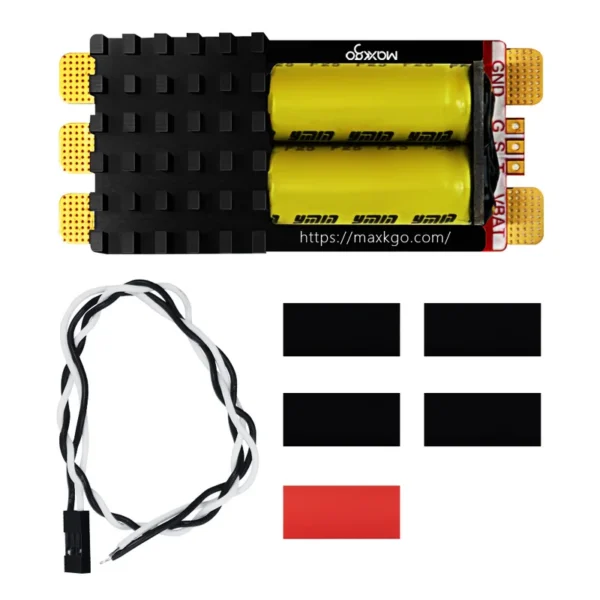

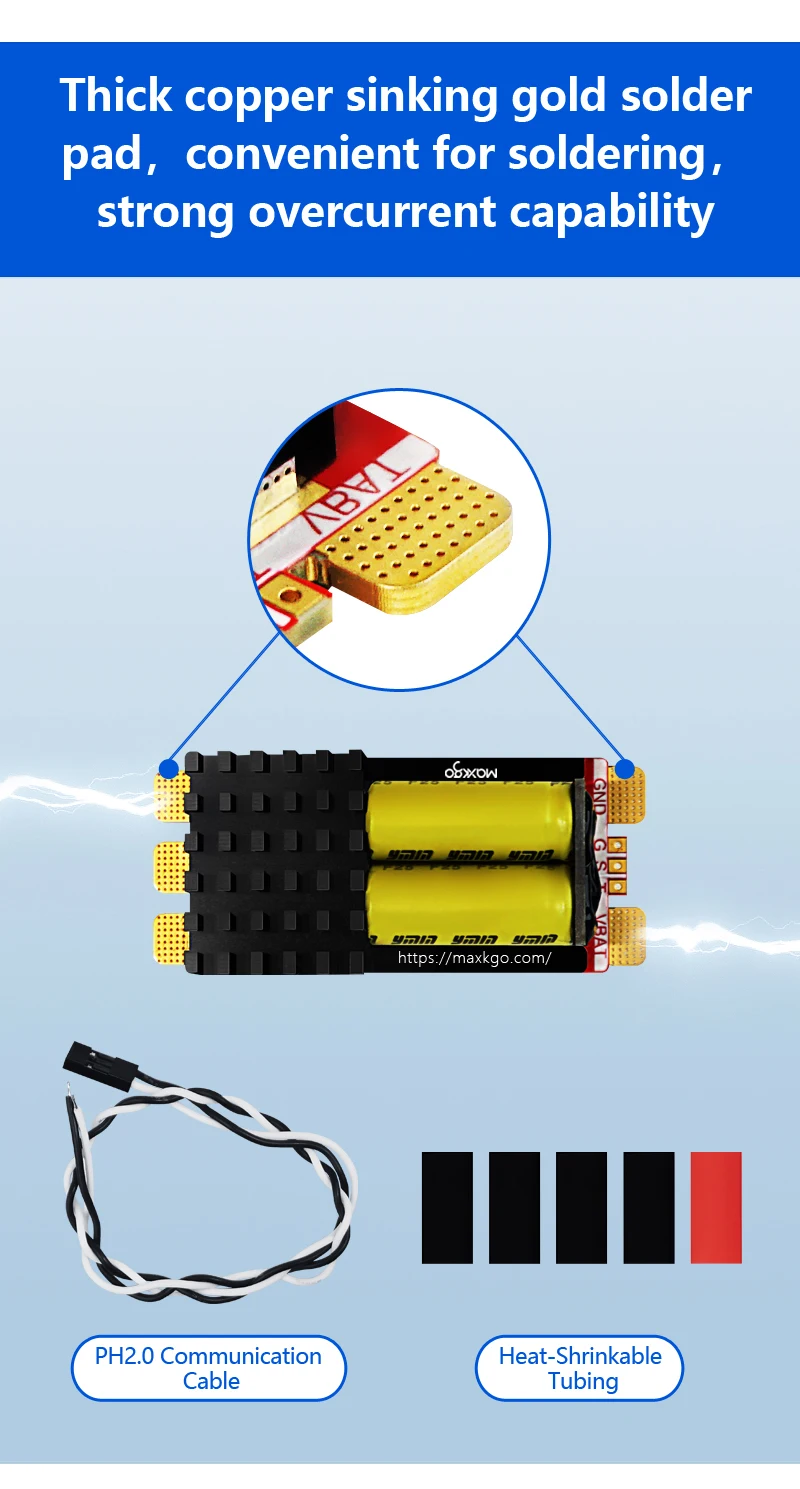

Packing List:
5-12S120A_ESC Main Unit * 1
Heat Shrink Tubing * 5
PH2.0 Communication Cable * 1
