Cabinet air conditioner — power supply 220-240v /1ph/50Hz, 1000W. The complete factory specification follows. Made by AXIS SOLUTIONS LIMITED (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cabinet Air Conditioner
- Model Number: ACU11001011
- Power Supply: 220-240v /1ph/50Hz
- Cooling Capacity: 1000W
- Air Flow: 510 m³/h
- Refrigerant: R-134a
- Warranty: 1 Year
Technical Specifications
| Type | Cabinet Air Conditioner |
|---|---|
| Refrigerant | R-134a |
| Mounting Type | Wall / Window Mount |
| Fan Motors Type | Reciprocating |
| Motor Type | AC Motor |
| Filter Type | Regular Filter |
| Application | Pharma |
| Key Selling Points | High-Accuracy, Competitive Price, Low Maintenance Cost, Easy To Operate, High Safety Level |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Compressor |
| Place Of Origin | Gujarat, India |
| Weight (Kg) | 31 |
| Brand Name | Axis |
| Model Number | ACU11001011 |
| Dimension(L*W*H) | 850 X 350 X 193 |
| Product Name | Air Conditioning Unit |
| Model | ACU11001011 |
| Power Supply | 220-240v /1ph/50Hz |
| Cooling Capacity | 1000W |
| Current Consumption | 3.85A |
| Net Weight | 31kg |
| Compressor | Reciprocating |
| After-Sales Service Provided | Online Support |
| Color | RAL7035 |
| Air Flow | 510 m³/h |
| Condensor Coil | Blue fins (Anti corrosive) |
| Function | Air Conditioning Ventilation |
| Selling Units | Single item |
| Single Gross Weight | 31.000 kg |
Product Details
Product Description
Description

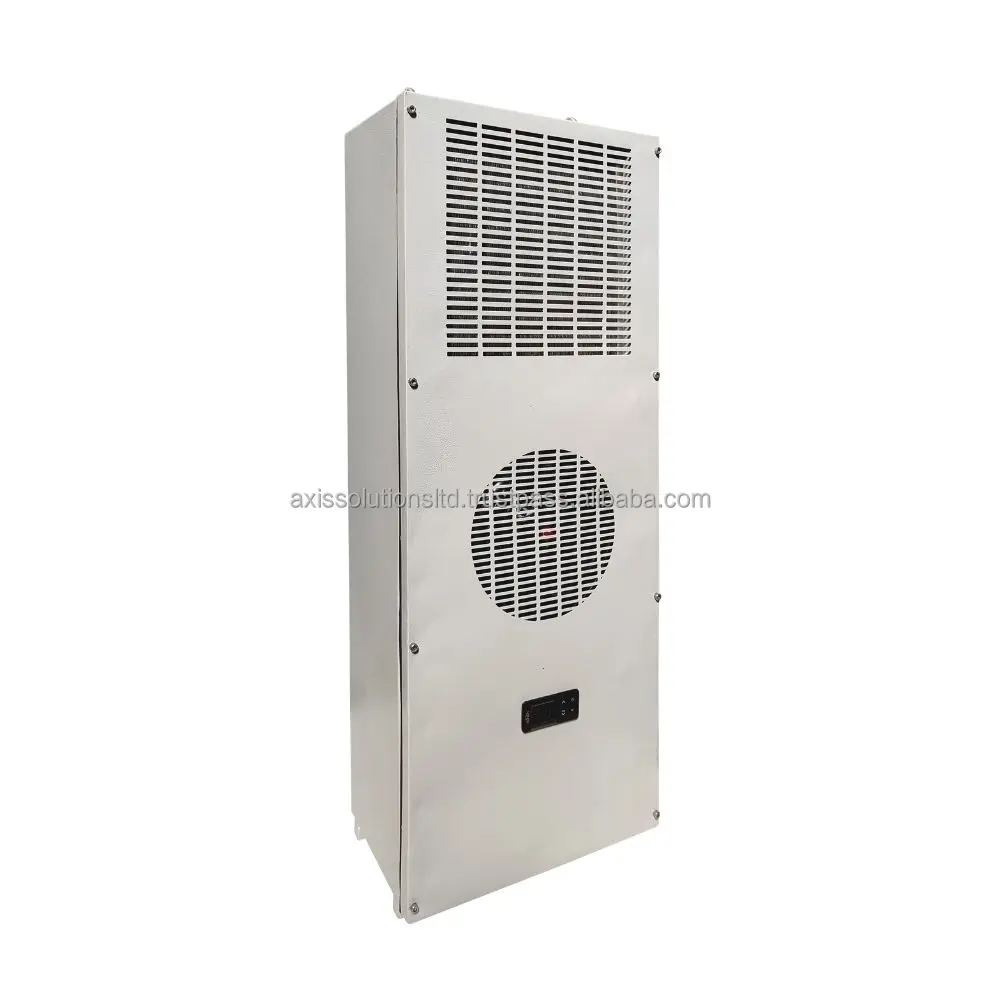

The ACU11001011 offers 1000W of efficient cooling performance in a compact MS CRCA painted housing. CE certified and equipped with alarm protection, it ensures reliable and stable operation for process control panels.
Key Features & Advantages:
– 1000W cooling for process enclosures.
– CE certified and alarm-equipped.
– MS CRCA housing for strength and reliability.
– Compact, corrosion-resistant design.
– Long-term performance in industrial setups.
– 1000W cooling for process enclosures.
– CE certified and alarm-equipped.
– MS CRCA housing for strength and reliability.
– Compact, corrosion-resistant design.
– Long-term performance in industrial setups.

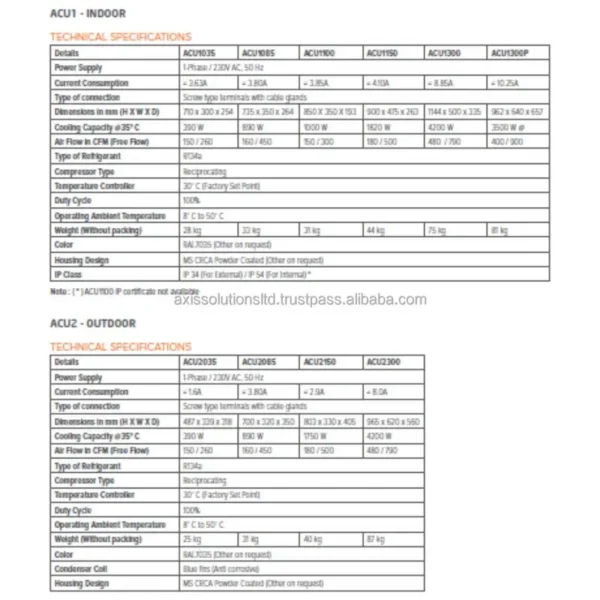

Specification
Item | ACU11001011 – Indoor Air Conditioning Unit (1000 W) |
Place of Origin | India |
Mounting | Indoor (ACU1), Panel/Enclosure mount |
Body Material | MS CRCA Powder Coated / SS 304 (on request) |
Cooling Capacity | 1000 W |
Air Flow | 150–300 CFM (Free Flow) |
Refrigerant Type | R134a |
Compressor | Hermetically sealed reciprocating |
Current Consumption | ≈ 3.85A |
Power Supply | 230 VAC, 50 Hz, 1-Phase |
Temperature Range | 30° C (Factory Set Point) |
Operating Ambient Temperature | 8° C to 50° C |
Connection | Screw-type terminals with cable glands |
Color | RAL7035 (Other on request) |
Condensor Coil | Blue fins (Anti corrosive) |
Weight (without packing) | 31 kg |
Key Features | Low noise, high dust protection, efficient condenser, IP34/IP54 class |
Application | PLC Panels, Drive Panels, Control Enclosures, Industrial Machines |

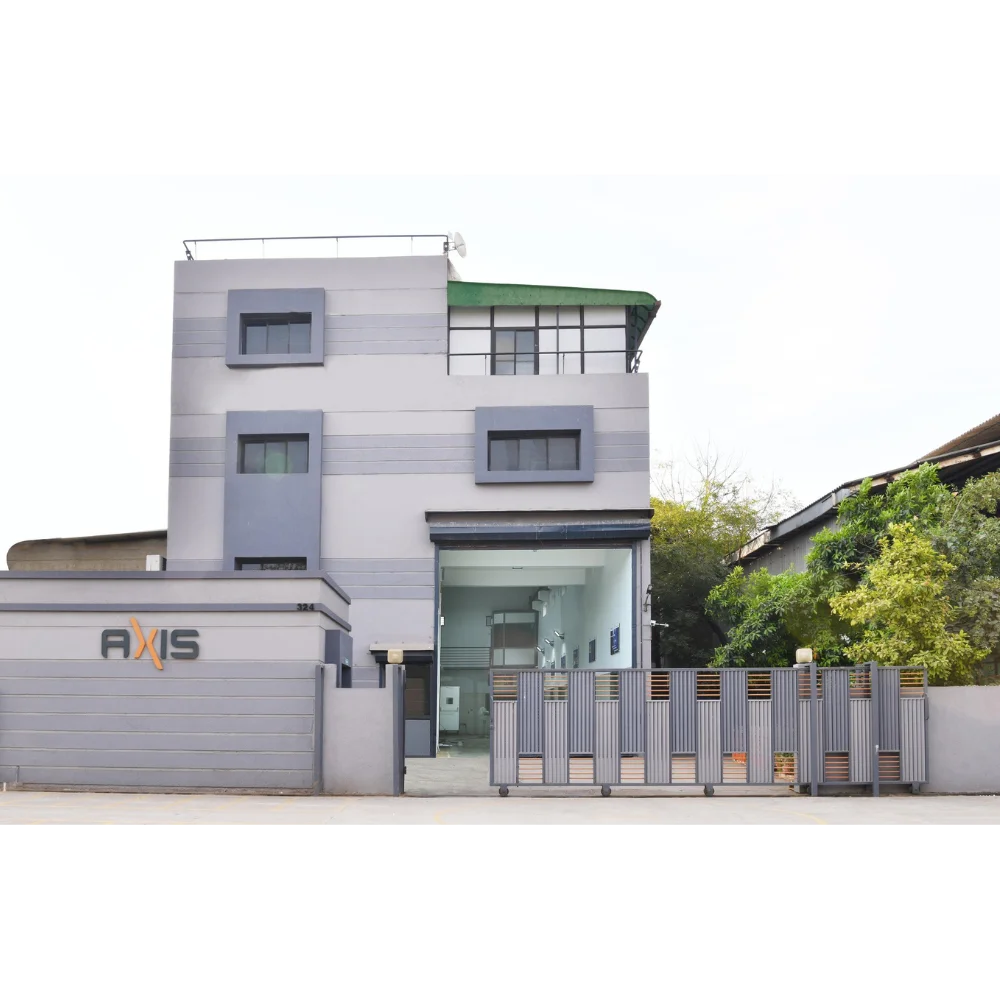

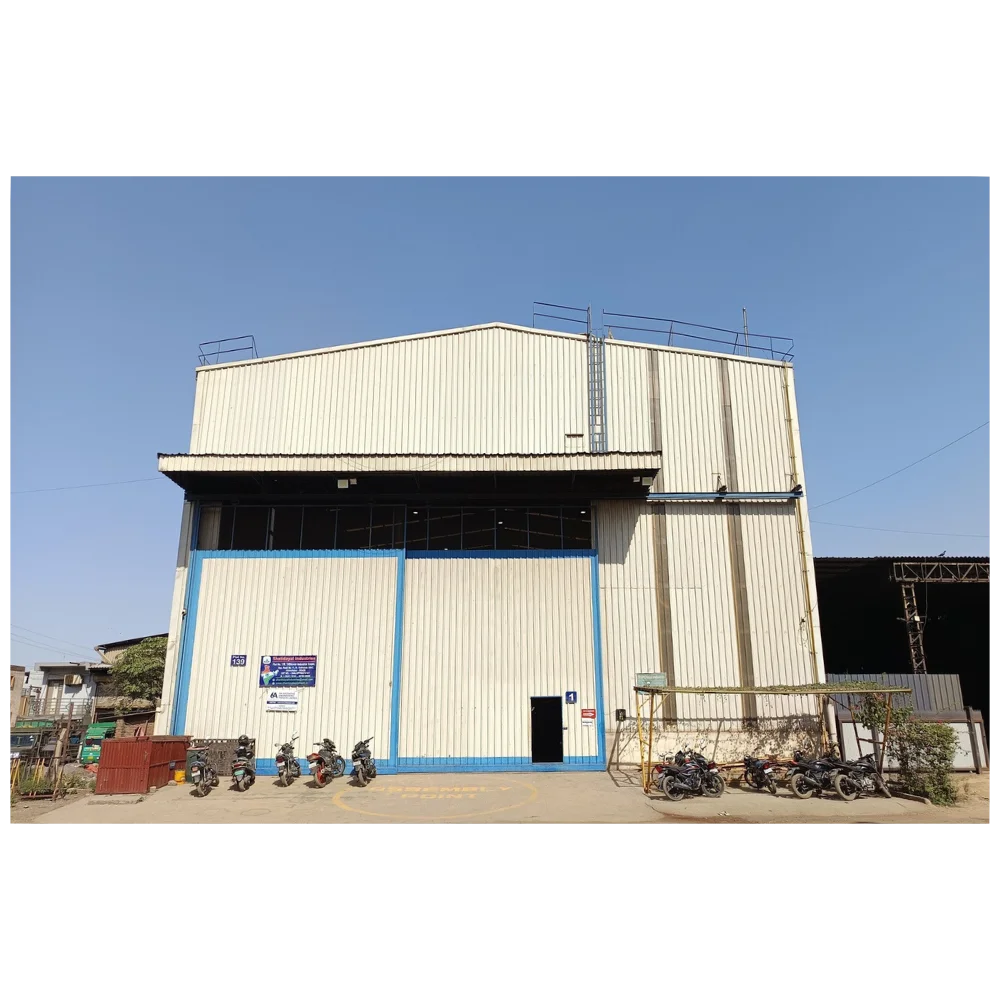

Company Profile

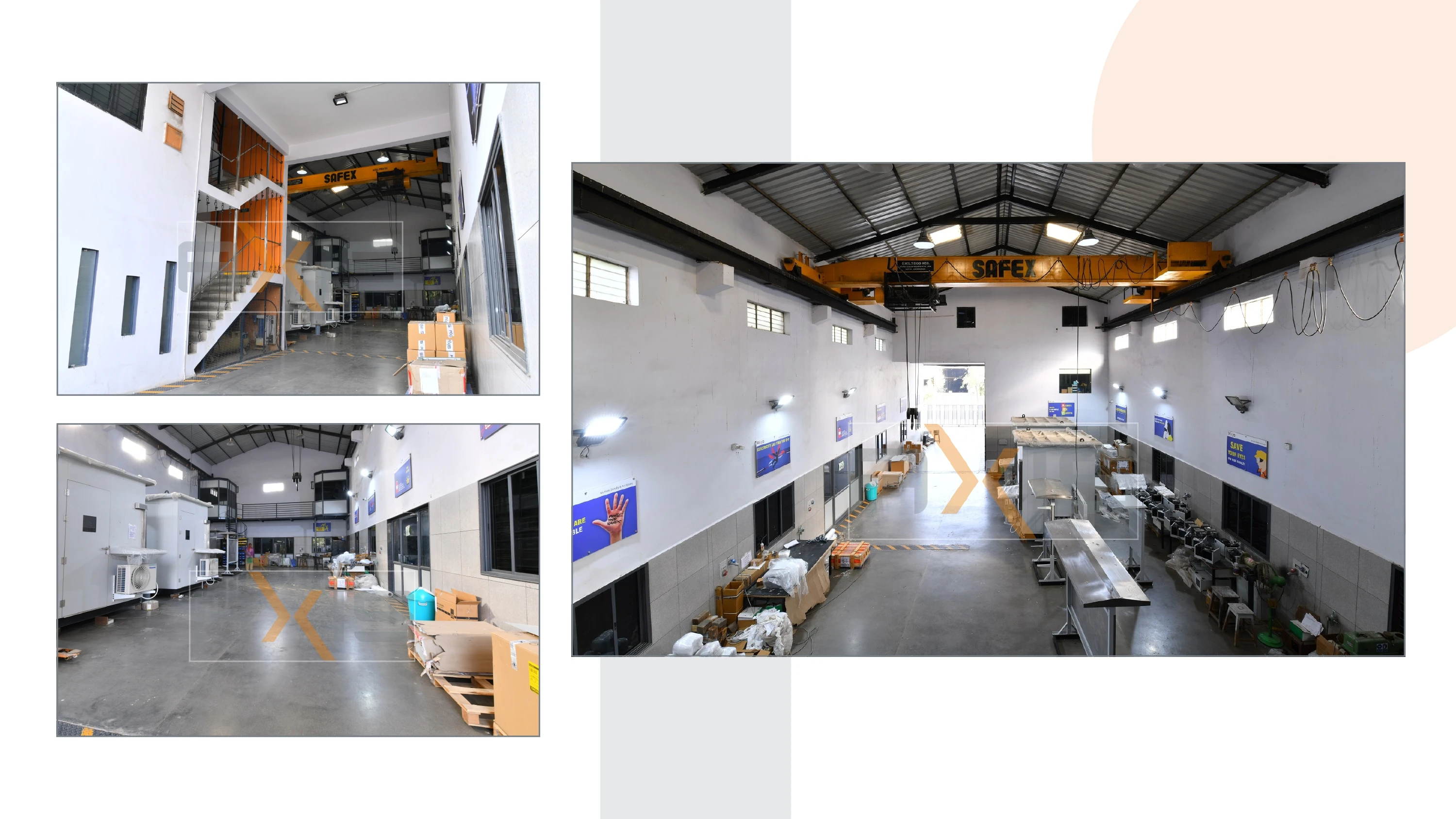

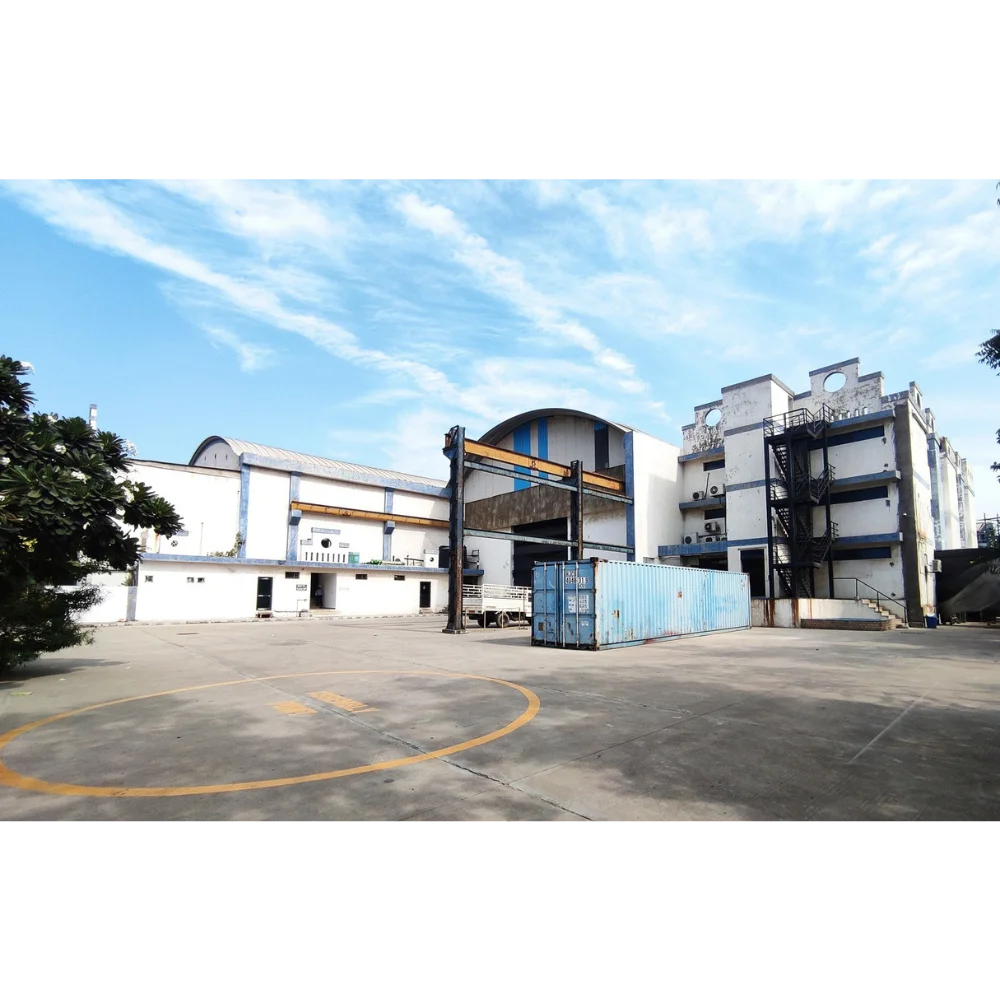

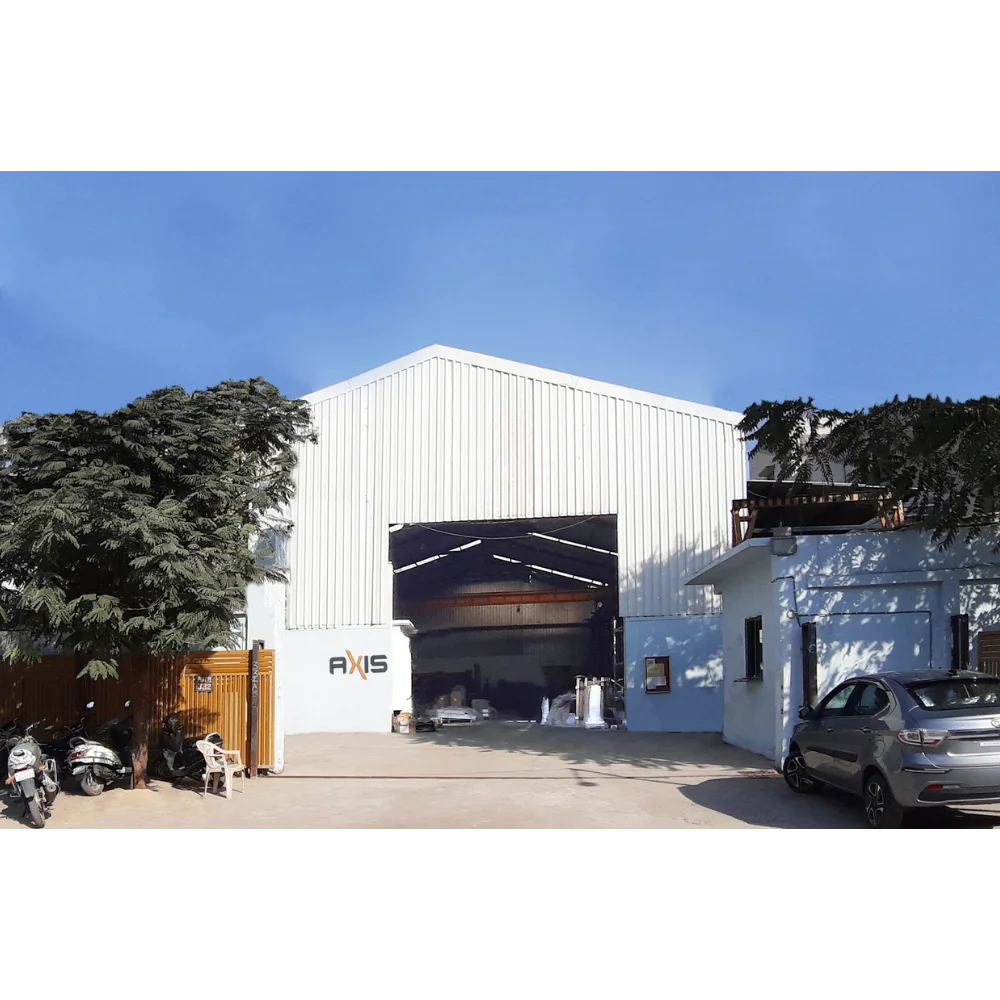

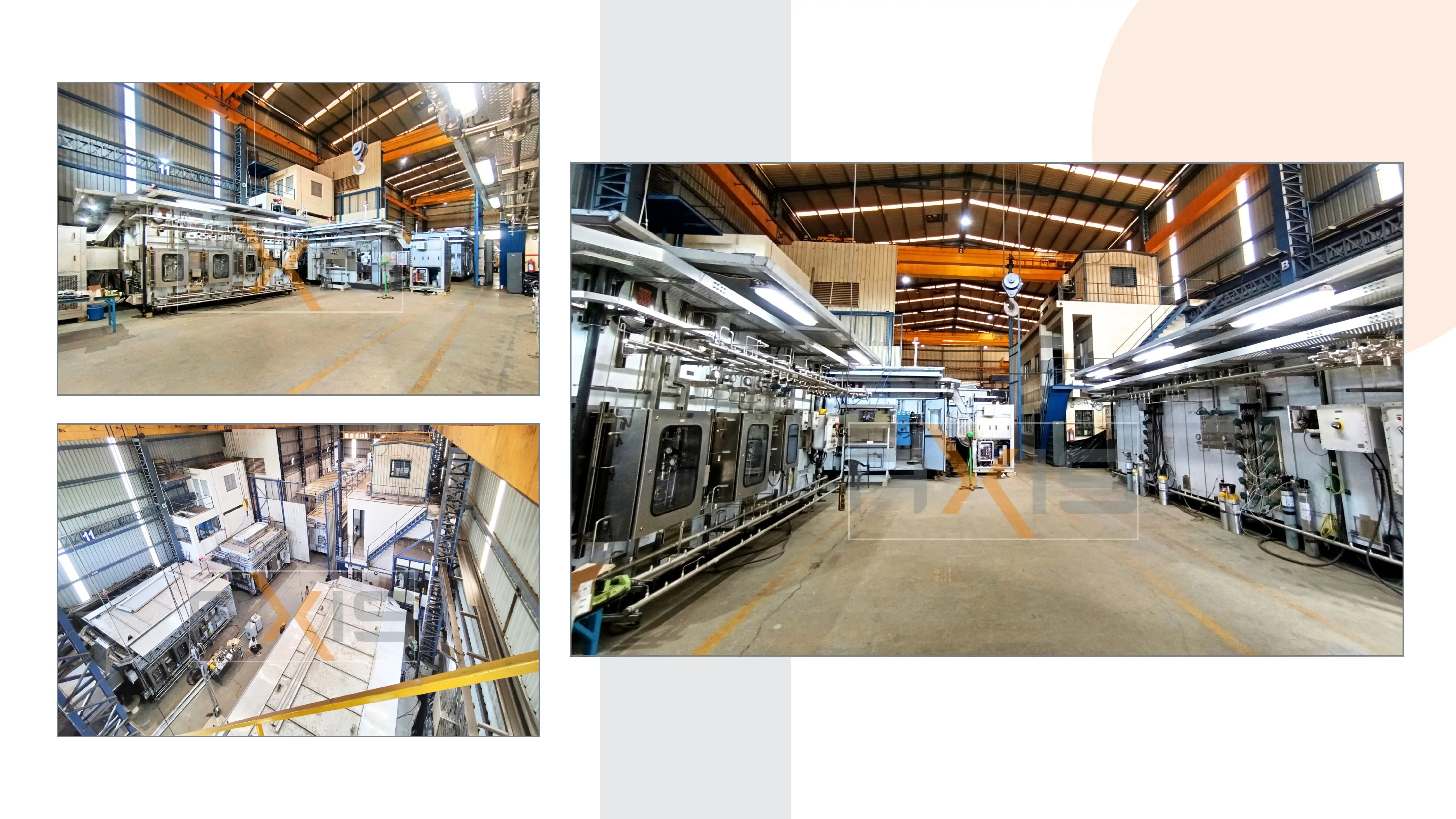

Axis Solutions Limited (Est. 1999) – A vertically integrated manufacturer & system integrator of Axis Make analytical, measurement & automation products and turnkey solutions.
Infrastructure: ISO 9001 | CE, RoHS, ATEX, IECEx | SAP-enabled systems | Centre of Excellence R&D | NABL Accredited Testing Facilities ~1,00,000 ft² | HQ in Ahmedabad, India.
Offerings: Analyzer Systems & Packages, CEMS/GAS, SWAS, Analyzer Shelters, Process-GC Shelters, Purge/HVAC Panels, Blending & SRU Packages, AAQMS, Water & Liquid Analyzers, Thermal Management & Sample Handling Systems.
Industries Served: Oil & Gas | Power | Petrochemical | Refineries | Steel & Metals | Chemical | Cement | Water &
Wastewater | F&B | Textile | Renewables.
Wastewater | F&B | Textile | Renewables.
Infrastructure: ISO 9001 | CE, RoHS, ATEX, IECEx | SAP-enabled systems | Centre of Excellence R&D | NABL Accredited Testing Facilities ~1,00,000 ft² | HQ in Ahmedabad, India.
Why Choose Us
Why Choose Axis™ Solutions for Your Process Needs?
– Brands: Baspa™, Typhoon™, Snowind™, e-Brix™, w-Brix™, i-Brix™, Bespoke System Solutions – proven in 25+ countries.
– Hazardous Location Expertise: ATEX/CE-certified solutions for Zone 0, 1 & 2 environments.
– End-to-End Execution: From concept & design to commissioning & lifecycle maintenance.
– Custom Engineering: OEM & ODM capabilities tailored to your plant process needs.
– Global Reliability: Installations across Oil & Gas, Power, Mining, Water, and Renewables.
– Hazardous Location Expertise: ATEX/CE-certified solutions for Zone 0, 1 & 2 environments.
– End-to-End Execution: From concept & design to commissioning & lifecycle maintenance.
– Custom Engineering: OEM & ODM capabilities tailored to your plant process needs.
– Global Reliability: Installations across Oil & Gas, Power, Mining, Water, and Renewables.
FAQ
Q1: Are you a manufacturer or a trading company?

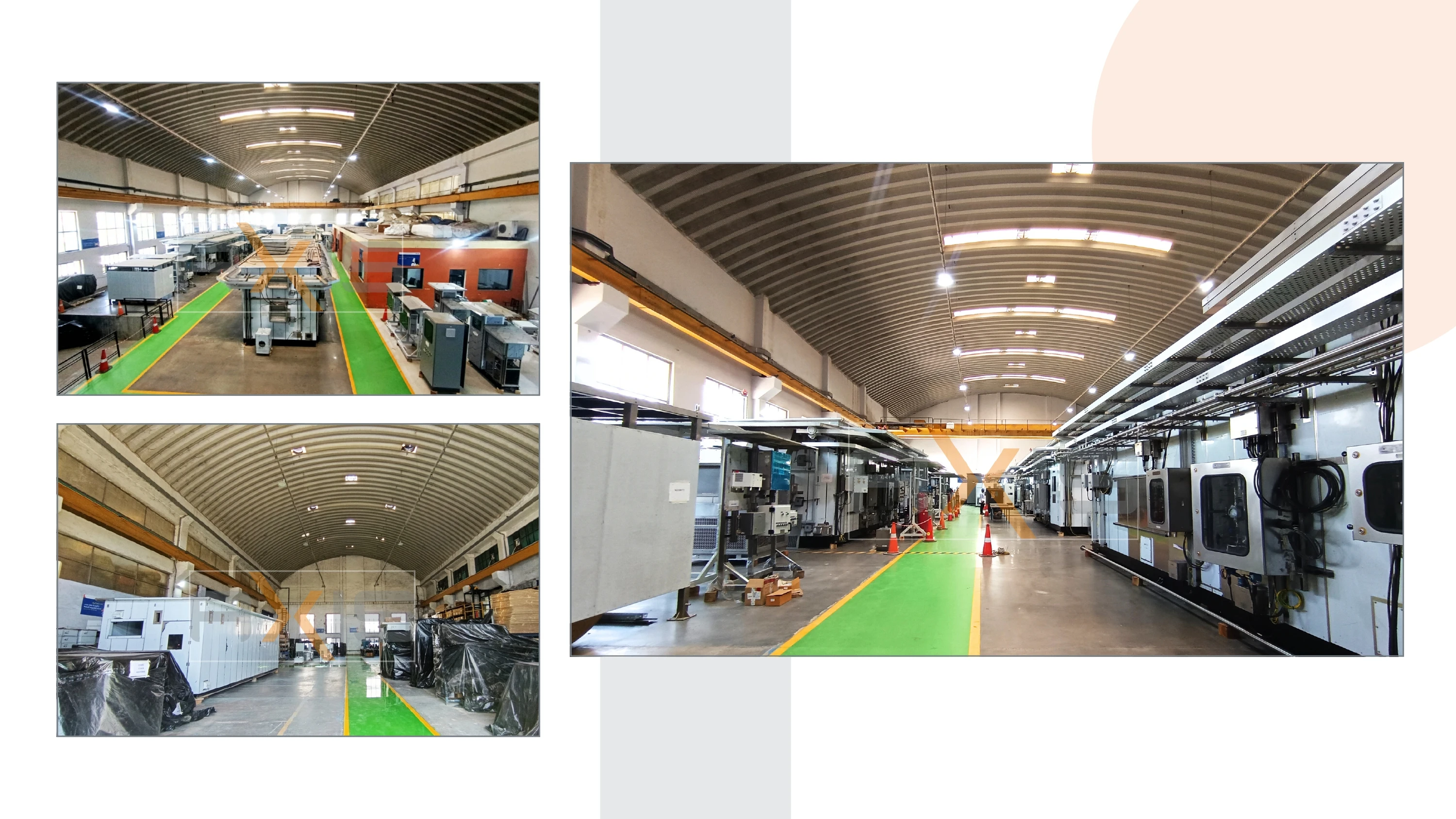

A: Axis Solutions Limited is a manufacturer with six facilities covering over 1,00,000 ft² for R&D, manufacturing, integration, and testing. We control the full production process in-house for quality assurance.
