Ceiling fan — 440 V, 220V/380V, blade material Aluminum Alloy. The complete factory specification follows. Made by Shanghai Aipu Fans Co., Ltd. (17 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ceiling Fan
- Voltage: 440 V, 220V/380V
- Blade Material: Aluminum Alloy
- Noise Level: 38 dBA
- Speed: 72rpm
- Warranty: 3 Years
- Place Of Origin: Shanghai, China
Technical Specifications
| Mounting | Ceiling Fan |
|---|---|
| Voltage | 440 V, 220V/380V |
| Speed | 72rpm |
| Blade Material | Aluminum Alloy |
| Blade Diameter | 16/18/20/24 feet |
| No. Of Fan Blades | 5, 6, 8 |
| Noise Level | 38 dBA |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM |
| Control Method | Digital controller |
| Core Components | Motor, Bearing |
| Place Of Origin | Shanghai, China |
| Brand Name | Aipukeji |
| Color | Silver, White, Black, Red, Blue |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description
* High air-volume HVLS fan
* PMSM motor，IE2
* HOLIP VFD controller
* 6x Aluminum-magnesium alloy blades
* Highly efficient & energy-saving
* Area coverage up to 1600 sqm per fan
* Available sizes: 7.3m, 6.7m, 6.1m, 5.5m, 5.2m, 4.9m, 4.5m,4.2m, 4m, 3.8m, 3.5m, 3.3m, 3m, 2.7m, 2.1m…
* PMSM motor，IE2
* HOLIP VFD controller
* 6x Aluminum-magnesium alloy blades
* Highly efficient & energy-saving
* Area coverage up to 1600 sqm per fan
* Available sizes: 7.3m, 6.7m, 6.1m, 5.5m, 5.2m, 4.9m, 4.5m,4.2m, 4m, 3.8m, 3.5m, 3.3m, 3m, 2.7m, 2.1m…
Product Name | HVLS ceiling fan | Color | Silver, black, red, yellow, blue…… |
Brand | Aipukeji | Extension tube | 500mm to 3000mm |
Model | ADF49 | Weight | 88KG |
Power | 750W | Noise | Less than 38 dBA |
Size | 16FT /4900mm | Air volume | 9800m3/min |

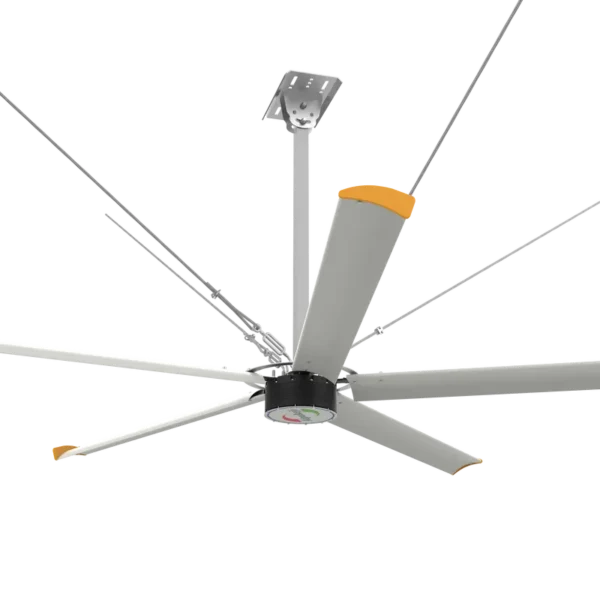

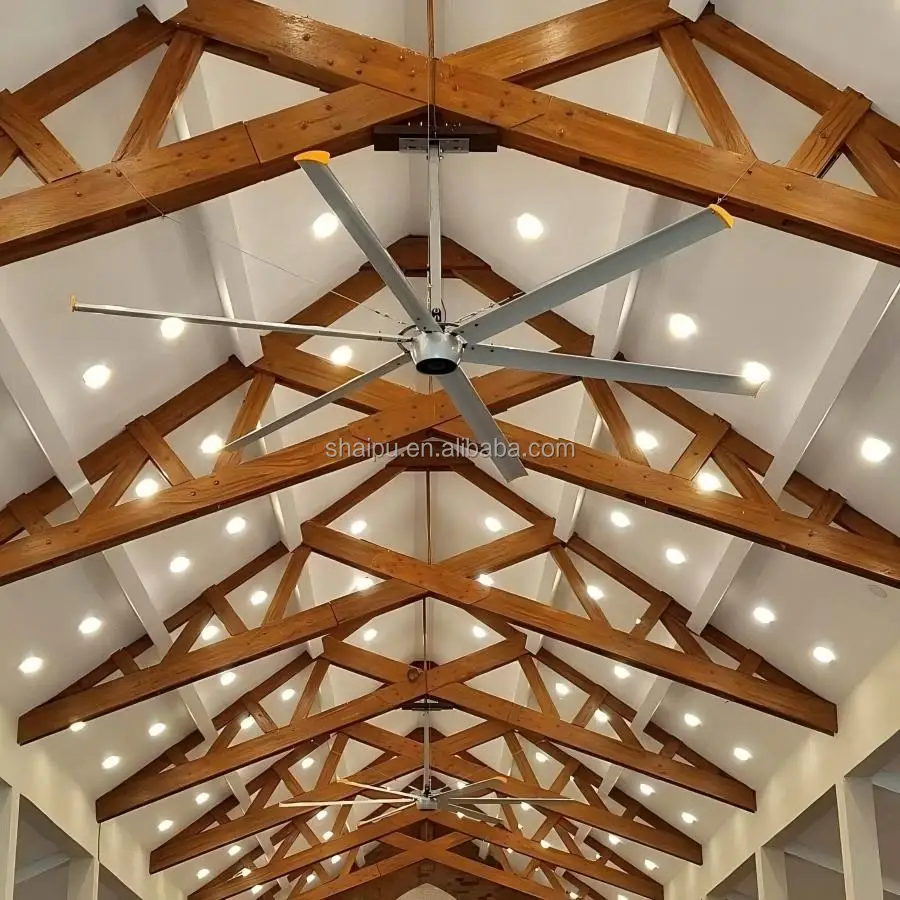

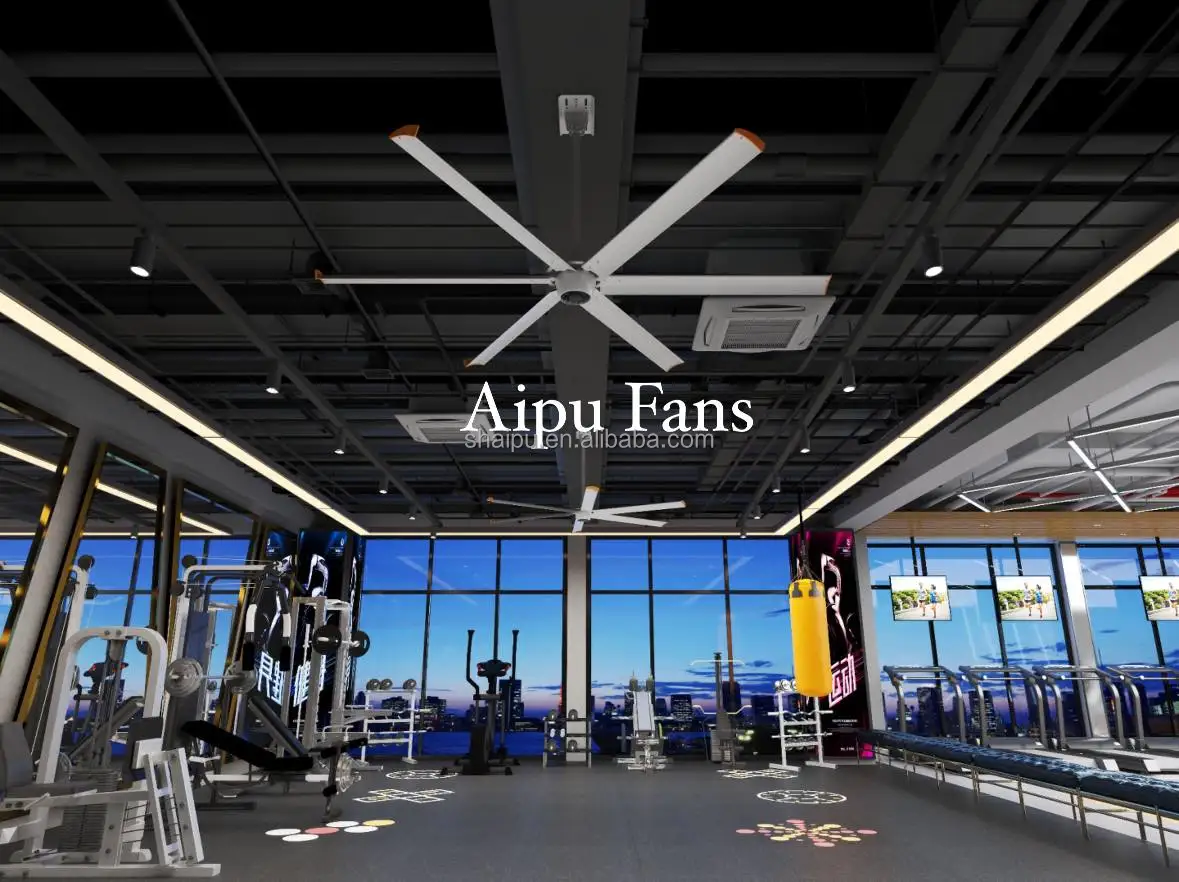

PMSM HVLS Ceiling Fan
HVLS fans circulate at a low speed while displacing a high volume of air and have very low noise levels and free-maintenance. They are extremely efficient and safe and are ideally suited to industrial, commercial, and agricultural spaces. AIPU HVLS ceiling fans are built specifically for large floor areas. Because of their size, they are able to use less blades with greater efficiency and less power to cover a large area with constantly moving air and create a wide comfort zone that can cool three to five degrees Celsius throughout the facility
Did you know? One HVLS fan…
1. Help reduce temperature by 3 degrees to 5 degrees
2. Can cover an area up to 22, 000 square feet.
3. Costs just pennies to operate.
4. Lowers summer energy consumption by at least 20%
5. Reduces winter energy consumption by up to 30%
6. Can replace up to 20 floor fans or smaller ceiling fans
1. Help reduce temperature by 3 degrees to 5 degrees
2. Can cover an area up to 22, 000 square feet.
3. Costs just pennies to operate.
4. Lowers summer energy consumption by at least 20%
5. Reduces winter energy consumption by up to 30%
6. Can replace up to 20 floor fans or smaller ceiling fans
7. Keep fresh air circulating to reduce bacteria, smoke, and mildew. Prevent damage caused by excessive moisture by helping keep these areas dry.
8. A cool and comfortable work environment allows your employees to perform at their best and deliver more effectively on company goals.
8. A cool and comfortable work environment allows your employees to perform at their best and deliver more effectively on company goals.
Detailed Images
Blade safety connection pieces connect the blades one by one to the blade brackets (Even if the blades brackets are broken, the fan would not falling off due to the connecting piece device.)

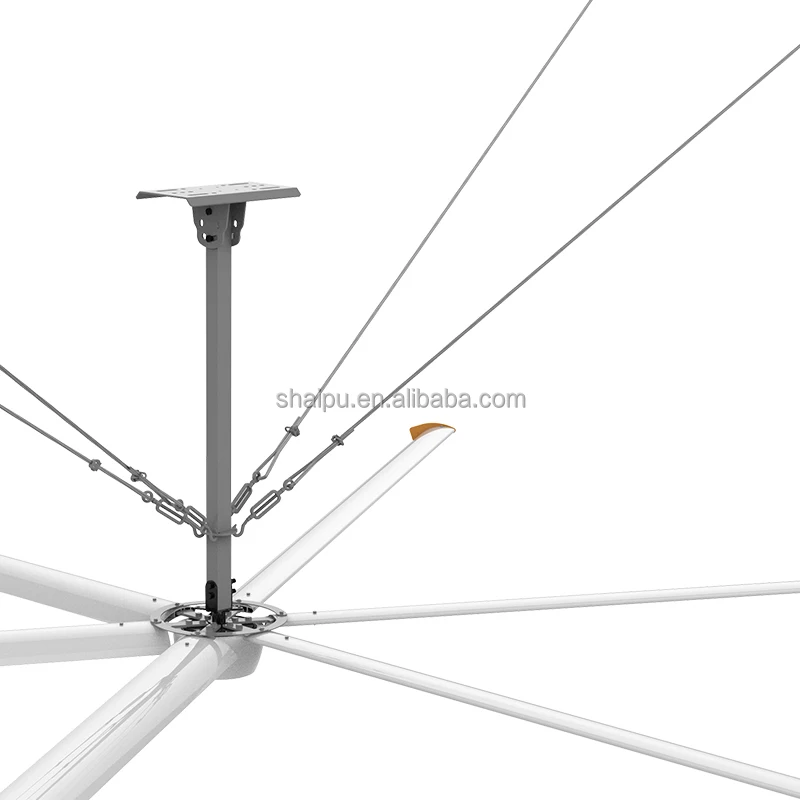

Each fan is equipped with 4 pcs of steel wire rope (enhance the stability of ceiling fan, to prevent the risk of loosening of screws)
Safety alarm device, built-in overload phase protection, timely alarm signal to ensure safe running. The perspective window is designed to observe the operating parameters of the fan conveniently

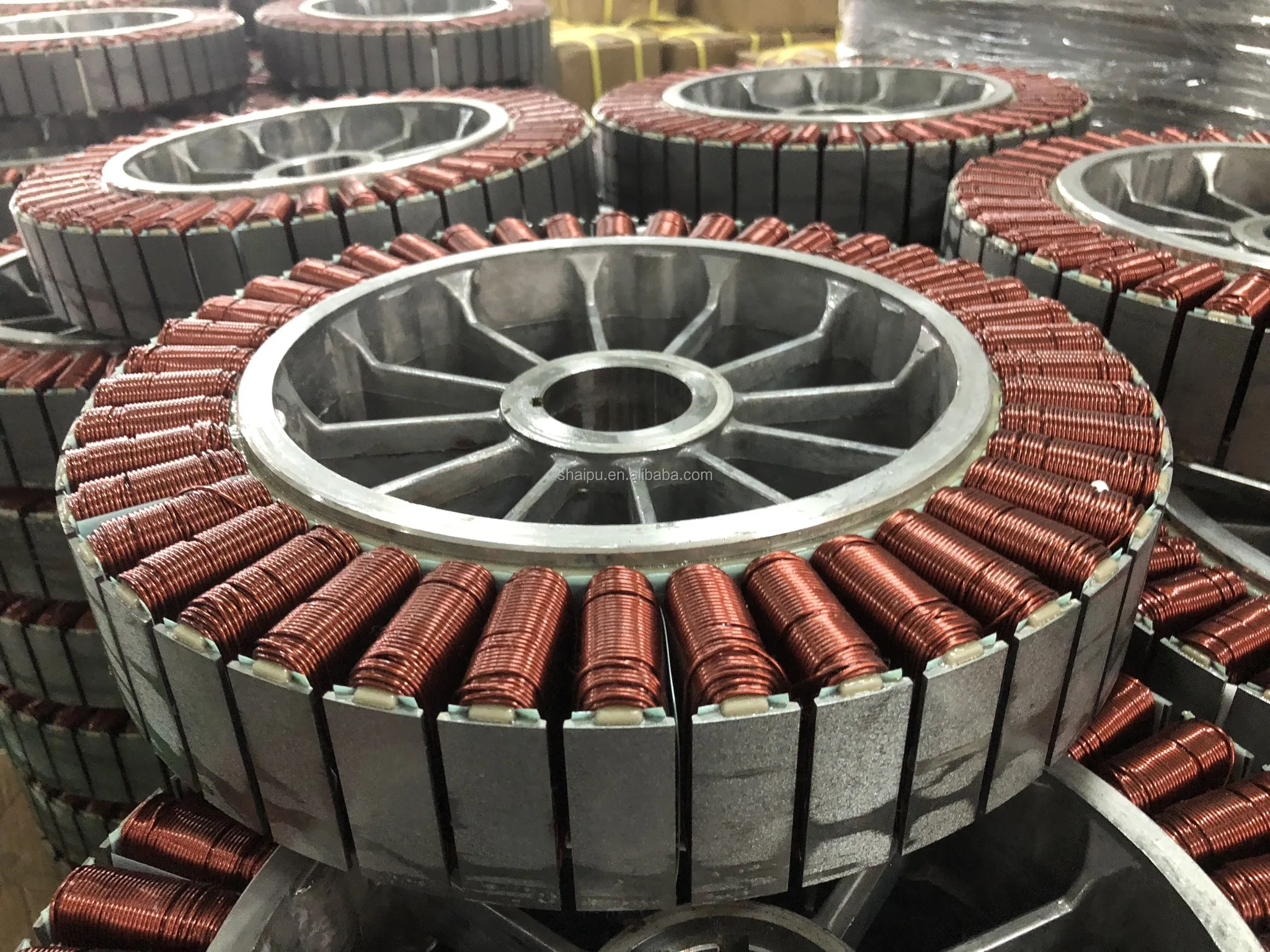

Drive system – PMSM motor （ Permanent magnet synchronous motor)
Compared with the traditional asynchronous motor, the design principle of permanent magnet synchronization eliminates gear deceleration and wear energy consumption, the output efficiency is up to 88%, and the torque is up to 310N.m.
IE 2 efficiency grade
IP55 protection grade
Low warming, longer life
Higher efficiency and higher speed
Patented Airfoil Blades
High strength aircraft grade magnalium, fluorocarbon painting on surface, aerodynamic fan blade design. Patented fan blade design:
3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss
of connecting components.
3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss
of connecting components.
Related Products
Packing&Shipping

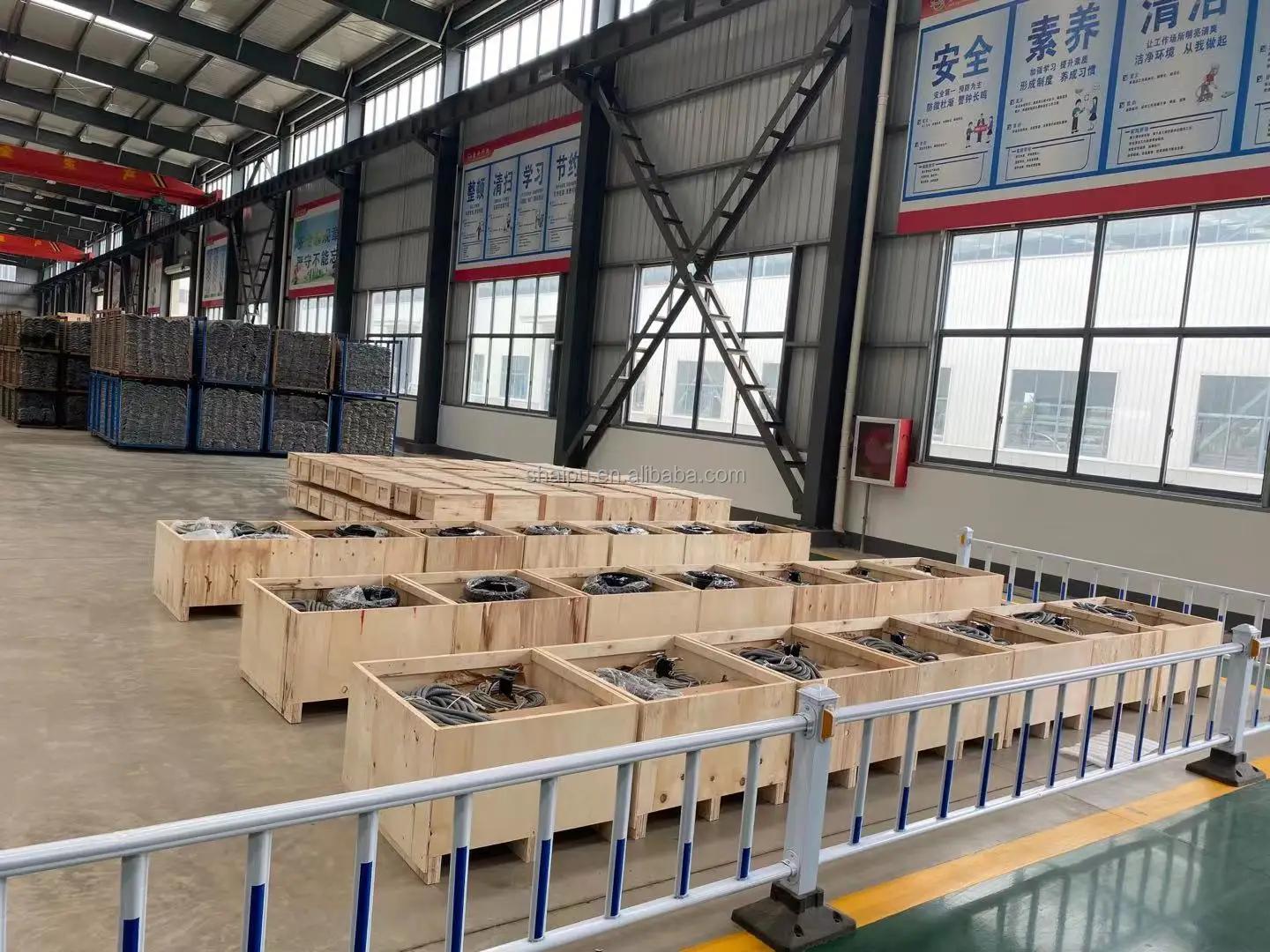

The fan will be packaged into two free fumigation wooden cases.
Company Introduction
Shanghai Aipu Fans Co., Ltd was established in Shanghai, China. Since its establishment in 2006, it has been manufacturing industrial-grade high-quality ventilation products, aiming to provide the fastest pre-sale, after-sale and the best ventilationsolutions. Based on the industry-leading concept and manufacturing technology, AIPU technology with abundant technical advantages, first-class product quality and advanced management concepts, has grown into a R&D, production and marketing as one of the integrated company with core technology. Aipukeji has always been committed to the pursuit of excellence in quality, to meet customer demand, to create high-quality products.
Our Services & Strength

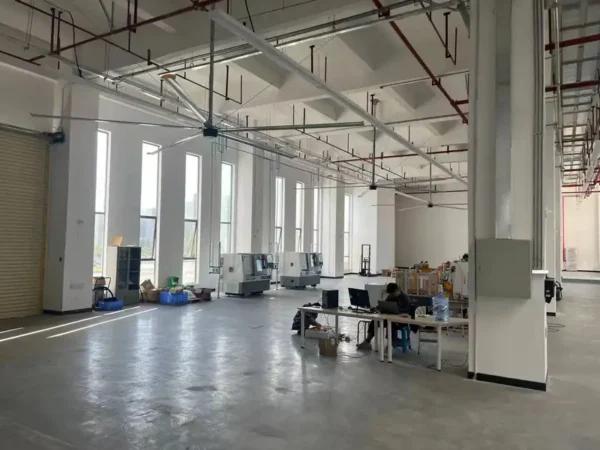

We have 8000 square meters of production base, equipped with high-precision automatic production machine. The products produced by the automatic machine have higher quality and higher cost-effective, and the automatic machine is also the guarantee of our high productivity. The factory is equipped with the latest production equipment and production technology, the establishment of a machining center, cutting center, welding center and testing center. The company provides the customized products and OEM service. Aipukeji’s products are sold well all over the world and are highly praised by domestic and foreign clients.
FAQ
Q1. Are you the factory?
A: Of course, we are large ceiling fan manufacturer in Shanghai with many years' experience.
Q2. What about the lead time?
A: It can be within 3-5 days after receive the payment if the order is less than 20 sets.
Q3. Do you have any MOQ limit for HVLS CEILING FAN?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order for HVLS CEILING FAN?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the specification parameter and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
A: Of course, we are large ceiling fan manufacturer in Shanghai with many years' experience.
Q2. What about the lead time?
A: It can be within 3-5 days after receive the payment if the order is less than 20 sets.
Q3. Do you have any MOQ limit for HVLS CEILING FAN?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order for HVLS CEILING FAN?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the specification parameter and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $595 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 440 V, 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
