This ceiling fan is published with the manufacturer’s full specification — voltage 380, power 1500. Made by Shanghai Aipu Fans Co., Ltd. (17 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ceiling Fan
- Model Number: AWF61
- Power (W): 1500
- Power Source: Electric
- Voltage (V): 380
- Material: Metal
- Wind Speed: More Than Five
Technical Specifications
| Application | Hotel, Outdoor, Garage, Commercial, Household |
|---|---|
| Power (W) | 1500 |
| Control Type | Digital |
| Warranty | 3 Years |
| Material | Metal |
| Wind Speed | More Than Five |
| After-Sales Service Provided | Free Spare Parts |
| Installation | Ceiling |
| Power Source | Electric |
| App-Controlled | Yes |
| Place Of Origin | Shanghai, China |
| Voltage (V) | 380 |
| Brand | Aipu keji |
| Model Number | AWF61 |
| Diameter | 6.1M/20FT |
| Max Speed | 0-58RPM |
| Height | 1.2m |
| Weight | 113kg |
| Amount Of Blade | 6PCS |
| Air Volume | 8400m3/min |
| Application Area | 1000m2 |
| Frequency | 50HZ/60 HZ |
| Type | Ventilation Fan |
| Packaging Details | To be packed into standard export wooden cases 1) BLADES: 33CM*30CM*300CM 2) MOTOR&PARTS: 95CM*95CM*80CM |
| Port Of Dispatch | Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10000 sets per Month Larger quantity,more discount |
Product Details
Product Overview
HVLS CEILING FAN
Large ceiling-mounted industrial ventilation fan
* High air-volume HVLS fan
* Imported Germany motor, IE2, IP55
* Digital VFD controller, IE2, IP55
* 6x Aluminum-magnesium alloy blades
* Highly efficient & energy-saving
Large ceiling fan by the fan continue to push forward, and produce a large number of air blowing to the around, the air flow to both sides of the flow, the information of large area of the airflow, through the control of the fan, get the average wind speed of 1-3 m/s comfortable cool wind. Breeze blowing in the human body, will promote the sweat away to take away the heat, leaving the body gradually cool, bring comfort. Usually, this cooling can feel about 3-5 degree. They are mainly used in large and high places like workshop,warehouses,distribution center, gymnasium, station, farm and so on.There are many top 500 companies in the world such as Wal-Mart, HONDA, NISSAN, FORD etc are our loyal customers.
* Imported Germany motor, IE2, IP55
* Digital VFD controller, IE2, IP55
* 6x Aluminum-magnesium alloy blades
* Highly efficient & energy-saving
Large ceiling fan by the fan continue to push forward, and produce a large number of air blowing to the around, the air flow to both sides of the flow, the information of large area of the airflow, through the control of the fan, get the average wind speed of 1-3 m/s comfortable cool wind. Breeze blowing in the human body, will promote the sweat away to take away the heat, leaving the body gradually cool, bring comfort. Usually, this cooling can feel about 3-5 degree. They are mainly used in large and high places like workshop,warehouses,distribution center, gymnasium, station, farm and so on.There are many top 500 companies in the world such as Wal-Mart, HONDA, NISSAN, FORD etc are our loyal customers.
FEATURES AT A GLANCE
COMPACT DIMENSIONS
AWF SERIES
SIZE: 7 FT -28 FT (2100 MM – 8600 MM)
BLADE QTY: 4/5/6/8/10 PCS
POWER: 0.75KW/1.1KW/1.5KW/2.2KW
VOLTAGE: 220V/380V/440V
HIGH EFFICIENT & ENERGY-SAVING
COVERAGE UP TO 2000 SQM
HIGH GEARED MOTOR
DIGITAL VFD CONTROLLER

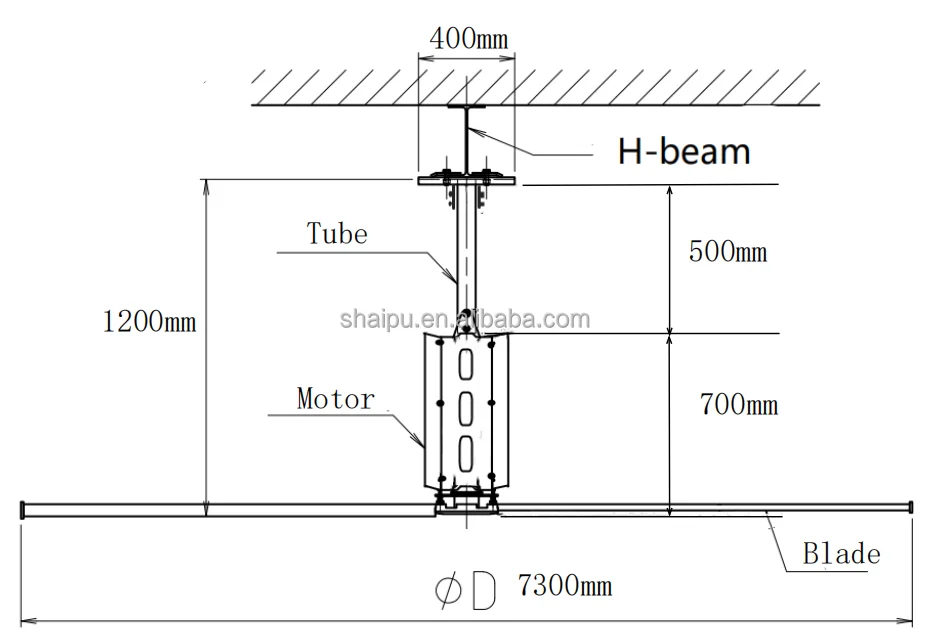

PRODUCT SPECIFICATIONS
No | Item | Data | |
1 | Power | 1.5KW | |
2 | Model | AWF73 | |
3 | Blade | 4/5/6/8/10pcs | |
4 | Height | 1200mm | |
5 | Coverage | 1300sqm | |
6 | Air volume | 13200m3/min | |
7 | Rotate speed | 0-50rpm | |
8 | Wind speed | 1-3m/s |
Each fan is equipped with 4 pcs of steel wire rope (enhance the stability of ceiling fan, to prevent the risk of loosening of screws)
Blade safety connection pieces connect the blades one by one to the blade brackets (Even if the blades brackets are broken, the fan would not falling off due to the connecting piece device.)
Safety alarm device, built-in overload phase protection, timely alarm signal to ensure safe running. The perspective window is designed to observe the operating parameters of the fan conveniently
Motor System – imported Germany Nord motor
1. Low backlash assembly process and gear grinding technique, low noise
1. Low backlash assembly process and gear grinding technique, low noise
2. Strength the bearing frame structure, increase oil seal and strength the motor structure with trapezoidal shaft structure, higher safe;
3. IP55 protection grade, IE2 stardard
4. Passed CCC, CE, UL certificates
5. Can run on clockwise and counterclockwise direction
3. IP55 protection grade, IE2 stardard
4. Passed CCC, CE, UL certificates
5. Can run on clockwise and counterclockwise direction
Control System – VFD Controller
1. Danfoss electrical sets, with safety protection module inside which will interrupt the output automatically in case of some accidents.
2. Protection level is IP55, passing UL, EMC, ROHS certificates;
3. Safety & Protection: over-load, over-current, cutting off t he power automatically in emergency situation

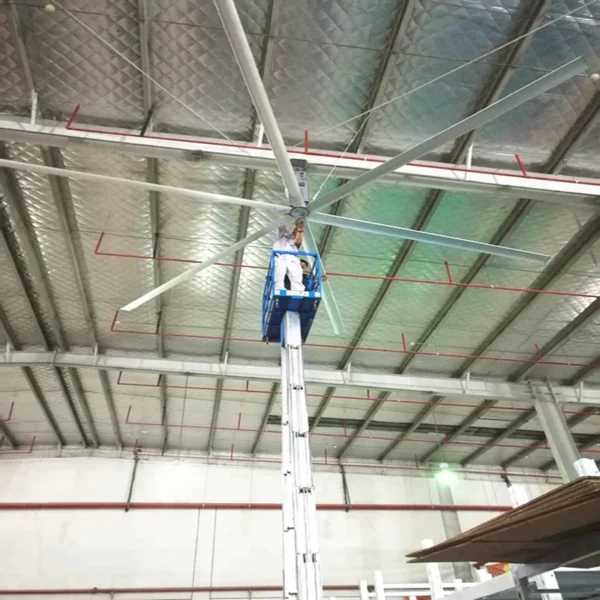

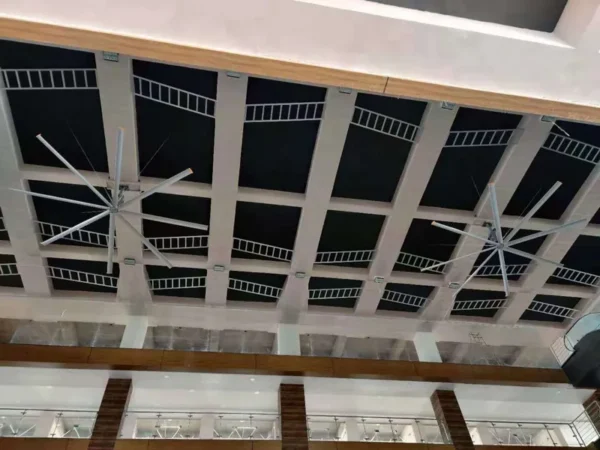

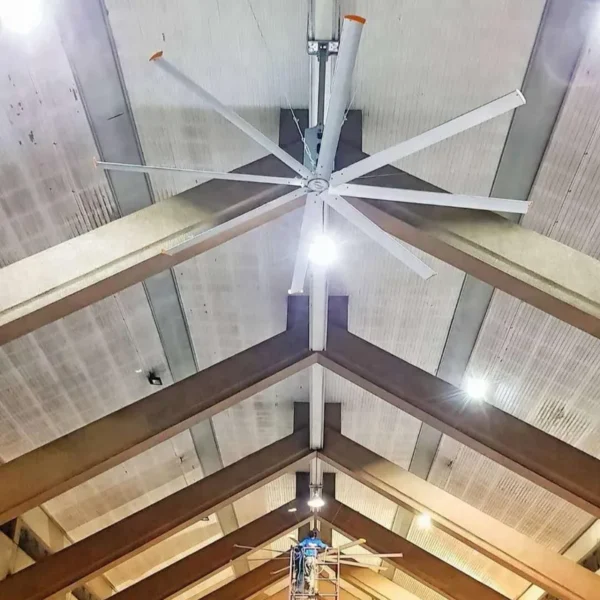

Successful Project
Project in Park

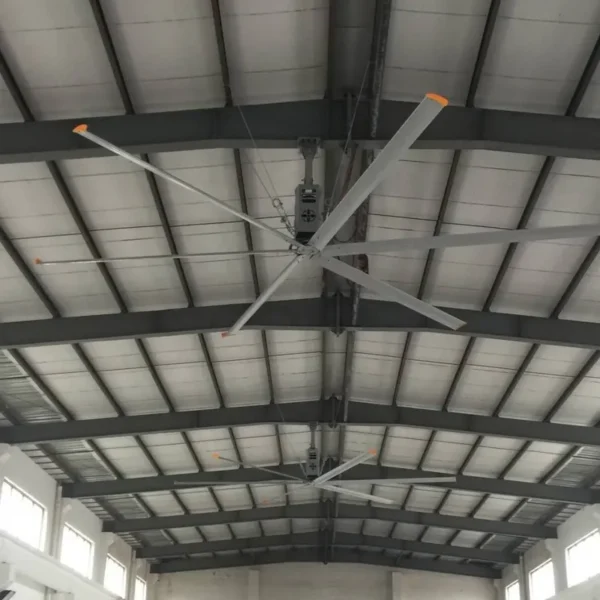

Project in Warehouse
Project in Church
SIMILAR PRODUCTS
Company Profile
Shanghai Aipu Fans Co., Ltd was established in Shanghai, China. Since its establishment in 2006, it has been manufacturing industrial-grade high-quality ventilation products, aiming to provide the fastest pre-sale, after-sale and the best ventilation solutions. Based on the industry-leading concept and manufacturing technology, AIPU technology with abundant technical advantages, first-class product quality and advanced management concepts, has grown into a R&D, production and marketing as one of the integrated company with core technology. Aipukeji has always been committed to the pursuit of excellence in quality, to meet customer demand, to create high-quality products.
Our Services & Strength
We have 8000 square meters of production base, equipped with high-precision automatic production machine. The products produced by the automatic machine have higher quality and higher cost-effective, and the automatic machine is also the guarantee of our high productivity. The factory is equipped with the latest production equipment and production technology, the establishment of a machining center, cutting center, welding center and testing center. Aipukeji’s products are sold well all over the world and arehighly praised by domestic and foreign clients.
OEM is available!
FAQ
Q1. Are you the factory?
A: Of course, we are large ceiling fan manufacturer in Shanghai with many years' experience.
Q2. What about the lead time?
A: It can be within 3-5 days after receive the payment if the order is less than 20 sets.
Q3. Do you have any MOQ limit for HVLS CEILING FAN?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order for HVLS CEILING FAN?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the specification parameter and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
A: Of course, we are large ceiling fan manufacturer in Shanghai with many years' experience.
Q2. What about the lead time?
A: It can be within 3-5 days after receive the payment if the order is less than 20 sets.
Q3. Do you have any MOQ limit for HVLS CEILING FAN?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order for HVLS CEILING FAN?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the specification parameter and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1190 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 380. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
