This ceiling fan is published with the manufacturer’s full specification — material FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers, type home appliance pcba. Made by Zhongshan Huishine Pcba Co., Ltd. (4 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ceiling Fan
- Model Number: PCBA for ceiling fan
- Material: FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers
- Base Material: FR4/ROGERS/Aluminum/High TG
- Place Of Origin: China
- Functional Application: Power Management
- Application: BLDC Fan
Technical Specifications
| Type | home appliance pcba |
|---|---|
| Functional Application | Power Management |
| Copper Thickness | 1-3 oz |
| RAM | Customize |
| Model Number | PCBA for ceiling fan |
| Place Of Origin | China |
| Brand Name | Huishine |
| Supplier Type | Factory |
| Application | BLDC Fan |

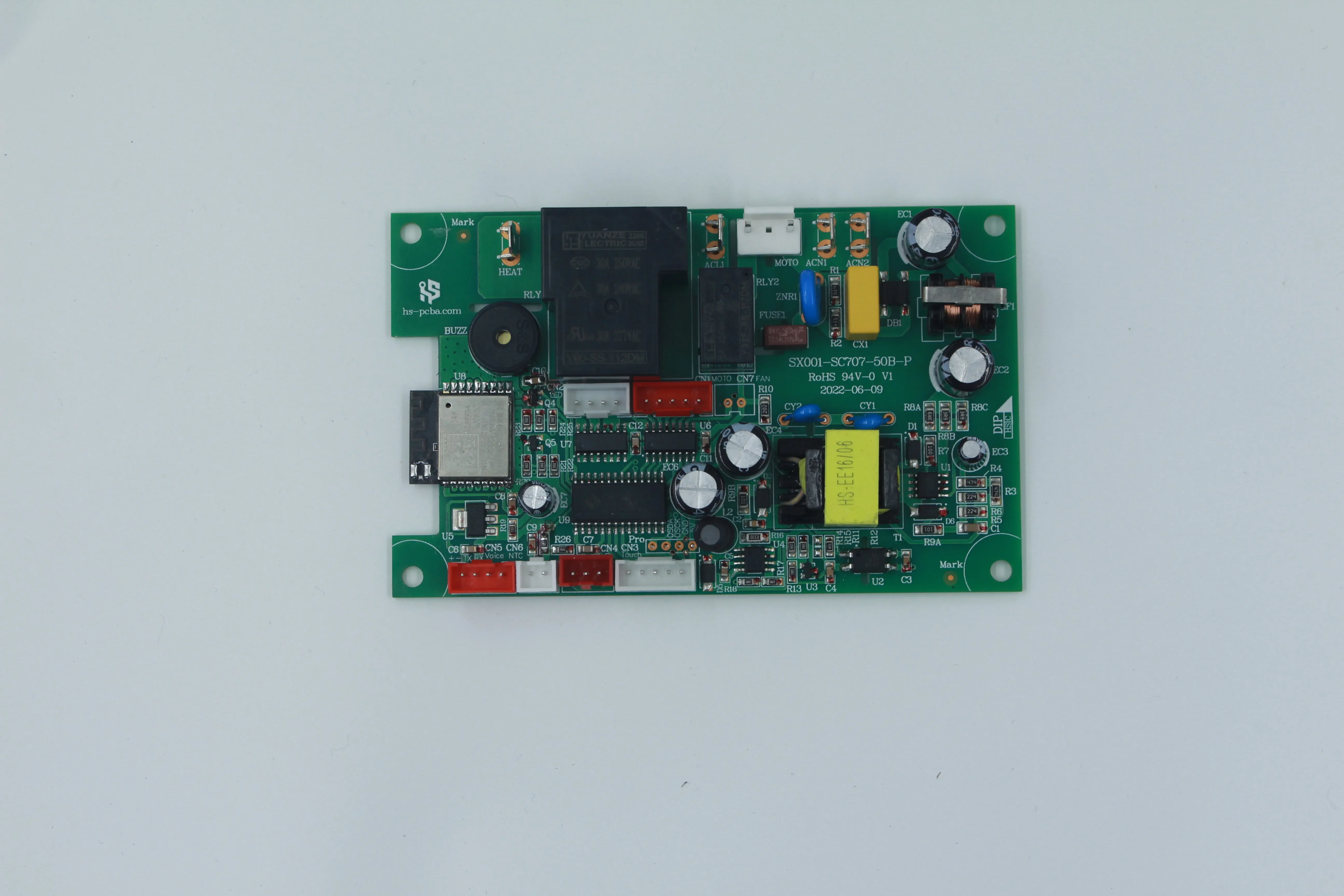

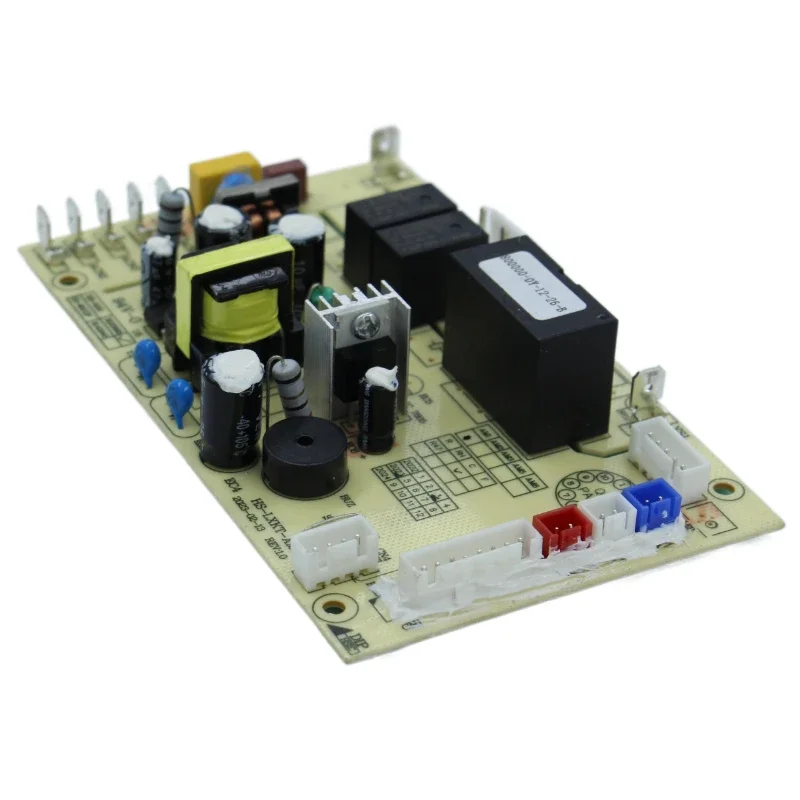

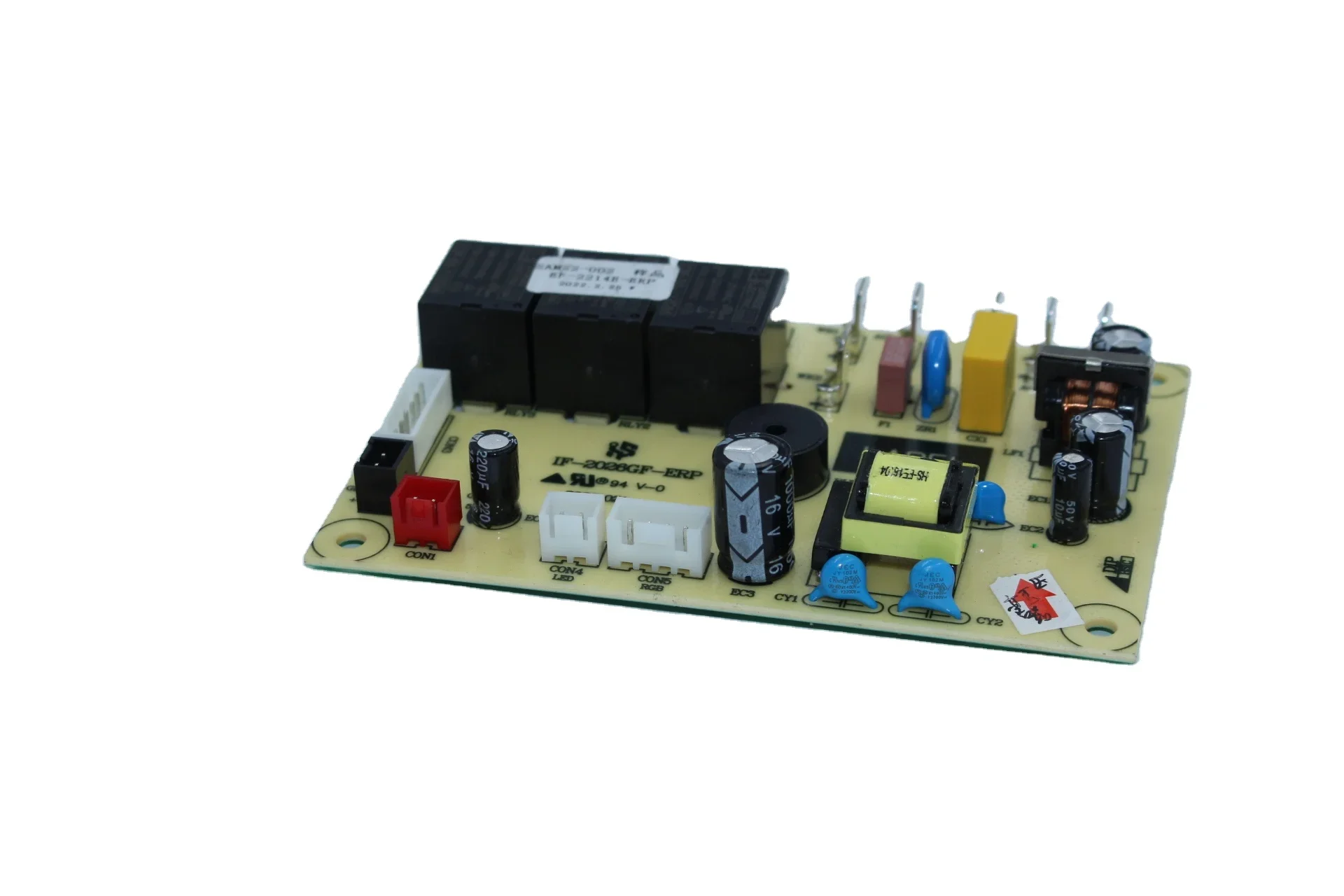

| Product Name | PCBA circuit board for ceiling fan |
| Surface Finishing | HASLOSPimmersion Gold |
| Material | FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers |
| Certificate | ISO9001/Iso14001/CE/ROHS |
| Service | R & D Team,Automation Equipment |
| Base Material | FR4/ROGERS/Aluminum/High TG |
| Layer | 1~12 Layers |
| Keywords | PCBA OEM PCB Assembly |
| Testing Service | 100% |
| Selling Units | Single item |
| Single Package Size | 10X10X5 cm |
| Single Gross Weight | 0.4 kg |
Product Details

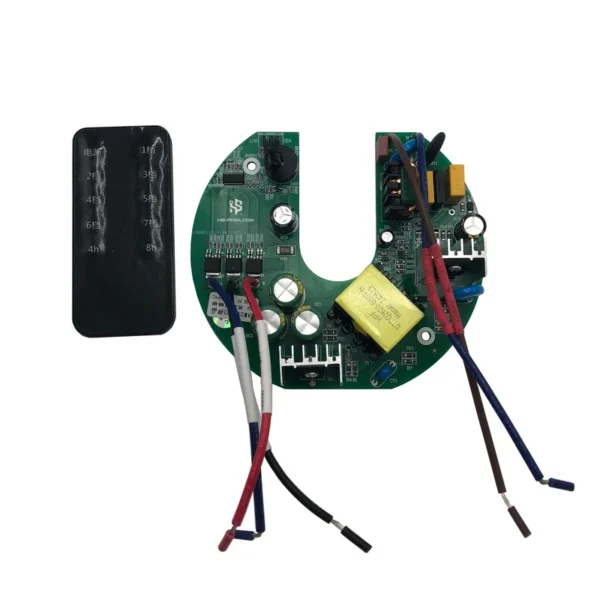

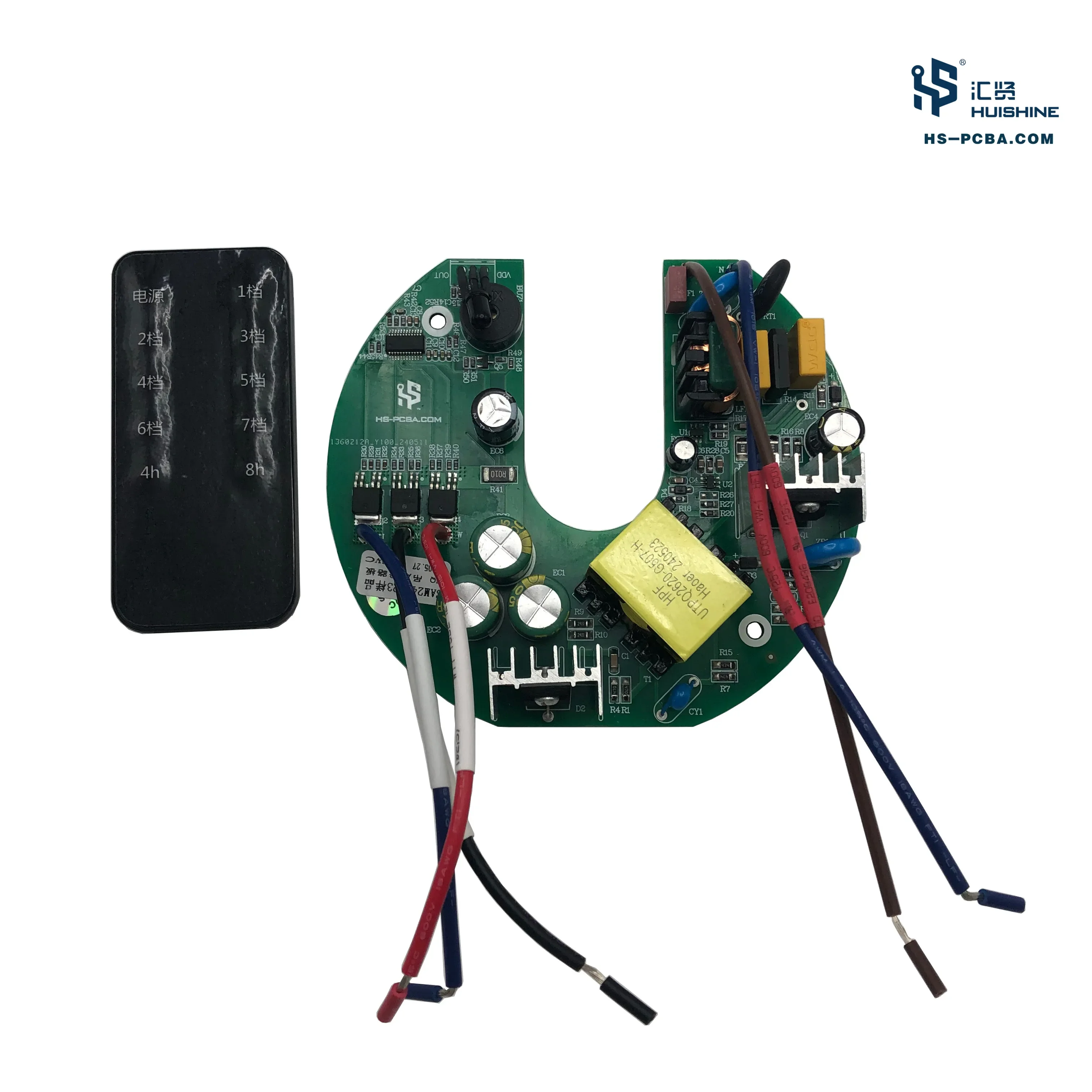

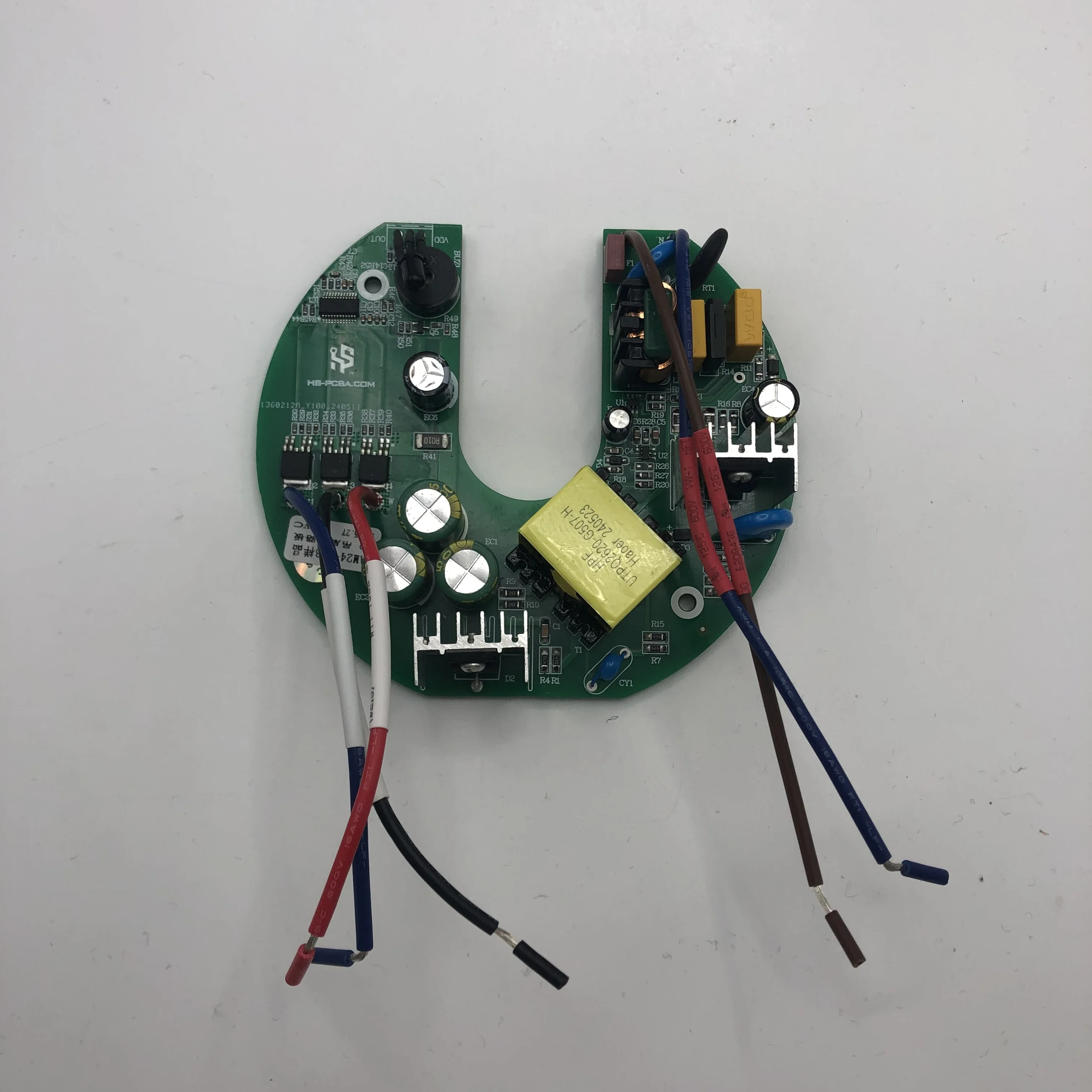

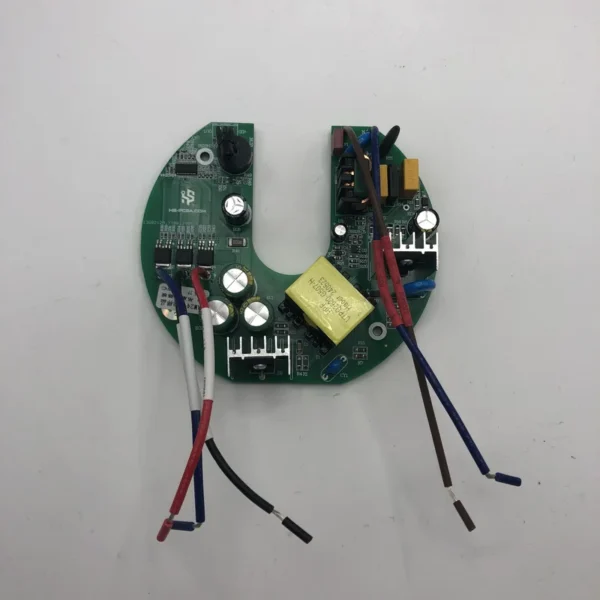

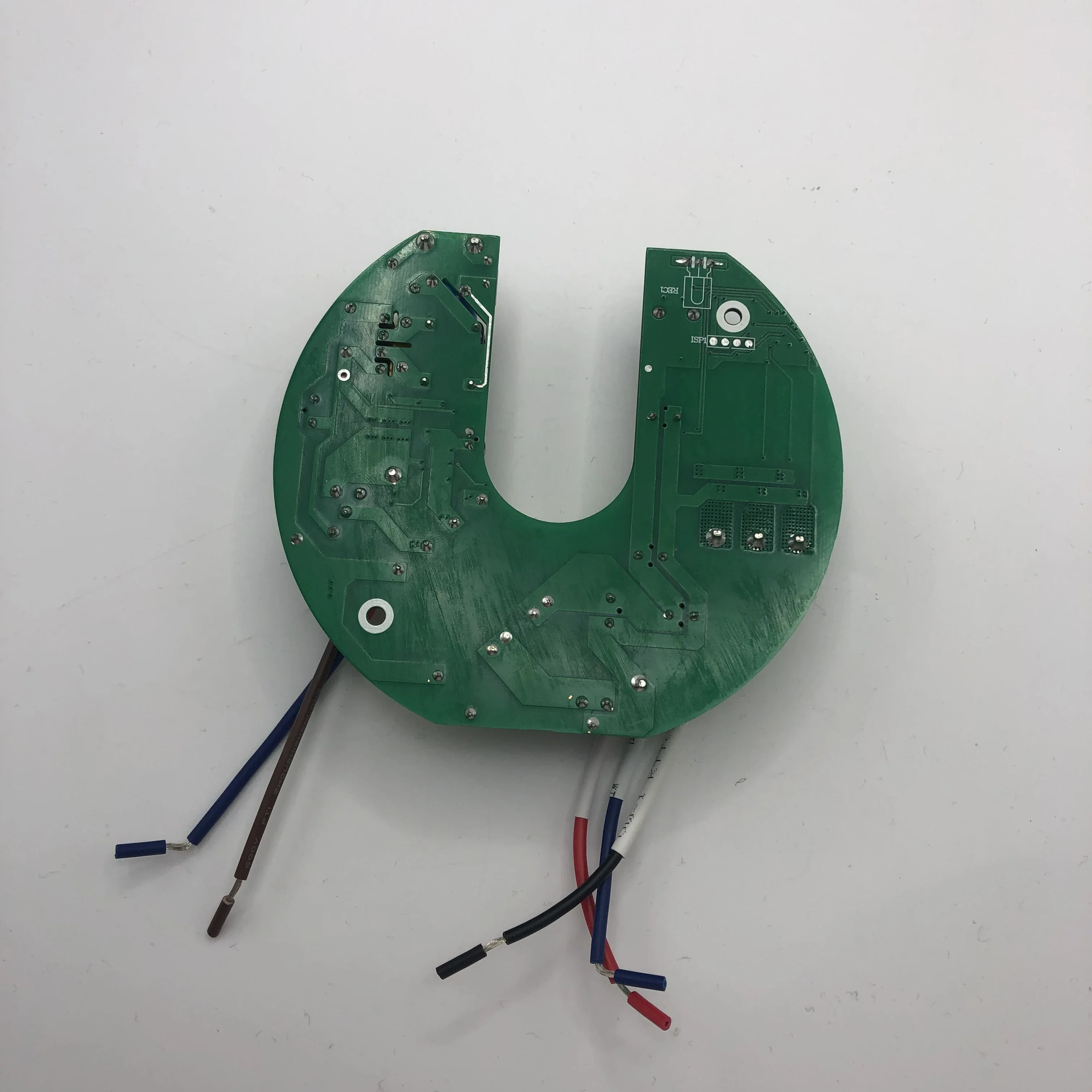

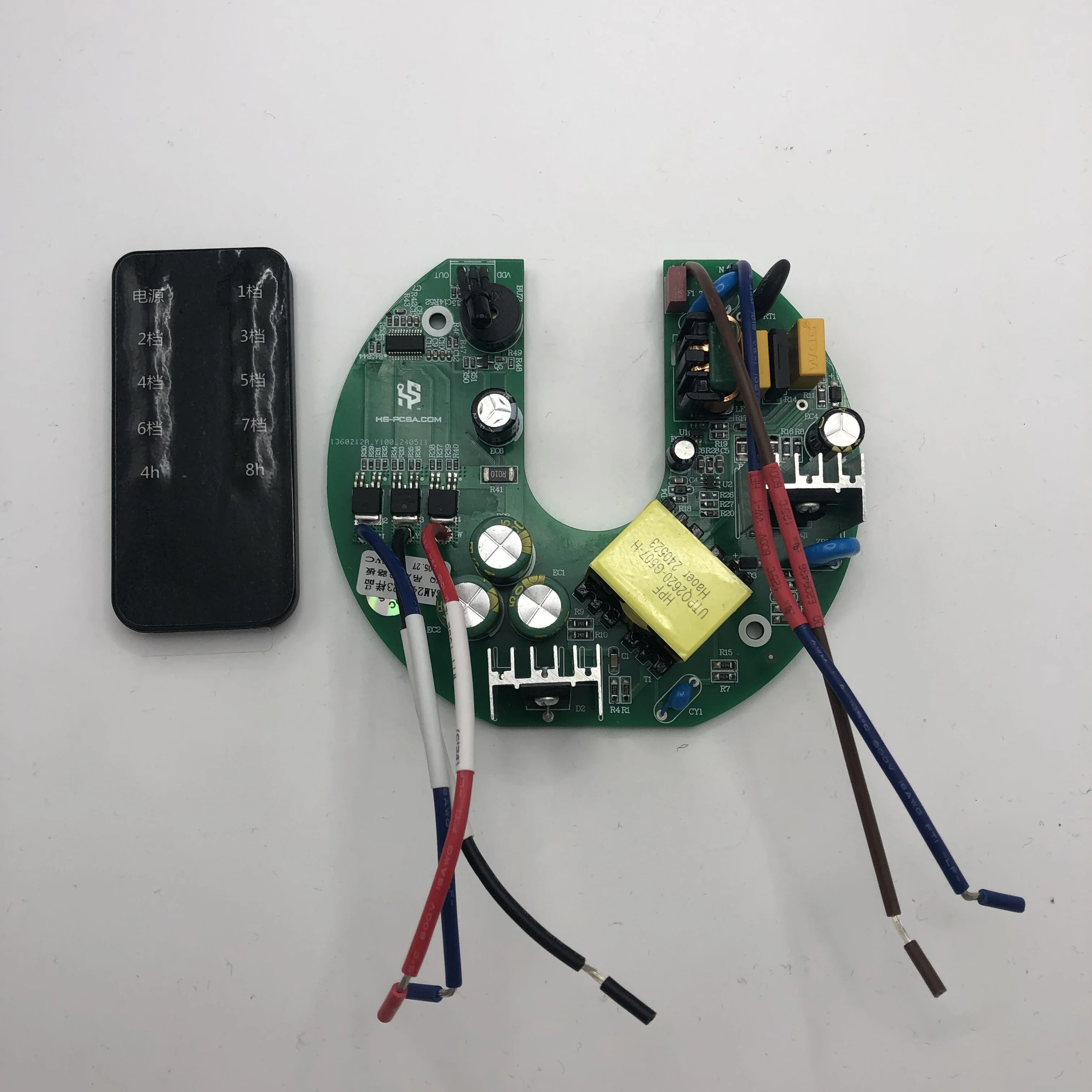

Product Name | BLDC ceiling fan PCBA control board |
Base Material | FR-4/CEM-1/CEM-3/FR1/aluminum |
Layers | 1-12 |
Surface Treatment | HASLHASL Lead FreeENIGGOLD Finger |
material | FR4/CEM-1/CEM-3/FR1/aluminum |
Application | Home Appliances,ceiling fan |
Service | OEM Services Provided |
Certificate | ISO9001/Iso14001/CE/ROHS |
Testing | AOI testing, fuctional testing,aging test |

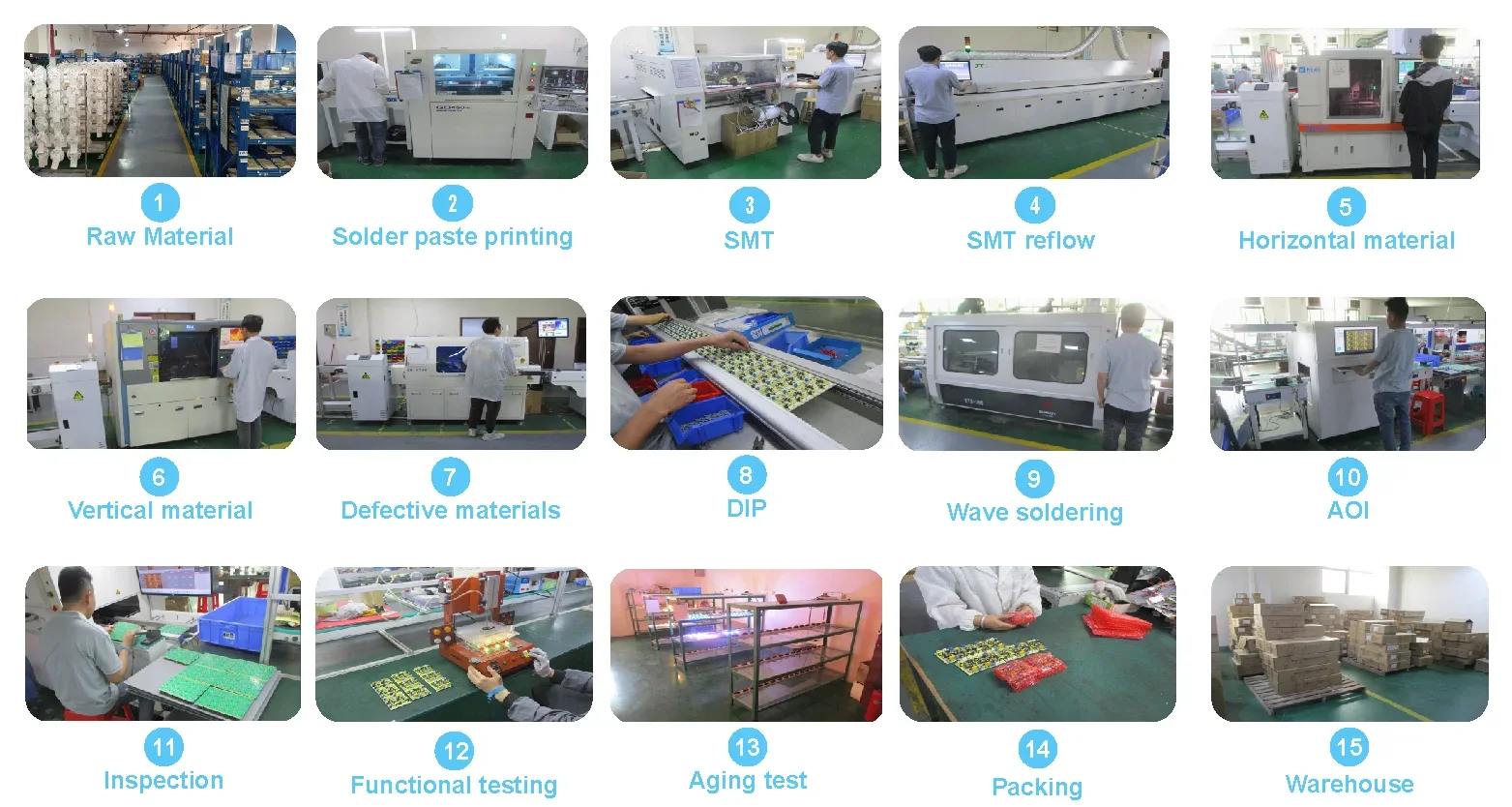

We provide turnkey solution including RD, PCB fabrication, SMT, final assembly and testing.
Huishine is a PCBA manufacturer located in Zhongshan City, Guangdong Province, China.
Q: What’s your minimum of quantity (MOQ)?
No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
Q: Can we inspect quality during production?
Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process.
Q: What is needed for PCBA quotation?
A: Please provide Quantity, BOM list, pick and place file, Gerber file and specification like material, surface finish treatment,
copper thickness, board thickness, soldermask color and silkscreen color BOM list, pick and place file and other special specs.If you need turnkey service include programming and functional testing etc, kindly contact us for more details.
Q: What is your testing policy and how you control the quality?
We strictly adhere to AQL standards. There is automated optical inspection (AOI) for each batch, X-ray inspection for BGA parts,first article inspection (FAI) before mass production.
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Volume pricing:
- 1000–99999 piece: US $5 / piece
- 100000+ piece: US $1 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this ceiling fan carry?
It is supplied with ISO9001/Iso14001/CE/ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhongshan Huishine Pcba Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhongshan Huishine Pcba Co., Ltd. range on HVACR Nexus.
