Key specification for this pcb tower: type home appliance pcba, model number ceiling fan PCBA. Everything below is reproduced from the factory data sheet. Made by Zhongshan Huishine Pcba Co., Ltd. (4 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Pcb Tower
- Model Number: ceiling fan PCBA
- Base Material: FR-4/CEM-1/CEM-3/FR1/aluminum
- Place Of Origin: GUA
- Application Field: Home Consumer Electronic Control
- Application: Electronics Device
- Type: home appliance pcba
Technical Specifications
| Type | home appliance pcba |
|---|---|
| Copper Thickness | custom |
| Model Number | ceiling fan PCBA |
| Place Of Origin | GUA |
| Brand Name | HUISHINE |
| Supplier Type | factory supplier |

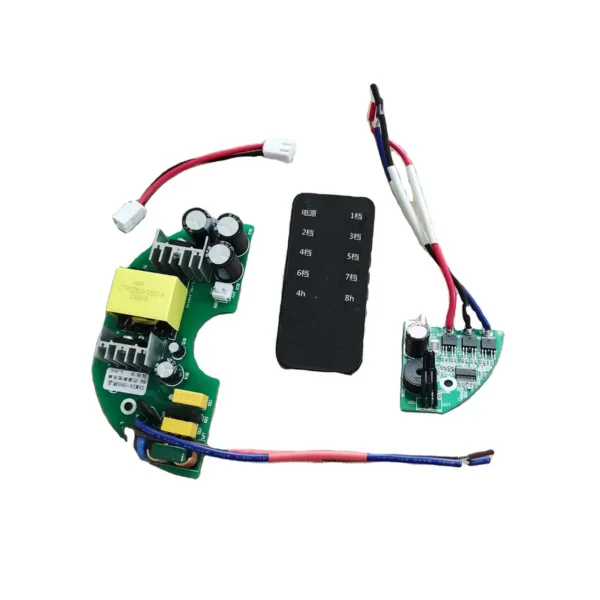

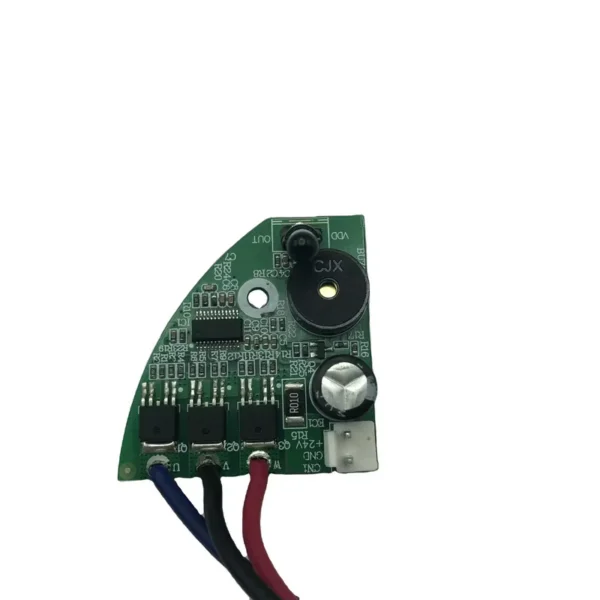

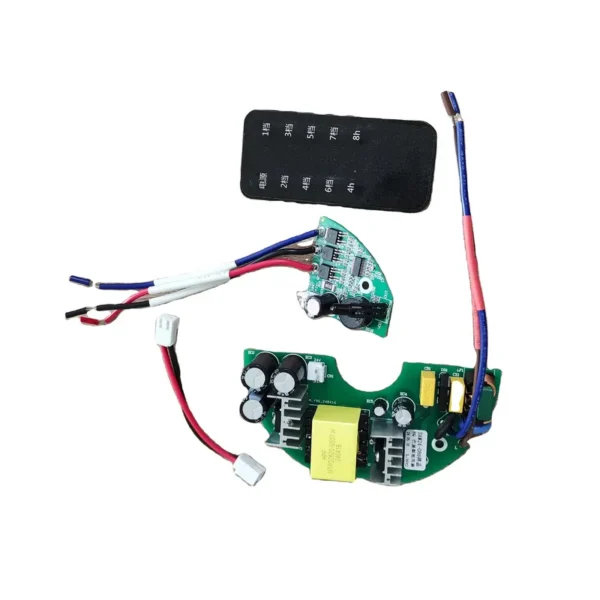

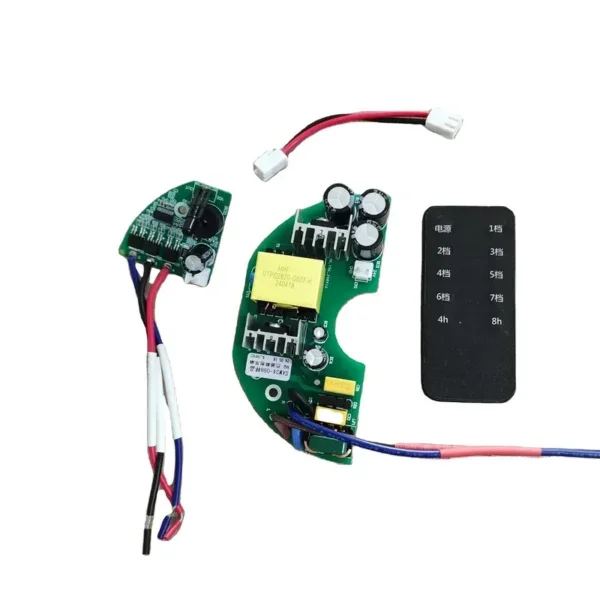

| Product Name | Ceiling Fan PCB printed circuit board |
| Application Field | Home Consumer Electronic Control |
| Surface Finishing | HASLOSPimmersion Gold |
| Service | One-stop Turnkey PCBA Service |
| PCBA Service | SMD SMT DIP Component Assembly |
| Base Material | FR-4/CEM-1/CEM-3/FR1/aluminum |
| Testing Service | AOI |
| Surface Treatment | Clean |
| Application | Electronics Device |
| Certificate | CE FCC RoHS |
| Selling Units | Single item |
| Single Package Size | 10X10X2 cm |
| Single Gross Weight | 0.4 kg |
Product Details
Product Name | OEM&ODM PCB&PCBA for BLDC ceiling fan |
Base Material | FR-4/CEM-1/CEM-3/FR1/aluminum |
Layers | 1-12 |
Surface Treatment | HASLHASL Lead FreeENIGGOLD Finger |
material | FR4/CEM-1/CEM-3/FR1/aluminum |
Application | Home Appliances |
Service | OEM Services Provided |
Certificate | ISO9001/Iso14001/CE/ROHS |
Testing | AOI testing, fuctional testing,aging test |
electric heater,Multi-function stove, Electric heated Towel rack , Cooling Fan, ,Air Purifier, Dehumidifier and other smart
electronic products.
We provide turnkey solution including RD, PCB fabrication, SMT, final assembly and testing.
Huishine is a PCBA manufacturer located in Zhongshan City, Guangdong Province, China.
Q: What’s your minimum of quantity (MOQ)?
No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
Q: Can we inspect quality during production?
Yes, we are open and transparent on each production process with nothing to hide. We welcome customer inspect our production process.
Q: What is needed for PCBA quotation?
A: Please provide Quantity, BOM list, pick and place file, Gerber file and specification like material, surface finish treatment,
copper thickness, board thickness, soldermask color and silkscreen color BOM list, pick and place file and other special specs.If you need turnkey service include programming and functional testing etc, kindly contact us for more details.
Q: What is your testing policy and how you control the quality?
We strictly adhere to AQL standards. There is automated optical inspection (AOI) for each batch, X-ray inspection for BGA parts,first article inspection (FAI) before mass production.
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Volume pricing:
- 1000–1999 piece: US $5 / piece
- 2000+ piece: US $4.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this pcb tower?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this pcb tower carry?
It is supplied with CE FCC RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhongshan Huishine Pcba Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhongshan Huishine Pcba Co., Ltd. range on HVACR Nexus.
