Key specification for this central air conditioner: 220V/1PH/50Hz, airflow 3500m³/h. Everything below is reproduced from the factory data sheet. Made by Dongying Qinghua Trading Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Central Air Conditioner
- Power Supply: 220V/1PH/50Hz
- Operating Voltage: 230 VAC
- Cooling Capacity: 1.8-12.6KW
- Heating Capacity: 2.7-18.9 KW
- Airflow: 3500m³/h
- Warranty: 1 Year
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Airflow | 3500m³/h |
| Operating Voltage | 230 VAC |
| Mounting Type | Ceiling Mount |
| Key Selling Points | Eco-Friendly |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 20 KG |
| Brand Name | QH |
| After-Sales Service Provided | Overseas service center available |
| Application | Room |
| Function | Refrigeration/heating |
| Condition | New |
| Color | Customer Requirements |
| Cooling Capacity | 1.8-12.6KW |
| Heating Capacity | 2.7-18.9 KW |
| Name | 4 Way or 2 Way Ceiling Cassette Fan Coil Unit |
| Power Supply | 220V/1PH/50Hz |
| Packaging Details | Export cartons with wooden box outside. |
| Port Of Dispatch | QD |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 1000 units per Month |

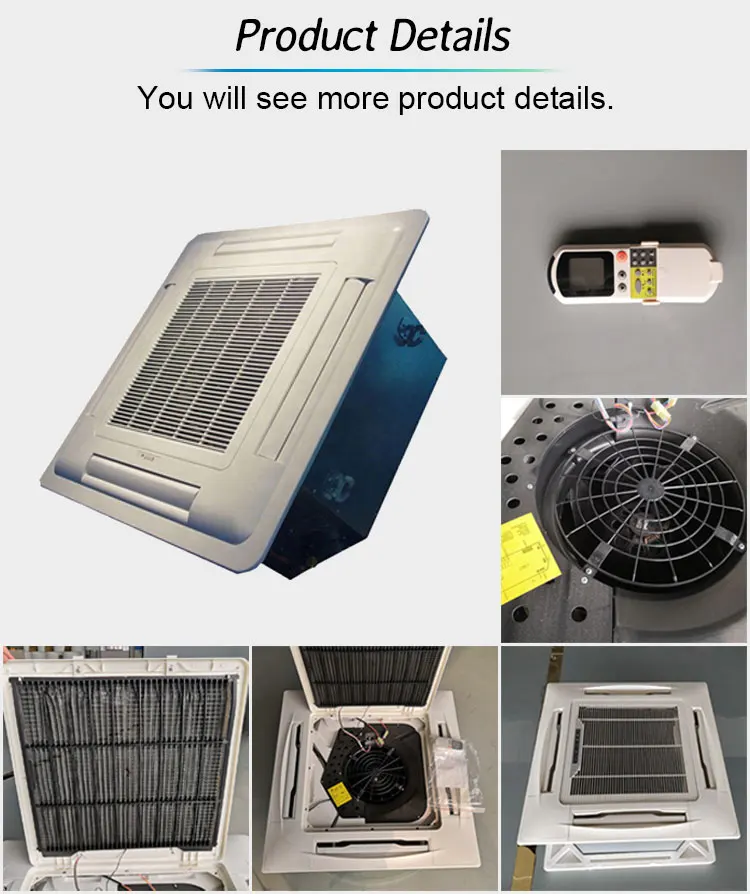

Product Details

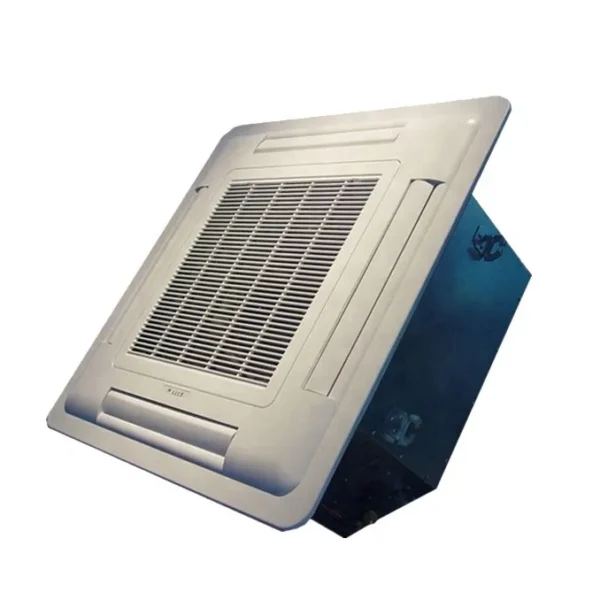

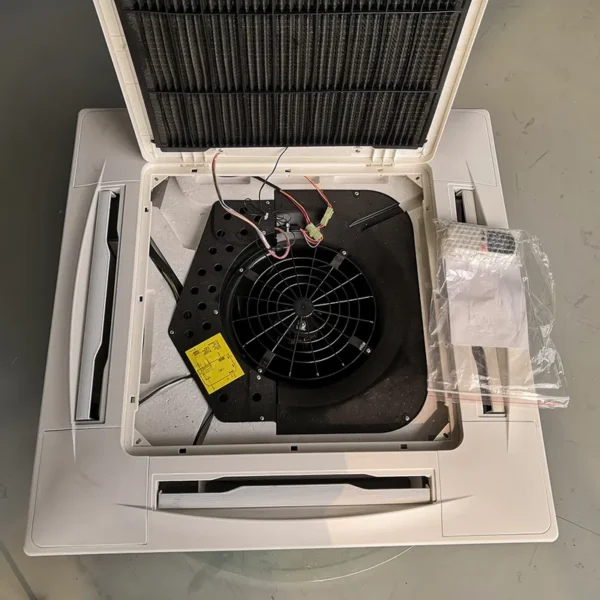

Cassette Fan Coil
1.340 m³/h-2380m³/h air Volume
2. ultra thin body, thinckness is 290mm
3. remote controller, drain pump and wire controller optional
4. 4 way & 8 way optional
5. DC motor fan coil and AC motor fan coil optional
6. low noise and easy installtion
7.2 pipe or 4 pipe optional
Main Feature:

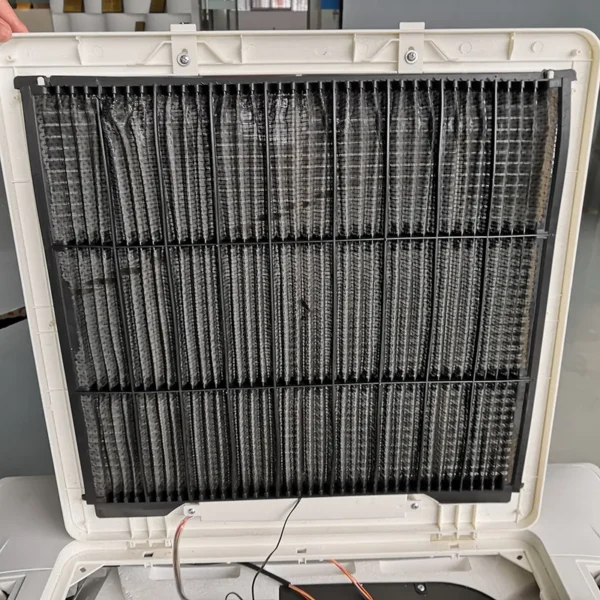

1. Ultra-fine filter that filters most dust.

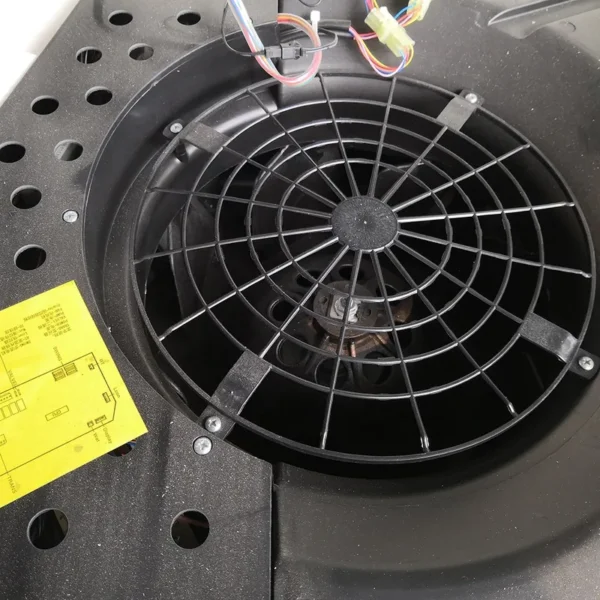

2.Ultra-quiet motor for less noise.
3. A variety of modes to choose from, the environment is more comfortable.
All the parts of the product are processed by ourselves, and we can guarantee the quality of our products ourselves.

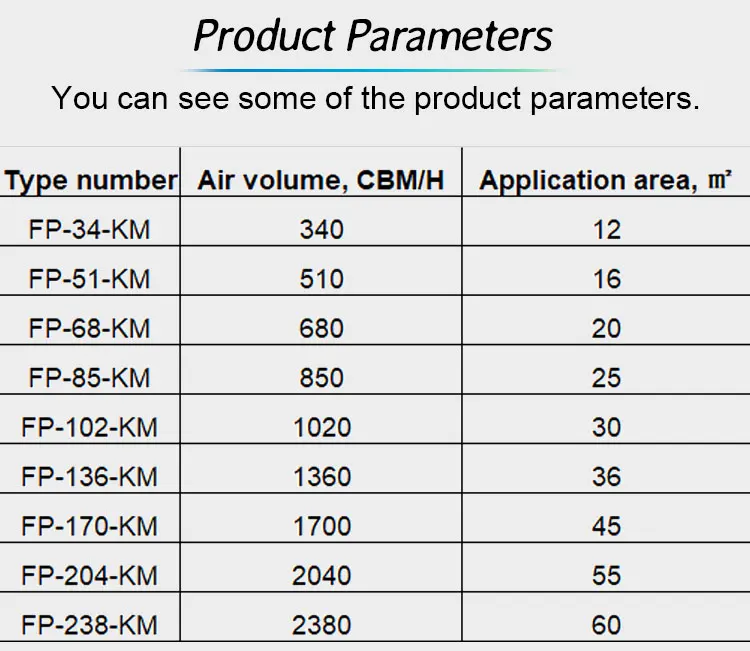

| Model parameter | FP-34KM-PI | FP-51KM-PI | FP-68KM-PI | FP-85KM-PI | FP-102KM-PI | FP-136KM-PI | FP-170KM-PI | FP-204KM-PI | FP-238KM-PI | ||
| FP-34KM-ZI | FP-51KM-ZI | FP-68KM-ZI | FP-85KM-ZI | FP-102KM-ZI | FP-136KM-ZI | FP-170KM-ZI | FP-204KM-ZI | FP-238KM-ZI | |||
| Rated air flow | high | m³/h | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
| middle | m³/h | 280 | 380 | 520 | 660 | 760 | 1020 | 1270 | 1530 | 1780 | |
| low | m³/h | 180 | 280 | 340 | 430 | 510 | 680 | 850 | 1020 | 1190 | |
| Rated cooling capacit y | high | W | 1800 | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 | 12600 |
| middle | W | 1500 | 2300 | 3060 | 3840 | 4600 | 6120 | 7660 | 9180 | 10720 | |
| low | W | 1350 | 1760 | 2350 | 2930 | 3510 | 4670 | 5850 | 7020 | 8190 | |
| Rated heating capacit y | high | W | 2700 | 4050 | 5400 | 6750 | 8100 | 10800 | 13500 | 16200 | 18900 |
| middle | W | 2400 | 3450 | 4600 | 5750 | 6890 | 9170 | 11470 | 13770 | 16050 | |
| low | W | 2150 | 2460 | 3520 | 4290 | 5260 | 7020 | 8780 | 10550 | 12270 | |
| noise | dB(A ) | 37/36/34 | 39/37/35 | 41/39/37 | 43/41/39 | 45/43/39 | 46/44/40 | 48/46/42 | 50/47/45 | 52/49/46 | |
| power supply | 220-240V/1P/50Hz | ||||||||||
| Input power | W | 37 | 52 | 62 | 76 | 85 | 116 | 130 | 135 | 170 | |
| Working current | A | 0.17 | 0.24 | 0.28 | 0.35 | 0.39 | 0.53 | 0.59 | 0.61 | 0.77 | |
| Coil Type | Hydrophilic aluminum fin to wear copper tube | ||||||||||
| Water flow | kg/h | 360 | 530 | 630 | 780 | 950 | 1260 | 1580 | 1890 | 2210 | |
| Water resistance | kPa | 15 | 20 | 25 | 30 | 35 | 40 | 40 | 43 | 50 | |
| Working pressure | Mpa | ≤1.6 | |||||||||
| Number of motors | 1 | ||||||||||
| Fan type | Low noise centrifugal fan | ||||||||||
| Inlet and outlet pipes | ZG3/4”(internal thread) | ||||||||||
| Condensate pipe | mm | φ26 | |||||||||
| Unit size L*W*H | Drained by pump | mm | 575*575*390 | 741*741*400 | 830*830*420 | ||||||
| Drained by Nature | mm | 575*575*290 | 741*741*290 | 830*830*290 | |||||||
| Unit net weight | Drained by pump | kg | 24 | 25 | 26 | 35 | 38 | 39 | 45 | 46 | 47 |
| Drained by Nature | kg | 20 | 21 | 22 | 32 | 33 | 34 | 40 | 41 | 42 | |
| panel | L*W*H | mm | 650*650*35 | 850*850*38 | 950*950*40 | ||||||
| Weight | kg | 2.5 | 4 | 7 | |||||||
| Lifting installat ion size | L*W | mm | 625*275 | 790*340 | 880*380 | ||||||
Delivery
TIME OF DELIVERY:within 35 days after receiving deposit .
Payment
1) Support T/T , L/C
2) TERMS OF PAYMENT : 30% in advance,70% before shipment.
Warranty
1) The whole machine for 1 years.
After-sale
During the warranty period, machines which cannot run due to quality problems,Choose the following options.
1) Free replacement of all parts and related parts at the fault place, freight deducted from next order
2) The new machine will be replaced for free in the next order.
Agent support
1) The consultation of other local customers will be forwarded to you, and you will become the exclusive agent for our local business negotiations.
2) No longer set up the same level of agents in any local area.
3) If a local retailer purchases from us, the local agency commission will be given.
Promotion Method
1) After receiving the goods, the evaluation video feedback will give a 0.5% discount on the next order.
2) 2% discount on full payment in one lump sum.
3) Promote our products at local stores, or introduce other local sellers to give 3% discount on the next order.
Ordering and Pricing
- Minimum order quantity: 5 unit
- Volume pricing:
- 5+ unit: US $110 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this central air conditioner?
The standard minimum order quantity is 5 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the central air conditioner be supplied for my local voltage?
The standard configuration is 230 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
