This fan coil unit is published with the manufacturer’s full specification — type Fan Coil Unit, model number dyqh. Made by Dongying Qinghua Trading Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Fan Coil Unit
- Model Number: dyqh
- Warranty: 1 Year
- After Warranty Service: Video technical support
- Certification: ce
- Place Of Origin: Shandong, China
- Application: restaurant hotel
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Mounting Type | Floor Standing |
| Key Selling Points | High-Accuracy |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 25 KG |
| Brand Name | QH |
| After-Sales Service Provided | No overseas service provided |
| Product Name | high thin fan coil unit |
| Application | restaurant hotel |
| Operating Volta | 230V |
| 2 Pipe Or 4 Pipe | available |
| Model Number | dyqh |
| Applicable Industries | Building Material Shops |
| After Warranty Service | Video technical support |
| Certification | ce |
| Keyword | Fcu Fan Coil Unit |
| Selling Units | Single item |
| Single Package Size | 120X14X65 cm |
| Single Gross Weight | 20.35 kg |
Product Details
Ultra Thin Floor Standing Fan Coil Unit
1. The vertical fan coil is suitable for hotel or home decoration.
2. The fan coil has a beautiful design and can be well matched with the overall decoration style.

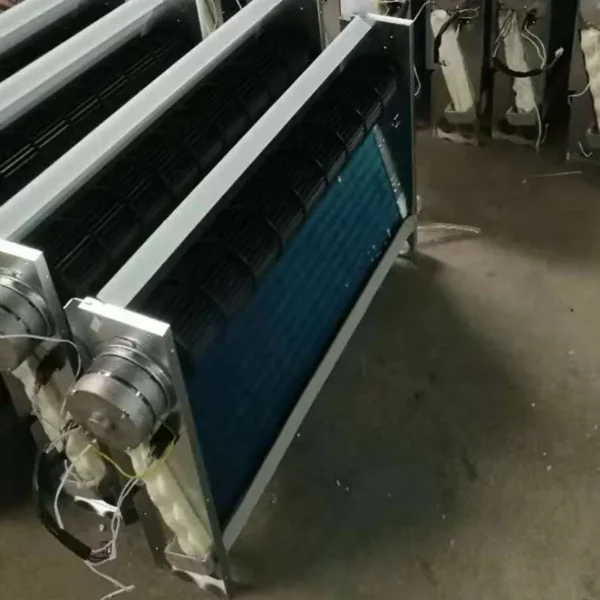

3. The evaporator of the fan coil uses gold heat-dissipating fins for better heat exchange performance and corrosion resistance.

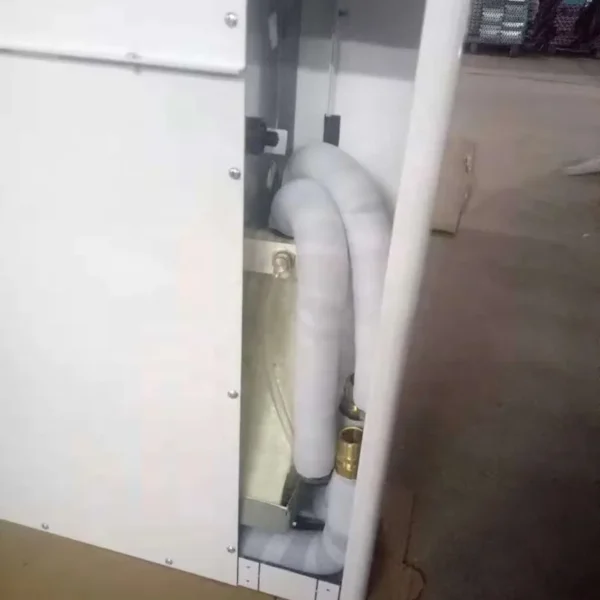

4. The machine adopts the design of left and right double connecting water pipes, which is suitable for most installation environments.
5.This fan coil can be hung in the lower part of the wall.
Main Feature:
1. All copper connection pipe interface.
2. Aluminized zinc plate body.
3. Full LCD touchpad with remote control.
Original double-sided connecting tube design
All the parts of the product are processed by ourselves, and we can guarantee the quality of our products ourselves.
| Model | Flow 680 | Flow 850 | Flow 1020 | ||
| Air flow (m3/h) | High speed | 680 | 850 | 1020 | |
| Medium speed | 520 | 600 | 780 | ||
| Low speed | 400 | 510 | 600 | ||
| Cooling capacity | HIGH | W | 3290 | 4020 | 4650 |
| Medium | w | 2650 | 3200 | 3900 | |
| Low | w | 2060 | 2410 | 3650 | |
| Heating capacity | HIGH | W | 4530 | 6040 | 6840 |
| Medium | w | 3870 | 4510 | 5160 | |
| Low | w | 3100 | 3610 | 4130 | |
| Power supply | AC220V/50Hz | ||||
| Power input | 13W | 18W | 25W | ||
| Waterflow volume | m3/h | 0.95 | 1 | 1.1 | |
| Water tube connection (inlet) | INCH | 3/4’’ | |||
| Water tube connection (outlet) | INCH | 3/4’’ | |||
| Maximum working Pressure | MPA | 16 | 16 | 16 | |
| Condensation pipe size(diameter ) | Mm | 8 diametre *0.22 wall thickness | 8*0.22 | 8*0.22 | |
| Noise dB(A) | HIGH | 40 | 41 | 45 | |
| Medium | 38 | 40 | 43 | ||
| LOW | 36 | 38 | 42 | ||
| Cooling Area | 20 | 25 | 30 | ||
| Heating Area | 25 | 30 | 35 | ||
| Outside dimension (L*W*H) | 950*130*570 | 1050*130*570 | 1250*130*570 | ||
Delivery
TIME OF DELIVERY:within 35 days after receiving deposit .
Payment
1) Support T/T , L/C
2) TERMS OF PAYMENT : 30% in advance,70% before shipment.
Warranty
1) The whole machine for 1 years.
After-sale
During the warranty period, machines which cannot run due to quality problems,Choose the following options.
1) Free replacement of all parts and related parts at the fault place, freight deducted from next order
2) The new machine will be replaced for free in the next order.
Agent support
1) The consultation of other local customers will be forwarded to you, and you will become the exclusive agent for our local business negotiations.
2) No longer set up the same level of agents in any local area.
3) If a local retailer purchases from us, the local agency commission will be given.
Promotion Method
1) After receiving the goods, the evaluation video feedback will give a 0.5% discount on the next order.
2) 2% discount on full payment in one lump sum.
3) Promote our products at local stores, or introduce other local sellers to give 3% discount on the next order.
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5+ set: US $100 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this fan coil unit carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongying Qinghua Trading Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Dongying Qinghua Trading Co., Ltd. range on HVACR Nexus.
See more in Fan Coil Units on HVACR Nexus.
