The centrifugal blower listed here carries 230V/380V, material Stainless Steel, Metal/Plastic, documented exactly as the manufacturer publishes it. Made by Ningbo Canlian Technology Company Limited (2 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Blower
- Model Number: LWFE3G146-072DS-01
- Power Source Type: other
- Voltage: 230V/380V
- Material: Stainless Steel, Metal/Plastic
- Blade Material: Metal/Plastic
- Noise Level: 59-81dB(A)
Technical Specifications
| Duct Diameter | 4.72-13.98in |
|---|---|
| Mounting | other |
| Voltage | 230V/380V |
| Motor Type | EC motor |
| Speed | 760-3200RPM |
| Material | Stainless Steel, Metal/Plastic |
| Blade Material | Metal/Plastic |
| Power Source Type | other |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 59-81dB(A) |
| Place Of Origin | Zhejiang, China |
| Model Number | LWFE3G146-072DS-01 |
| Product Name | EC Dual Inlet Forward Centrifugal Blower |
| Application | HVACR ,Ventilation ,Cooling system |
| Proteection Class | IP44/54/55 |
| Motor | EC Motor |
| Bearing | Maintenance-free ball bearings |
| Specification | 70-2400W 50/60Hz |
| Operation Model | S1 |
| Operation Temperature | -20℃~+60℃ |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

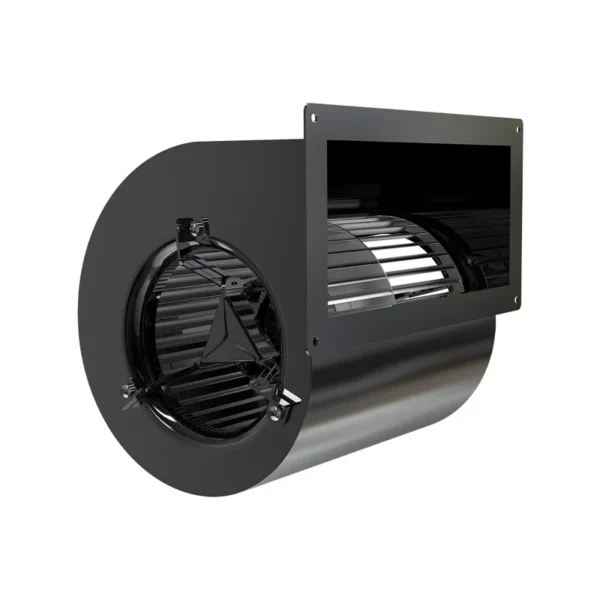

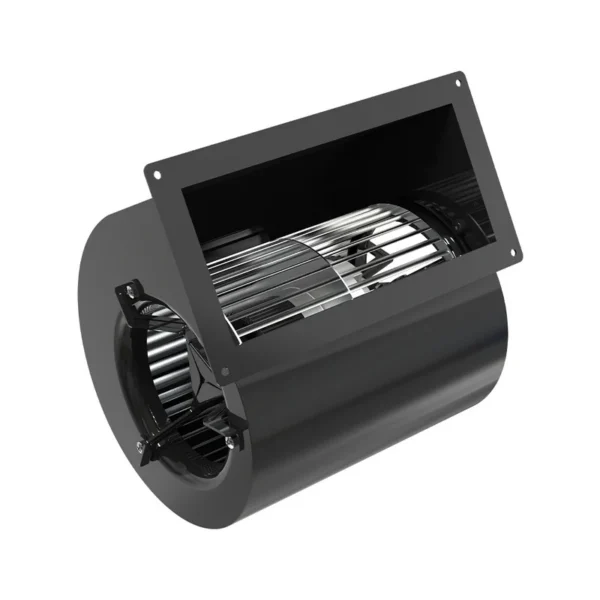

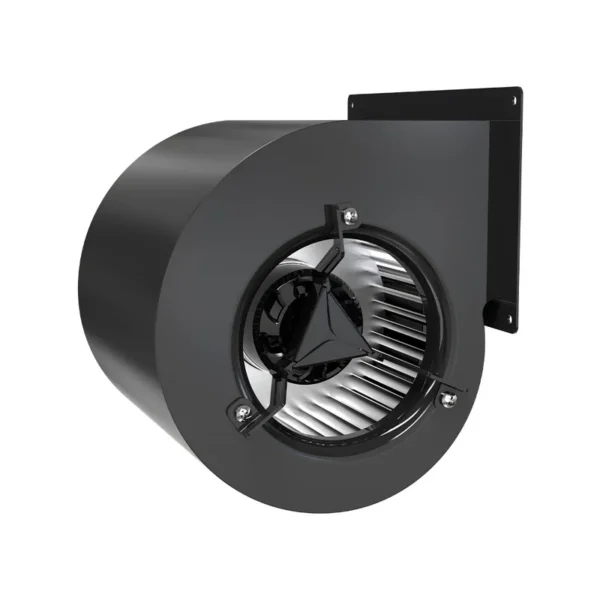

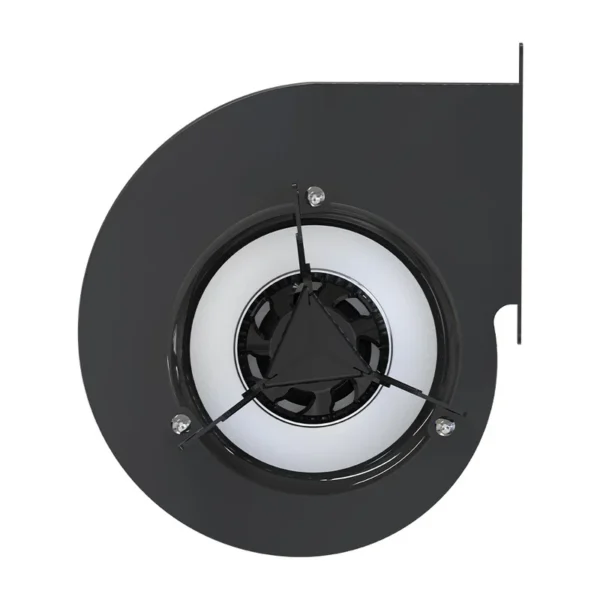

EC Dual Inlet Forward Centrifugal Blower-efficient airflow
* This high-capacity blower utilizes a dual-inlet design and an EC motor to deliver balanced, high-volume airflow with superior stability and energy efficiency for large-scale systems.; * Commercial Buildings | Data Centers | Industrial Applications | Public Facilities; * Power(W):70-2400w,Voltage(V):230V/380V,Frequency(Hz):50/60Hz; * Current(A):0.55-4A,Speed(RPM):760-3200RPM,Air Flow(m³/h):433-8799m³/h; * Material:Metal/Plastic,Type of Protection:IP44/54/55,Operation Temperature:-20℃～+60℃;
Model | LWFE-120 Serise | LWFE-133 Serise | LWFE-146 Serise | ||
Voltage(V) | 230V | ||||
Frequency(Hz) | 50/60Hz | ||||
Power(W) | 70w | 80-120w | 80-120w | ||
Current(A) | 0.55A | 0.6-0.95A | 0.6-0.95A | ||
Speed(RPM) | 1900RPM | 1450-1750RPM | 1300-1450RPM | ||
Air Flow(m³/h) | 433m³/h | 690-979m³/h | 855-1009m³/h | ||
Air Pressure(Pa) | 263Pa | 288-484Pa | 474-670Pa | ||
Noise[dB(A)] | 59dB(A) | 69-70dB(A) | 59-72dB(A) | ||
LWFE-146 Serise(Plastic) | LWFE-180 Serise | LWFE-200 Serise | |||
Voltage(V) | 230V | ||||
Frequency(Hz) | 50/60Hz | ||||
Power(W) | 115-220w | 165-400w | 300-390w | ||
Current(A) | 0.85-1.6A | 1.22-1.9A | 1.36-1.55A | ||
Speed(RPM) | 2400-3200RPM | 1090-1550RPM | 1150-1300RPM | ||
Air Flow(m³/h) | 752-1133m³/h | 1730-2060m³/h | 2060-2575m³/h | ||
Air Pressure(Pa) | 567-876Pa | 247-742Pa | 464-1030Pa | ||
Noise[dB(A)] | 66-74dB(A) | 63-74dB(A) | 64-66dB(A) | ||
LWFE-225 Serise | LWFE-250 Serise | LWFE-280 Serise | |||
Voltage(V) | 230/380V | ||||
Frequency(Hz) | 50/60Hz | ||||
Power(W) | 450-1050w | 655-750w | 600-750w | ||
Current(A) | 1.75-3.5A | 1.2-3.5A | 1.1-3.5A | ||
Speed(RPM) | 1250-1450RPM | 920-960RPM | 800-820RPM | ||
Air Flow(m³/h) | 3039-3605m³/h | 3811-4058m³/h | 4223-4422m³/h | ||
Air Pressure(Pa) | 371-577Pa | 479-742Pa | 592-917Pa | ||
Noise[dB(A)] | 68-78dB(A) | 74-75dB(A) | 72-74dB(A) | ||
Specification
About this item – EC Dual Inlet Forward
Centrifugal Blower:
Centrifugal Blower:
The EC Dual Inlet Forward Curved Centrifugal Blower is engineered for high-performance applications where maximum airflow volume,exceptional energy efficiency, and robust operational stability are critical. By featuring two opposing inlets that feed a common
forward-curved impeller driven by an advanced Electronically Commutated (EC) motor, this blower delivers a balanced, high-volume airflow solution that outperforms single inlet models, making it ideal for larger-scale commercial and industrial systems.
forward-curved impeller driven by an advanced Electronically Commutated (EC) motor, this blower delivers a balanced, high-volume airflow solution that outperforms single inlet models, making it ideal for larger-scale commercial and industrial systems.
* Enhanced Stability and Balance: The symmetrical air intake creates balanced radial forces on the impeller and motor shaft. This reduces vibration and mechanical stress, leading to quieter operation, increased bearing life, and unparalleled long-term reliability.
* Peak Energy Efficiency: The high-efficiency EC motor, combined with the optimized aerodynamics of the dual inlet housing and forward-curved impeller, achieves outstanding performance coefficients. This translates to substantial energy savings and a reduced total cost of ownership.
* Quiet Operation: Optimized aerodynamics of the impeller and housing, combined with the smooth rotational characteristics of the EC motor, result in exceptionally low noise levels, enhancing comfort in sensitive environments.
* Robust Construction for Demanding Environments: Built with heavy-duty materials, this blower is designed to withstand continuous operation in challenging conditions, including high-temperature HVAC systems and industrial processes.
Recommend Products
What drives us?
Our product range includes:
1. EC/DC/AC Centrifugal Fans: We design and manufacture high-efficiency, low-energy consumption EC/DC/AC centrifugal fans widely used in industrial manufacturing, commercial buildings, medical facilities, and more. These fans utilize advanced electronically commutated (EC) motor technology to achieve precise airflow control and energy optimization, providing customers with high-quality air movement solutions.
2. EC/DC/AC Axial Fans: We provide high-performance, high-efficiency EC/DC/AC axial fans for ventilation, air conditioning, and refrigeration applications. These fans offer excellent airflow capacity and energy optimization, creating comfortable and healthy indoor environments.
3. Industrial Ventilation Fans: We offer a wide range of ventilation solutions for industrial applications, including exhaust fans, supply fans, and environmental control fans. These fans feature high efficiency, reliability, and durability, meeting the requirements of various industrial applications.
4. Commercial Building Fans: Our commercial building fans are suitable for office buildings, shopping malls, hotels, sports arenas, and other venues. These fans are characterized by low noise, high efficiency, and controllability, providing good indoor air quality and a comfortable environment.
5. Agricultural Fans: We provide professional fan solutions for agricultural production, including greenhouse ventilation fans,poultry and livestock ventilation fans, and agricultural irrigation fans. These fans effectively enhance crop growth conditions and animal comfort, contributing to increased productivity and efficiency in agriculture.
Why choose us ?
* High-end, Highly Customized
* High Performance,High-Efficiency Motor
* High Cost-Performance Ratio
* Global Leader in Fan & Motor Manufacturing
* OEM/ODM Global Fan Supplier
* Manufacturer and Provider of High-quality Ventilation Fans and HVACR Complete Machine Technology Solutions
* High Performance,High-Efficiency Motor
* High Cost-Performance Ratio
* Global Leader in Fan & Motor Manufacturing
* OEM/ODM Global Fan Supplier
* Manufacturer and Provider of High-quality Ventilation Fans and HVACR Complete Machine Technology Solutions
FAQ
FAQ
Q1: Whats your advantages of your centrifugal fans?
1,high efficiency
1,high efficiency
2,long life span
3,easy installation
Q2: Are you a manufacturer or trading company?
Yes, we are manufacturers
Q3: whats your production capacity?
We are capable to produce over millions pcs fans and motors annually.
Q4: whats your main machines and capacity?
For the motors: We have owned CNC machines 18 units &4 auto-robots.
Q2: Are you a manufacturer or trading company?
Yes, we are manufacturers
Q3: whats your production capacity?
We are capable to produce over millions pcs fans and motors annually.
Q4: whats your main machines and capacity?
For the motors: We have owned CNC machines 18 units &4 auto-robots.
capacity :500k pcs annually.
winding machine 20 units,capacity 500kpcs annually
magnetization machine 6 : capacity 500kpcs annually
Balance machine 22 units :500k pcs annually boring
mill: 2 units high temp failure detection :3 chambers500k pcs annually
mill: 2 units high temp failure detection :3 chambers500k pcs annually
For the fan:
Injection machine : 12 units, capacity:2millions pcs annually
Welding machine:10units
Balance machines: 14 units
Q5: what your advantages of technologies in fans and motors?
we makes very quiet noise , and good air performances of fans . We are capable to do fans and motors matching and make them optimized to achieve best air performances and lowest noise with CFD simulation.
Q6: whats your quality and certificates?
For us, quality issues are more important than ever before we always focus on quality thing. 100% inspection before delivery makes almost zero complains. MTTF is less 500/million. LONGWELL products can pass CE,ETL UL certificates.
Q5: what your advantages of technologies in fans and motors?
we makes very quiet noise , and good air performances of fans . We are capable to do fans and motors matching and make them optimized to achieve best air performances and lowest noise with CFD simulation.
Q6: whats your quality and certificates?
For us, quality issues are more important than ever before we always focus on quality thing. 100% inspection before delivery makes almost zero complains. MTTF is less 500/million. LONGWELL products can pass CE,ETL UL certificates.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100+ piece: US $56.61 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 230V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
