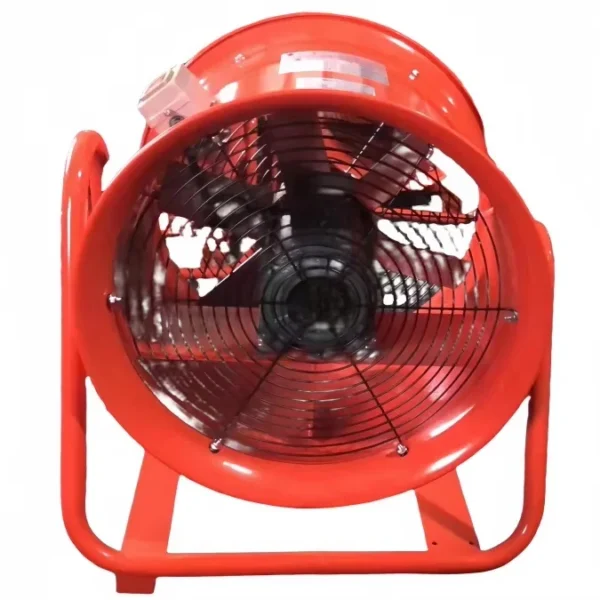

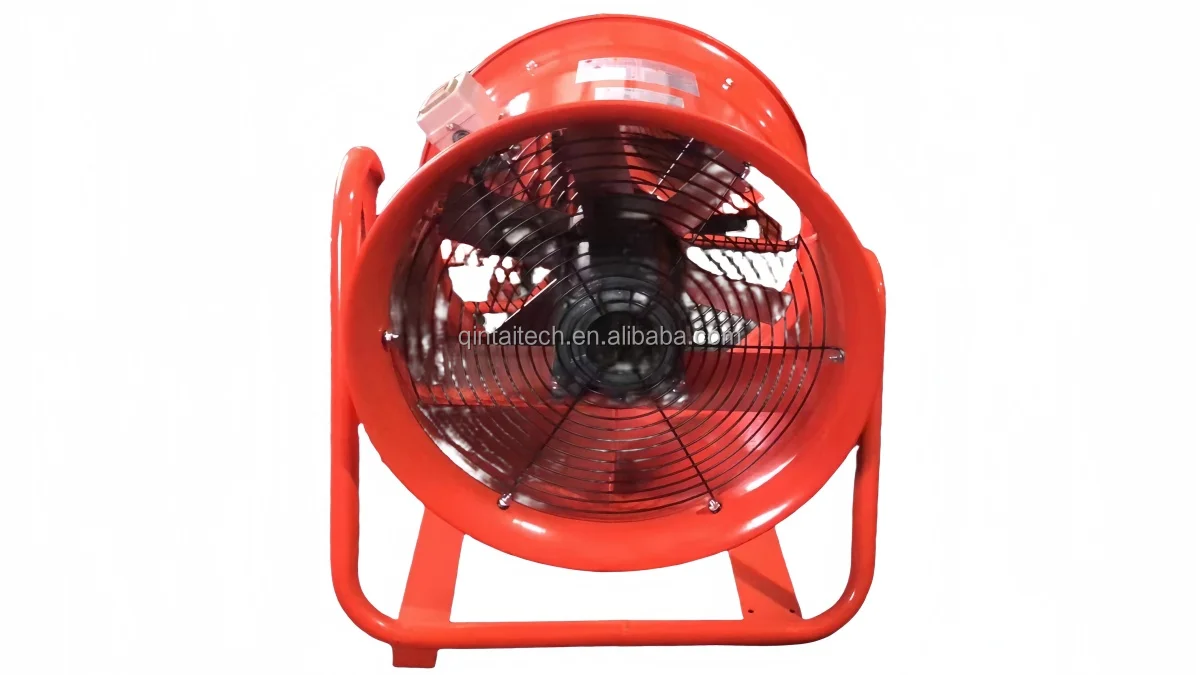

Key specification for this movable axial flow ventilator: 220V, rated airflow 22000m³/h. Everything below is reproduced from the factory data sheet. Made by Wenling Qintai Machinery Technology Co., Ltd. (6 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Movable Axial Flow Ventilator
- Model Number: 24"(600MM)
- Power Source: Electric
- Power: 3kw
- Voltage: 220V
- Rated Airflow: 22000m³/h
- Blade Material: ALUMINUM
Technical Specifications
| Voltage | 220V |
|---|---|
| Type | Duct Axial Fan |
| Blade Material | ALUMINUM |
| Mounting Type | Duct Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | ZHE |
| Brand Name | QT-TECH |
| Model Number | 24"(600MM) |
| Power | 3kw |
| Rated Speed | 2900rpm/2poles |
| Rated Airflow | 22000m³/h |
| Pressure | 580pa |
| Dimension | 93*86*51mm |
| Weight | 59kgs |
| DRUM | IRON |
| BLADE | ALUMINUM |
| MOTOR WIRE | COPPER |
| CABLE | 2m |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

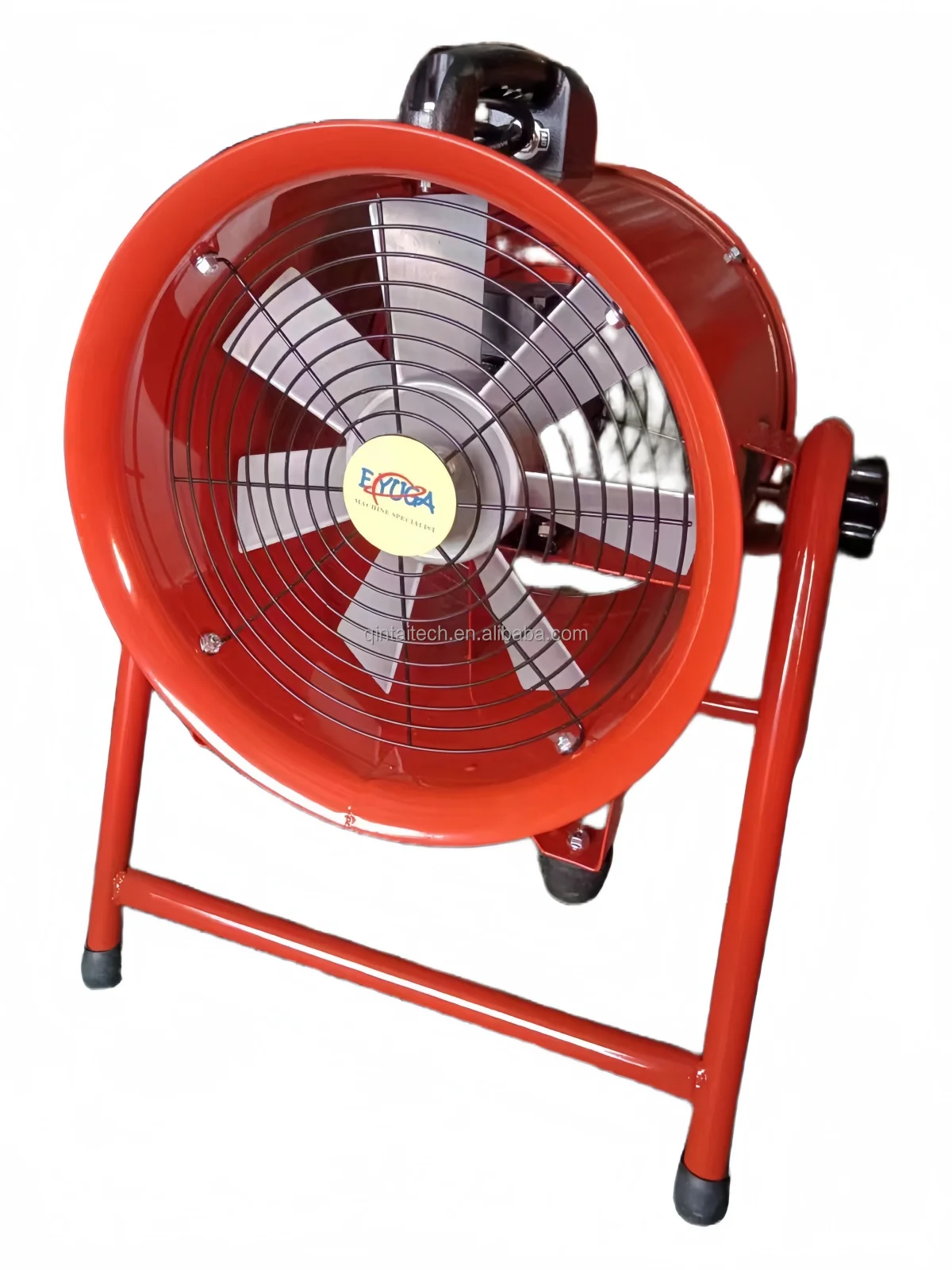

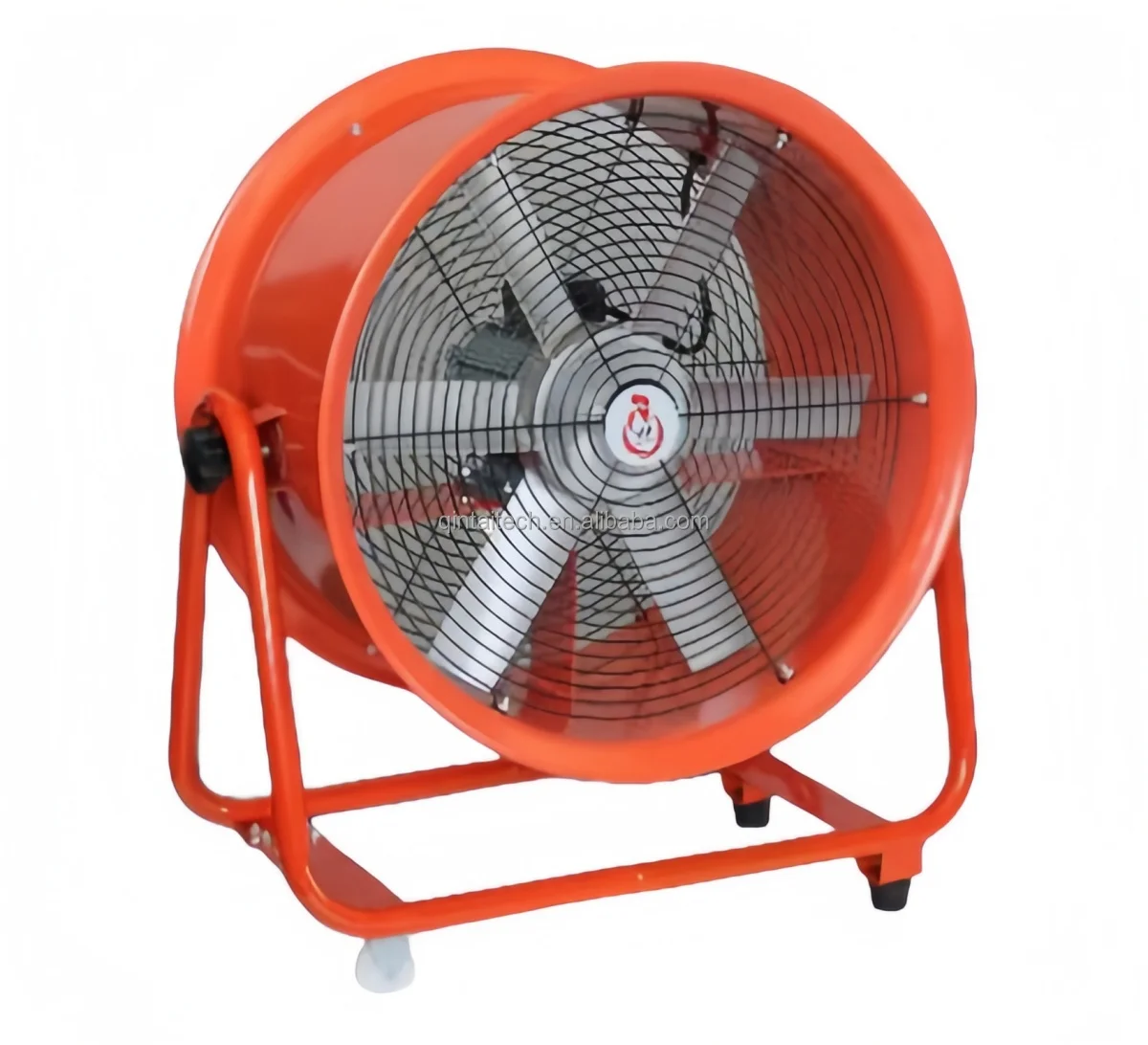

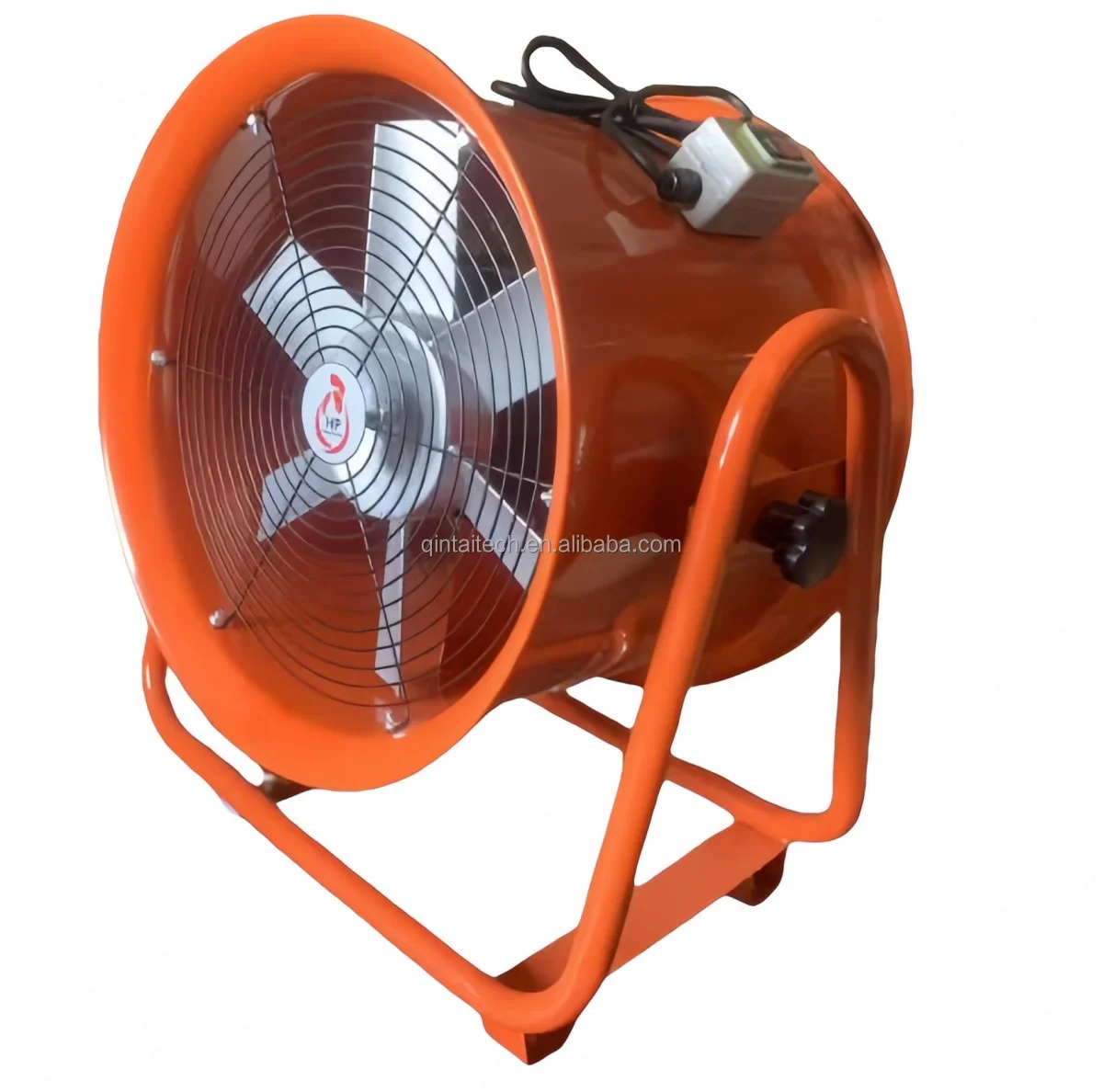

手提移动两用轴流风机Portable&Movable Ventilation Fan Axial Flow Fan Duct Fan
item | Portable & Movable Ventilation Fan Axial Flow Fan Duct Fan |
Type | Axial Flow Fan |
Applicable Industries | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Printing Shops, Construction works , Energy & Mining |
Customized support | OEM, ODM, OBM |
Electric Current Type | AC |
Mounting | Duct Fan |
Blade Material | ALUMINUM |
Place of Origin | ZHE |
Brand Name | QT-TECH |
Model Number | 24"(600MM) |
Warranty | 1 Year |
After-sales Service Provided | Free spare parts |
Rated Voltage | 110-240v |
Power | 3.0kw |
rated speed | 2900rpm/2poles |
rated airflow | 22000m³/h |
pressure | 580pa |
Dimension | 93*86*51mm |
weight | 59kgs |

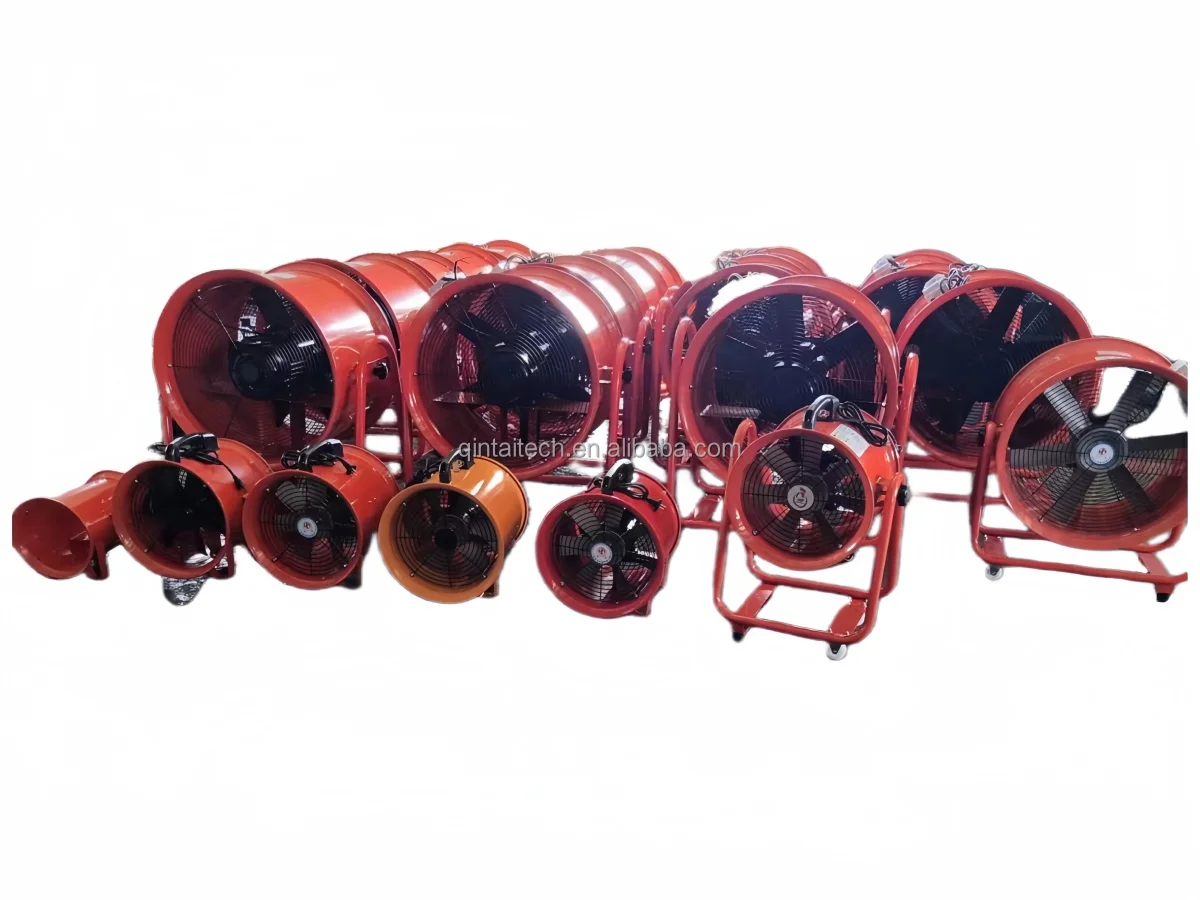

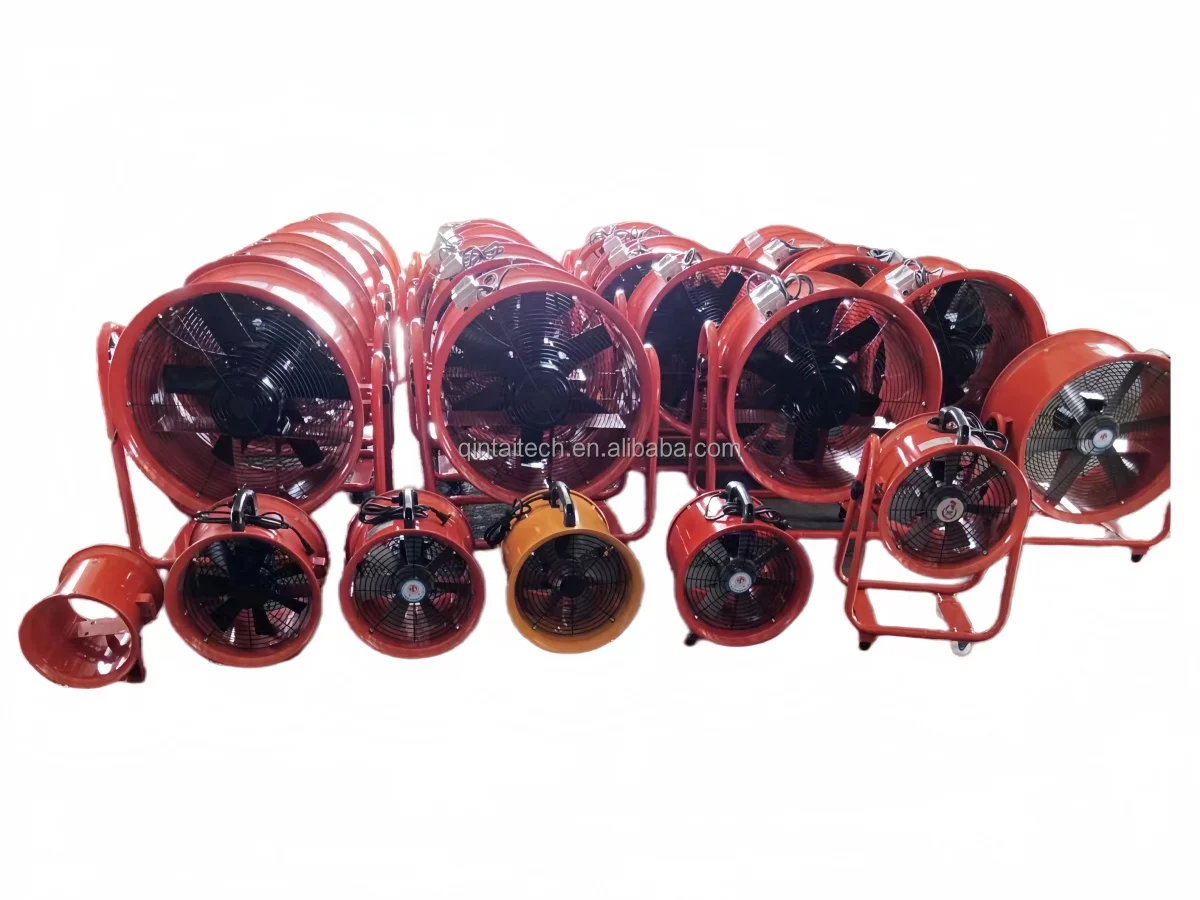

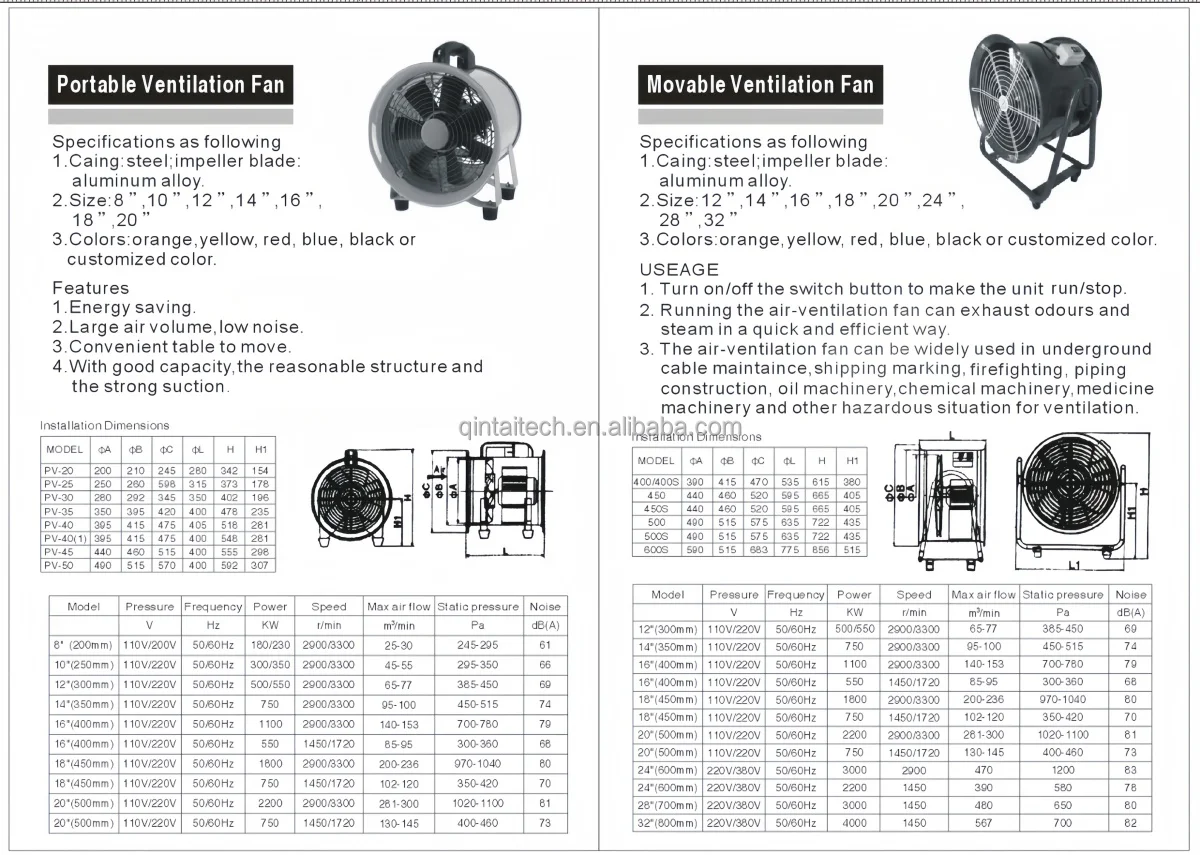

The Main Parameters
Model | Rated Voltage(V) | Input power(kw) | Rated Speed(r/pm) | Rated Airflow (m³/h) | Pressure(pa) | Size | Weight (kgs) |
12"(300mm) | 220 | 0.55 | 2900/2poles | 4000 | 385 | 37*33*44 | 12.00 |
14"(350mm) | 220 | 0.75 | 2900/2poles | 5100 | 430 | 52*45*37 | 14.00 |
16"(400mm) | 220 | 1.5 | 2900/2poles | 7300 | 700 | 48*36*57 | 19.00 |
16"(400mm) | 220 | 0.55 | 1450/4poles | 4900 | 310 | 47*36*57 | 16.00 |
18"(450mm) | 220 | 1.8 | 2900/2poles | 10000 | 972 | 53*36*60 | 17.00 |
18"(450mm) | 220 | 0.75 | 1450/4poles | 8600 | 560 | 53*36*60 | 20.00 |
20"(500mm) | 220 | 2.2 | 2900/2poles | 12000 | 1050 | 69*67*37 | 18.00 |
20"(500mm) | 220 | 1.1 | 1450/4poles | 9960 | 460 | 69*67*37 | 18.00 |
24"(600mm) | 220 | 2.2 | 1450/4poles | 13592 | 341 | 93*86*51 | 44.00 |
24"(600mm) | 220 | 3 | 2900/2poles | 22000 | 580 | 93*86*51 | 59.00 |
32"(800mm) | 220 | 4 | 1400/4poles | 34258 | 336 | 106*101*71 | 80.00 |
Ordering and Pricing
- Minimum order quantity: 50 set
- Volume pricing:
- 50+ set: US $189 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this movable axial flow ventilator?
The standard minimum order quantity is 50 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the movable axial flow ventilator be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

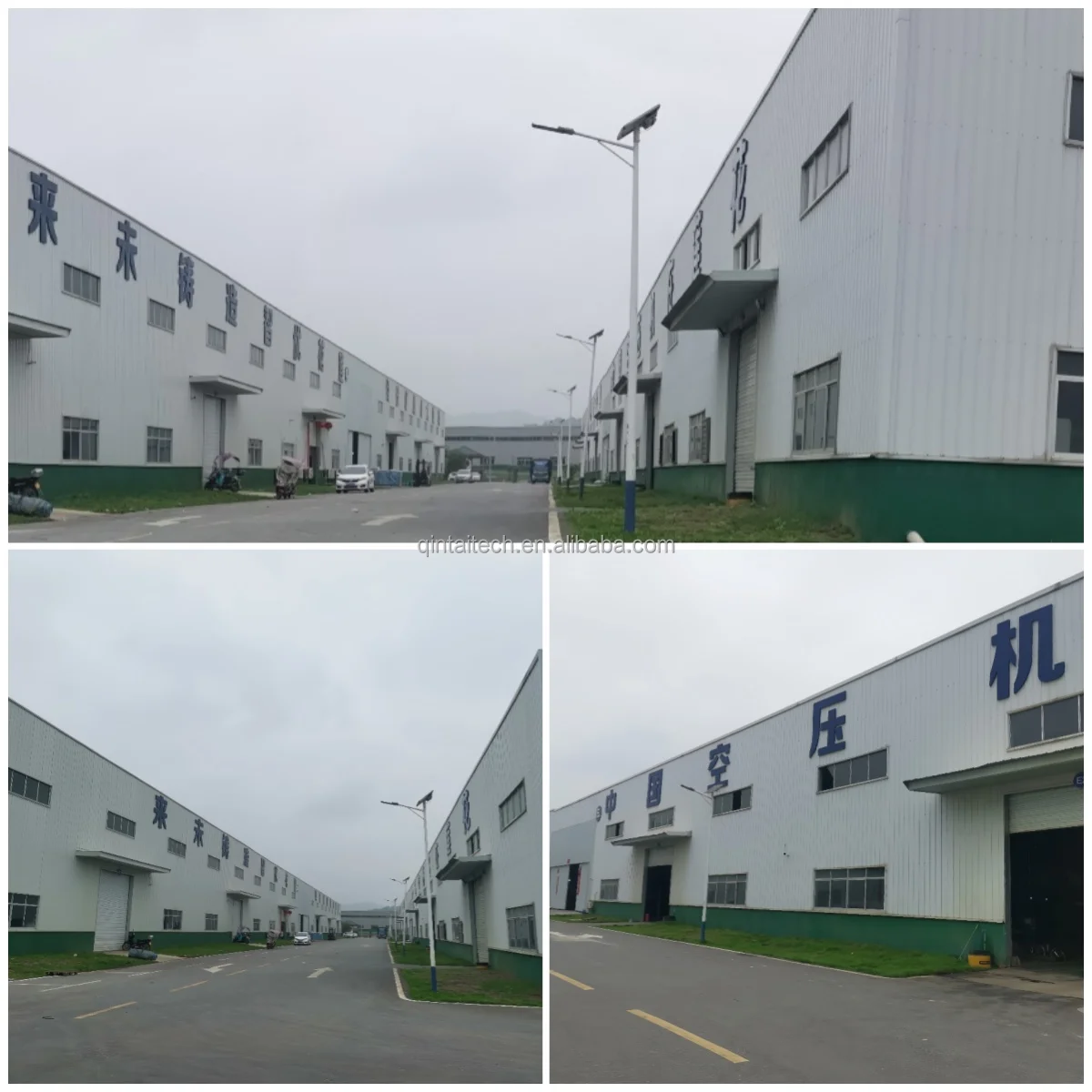

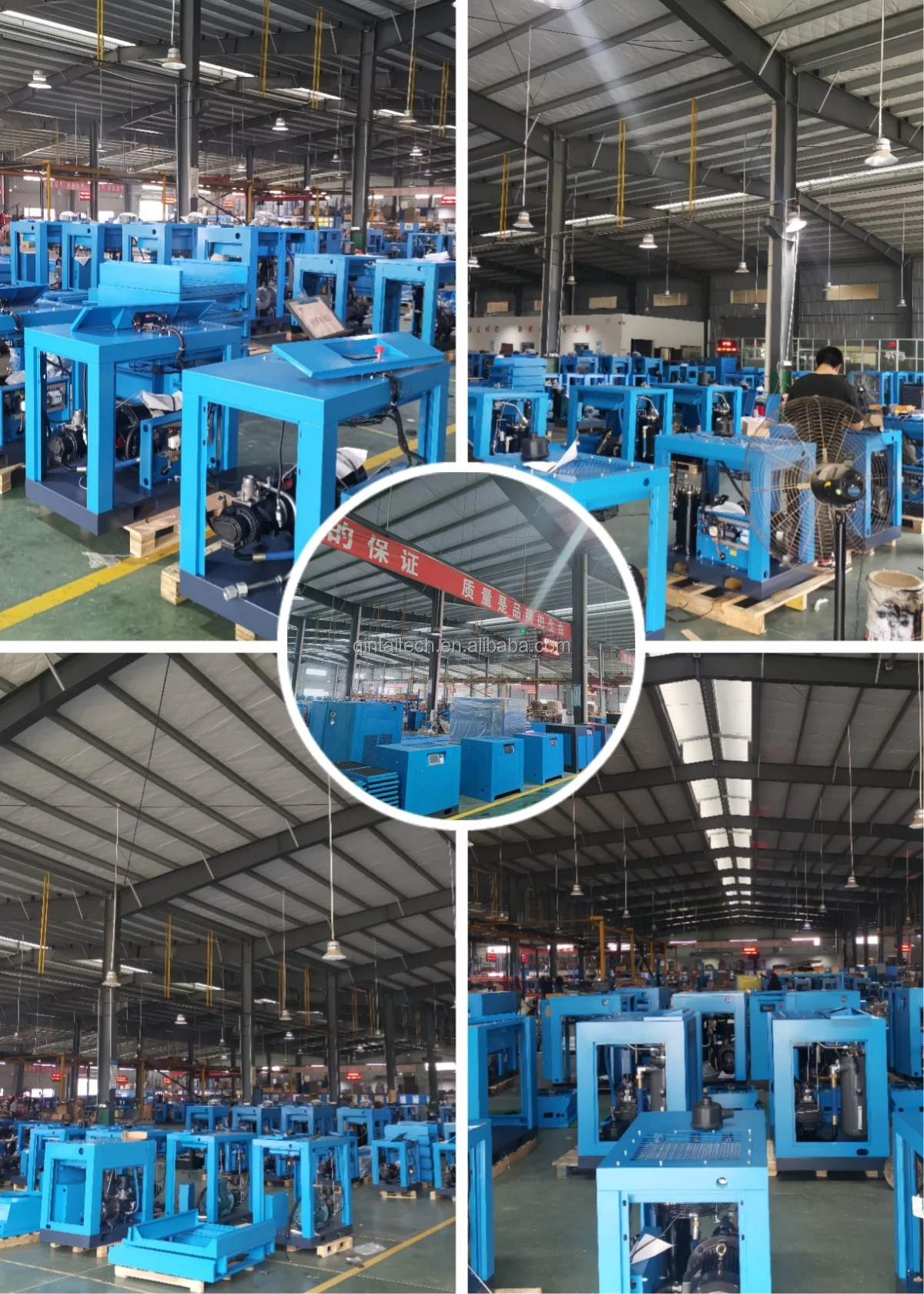

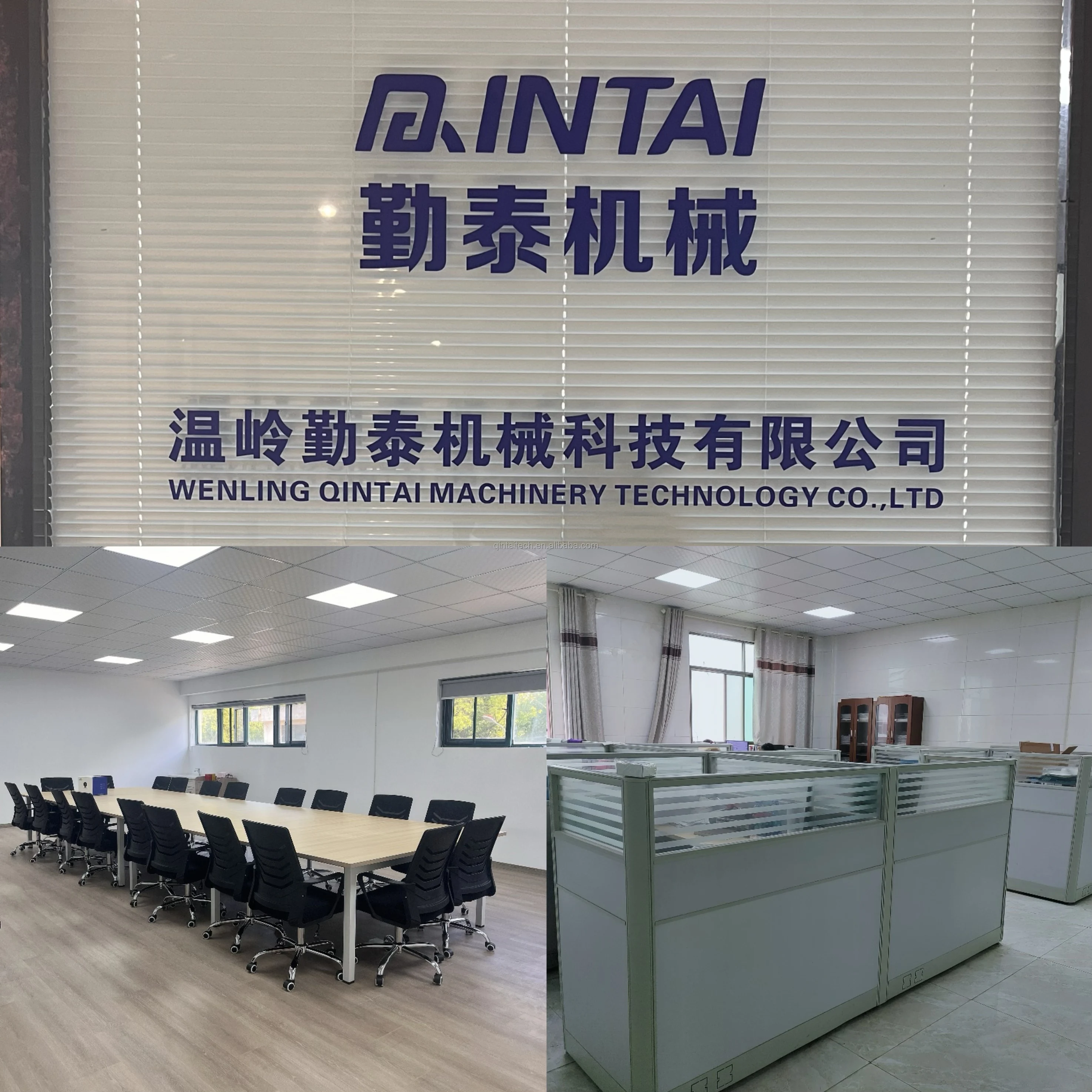

About the Manufacturer
