The centrifugal blower listed here carries 230V, 220V 120V 24/48V, documented exactly as the manufacturer publishes it. Made by Ningbo Jigu Motor Technology Co., Ltd. (12 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Blower
- Model Number: AC 190
- Power Input: 220V 120V 24/48V
- Voltage: 230V
- Blade Material: Plastic
- Speed Control: 0-10v or PWM signal
- Warranty: 1 Year
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 230V |
| Blade Material | Plastic |
| Electric Current Type | AC |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | GP MOTOR |
| Model Number | AC 190 |
| Motor | External Rotor Motor |
| Power Input | 220V 120V 24/48V |
| Bearing | NMB maintenance-free ball bearing |
| Impeller | PA66 Propylene with Fibreglass reinforce |
| Lead Wire | AWG#18 1007 |
| Type Of Protection | IP44 |
| Safety | Electronic protection |
| Insulation Class | Class "B" or "F" |
| Speed Control | 0-10v or PWM signal |
| Life Time | 50000 hours (L10) at 40°C room |
| Packaging Details | Packed in Carton/Pallet. |
| Port Of Dispatch | Ningbo or Shanghai |
| Selling Units | Single item |
| Single Package Size | 30X30X30 cm |
| Single Gross Weight | 2.0 kg |
| Supply Ability | 60000 pieces per Month |
Product Details

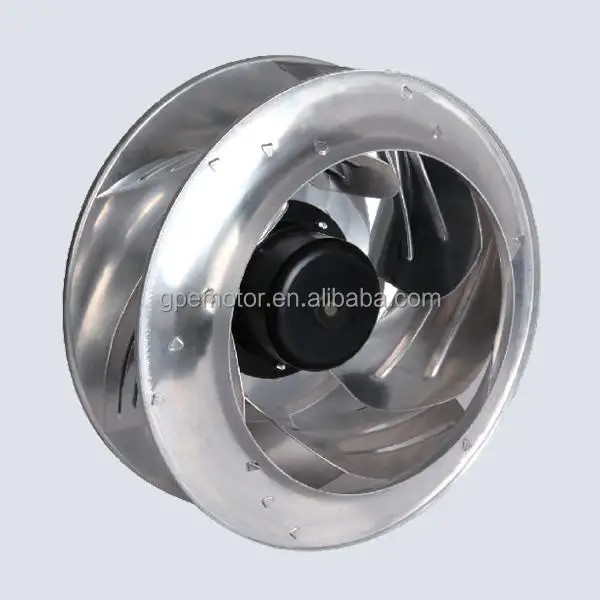

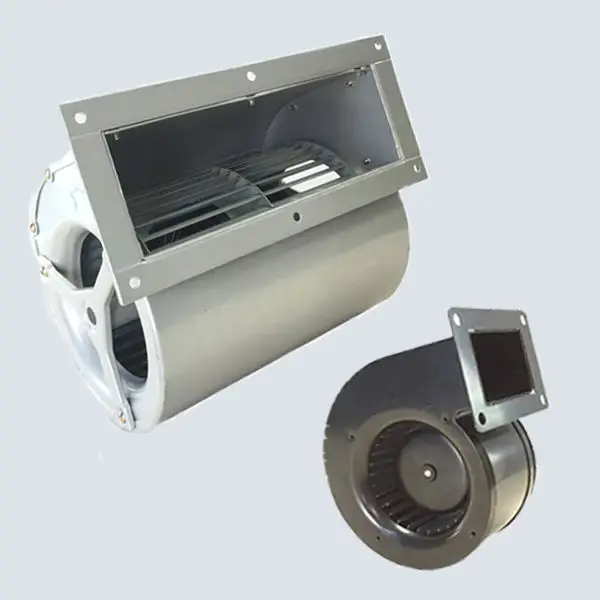

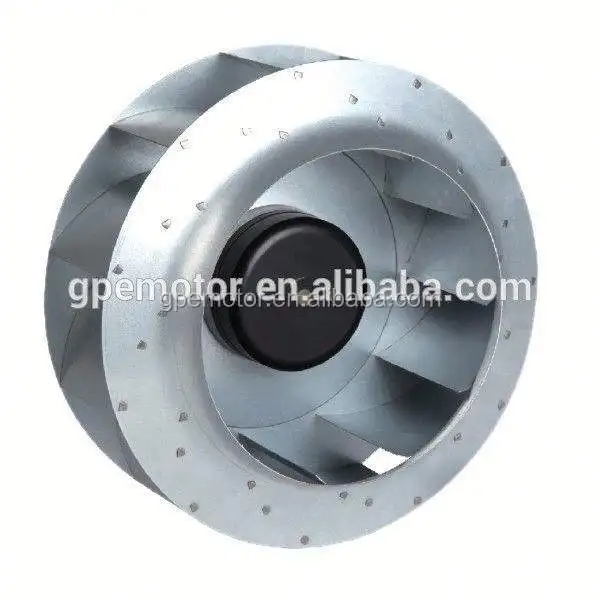

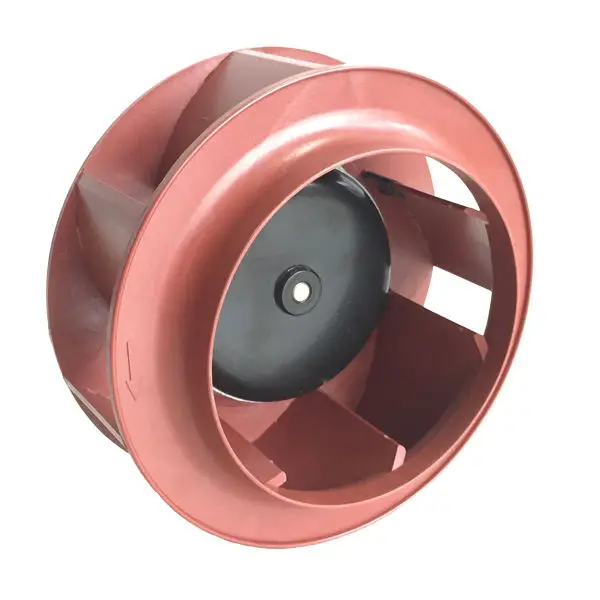

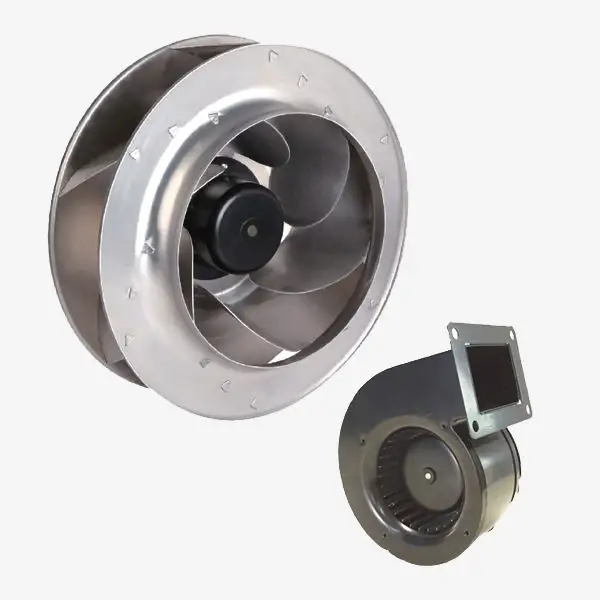

Industrial Small 220V 150W 120Mm 146Mm 100 500 549 5000 8000 Cfm Air Ac Ec Brushed Fan Centrifugal Blower For Exhaust Hood
DATASHEET DOWNLOAD
| Electrical Parameters | |
| Motor | AC external rotor motor |
| Insulation Class | Class "B" or "F" |
| Speed Control | AC speed controller |
| Dielectric Strength | 5mA max. at 1500VAC 50Hz/s between frame and (+)terminal |
| Material of Impeller | PA66 Propylene with Fibreglass reinforce |
| Bearing System | Dual NMB maintenance-free ball bearing |
| Life time | 30000 hours (L10) at 40°C room, humidity15%~65%RH |
| Lead Wire | AWG#22 UL1007 (Controls), AWG#18 UL1007 (Mains) |
| Approval | CE, CCC, ErP2015 and RoSH compliance |
| Warrent | 18 months after delivery |
| Specification | |||||||||
| Item Code: RBA190045 | |||||||||
| Rated | Frequency | Rated | Input | Speed | Air Flow | Air Flow | Static Pressure | Noise | Net Weight (Kg) |
| 230V | 50/60 | ≤0.26 | 58 | 2500 | 335 | 570 | 330 | 62 | 1.2 |
| 24/48 | / | ≤2.13/1.06 | 51 | 2950 | 365 | 620 | 480 | 68 | 1.0 |
| Outline Drawing | |||||||||
|
|
| Characteristic Curves | Wire Diagran | |
 | Cable Color | Function |
| Brown | L | |
| Blue | N | |
| Yellow/Green | PE | |
| Red | +10V output | |
| Yellow | 0-10VDC / PWM | |
| Blue | GND | |
| White | Tach output | |

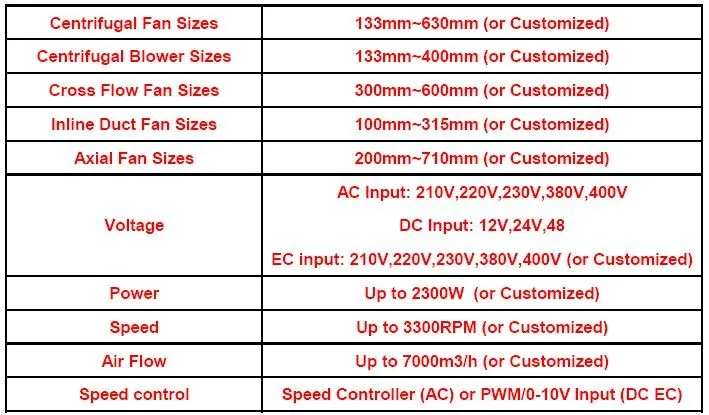

| Customized Motor GP Motor specialize in design, custom and manufacture electric motors, including ECM Motor, PMDC Motor, Brushless Motor, Gear Motor, Servo Motor, AC Motor as well as Motor Parts. All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now! |
Industrial Small 220V 150W 120Mm 146Mm 100 500 549 5000 8000 Cfm Air Ac Ec Brushed Fan Centrifugal Blower For Exhaust Hood
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $99.99 / piece
- 50+ piece: US $49.99 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
