The radial fan listed here carries 220 V, blade material Stainless Steel, documented exactly as the manufacturer publishes it. Made by Ningbo Jigu Motor Technology Co., Ltd. (12 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Radial Fan
- Model Number: 108
- Voltage: 220 V
- Blade Material: Stainless Steel
- Speed Control: 0-10v or PWM signal or constant speed
- Place Of Origin: Zhejiang, China
- Electric Current Type: AC
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 220 V |
| Blade Material | Stainless Steel |
| Electric Current Type | AC |
| After-Sales Service Provided | Free Spare Parts |
| Place Of Origin | Zhejiang, China |
| Brand Name | GP MOTOR |
| Model Number | 108 |
| Motor | Brushless External Rotor Motor |
| Bearing | NMB maintenance-free ball bearing |
| Impeller | hot-dip galvanised sheet steel |
| Lead Wire | AWG#22 UL1007 (Controls), AWG#18 UL1007 (Mains) |
| Type Of Protection | IP44 |
| Safety | Electronic protection |
| Insulation Class | Class "B" or "F" |
| Speed Control | 0-10v or PWM signal or constant speed |
| Life Time | 50000 hours (L10) at 40°C room |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

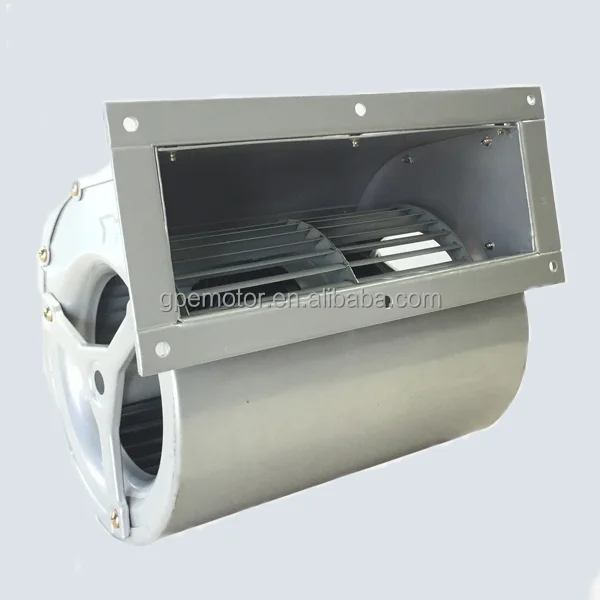

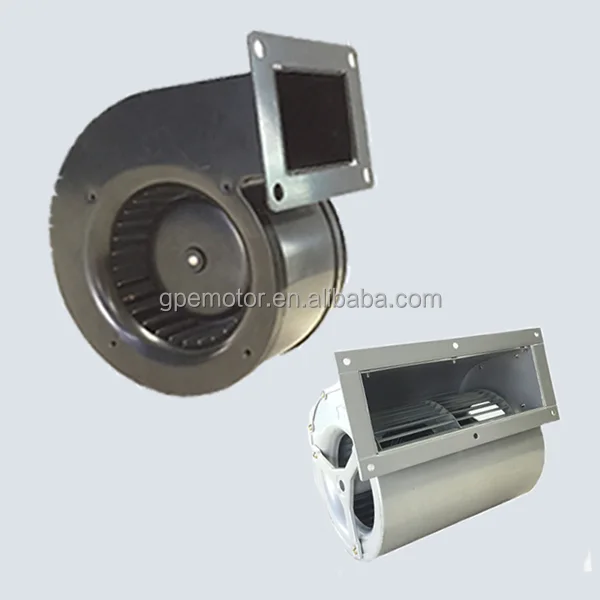

108 AC 220Volt Centrifugal air gas Radial Fan Blower for rangehoods exhaust
| Electrical Parameters | |
| Motor | AC external rotor motor |
| Insulation Class | Class "B" or "F" |
| Motor Protection | Locked rotor protection & Reverse Polarity protection soft start & Automatic restart capability |
| Speed Control | 0~10VDC / PWM Input |
| Type of protection | IP44 |
| Dielectric Strength | 5mA max. at 1500VAC 50Hz/s between frame and (+)terminal |
| EMC | EMC EN61000-6-3; EN 61000-6-1; EN61000-6-2/3 |
| Mechanical Parameters | |
| Material of Impeller | Hot-dip galvanised sheet steel |
| Bearing System | Dual NMB maintenance-free ball bearing |
| Life time | 50000 hours (L10) at 40°C room, humidity15%~65%RH |
| Lead Wire | AWG#22 UL1007 (Controls), AWG#18 UL1007 (Mains) |
| Operating Temperature | -25°C to +60°C |
| Storaging Humidity | 5% to 90% RH |
| Approval | CE, CCC, ErP2015 and RoSH compliance |
| Warrent | 18 months after delivery |
| Specification | |||||||||
| Item Code: GRFA108 | |||||||||
| Rated | Frequency | Input | Input | Speed | Air Flow | Air Flow | Static Pressure | Noise | Net Weight (Kg) |
| 230V | 50/60 | 0.14/0.16 | 30/35 | 1850 | 94 | 160 | 230 | 56 | 1.3 |
| Outline Drawing | |||||||||
|
|
| Characteristic Curves |
|
|
| Customized Motor and Fan Solutions All of the designs in the GP Motors portfolio of OEM electric motors, custom fans and blowers, custom controllers, custom electromechanical motor assemblies and components are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the motors or fans in our portfolio, enables OEMs to meet their custom motor or fan requirements while allowing for faster development times. |
Since 1991, GP Motors has designed and manufactured the highest quality, OEM electric motors, custom fans and
blowers, custom controllers, custom electromechanical motor assemblies and components in the industry. All of
our custom electric motors, fans and blowers, electromechanical motor assemblies and components are engineered
and manufactured in our 120,000 square foot state-of-the-art manufacturing facility located in Ningbo, Zhejiang.
108 AC 220 volt Centrifugal air gas Radial Fan Blower for rangehoods exhaust
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $90 / piece
- 50+ piece: US $45 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this radial fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the radial fan be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Jigu Motor Technology Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, Trading Company. Browse the full Ningbo Jigu Motor Technology Co., Ltd. range on HVACR Nexus.
