This centrifugal blower is published with the manufacturer’s full specification — 380 V, 220 V, Other, power source Electric. Made by Dongguan City Jiubei Compressor Parts Co., Ltd. (4 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Blower
- Model Number: AK-18MG
- Power Source: Electric
- Power Cord Length: 25 ft
- Rated Voltage: 380 V, 220 V, Other
- Material: Stainless Steel
- Blade Material: Stainless Steel
Technical Specifications
| Application | MagLev Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 380 V, 220 V, Other |
| Electric Current Type | AC |
| Speed | 45000RPM |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Noise Level | 60-70dB |
| Pressure | Low Pressure |
| Warranty | 2 Years |
| Customized Support | OEM |
| Power Cord Length | 25 ft |
| Place Of Origin | Guangdong, China |
| Brand Name | Airking |
| Model Number | AK-18MG |
| Selling Units | Single item |
| Single Package Size | 1485X1160X1570 cm |
| Single Gross Weight | 710.0 kg |
Product Details
Product Name | Magnetic levitation centrifugal blower |
Model | AK-18.5MG |
Working Pressure | 0.08MPA |
Coling Method | Air cooling |
Voltage | 220V/380V |
Noise | 62+-2 |
Dimension | 1480*1150*1550MM |
Weight | 670 KG |
Nominal Capacity | 28M3/mim |
Features of MSC Series Maglev Motor
The magnetic levitation controller has high reliability and strong stability,with self calibration and self identification functions. It can achieve adaptive adjustment and control as the operating time of the magnetic levitation equipment increases, without the need for manual intervention,avoiding risks such as downtime.Vibration caused by mass unbalance is a common problem in rotating machinery. Perfect balance can make the rotor assembly center completely coincide with its inertial principal axis, but it is difficult to achieve for rotor of maglev motor with impeller and multiple components, because the imbalance may change during rotor operation (for example,the influence of thermal deformation or ash layer.). As for the residual imbalance of the rotor, the negative feedback control +UFRC algorithm is adopted to make the rotor rotate around its inertial main shaft at each speed, eliminating reaction force on bearing and excitation force on the whole machine; finally, it effectively ensures the long-term reliable oper- ation.By sweeping the frequency from 0 to 2000Hz, the natural frequency of rotor and the whole machine
can be measured before rotor rotates, the rotating condition can be simulated to make fault prediagnosis. When machine is working,the anti-interference performance is measured by sweeping to ensure each machine' s stability.
can be measured before rotor rotates, the rotating condition can be simulated to make fault prediagnosis. When machine is working,the anti-interference performance is measured by sweeping to ensure each machine' s stability.

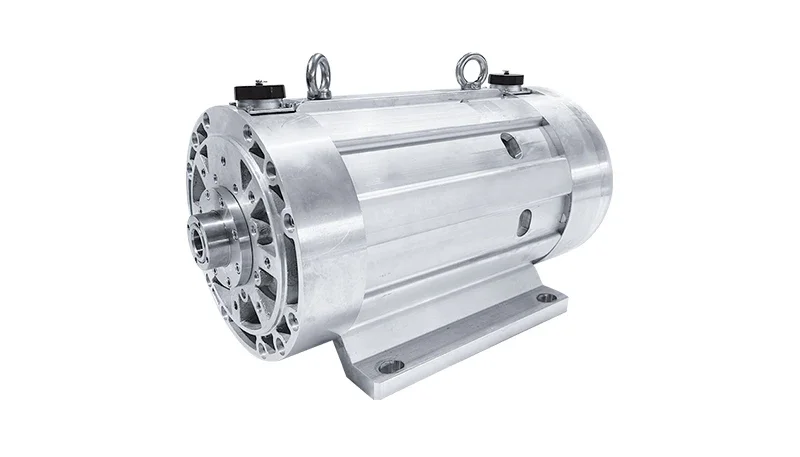

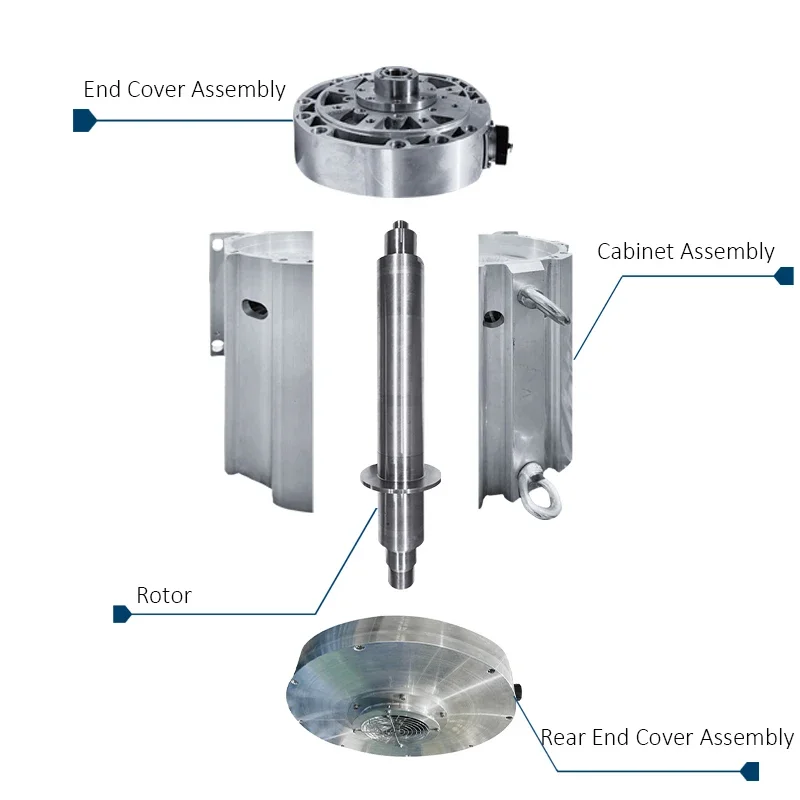

Motor Components
High speed permanent magnet motors have the advantages of small size, high power density, high efficiency, and direct connection with loads, making them the preferred choice for application in the blower industry. We conducted research on high-speed permanent magnet motors based on optimization of motor electromagnetic schemes, design of cooling systems, and dynamic analysis of rotor systems, and established an analytical model for the BOKES brand series MSC motors.

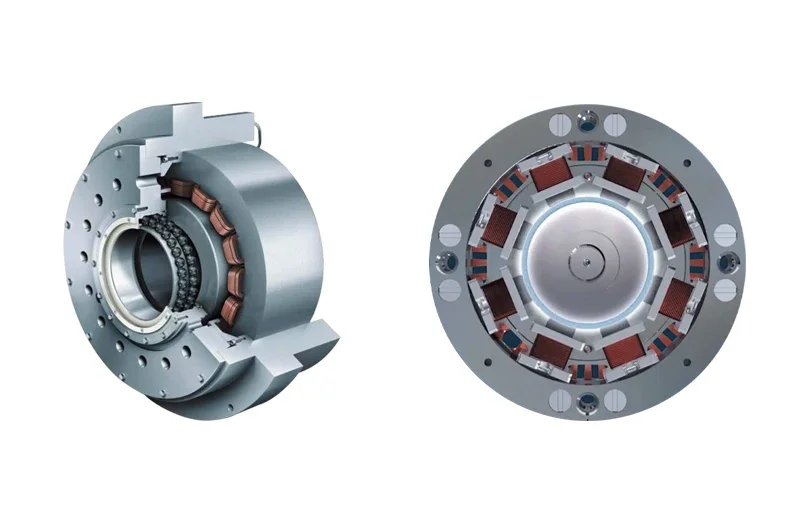

Axial and Radial Magnetic Bearings
Combining electromagnets, power amplifiers, displacement sensors, and electronic control systems, a design optimization model for magnetic levitation bearings is constructed, with the goals of maximum bearing capacity, minimum eddy current loss, and minimum coil heating loss. The geometric structure of the bearings is optimized to improve system reliability and reduce system power consumption.
UFRC Control System
Unbalance Force Rejection Control (algorithm of revolving around the center of mass) enables the rotor to rotate around the inertial spindle. The advantages of this algorithm: for the inevitable residual unbalance of rotor, by making the rotor rotate around its inertial spindle at each speed, the reaction force transmitted by the bearing and the excitation force brought to the entire machine can be eliminated, so that can effectively ensure the long-term reliable operation.

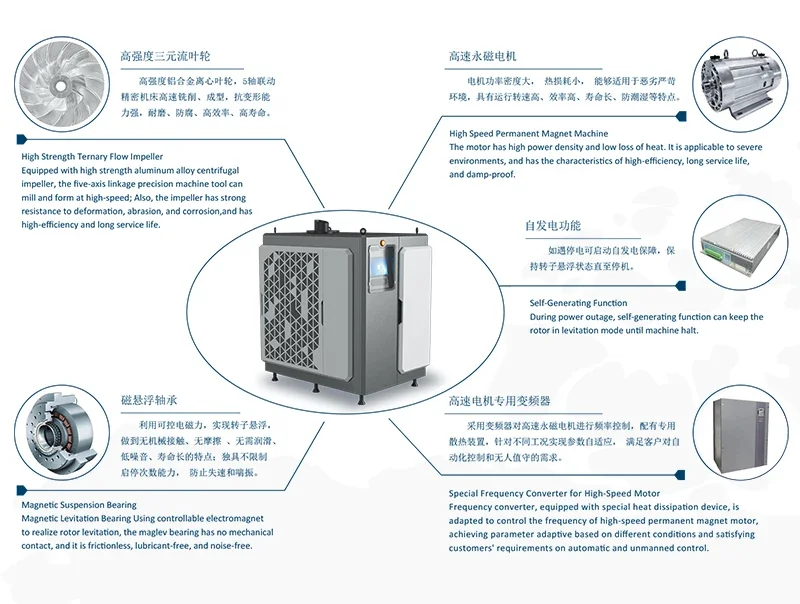

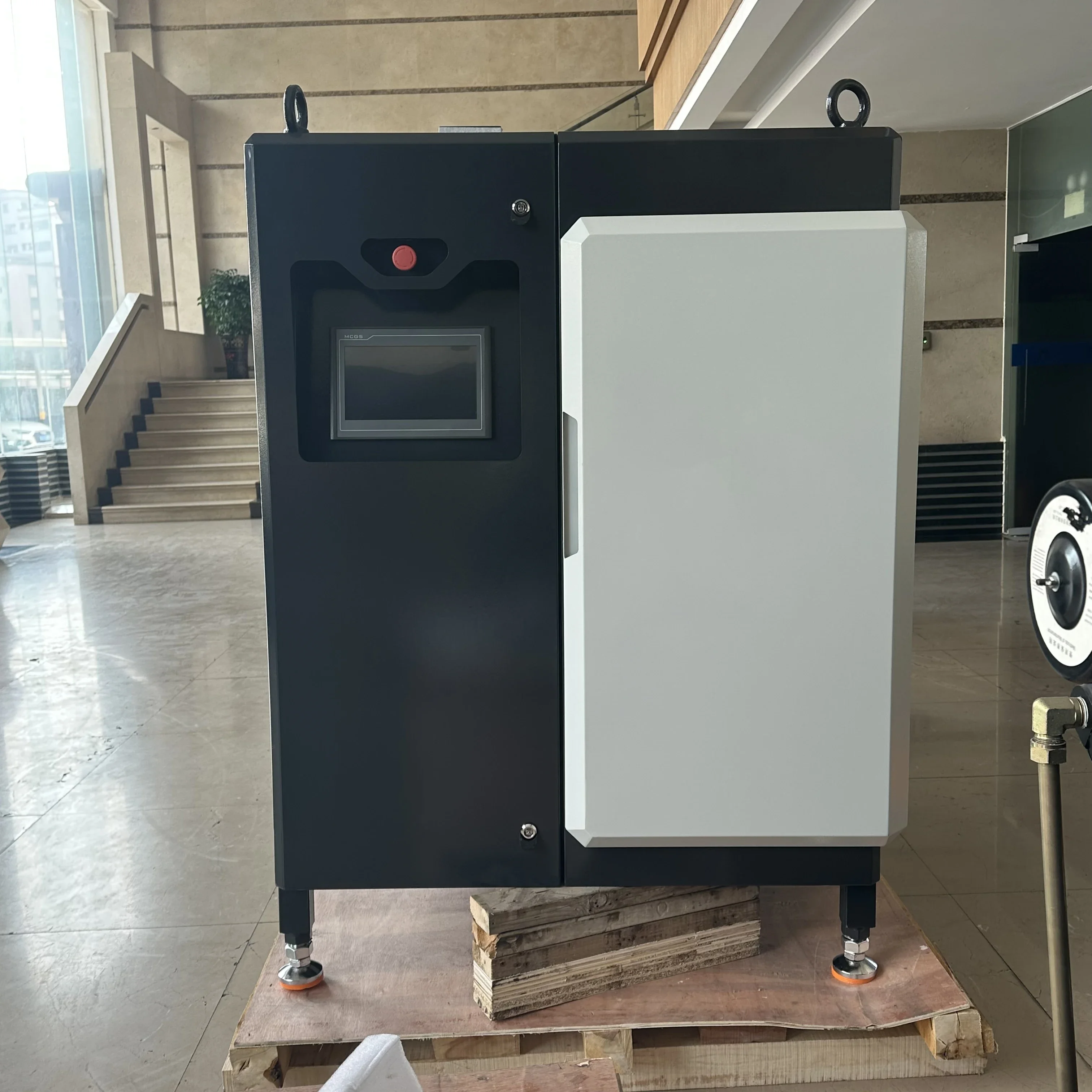

Integrated Design of Maglev Blower
The blower features the integrated design of "electrical,mechanical and electronic". It comprises the pneumatic unit of ternary flow impeller and volute shell, the high-speed frequency inverter and the maglev motor drive unit, and the central control unit for motor suspension and blower operation.

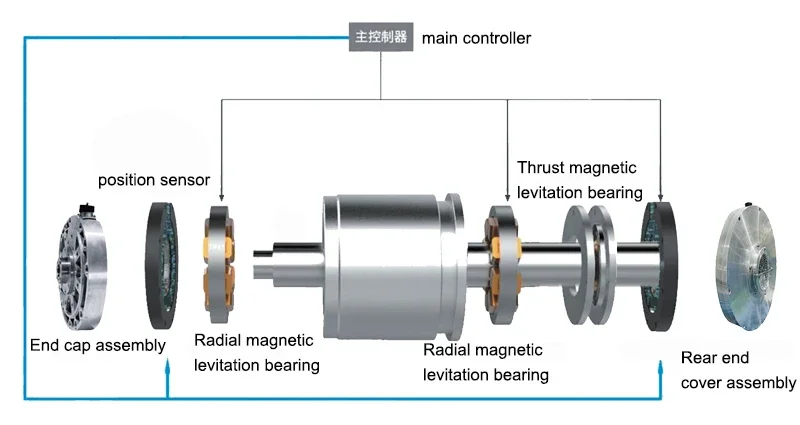

The Principle of Maglev Blower
MSC series maglev centrifugal blower adopts active magnetic bearing and high-speed permanent magnet synchronous motor. It is directly driven by ternary flow impeller, levitating the rotor system through magnetic force, and generating kinetic energy by high-speed rotating impeller to achieve blowing function.

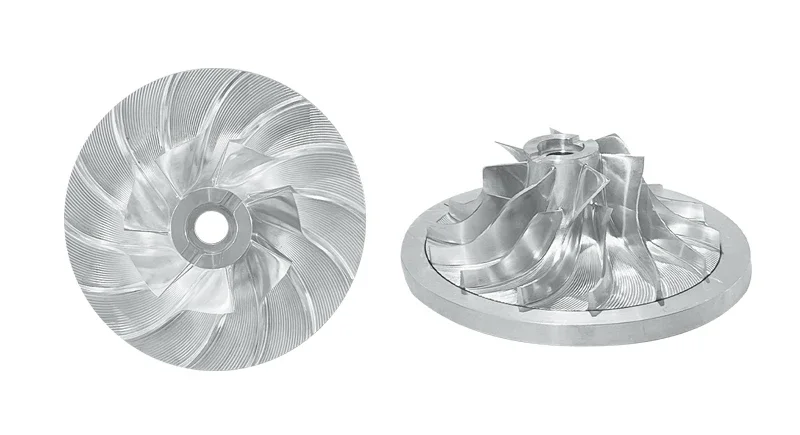

New Ternary Flow Impeller
Based on three-dimensional flowing theory, the ternary flow impeller is designed with multi-curved blade, so that the flow channel is more adapted to the true flow state of fluid. The CFD analysis is used to solve complex calculation of quantitative value of three-dimensional flow of the blade, so that improves the efficiency, reliability, and safety of blower. Through ternary optimization, the flow loss in the flow channel is reduced, the influence of separation flow, vortex, secondary flow and other effects on the aerodynamic performance are reduced, and then an optimized design that conforms to air flow is finally obtained.

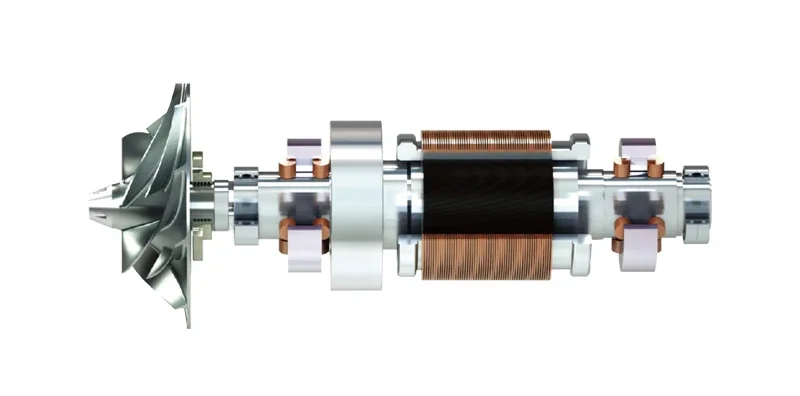

High-Speed Permanent Magnet Motor
High speed permanent magnet motors have the advantages of small size, high power density, high efficiency, and direct connection with loads, making them the preferred choice for application in the blower industry. We conducted research on high-speed permanent magnet motors based on optimization of motor electromagnetic schemes,design of cooling systems, and dynamic analysis of rotor systems, and established an analytical model for the BOKES brand series MSC motors.
Features of MSC Series Maglev Blower

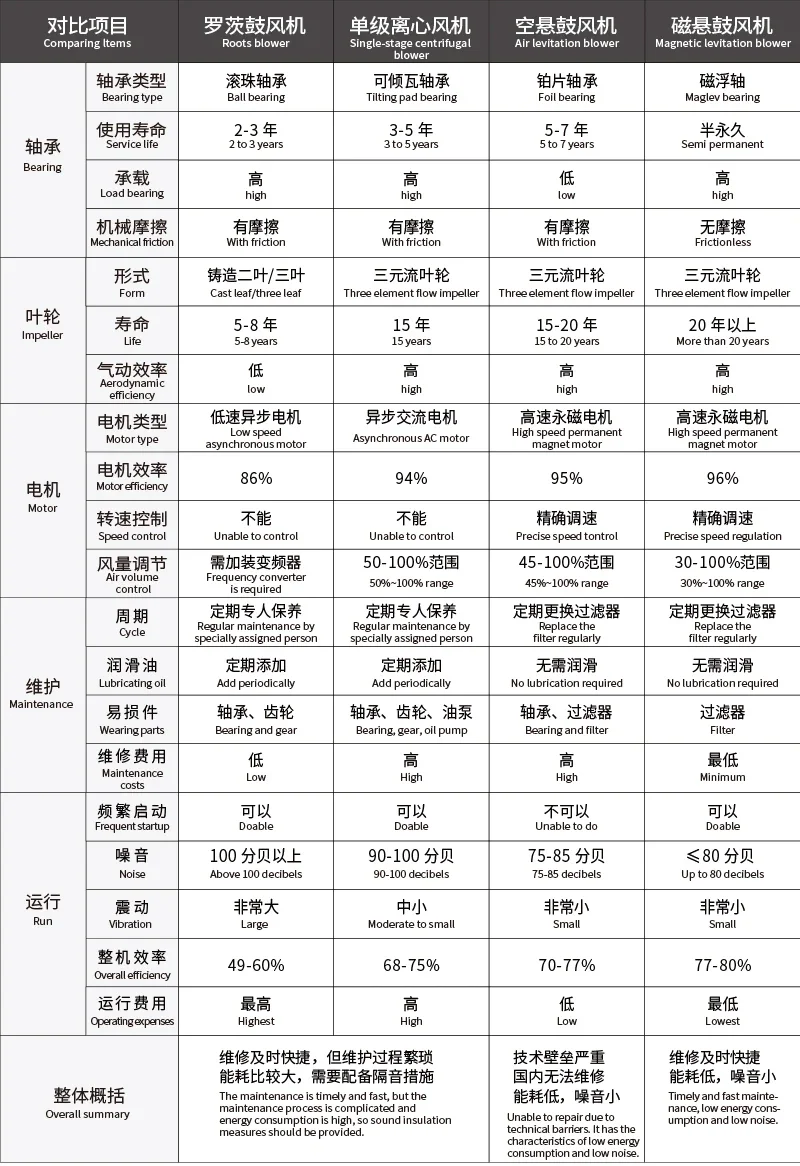

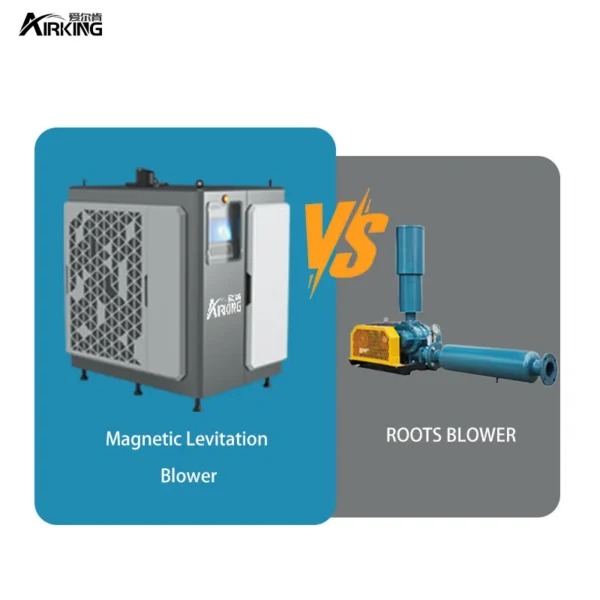

Compared with Roots blower's efficiency, maglev blower's efficiency increased 30%~40%. Taking the 160kW maglev blower as an example, each blower can save more than 500,000 kWh electricity and ￥300,000 in bills per year.Maglev blower is lubricant-free; the air transmitted is pollution-free. The Maglev bearing is frictionless and operates without noise, bringing no effect to the surrounding office and living environment. take 160kW maglev blower for example, each blower can reduce carbon dioxide emissions
by approximately 500 tons per year.High performance frequency converter is adopted to control 25% speed. Advanced control system is adopted to provide multiple control modes. The turntable can monitor running process and can be controlled remotely, saving labor costs. Fully enclosed water-cooling and air-cooling system are adopted to dissipate heat from motor, ensuring stable running and prolonging blower's service life. Modular design makes it easy to maintain.Frictionless maglev bearing reduces product damage and extends blower's service life to 20 years or more. Maglev blower is easy to maintain, requiring only regular filter change.The maglev blower is lubricant-free, which saves the cost of lubricating oil and cleaning. The motor adopts direct drive, small size, light weight, and space saving. Domestic production ensures timely supply of spare parts
by approximately 500 tons per year.High performance frequency converter is adopted to control 25% speed. Advanced control system is adopted to provide multiple control modes. The turntable can monitor running process and can be controlled remotely, saving labor costs. Fully enclosed water-cooling and air-cooling system are adopted to dissipate heat from motor, ensuring stable running and prolonging blower's service life. Modular design makes it easy to maintain.Frictionless maglev bearing reduces product damage and extends blower's service life to 20 years or more. Maglev blower is easy to maintain, requiring only regular filter change.The maglev blower is lubricant-free, which saves the cost of lubricating oil and cleaning. The motor adopts direct drive, small size, light weight, and space saving. Domestic production ensures timely supply of spare parts

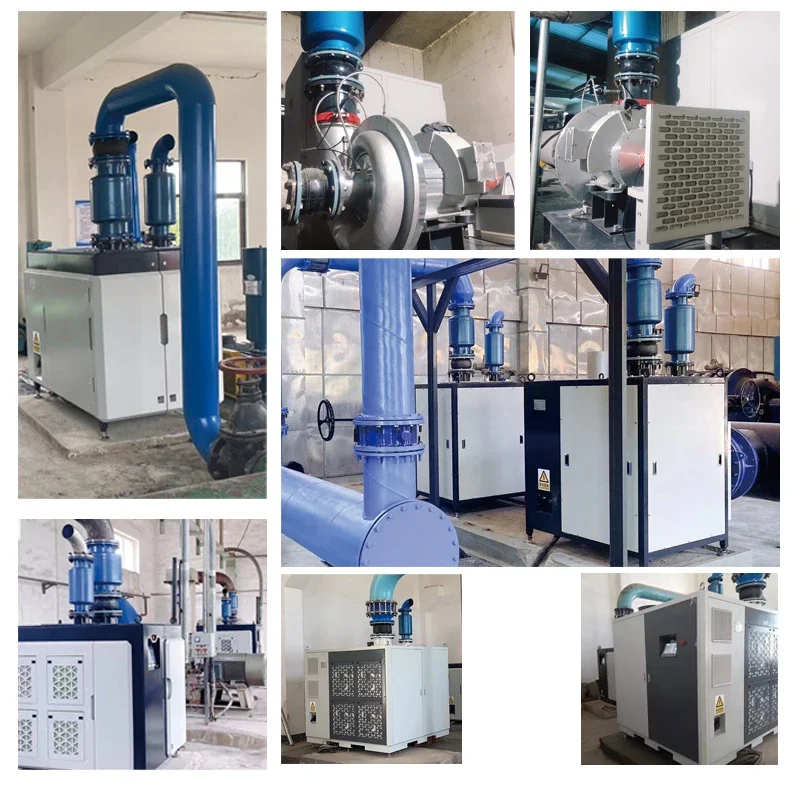

Areas of Application
1. Conveying material and gas
Can be used in cement factory, chemical, food and other industries;Application scenarios: pneumatic
conveying of industrial raw materials,dust and food.
2. Sewage treatment (municipal, industrial)
The maglev blower can be applied to aeration of sewage tank,so that the biological active substances in sewage treatment tank can
fully contact with the substances in sewage,achieving the purpose of decontamination.
3. Aquaculture
By pumping air into the bottom of the aquaculture tank, the oxygencontent in the tank is increased and the survival rate of
aquaticproducts is increased.
4. Other industries
Paper mill, brewing industry, textile industry, dairy industry, thermal power industry, etc.
conveying of industrial raw materials,dust and food.
2. Sewage treatment (municipal, industrial)
The maglev blower can be applied to aeration of sewage tank,so that the biological active substances in sewage treatment tank can
fully contact with the substances in sewage,achieving the purpose of decontamination.
3. Aquaculture
By pumping air into the bottom of the aquaculture tank, the oxygencontent in the tank is increased and the survival rate of
aquaticproducts is increased.
4. Other industries
Paper mill, brewing industry, textile industry, dairy industry, thermal power industry, etc.
Contact Us
CONTACT US
Dongguan City Jiubei Compressor Parts Co.,LTD Address: No. 142 Hengzeng Road, Chang'an Town, Dongguan City, Guangdong Province. Poset Code: 523880 Tel: +86 -769-81624099 E-mail: grace@cnjiubei.com
Sales | E-mail | E-mail | Skype | Whatsapp / Wechat |
Grace | grace@cnjiubei.com | zakf2@screwaircompressor.cn | part.fg18 | +8613414280001 |
Bella | sales6@cnjiubei.com | zakf5@screwaircompressor.cn | sales6@cnjiubei.com | +8613412579191 |
Carrie | sales7@cnjiubei.com | zakf3@screwaircompressor.cn | sales7@cnjiubei.com | +8613580987261 |
Tina | sales8@cnjiubei.com | zakf6@screwaircompressor.cn | sales8@cnjiubei.com | +8613580990143 |
Christina | sales4@cnjiubei.om | zakf4@screwaircompressor.cn | +8613412060008 | +8613412060008 |
Cathy | sales9@cnjiubei.com | zakf1@screwaircompressor.cn | +8613711902632 | +8613711902632 |
FAQ
Q:Are you a factory or trade company?

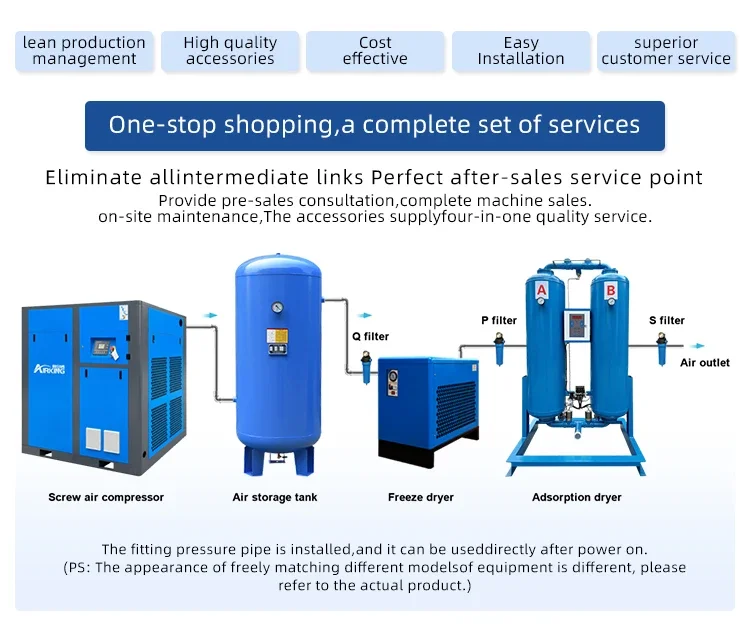

A:We are a factory,we provide screw Air compressors,Air receivers,UltraFilters,Dryers,Electronic condensate drains and Oil/Water
separators.
A:We are a factory,we provide screw Air compressors,Air receivers,UltraFilters,Dryers,Electronic condensate drains and Oil/Water
separators.
Q:How to pay?
A:T/T and L/C,Western Union,Paypal.
Q:How about your monthly production?
A:8000sets/month.
Q: what’s the advantages of your company?
A:1. I have factory,the quality can be control. 2. the price is good 3. I have professional team 4. we can be your oem factory 5.Excellent after service. 6. we have inverter compressor, it can save energy.
Q:How to package&delivery?
A:we will use standard wooden case to package and shipped after finishing payment.
Q:How many services you will provide about air compressor?
A:we will provie perfect before-sales and after-sales for each machine.
A:T/T and L/C,Western Union,Paypal.
Q:How about your monthly production?
A:8000sets/month.
Q: what’s the advantages of your company?
A:1. I have factory,the quality can be control. 2. the price is good 3. I have professional team 4. we can be your oem factory 5.Excellent after service. 6. we have inverter compressor, it can save energy.
Q:How to package&delivery?
A:we will use standard wooden case to package and shipped after finishing payment.
Q:How many services you will provide about air compressor?
A:we will provie perfect before-sales and after-sales for each machine.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $9760 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 380 V, 220 V, Other. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
