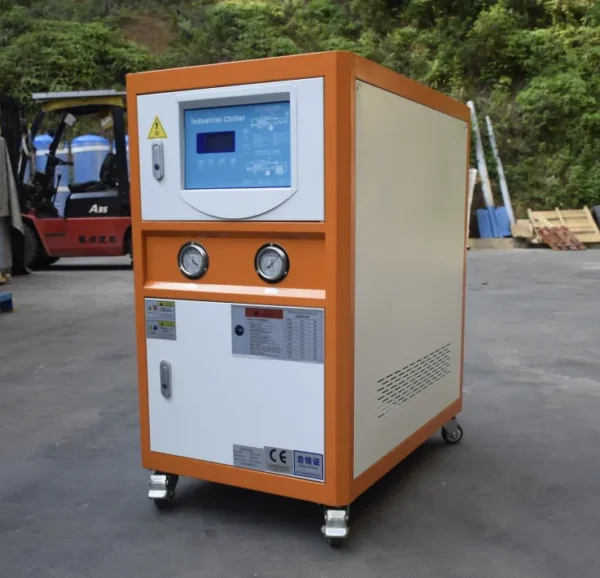

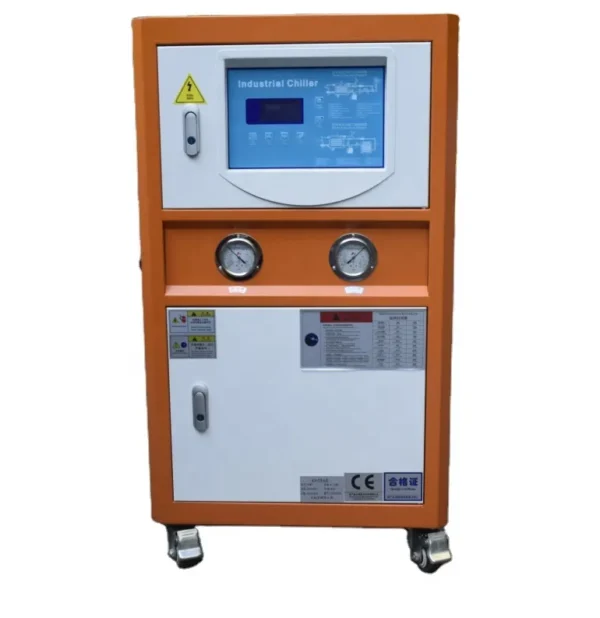

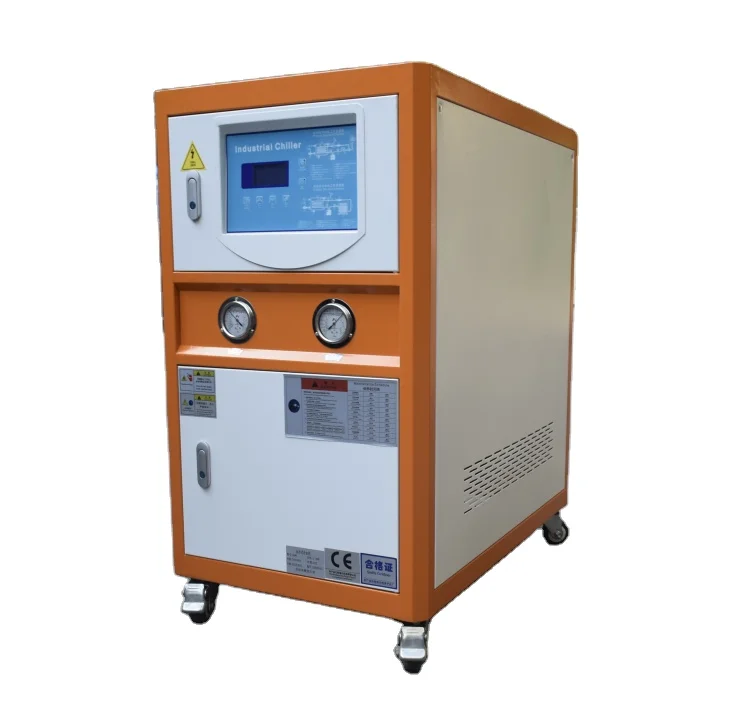

The stationary screw chiller listed here carries voltage 380V50HZ, capacity 14.5, documented exactly as the manufacturer publishes it. Made by Dongguan City Jiubei Compressor Parts Co., Ltd. (4 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Stationary Screw Chiller
- Power Source: AC Power
- Machine Power: 3.8
- Voltage: 380V50HZ
- Capacity: 14.5
- Water Capacity (L/H): 58.9
- Warranty: 1 Year
Technical Specifications
| Type | Screw |
|---|---|
| Gas Type | Air |
| Power Source | AC Power |
| Lubrication Style | Lubricated |
| Configuration | Stationary |
| Voltage | 380V50HZ |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Mute | No |
| Warranty | 1 Year |
| Core Components | Pressure Vessel, Other, Motor, Bearing |
| Place Of Origin | Guangdong, China |
| Brand Name | AIRKING |
| Dimension(L*W*H) | 870*550*900MM |
| Model | ZC-05A |
| Capacity | 14.5 |
| Machine Power | 3.8 |
| Machine Current | 7.5 |
| Water Capacity (L/H) | 58.9 |
| Inlet/Outlet Size (MM) | 1" |
| Warranty Of Core Components | 6 Months |
| Weight | 160KG |
| Selling Units | Single item |
| Single Package Size | 87X55X90 cm |
| Single Gross Weight | 160.0 kg |
Product Details

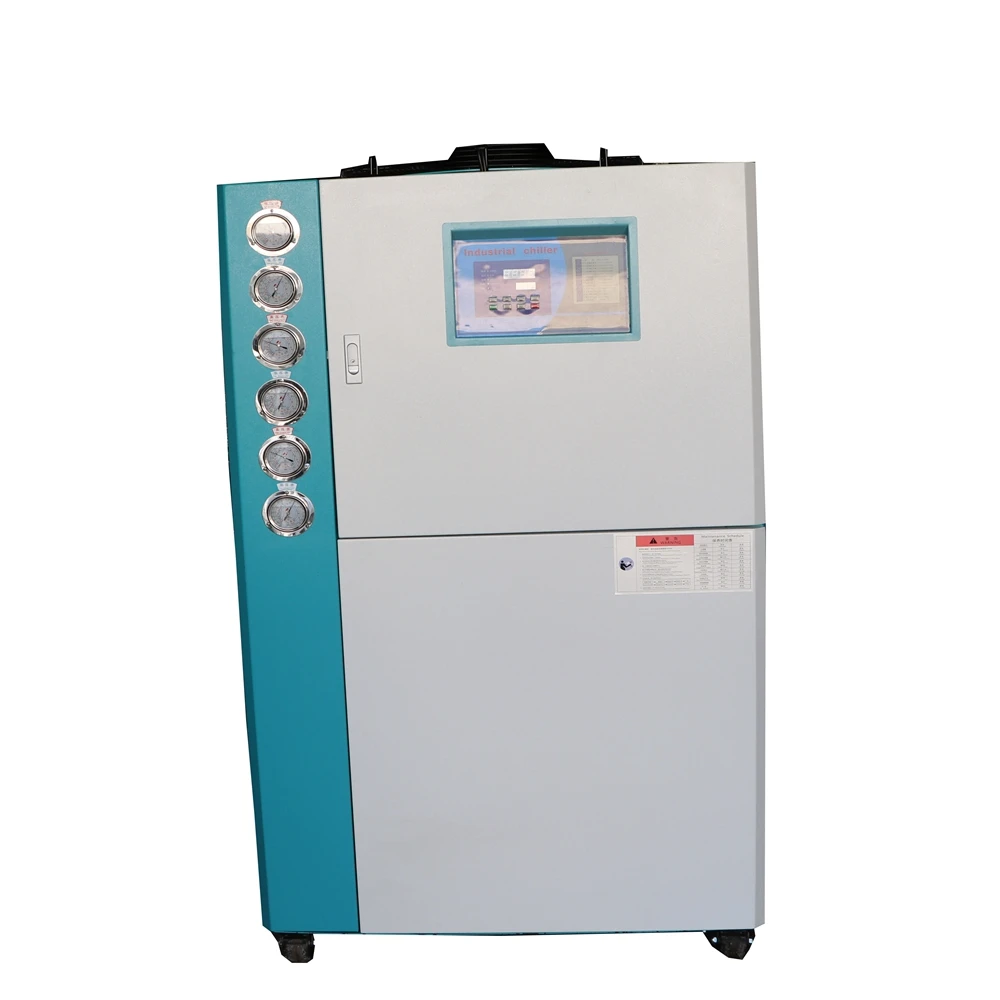

ZAKF CHILLER
Model | Capacity | Voltage | Machine Power | Machine Current | Protactor | Condenser | ||
*KCAL/H/kw | (KW) | (A) | Water Capacity (L/H) | Inlet/outlet size (MM) | ||||
ZC-03A | 9.15 | 380V 50HZ 3PH other voltage can be customized | 2.5 | 5.3 | Phase sequence protection, overcurrent protection, anti-icing protection, exhaust temperature protection, high and low pressure protection, water flow protection | 35.5 | 1" | |
ZC-05A | 14.5 | 3.8 | 7.5 | 58.9 | 1" | |||
ZC-08A | 24.5 | 7.2 | 13.9 | 109.7 | 1-1/2" | |||
ZC-10A | 30.6 | 8.1 | 16.1 | 128.3 | 1-1/2" | |||
ZC-12A | 36.1 | 9 | 17.2 | 146.9 | 1-1/2" | |||
ZC-15A | 45.1 | 11.7 | 24.4 | 191.2 | 2" | |||
ZC-20A | 61.2 | 14.6 | 28.8 | 256.5 | 2" | |||
ZC-25A | 75.2 | 16.5 | 31.1 | 293.9 | 2" | |||
ZC-30A | 91.8 | 22.5 | 46.8 | 382.4 | 2-1/2" | |||
ZC-40A | 122.4 | 24.6 | 57.6 | 440.8 | 2-1/2" | |||
ZC-50A | 153 | 32.7 | 67.8 | 573.5 | 3" | |||
Evaporator | Freeze Water Pump | Water Tank Volume | Refrigerant | Dimension | Weight | |||
Water Capacity (L/H) | Inlet/outlet size (MM) | Input Power (KW) | (L) | L*W*H(MM) | KG | |||
29.8 | DN25 | 0.55 | 50 | R22/ R134a/ R404a/ R407c/ R410a | 870*550*900 | 120 | ||
49.6 | DN25 | 0.55 | 50 | 870*550*900 | 160 | |||
93.4 | DN40 | 0.75 | 190 | 1250*680*1300 | 430 | |||
109.4 | DN40 | 0.75 | 210 | 1250*680*1300 | 450 | |||
125.5 | DN40 | 1.5 | 210 | 1250*680*1300 | 490 | |||
162.1 | DN50 | 2.05 | 270 | 1500*680*1400 | 540 | |||
218.8 | DN50 | 3.75 | 400 | 1840*700*1500 | 720 | |||
251 | DN65 | 3.75 | 400 | 1900*900*1180 | 780 | |||
324.2 | DN65 | 3.75 | 480 | 1900*900*1180 | 870 | |||
376.5 | DN80 | 3.75 | 520 | 2400*900*1180 | 1030 | |||
486.2 | DN80 | 4 | 650 | 2400*900*1180 | 1080 | |||
We are based in Guangdong, China, start from 2012,sell to Southeast Asia(50.00%),South America(30.00%),Africa(11.00%),South Asia(1.00%),North America(1.00%),Oceania(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Eastern Europe(1.00%),Mid East(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Compressor, Air Dryer, Air Tank, Air Compressor Oil, Compressor Airend
4. why should you buy from us not from other suppliers?
1. 20 years compressor service experience. 2. We are the manufacturer of compressor and compressor parts, customized accepetable. 3. Insist New Products Development. 4. One stop shopping for compressor parts, screw air compressor, air dryer.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal;
Language Spoken:English
Poset Code: 523880
Sales | E-mail | E-mail | Skype | Whatsapp / Wechat |
Grace | grace@cnjiubei.com | zakf2@screwaircompressor.cn | part.fg18 | +8613414280001 |
Bella | sales6@cnjiubei.com | zakf5@screwaircompressor.cn | sales6@cnjiubei.com | +8613412579191 |
Carrie | sales7@cnjiubei.com | zakf3@screwaircompressor.cn | sales7@cnjiubei.com | +8613580987261 |
Tina | sales8@cnjiubei.com | zakf6@screwaircompressor.cn | sales8@cnjiubei.com | +8613580990143 |
Christina | sales4@cnjiubei.om | zakf4@screwaircompressor.cn | +8613412060008 | +8613412060008 |
Cathy | sales9@cnjiubei.com | zakf1@screwaircompressor.cn | +8613711902632 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $960 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this stationary screw chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the stationary screw chiller be supplied for my local voltage?
The standard configuration is 380V50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
