Centrifugal fan — voltage 115/230V, power supply connection 3266-18 Lead wire. The complete factory specification follows. Made by Wenzhou Jason Fan Manufacturer Co., Ltd. (18 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: FJC2E-175.45C
- Power Supply Connection: 3266-18 Lead wire
- Voltage: 115/230V
- Dielectric Withstand Voltage:: AC 1800V at 0.5mA 50/60Hz
- Blade Material: Plastic
- Warranty: 1 Year
Technical Specifications
| Mounting | Wall Fan |
|---|---|
| Voltage | 115/230V |
| Blade Material | Plastic |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Zhejiang, China |
| Brand Name | Jason Fan |
| Model Number | FJC2E-175.45C |
| Motor Structure | external rotor motor |
| Protection Grade | IP44 |
| Unit Weight | 1.24KG |
| Electric Current Type | AC |
| Dielectric Withstand Voltage: | AC 1800V at 0.5mA 50/60Hz |
| Insulation | B Class |
| Power Supply Connection | 3266-18 Lead wire |
| Selling Units | Single item |
| Single Package Size | 25X25X25 cm |
| Single Gross Weight | 3.000 kg |

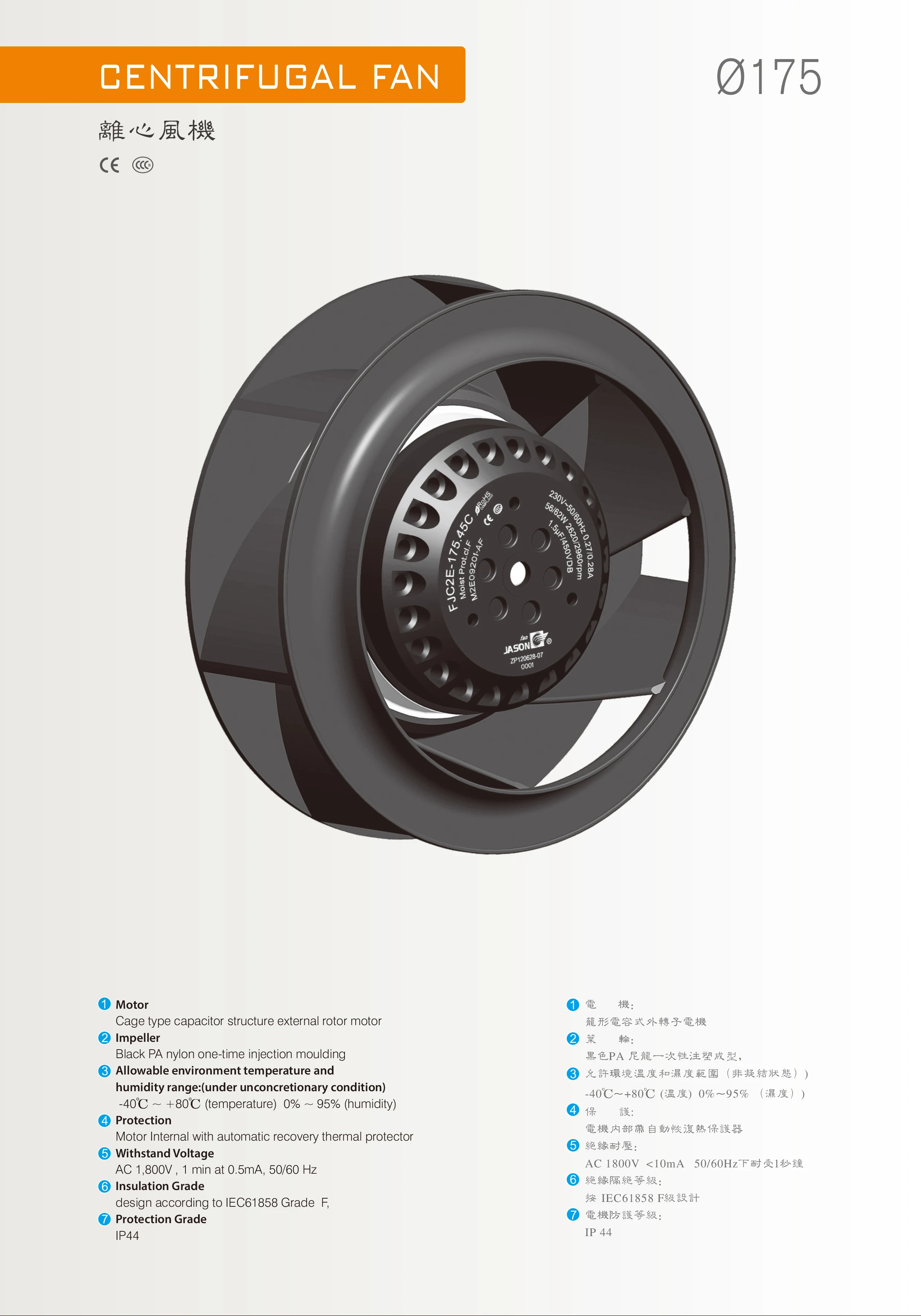

Product Details
Motor
Cage type capacitor structure external rotor motor
Impeller
Black PA nylon one-time injection moulding
Allowable environment temperature and
humidity range:(under unconcretionary condition)
-40ºC ~ +80ºC (temperature) 0% ~ 95% (humidity)
Protection
Motor Internal with automatic recovery thermal protector
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F,
Protection Grade
IP44
| Specifications | |
| Category | Axial fan |
| Type | FJC2E-175.45A |
| Rated Voltage | 230V |
| Frequency | 50/60Hz |
| Current | 0.27/0.28A |
| Input Power | 56/59W |
| Speed | 2500/2850RPM |
| Air flow | 324/348CFM |
| Static pressure | 280/370pa |
| Noise | 58/61dB |
| Weight | / |
Ordering and Pricing
- Minimum order quantity: 4 piece
- Volume pricing:
- 4+ piece: US $30 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 4 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 115/230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
