Centrifugal fan — 230V, 2400m3/h. The complete factory specification follows. Made by Wenzhou Jason Fan Manufacturer Co., Ltd. (18 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: C4S-315.101
- Power Source Type: Corded Electric
- Power: 101W
- Voltage: 230V
- Dielectric Withstand Voltage:: AC 1800V at 0.5mA 50/60Hz
- Air Flow: 2400m3/h
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 230V |
| Motor Type | AC Motor |
| Speed | 1500 RPM |
| Blade Material | Stainless Steel |
| Power Source Type | Corded Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 56/67dB |
| Place Of Origin | Zhejiang, China |
| Brand Name | Jason Fan |
| Model Number | C4S-315.101 |
| Power | 101W |
| Air Flow | 2400m3/h |
| Fan Size | 315mmx315mmx154mm |
| Motor | M4S10201-AF |
| Protection Grade | IP44 |
| Dielectric Withstand Voltage: | AC 1800V at 0.5mA 50/60Hz |
| Insulation Class | Class "B" or "F" |
| Bearing | NMB Maintenance-free Ball Bearing |
| Unit Weight | 3.8KG |
| Selling Units | Single item |
| Single Package Size | 54X54X45 cm |
| Single Gross Weight | 25.0 kg |
Product Details

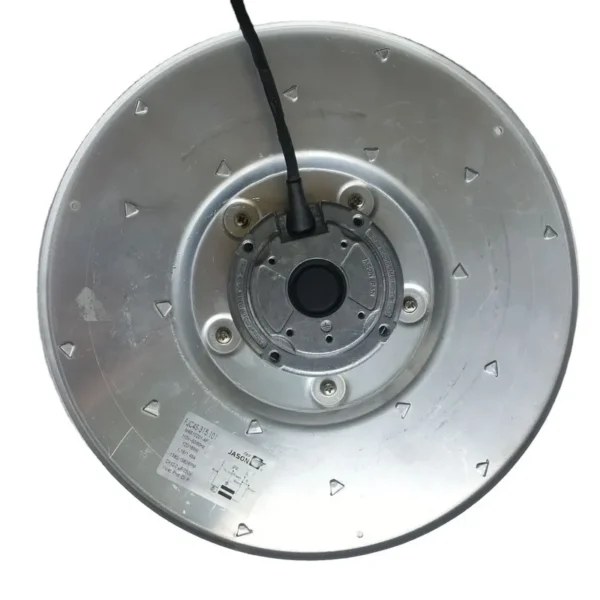

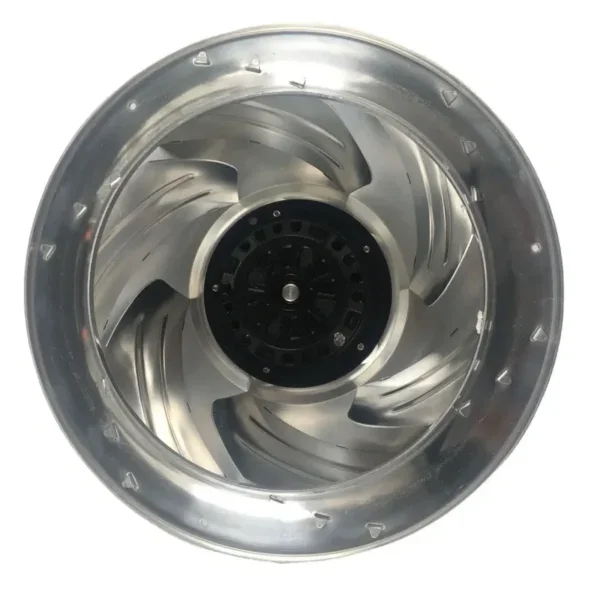

315mm 2400m3/h 1400CFM 165W 110V 115V 120V AC EC duct centrifugal fan C4S-315.101 for AAF Power Generation
Motor
Cage type capacitor structure external rotor motor

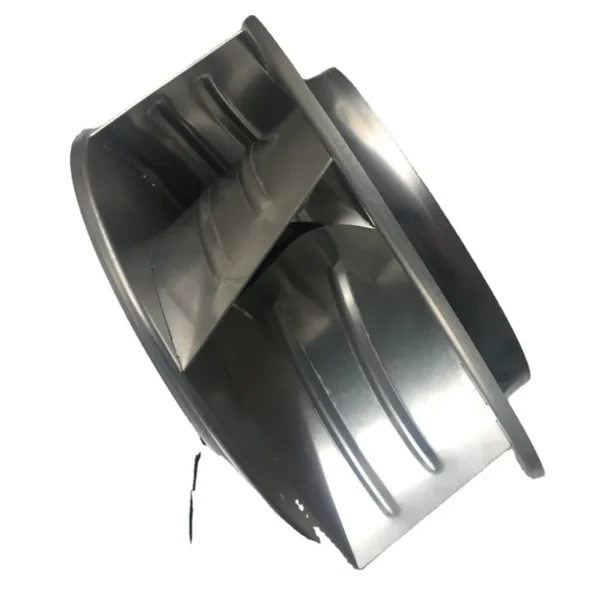

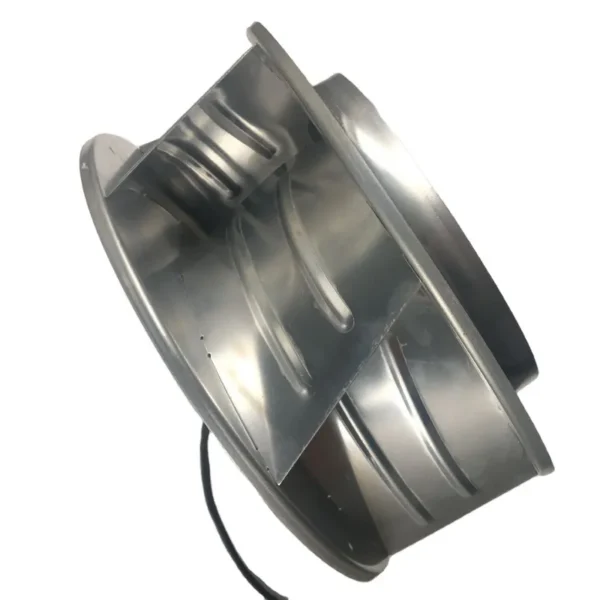

Impeller
Impact molding of aluminium alloy plate
Allowable environment temperature and
humidity range:(under unconcretionary condition)
-40ºC ~ +70ºC (temperature) 0% ~ 95% (humidity)
Protection
Motor Internal with automatic recovery thermal protector
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F,
Protection Grade
IP44
| Type | Centrifugal Fan |
| Impeller | Impact molding of aluminium alloy plate |
| Motor Structure | Shaded pole/cage type capacitor structure external rotor motor |
| Protection | Automatic recovery thermal protector |
| Temperature & Humidity | -40ºC ~ +70ºC, 0% ~ 95% |
| Withstand Voltage | AC 1800V at 0.5mA 50/60Hz |
| Power connection | UL3266-18 Lead wire |
| Protection Grade | IP44 |
| Insulation Systerm | F |
| Model Number | C4S-315.101 |
| Voltage | 115VAC |
| Power: | 50Hz |
| Air Volume | 1400CFM |
| Speed | 1560RPM |
| Certification | CE, ROHS |
| Unit weight | 3.8KG |
| Color | Aluminium alloy |

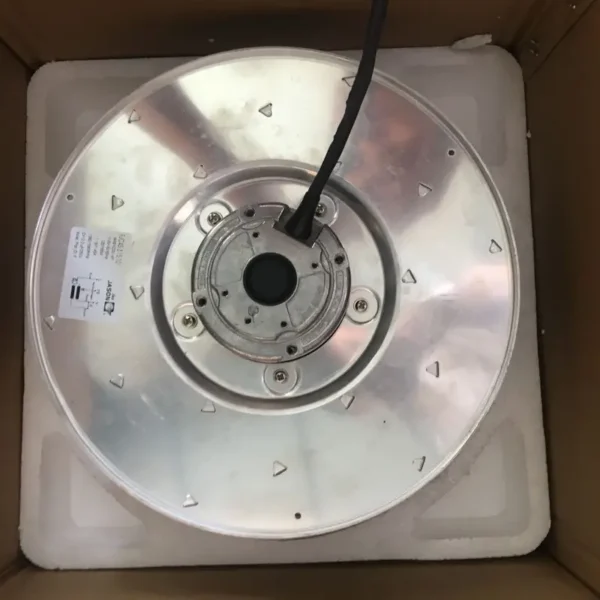

Packaging & Delivery:
Packaging Details: 1 PCS/CTN
Weight: 5.2KGS/CTN
Size:39*39*21cm
Delivery Detail (sample): Shipped in 3-8 days after payment
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yueqing City,Zhejiang Province, China, about 30 mins from Wenzhou Airport .Warmly welcome to visit us!
Q: What products do you make?
A: We have been producing AC cooling axial fans , Centrifugal fans, Filter fans etc since established in 2006.
Q: What information do you need in order to get a quotation?
A: Generally, we need the information like quantity, size, voltage , air flow to select a right or a similar fan for you and quote you.
Q: Can I have samples for testing before placing orders?
A: Yes. We suggest that our customers have some samples of their required fans for quality testing first.
Q: Can I have a discount for the quoted price?
A: Yes. The price is quoted based on the quantity.
Q: How is your quality control systerm?
A : Each fan needs to go though strict inspection by QC before delivery, or inspected by 3rd party who customer appoints.
Q: Does the product have CE,UL etc approval?
A : Yes. All of our products have CE,RoHS approval, some have UL approval.
Q: Can you make the fan with our company's logo?
A : Yes.
Q: What is your payment term?
A : TT,LC.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $69.7 / piece
- 500–999 piece: US $69.6 / piece
- 1000+ piece: US $66.8 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wenzhou Jason Fan Manufacturer Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wenzhou Jason Fan Manufacturer Co., Ltd. range on HVACR Nexus.
