This centrifugal fan is published with the manufacturer’s full specification — voltage 115/230/380V, power supply connection 3266-18 Lead wire. Made by Wenzhou Jason Fan Manufacturer Co., Ltd. (18 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: FJC2E-220.44B
- Power Supply Connection: 3266-18 Lead wire
- Voltage: 115/230/380V
- Dielectric Withstand Voltage:: AC 1800V at 0.5mA 50/60Hz
- Blade Material: Plastic
- Warranty: 1 Year
Technical Specifications
| Mounting | Wall Fan |
|---|---|
| Voltage | 115/230/380V |
| Blade Material | Plastic |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Zhejiang, China |
| Brand Name | Jason Fan |
| Model Number | FJC2E-220.44B |
| Motor Structure | external rotor motor |
| Protection Grade | IP44 |
| Unit Weight | 1.27KG |
| Electric Current Type | AC |
| Dielectric Withstand Voltage: | AC 1800V at 0.5mA 50/60Hz |
| Insulation | B Class |
| Power Supply Connection | 3266-18 Lead wire |
| Type | Centrifugal Fan |
| Selling Units | Single item |
| Single Package Size | 25X25X20 cm |
| Single Gross Weight | 3.0 kg |
Product Details

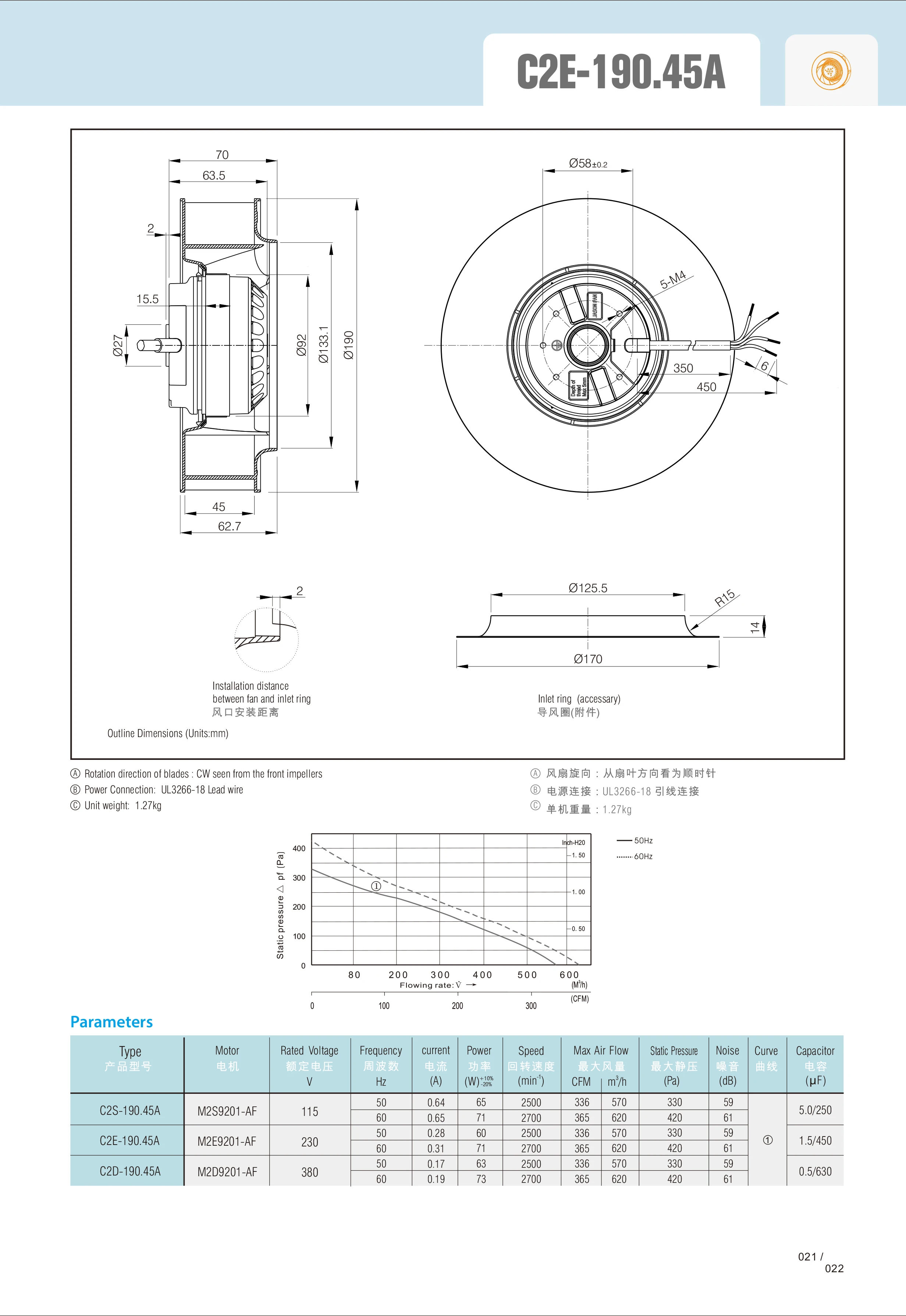

centrifugal fan Backward Curved Impeller 190mm diameter 230v IP44 plastic cooling fan FJC2E-190.45A

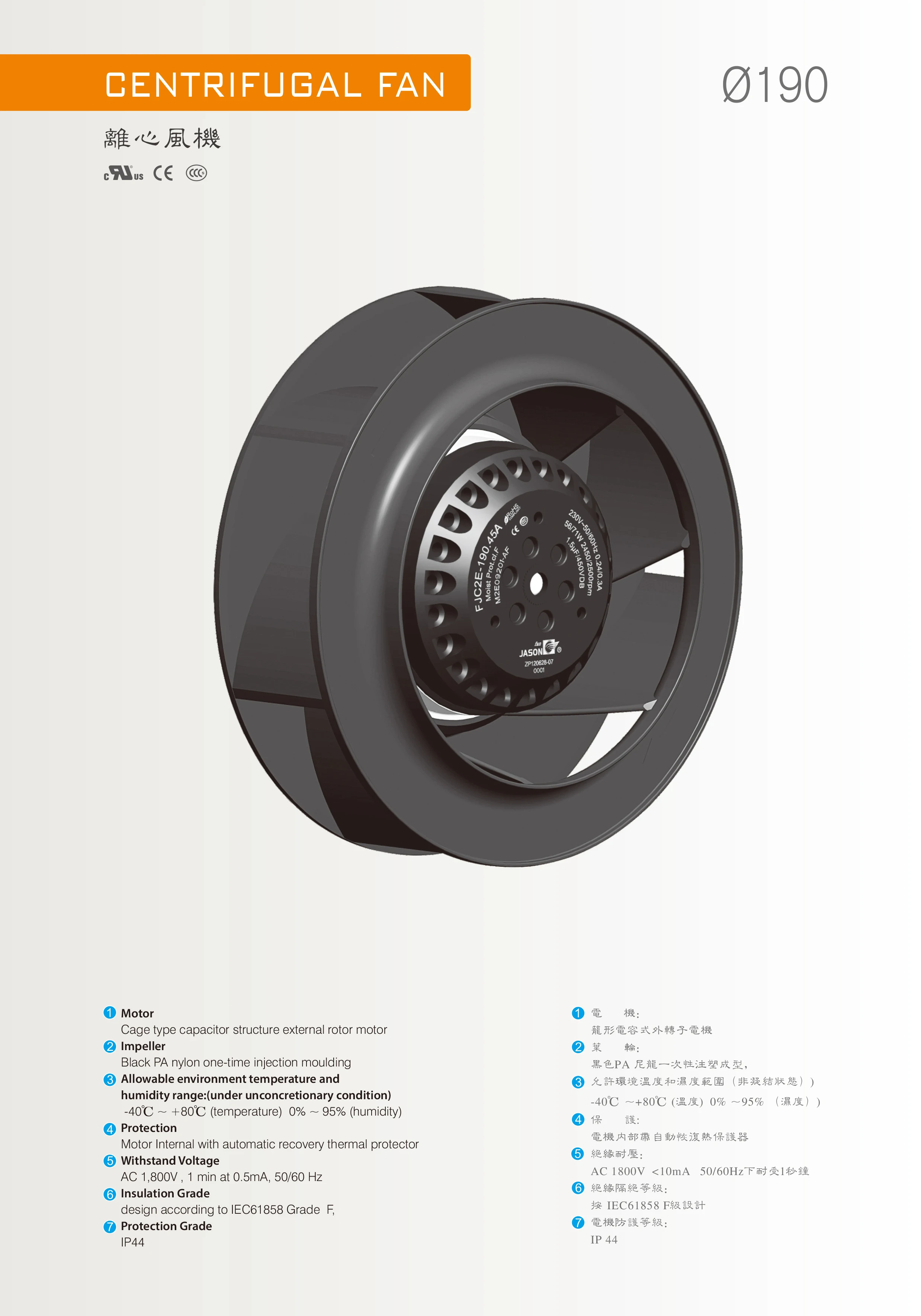

Motor
Cage type capacitor structure external rotor motor
Impeller
Black PA nylon one-time injection moulding
Allowable environment temperature and
humidity range:(under unconcretionary condition)
-40ºC ~ +80ºC (temperature) 0% ~ 95% (humidity)
Protection
Motor Internal with automatic recovery thermal protector
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation Grade
design according to IEC61858 Grade F,
Protection Grade
IP44
| Type | Centrifugal Fan |
| Impeller | Black PA nylon one-time injection moulding |
| Motor Structure | Shaded pole/cage type capacitor structure external rotor motor |
| Protection | Automatic recovery thermal protector |
| Temperature & Humidity | -40ºC ~ +80ºC, 0% ~ 95% |
| Withstand Voltage | AC 1800V at 0.5mA 50/60Hz |
| Power connection | UL3266-18 Lead wire |
| Protection Grade | IP44 |
| Insulation Systerm | F |
| Model Number | C2E-190.45A |
| Voltage | 230VAC |
| Power: | 50/60Hz |
| Air Volume | 336-365CFM |
| Speed | 2500-2700RPM |
| Certification | CE, ROHS, CSA |
| Unit weight | 1.27KG |
| Color | Black |
Ordering and Pricing
- Minimum order quantity: 4 piece
- Volume pricing:
- 4–19 piece: US $35 / piece
- 20–49 piece: US $34.5 / piece
- 50+ piece: US $34 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 4 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 115/230/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wenzhou Jason Fan Manufacturer Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wenzhou Jason Fan Manufacturer Co., Ltd. range on HVACR Nexus.
