Key specification for this centrifugal fan: material Plastic. Everything below is reproduced from the factory data sheet. Made by Hangzhou Meansoon Ventilation Co., Ltd. (5 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Fan
- Material: Plastic
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Single Package Size: 48.0X57.0X23.0 cm
- Single Gross Weight: 7.0 kg
- Customized Support: OEM
Technical Specifications
| Material | Plastic |
|---|---|
| Warranty | 1 Year |
| Customized Support | OEM |
| Place Of Origin | Zhejiang, China |
| Brand Name | MEANSOON |
| Selling Units | Single item |
| Single Package Size | 48.0X57.0X23.0 cm |
| Single Gross Weight | 7.0 kg |
Product Details

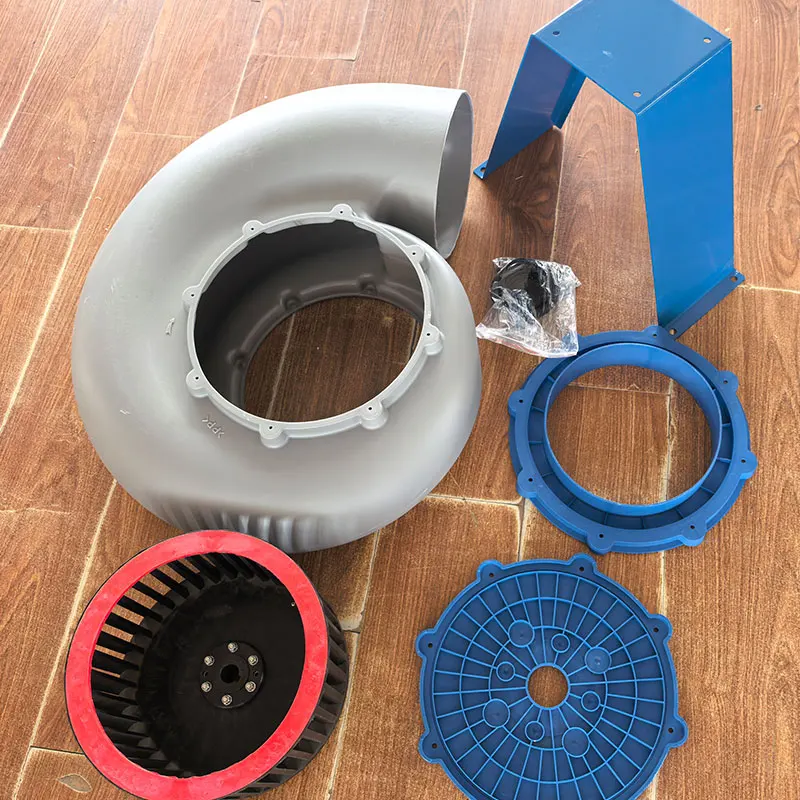

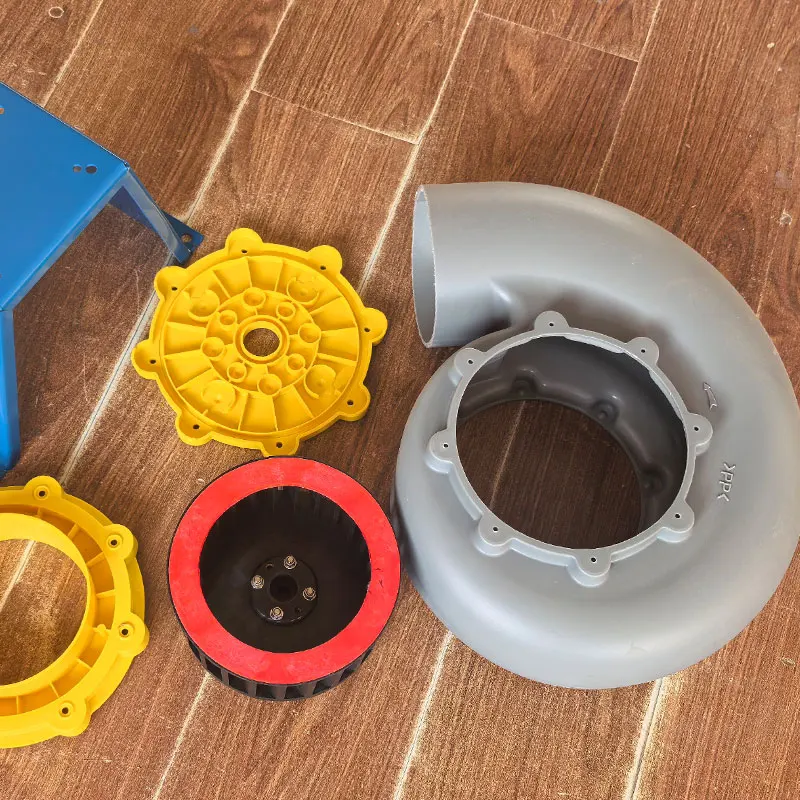

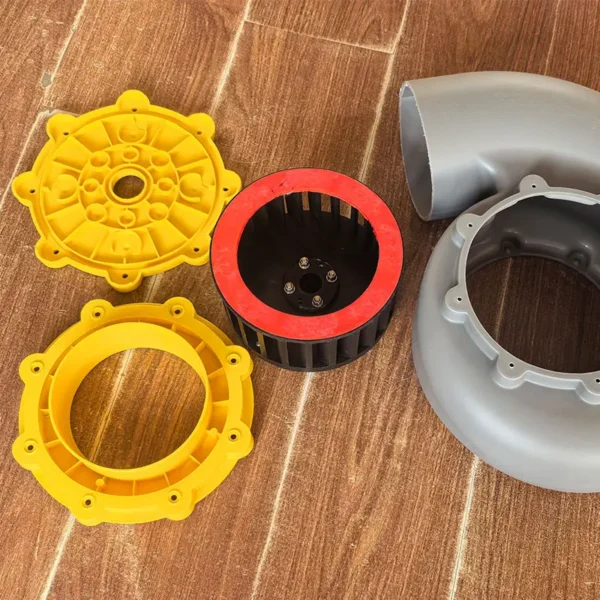

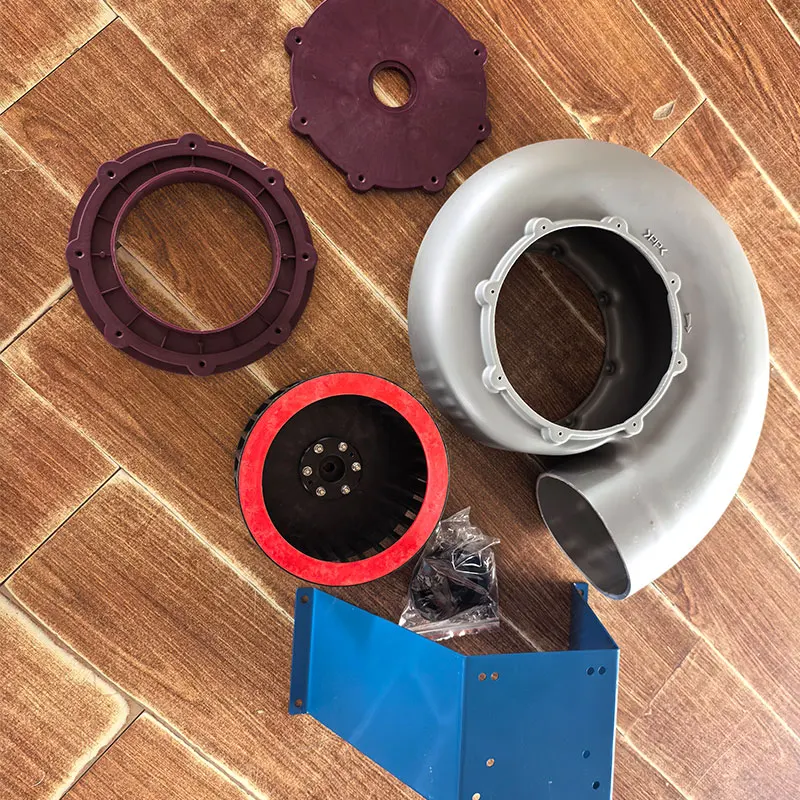

160 200 250 Plastic PP Fan Parts for Centrifugal Fan Without Motor
GENERAL DESCRIPTION
Meansoon PP Centrifugal Fan is particularly designed for conveying corrosive vapours and smokes, also with high humidity level and with maximum temperature of 60 degree celsius.
Suitable for applications where the extraction of corrosive fumes and gases:
Sulphuric acid, Sulphurous acid, Nitric acid, Nitrous acid, Hydrofluoric Acid, Boris Acid, Hydrocyanic Acid, Hydrochloric acid. Ammonia, Soda, Ethanol, Potassium hydroxide, Methanol, Propane, Formol, Benzene, Formaldehyde.
APPLICATION
The MACF series PP Centrifugal Fan provides good characteristics of low noise and high efficiency, which often are applied in laboratory, fume hood, fume cupboard, chemical storehouse, electroplating factory, medicine factory, mold factory, Electronic workshop and metallurgy for exhaust ventilation.
VOLUTE
The volute is made of polypropylene (PP) plastic withoud welding.
Inlet/outlet are round with standard size: 160, 200, 250, which are good for plastic duct connection.
IMPELLER
The forward curved impeller is integrally formed from fiberglass reinforced polypropylene (PP) and strengthened by ultrasonic welding of circular ring.
MOTOR
Direct driving, asynchronous, single or three phase, IP54/PI55, class B/F, B34 shape in 2-pole and 4-pole execution. Single speed: three phase 380 V-50/60Hz, single phase 220V-50/60Hz. Explosion proof versions in accordance with CNEX Directive for three-phase models is available. Motor is outside the airstream. we can provide Variable-frequency motors, driving by VDF.
MOTOR STAND
Metal stand is constructed of epoxy coated in blue, made of steel sheet.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hangzhou Meansoon Ventilation Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hangzhou Meansoon Ventilation Co., Ltd. range on HVACR Nexus.
