Key specification for this plastic centrifugal duct fan: 380V/3Ph/50Hz, power source type Corded Electric. Everything below is reproduced from the factory data sheet. Made by Hangzhou Meansoon Ventilation Co., Ltd. (5 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Plastic Centrifugal Duct Fan
- Model Number: MPCF-250-B2T-EX
- Power Source Type: Corded Electric
- Voltage: 380V/3Ph/50Hz
- Material: Plastic, Stainless Steel, Aluminum, Copper
- Blade Material: Plastic
- Impeller Material: PP Plastic
Technical Specifications
| Duct Diameter | 250mm(9.84in) |
|---|---|
| Mounting | Duct Fan |
| Voltage | 380V/3Ph/50Hz |
| Motor Type | AC Motor |
| Speed | 2800RPM |
| Material | Plastic, Stainless Steel, Aluminum, Copper |
| Blade Material | Plastic |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM |
| Noise Level | 75 dBA |
| Place Of Origin | Zhejiang, China |
| Brand Name | MEANSOON |
| Model Number | MPCF-250-B2T-EX |
| Application | Chemical environments |
| Impeller Material | PP Plastic |
| Volute Material | PE Plastic |
| Selling Units | Single item |
| Single Package Size | 60X56X69 cm |
| Single Gross Weight | 40.0 kg |
Product Details

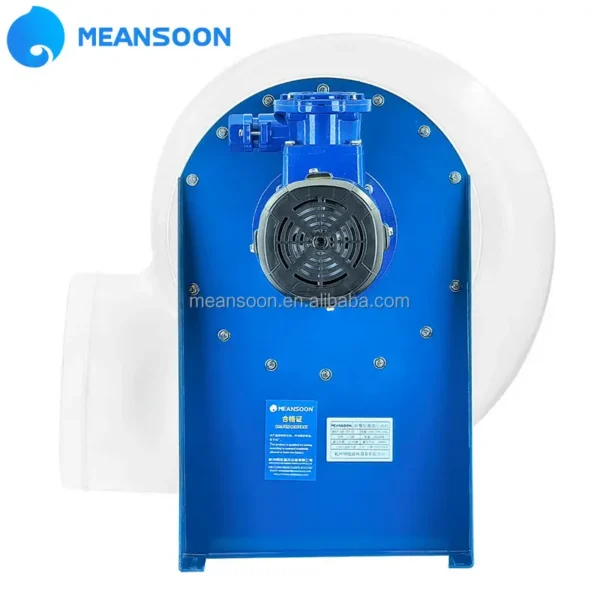

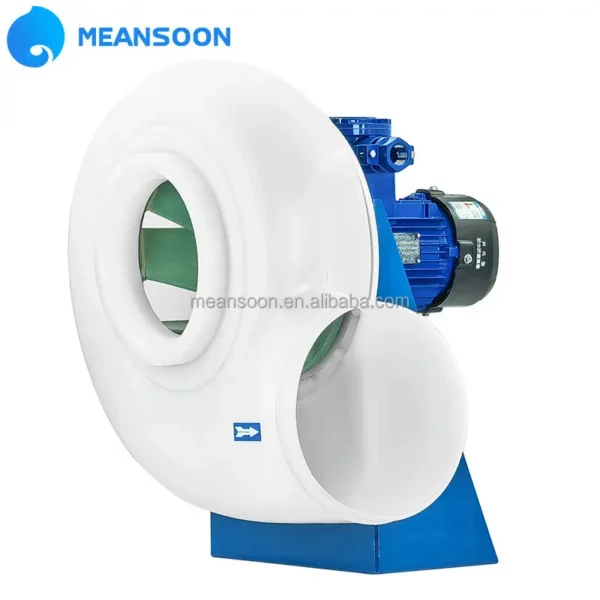

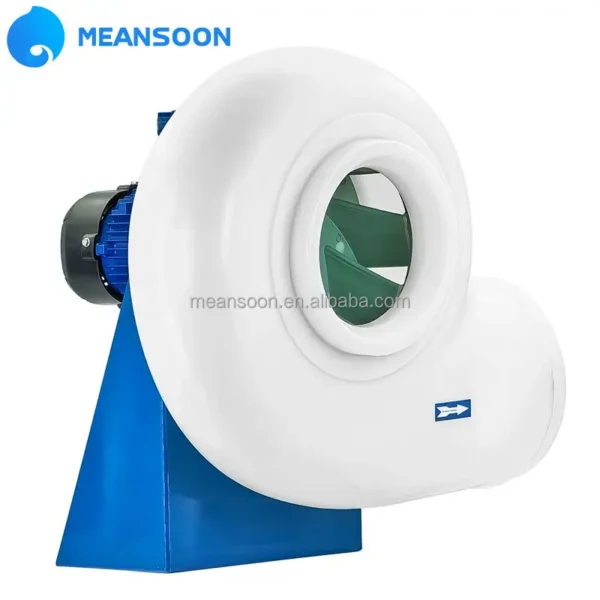

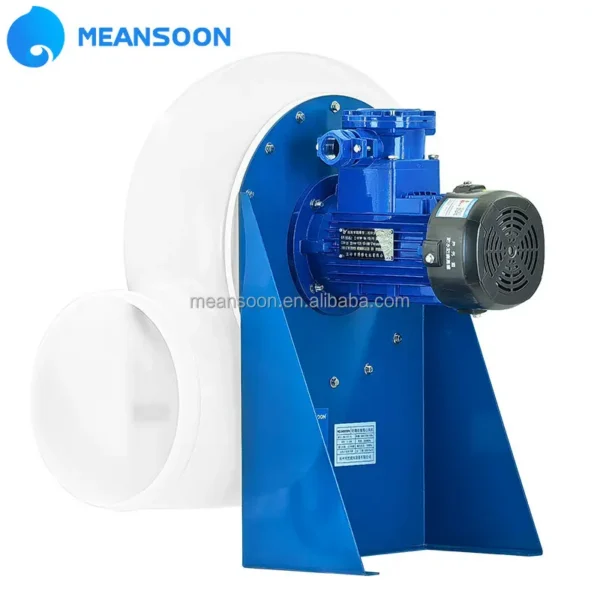

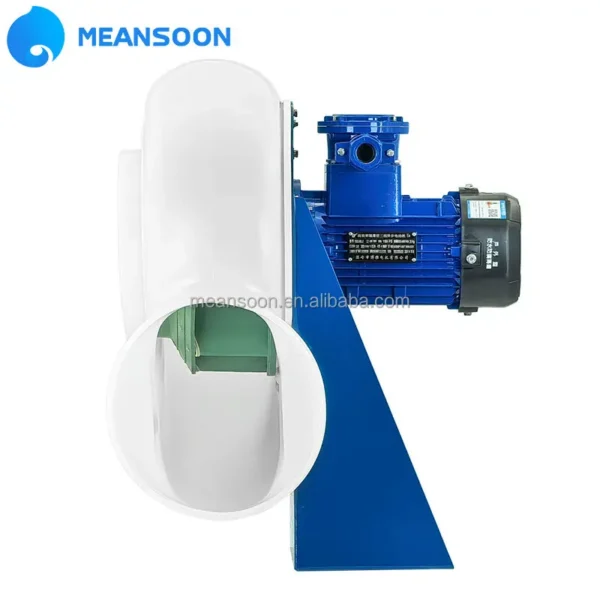

MPCF-250-B2T-EX Plastic PP chemical anti-corrosion radial fan with explosion proof motor
Hangzhou Meansoon Ventilation Co.,Ltd. is a professional corrosion resistant fans manufacturer since 2015, we mainly supply fume hood exhaust fan, lab exhaust fan, laboratory exhaust fan, fume hood fan, fume hood blower, lab fan, chemical exhaust fan, chemical resistant exhaust fan, PP blower, corrosion resistant exhaust fan, plastic centrifugal fan, fume hood exhaust blower. We have export to more than 30 countries so far.
Meansoon Ventilation is a recognised leader of chemical, corrosive and explosive resistant fans from China. With extensive experience in the field of fume extraction systems, Meansoon Ventilation offers a comprehensive line of High-quality corrosion-resistant polypropylene centrifugal fans and blowers perfect for Laboratories, Chemical plants, Hospitals, Natatoriums, Industrial processes, Water treatment plants, hospitals and any other Chemical and corrosive environment. And Chemical Corrosion explosion Resistant fans blowers Solutions for Industrial, Commercial, and Laboratory Facilities.
GENERAL DESCRIPTION
Plastic PP chemical anti-corrosion radial fan with explosion proof motor is particularly designed for conveying corrosive vapours and smokes, also with high humidity level and with maximum emperature of 60 degrees celsuis.
Suitable for applications where the extraction of corrosive fumes and gases:
Sulphuric acid, Sulphurous acid, Nitric acid, Nitrous acid, Hydrofluoric Acid, Boris Acid, Hydrocyanic Acid, Hydrochloric acid. Ammonia, Soda, Ethanol, Potassium hydroxide, Methanol, Propane, Formol, Benzene, Formaldehyde.
APPLICATION
The MPCF series of Plastic PP chemical anti-corrosion radial fan with explosion proof motor with backward curved impeller provide good characteristics of low noise and high efficiency, which often are applied in laboratory, fume hood, fume cupboard, chemical storehouse, electroplating factory, muould factory, Electronic workshop and metallurgy for exhaust ventilation.
SPIRAL CASES (VOLUTE)
The volute is made of polyethylene(PE) plastic. Reversible and rotable to any the 8 standard discharge positions by 45°increments. All fan is with mounting bolts and nuts in 304 stainless steel.
Inlet/outlet are round with standard size: 160, 200, 250, 300, which are good for plastic duct connection.
IMPELLERS/BLADES
The impellers/blades with backwrod curved blades are high efficiency made of polypropylene(PP) plastic are balanced dynamically
on balancing standard G2,5 according to DIN ISO 1940.
MOTORS
Direct driving, asynchronous, single or three phase, IP54, class B, B5 shape in 2-pole and 4-pole execution. Single speed: three phase 380 V-50/60Hz, single phase 220V-50/60Hz. Explosion proof versions in accordance with ATEX Directive for three phase models is available. . Motor is outside the airstream. All motors speed adjustable by variable frequency inverter drive.
MOTOR SUPPORT
metal stand constructed of epoxy coated in blue, made of steel sheet.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–9 unit: US $330.2 / unit
- 10–49 unit: US $297.2 / unit
- 50+ unit: US $267.4 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this plastic centrifugal duct fan?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the plastic centrifugal duct fan be supplied for my local voltage?
The standard configuration is 380V/3Ph/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
