The centrifugal fan listed here carries 12 V, blade material Plastic, documented exactly as the manufacturer publishes it. Made by SHENZHEN YCCFAN TECHNOLOGY CO., LTD. (13 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Fan
- Model Number: YBL1025B05
- Voltage: 12 V
- Blade Material: Plastic
- Speed Available: 2000rpm ~5000rpm
- Warranty: 1 Year
- Certification: ce CCC UL RoHS
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 12 V |
| Blade Material | Plastic |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Place Of Origin | Shenzhen, China |
| Brand Name | YCCFAN |
| Model Number | YBL1025B05 |
| Weight | 132g |
| Connector | USB interface |
| Size | 100x25mm |
| Impeller Type | PBT+30%GF |
| Current | 0.29A (Lavel 0.44A) |
| Speed Available | 2000rpm ~5000rpm |
| Bearing Type | Ball Bearning |
| Life Time | 70000hours |
| Color | Black |
| Certification | ce CCC UL RoHS |
| Selling Units | Single item |
| Single Package Size | 10X10X10 cm |
| Single Gross Weight | 0.5 kg |
Product Details

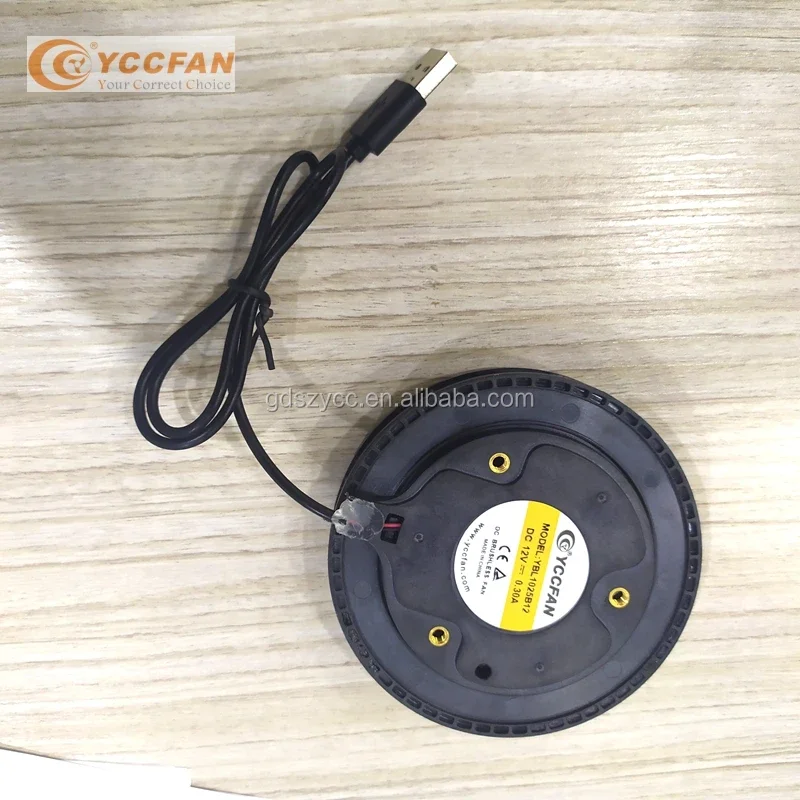

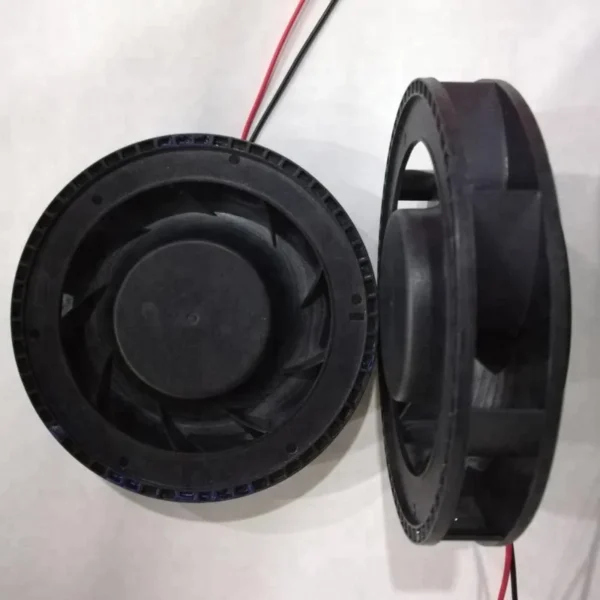

YCCFAN FACTORY Diameter 100mm DC BLOWER FAN WITH USB connector
Below is only for customer's reference , if customer have special request, please feel free to contact us.
| SPECIFICATION OF YBL1025B05 (AT Ta= 25 Degree.) | |||
| ITEMS | UNIT | PARAMETERS | NOTES |

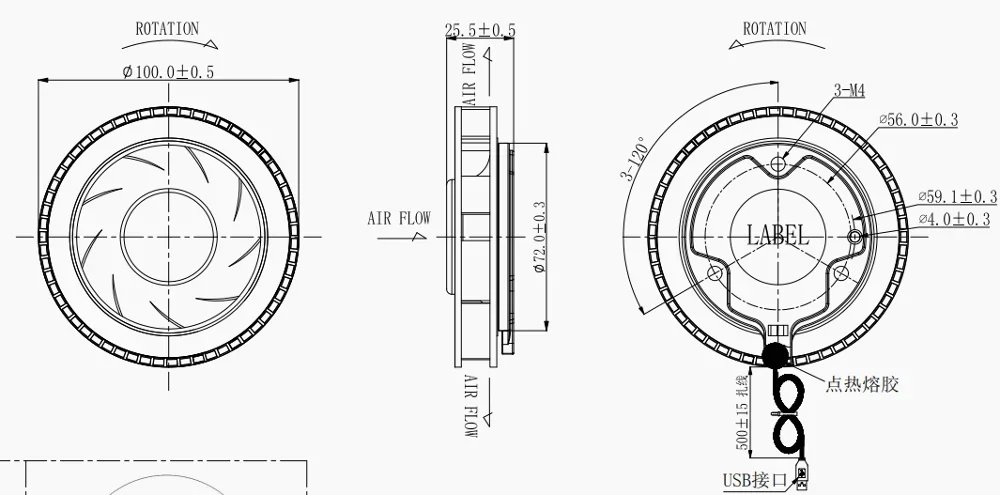

| Dimension | mm | dia.100*25mm | Length* Width *Thickness |
| Fan Frame | —– | BLACK PBT (UL94V-0) | Glass Fiber Reinforced |
| Fan Impeller | —– | BLACK PBT (UL94V-0) |
|
| Bearing System | S: HYPRO BEARING | ||
| Rated Voltage | VDC | 5v | N/A |
| Rated Current | Amp | 0.29A | At rated Voltage,Measured after 3Mins. |
| Rated Power | Watt | 1.45w | At rated Voltage,Measured after 3Mins |
| Rated Speed | RPM | 2500 | At 25℃/Relative Humidity 65% At rated Voltage,Measured after 3Mins |
| Air Flow | CFM | 22.28 |
|
| Air Pressure | mmAq | 7.75 | Maximum When Air Flow = 0 |
| Noise Level | dBA | 34.4 |
|
| LOCKED MOTOR PROTECTION | AUTO RESTART | YES | |
| Conform to RoHS | —– | Yes | |
| Safety Approval | —– | CE | |
| Lead Wire | UL2464/26AWG X500MM With USB connector | ||
| Life Expectancy | Hours | 70,000 | |
| Net Weight | Gram | 132g |
|
| Packing | Pieces/Carton | 100 |
|
Sleeve Bearing System: 30000 Hours At 25℃ Environment
Hypro Bearing System:30000 Hours At 40℃ Environment
CycleSeal Bearing System:40000 Hours At 40℃ Environment
Dual Ball Bearing System:70000 Hours At 40℃ Environment
OTHER DETAILS:
1) Noise Measure
According to Standard ISO3745/GB4214-84,Back ground noise 20±2dBa with room condition.
Measure Condition:
Fan is hanged in anechoic chamber,measured at rated voltage,measure microphone at a distance of one meter from the fan air intake.
Operating Temperature —————————————————— -10 ~ +70 ℃
Storage Temperature —————————————————— -40 ~ +75 ℃
Operating Humidity —————————————————– 35% ~ 85%RH
Storage Humidity —————————————————– 35% ~ 85%RH
Sleeve Bearing System: 30000 Hours At 25℃ Environment
Hypro Bearing System:30000 Hours At 40℃ Environment
CycleSeal Bearing System:40000 Hours At 40℃ Environment
Dual Ball Bearing System: 50000-70000hours At 40℃ Environment
Shipping:
1. The fan will be delivered by express ( FedEx, DHL, DHl or TNT ) for under 100 kg, our shipping agnet have perfect discount with these express company.
2. Large Measure are shipped by ship or by air as customer's requirements.
3. The fan can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.

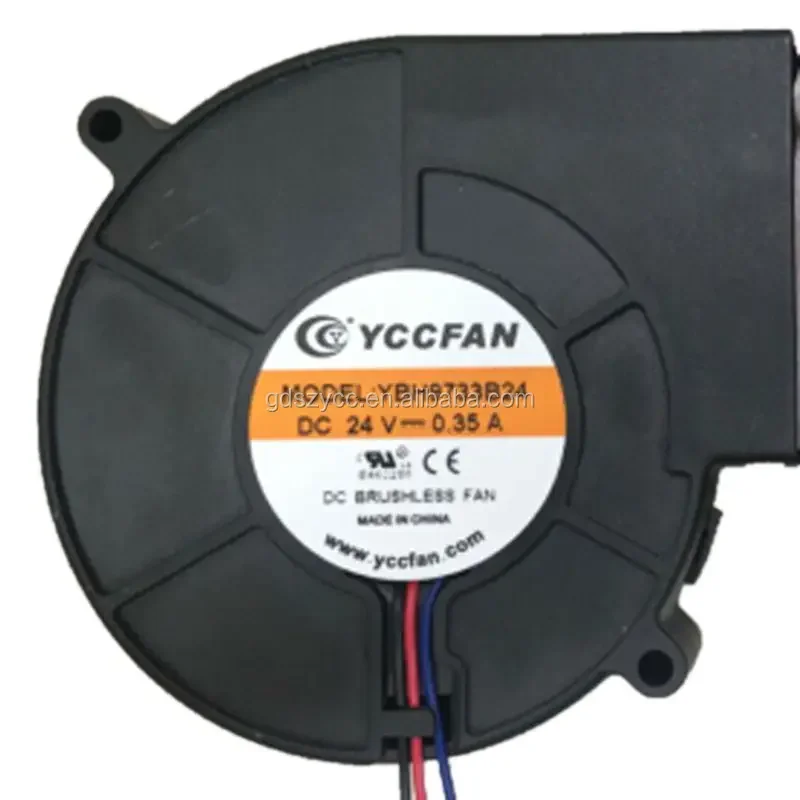

 YBL9733S24 |

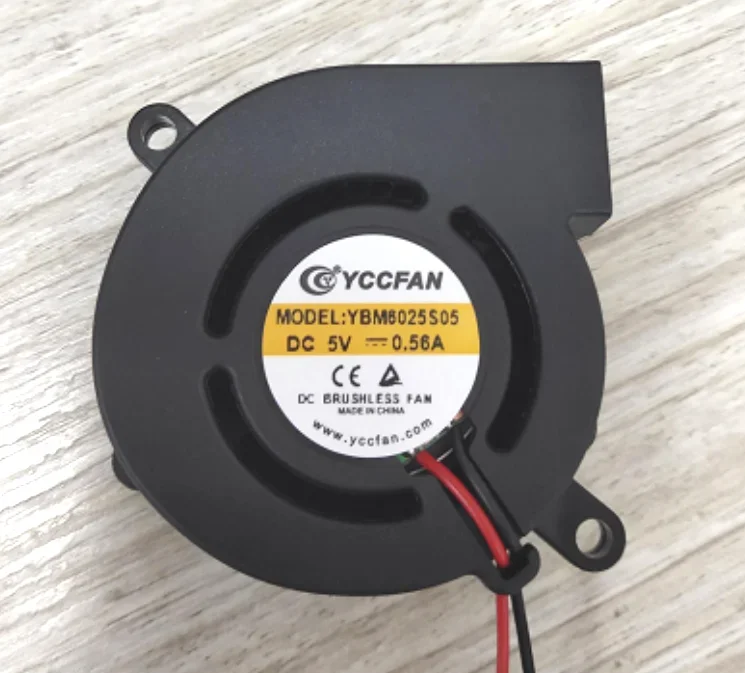

 YBM6025S05 |

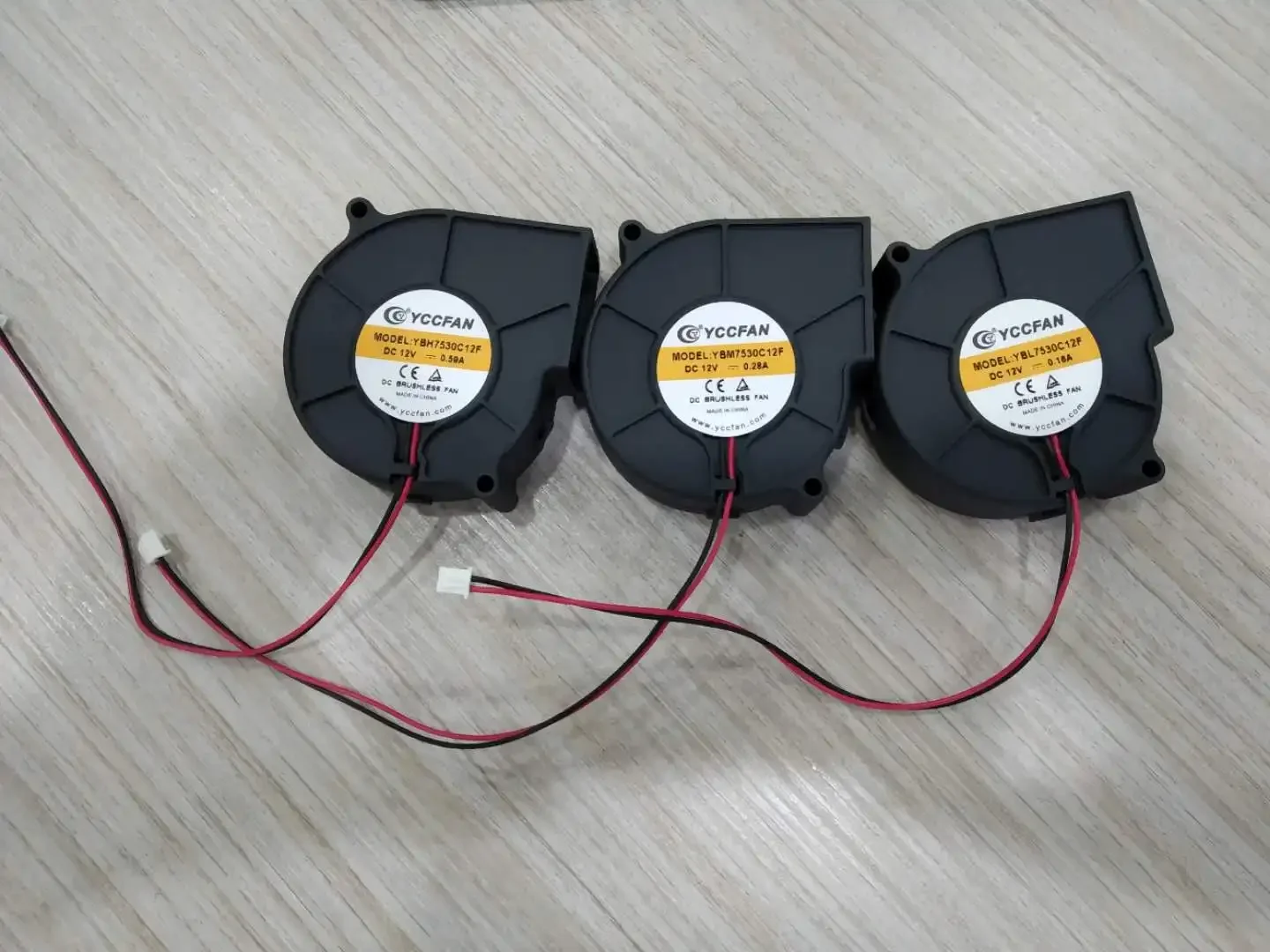

 YBM7530C05F |
1.100% inspection of Incoming materials
2.In process quality control
3.QA Inspection
4.100% testing before the packing

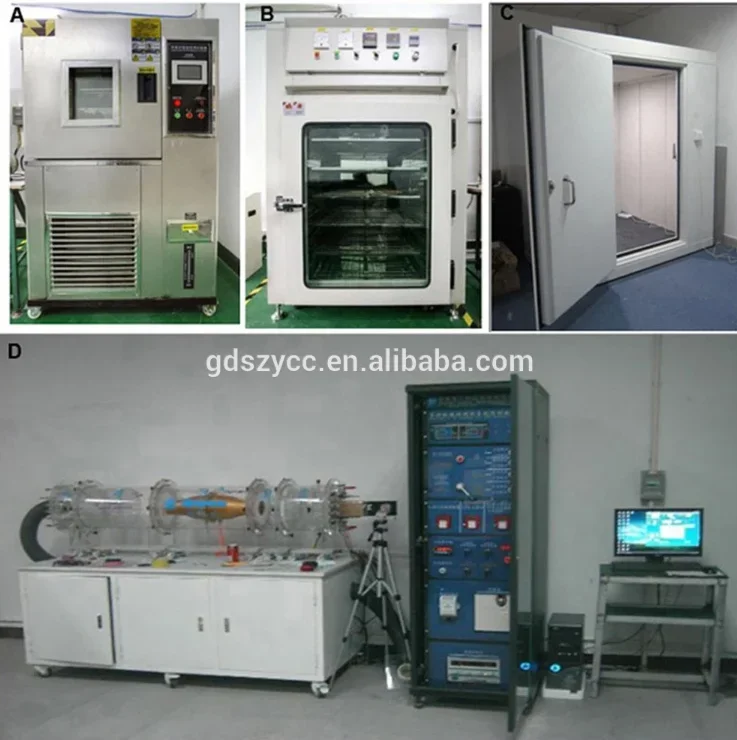

Testing equipments
A & B manchine: temperature testing manchines
C Noise room
D Wind Tunnel
E Vibrating equipment
F Salt-flog testing equipment
G XRF-ROHS Inspection Instrument
H Water proof testing
J Pull and push strength testing
K Video Microscope
L Droping Testing
M Simulaed transport vibration testing
N High temperature aging testing
O dust proof testing
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Volume pricing:
- 1000–9999 piece: US $3.5 / piece
- 10000+ piece: US $2.9 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with ce CCC UL RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 12 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by SHENZHEN YCCFAN TECHNOLOGY CO., LTD., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full SHENZHEN YCCFAN TECHNOLOGY CO., LTD. range on HVACR Nexus.
