Key specification for this centrifugal fan: 12V, power source type Electric. Everything below is reproduced from the factory data sheet. Made by SHENZHEN SANLY ELECTRONIC CO.,LTD (10 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: SF8462
- Power Source Type: Electric
- Voltage: 12V
- Material: Stainless Steel, Metal
- Blade Material: Plastic
- Noise Level: 35–39 dB

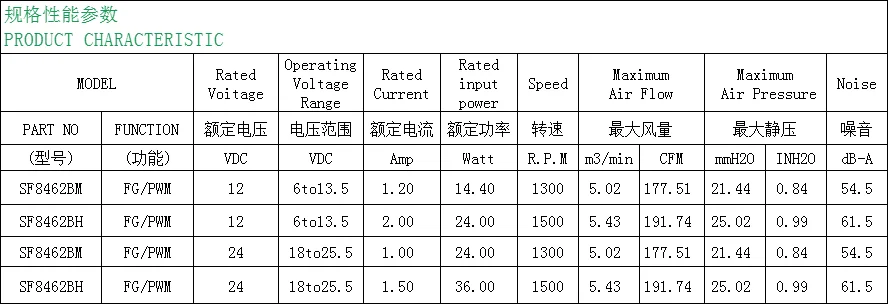

Technical Specifications
| Mounting | Other |
|---|---|
| Voltage | 12V |
| Motor Type | DC Motor, Brushless Motor |
| Speed | 1500 RPM, 1300 RPM |
| Material | Stainless Steel, Metal |
| Blade Material | Plastic |
| Power Source Type | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 35–39 dB |
| Place Of Origin | Guangdong, China |
| Brand Name | SANLY |
| Model Number | SF8462 |

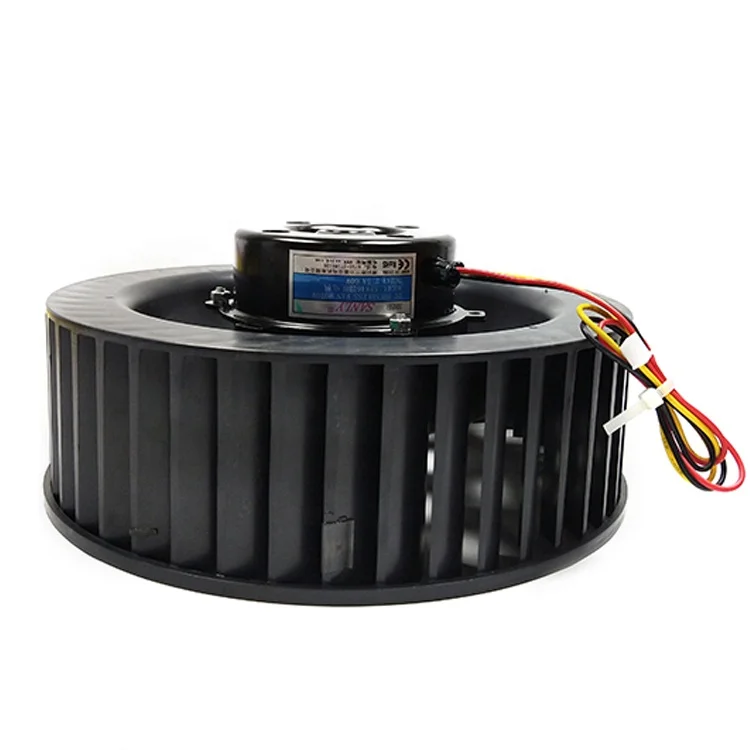

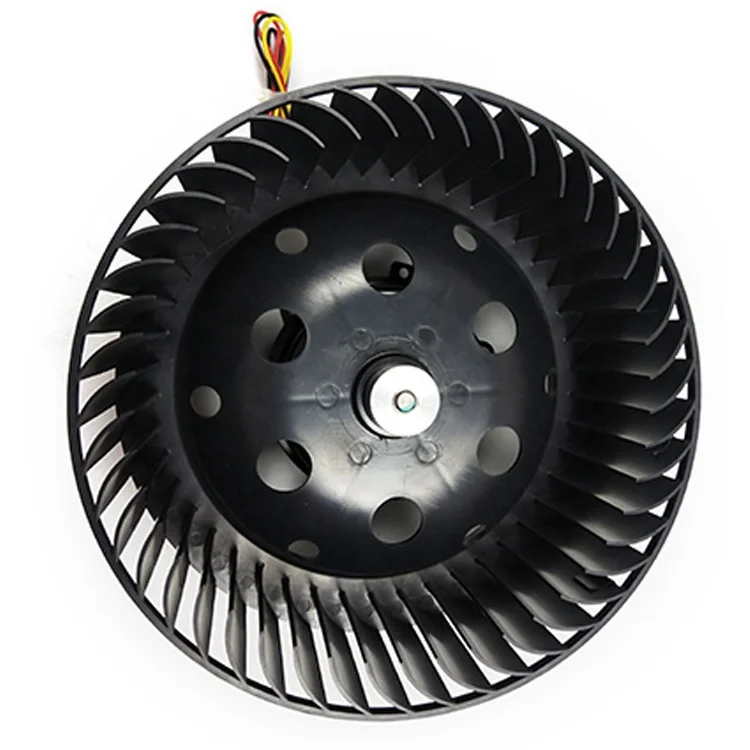

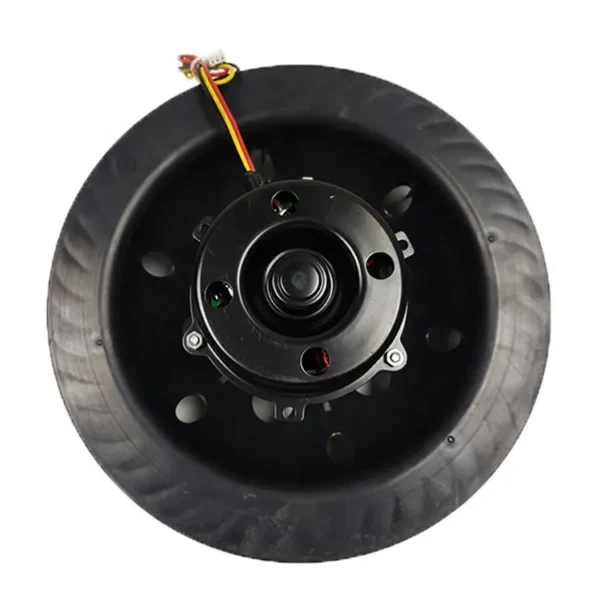

| Product Name | DC Centrifugal Fan |
| Type | Blower |
| Certification | CE,ROHS |
| Protection Grade | IP44 IP45 |
| Bearing System | Sleeve/Ball Bearing |
| Life Expectancy | 15000-50000h/40000-50000h |
| Whether Custom Processing | Yes |
| Operating Temperature | -25℃~+75℃ |
| Maximum Air Pressure | 25.02mmH2O(0.99INH2O) |
| Noise | 61.5dB-A |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Applications
3D Printer, Refrigerator, Freezer, Wine Refrigerator, Air purifier,Toy, Electric Equipment, Notebook, Laptop, Mini-projector, Humidifier, Medical Device, etc.

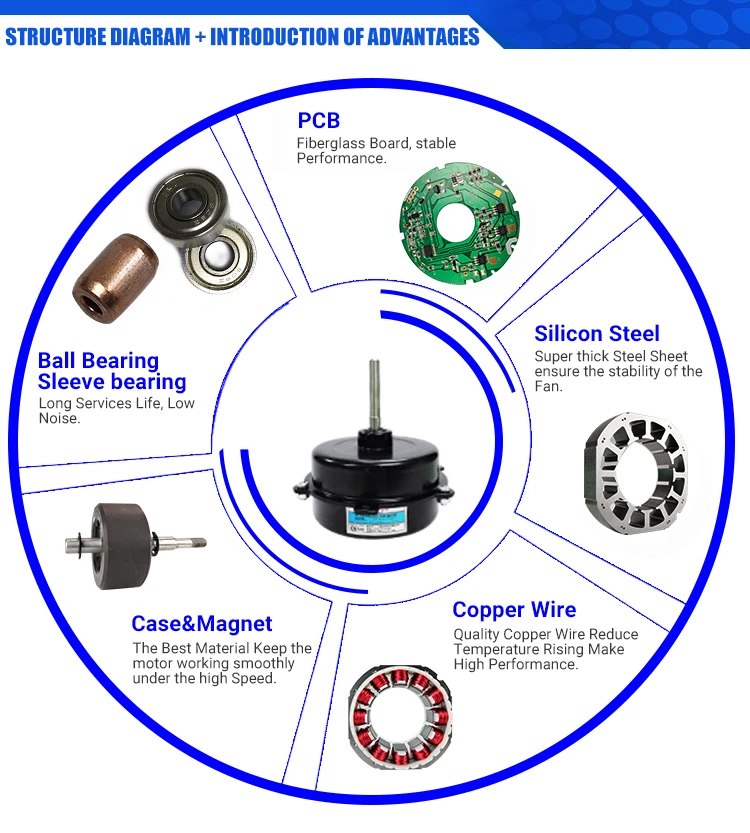

Introduction
1. Bearing Type: High precision Sleeve or Ball bearing
2. Frame & Impeller: Termoplastic PBT UL 94V-0
3. Operating Temperature: -10℃ ~ 60℃
4. Waterproof Grade: IP44
5. Insulation Grade: Standard grade is B grade
6. Motor: DC brushless motor
8. Fan Rotation: standard Clockwise (If need Counterclockwise, please tell us)
1. SFxxxxS/BL is two models, SFxxxxSL, SFxxxxBL
2. "S" for Sleeve bearing; "B" for 2 ball bearing
3. Features: Reverse protection; Auto Re-start protection
4. Optional functions: PWM/FG/RD
5. OEM: label, voltage, speed, wire length, wire connector, etc.
Q1: Are you a factory or trading company ?
A1: We are a factory.
Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V.
AC fan is powered by AC voltage,normal voltage is 110V,220V and 380V.
Q3:How about the lifetime of fan?
A3:
Q4: What effects the quoted price for the fan?
1 size of the fan,
2 voltage,
3 current,
4 speed,
5 air flow,
6 noise,
7 bearing type,
8 two wire or three wire,
9 cable length,
10 connector type,
11 function,
12 quantity
Ordering and Pricing
- Minimum order quantity: 5 piece
- Volume pricing:
- 5–999 piece: US $2.2 / piece
- 1000–2999 piece: US $2 / piece
- 3000+ piece: US $1.8 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with CE,ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by SHENZHEN SANLY ELECTRONIC CO.,LTD, based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full SHENZHEN SANLY ELECTRONIC CO.,LTD range on HVACR Nexus.
