Chiller — 380 V, customized, cooling capacity 559000kcal/h. The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Chiller
- Power (W): depending on models
- Fan Power: 5.5kw x 3
- Voltage: 380 V, customized
- Cooling Capacity: 559000kcal/h
- Cooling Air Flow: 59000m3/h x 2
- Heat Exchanger Material: red copper with hydrophilic film aluminum fin
Technical Specifications
| Productivity | 100T/h |
|---|---|
| Processing Type | other |
| Voltage | 380 V, customized |
| Power (W) | depending on models |
| Core Components | Motor |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 3240 |
| Place Of Origin | China |
| Brand Name | Sanjiu |
| Cooling Capacity | 559000kcal/h |
| Water Flow | 135 m3/h |
| Fan Power | 5.5kw x 3 |
| Cooling Air Flow | 59000m3/h x 2 |
| Heat Exchanger Material | red copper with hydrophilic film aluminum fin |
| Shell/Casing Material | Mg-Al-Zn Alloy Coated Steel |
| Applicable Industries | hotels,Manufacturing Plant,Restaurant |
| Applicable Industries1 | Food & Beverage Factory |
| Applicable Industries2 | Energy & Mining,Food & Beverage Shops |
| Selling Units | Single item |
| Single Package Size | 20X20X20 cm |
| Single Gross Weight | 50.0 kg |
Product Details

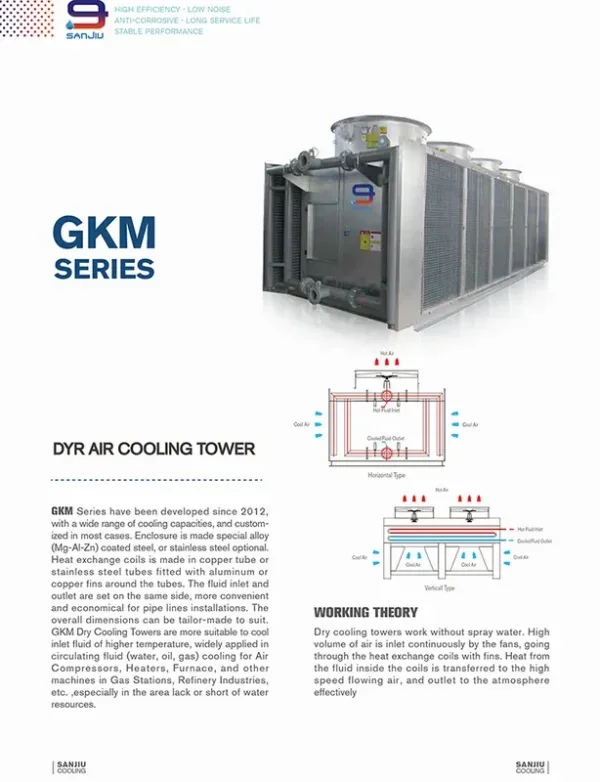

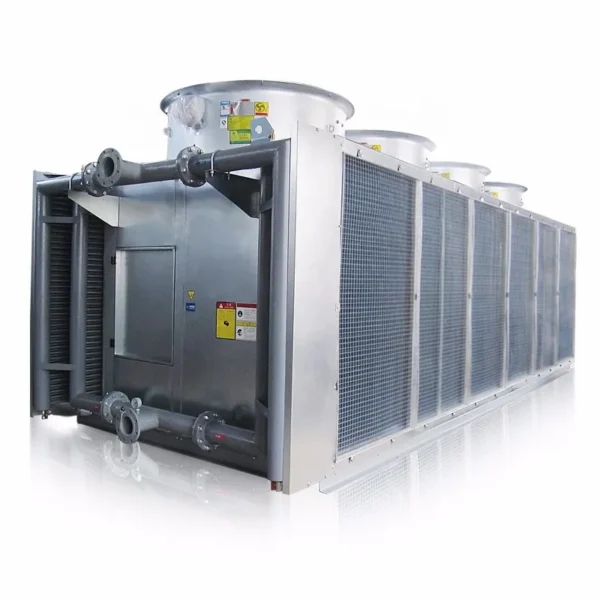

GKM Series Air Cooling Tower

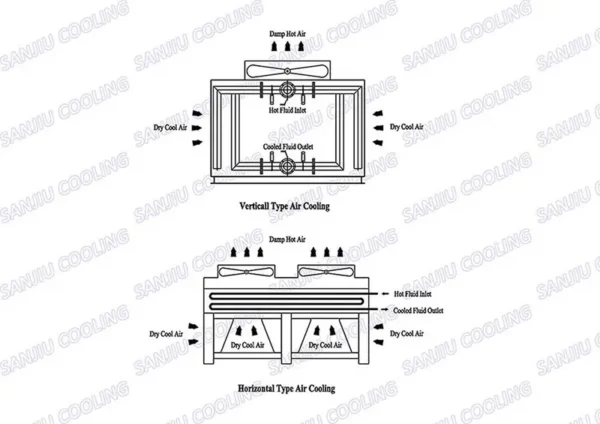

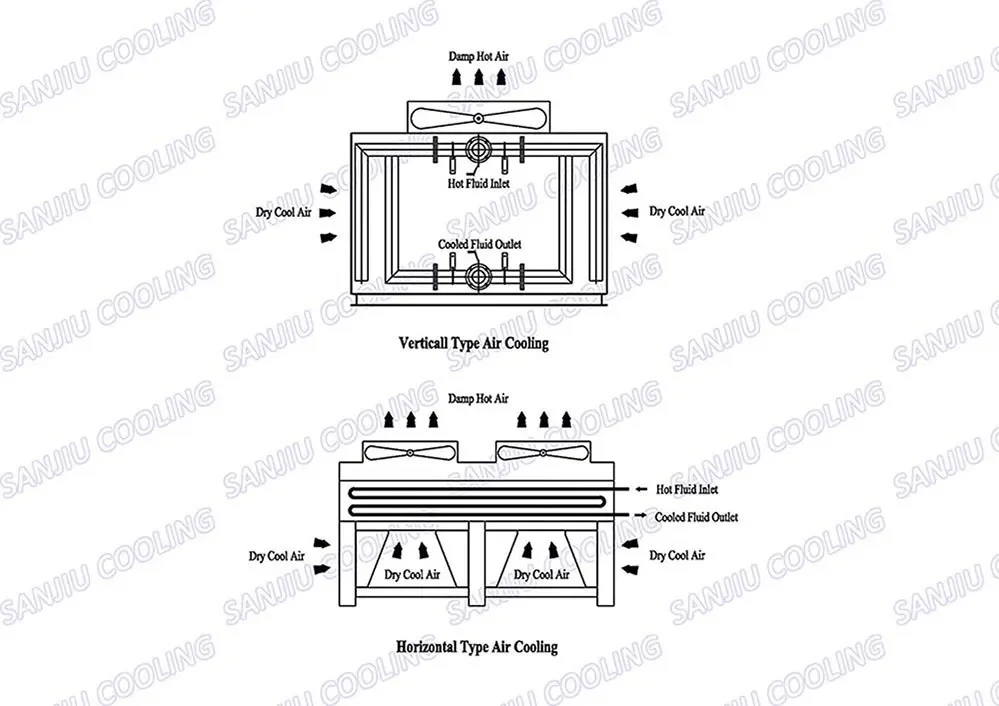

GKM Series have been developed since 2012, with a wide range of cooling capacities, and customized in most cases. The enclosure is made in Mg-Al-Zn alloy coated steel, or stainless steel optional. And the heat exchange coils is made in copper tube or stainless steel tubes fitted with aluminum or copper fins around the tubes. The fluid inlet and outlet are set on the same side, more convenient and economical for pipe lines installations. The overall dimensions can be tailor-made to suit standard 20’ or 40’ shipping containers in order to minimise freight costs. GKM Dry Cooling Towers are more suitable to cool inlet fluid of higher temperature, widely applied in circulating fluid (water, oil, gas) cooling for Air Compressors, Heaters, Furnace, and other machines in Gas Stations, Refinery Industries, etc. , especially in the area lack or short of water resources.
Air Water Machine
Note: All the data is under the condition of 28℃ wet temperature.
If any change of condition,the data will change.
|
Model no. | GKM-650(closed circuit) | |
| Water flow rate | 135m³/h, adjustable as different temperature | |
| Cooling capacity | From 65~55℃to45~35℃ | |
| Water pressure | 0.32Mpa | |
| Pipe diameter | Input diameter(mm) | DN100 |
| Output diameter(mm) | DN100 | |
| Rated Power | Fan (KW) | 5.5X3 |
|
|
| |
| Material of shell/tower body | Superdyma(imported from Japan) | |
| Material of tupe | SUS304;Red copper with hydrophilic film aluminum fin | |
| Installation Method | Modular Design,Easy Install | |

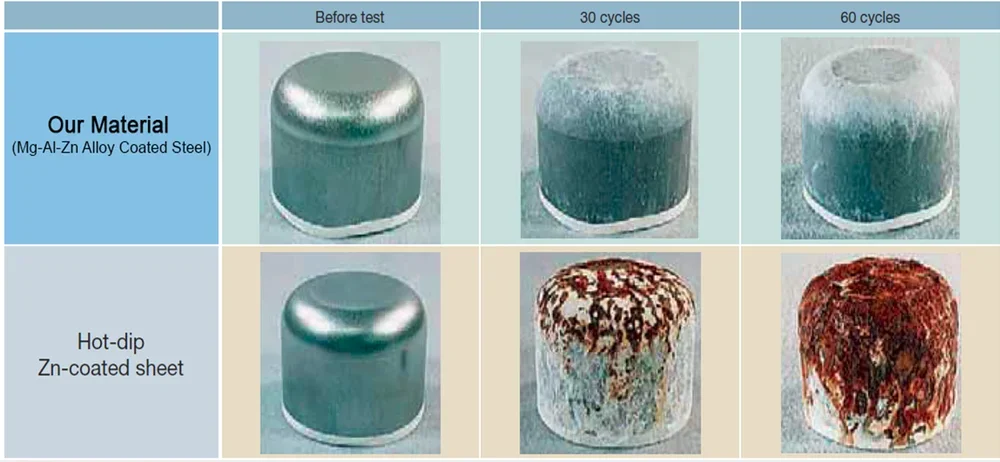

Closed water cooling tower shell is made in Mg-Al-Zn alloy coated steel, of "SuperDyma" series from company Nippon Steel, originally imported Japan. This special alloy coated steel is much better than galvanized steel in corrosion proof performance.

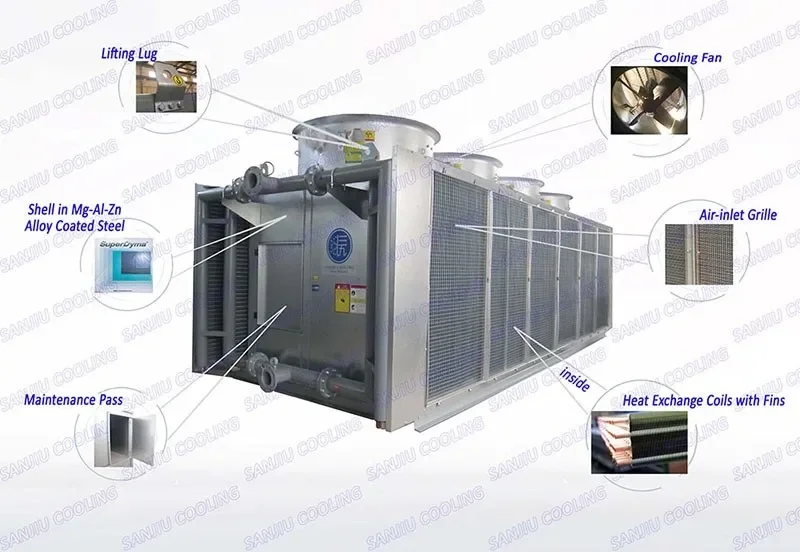

STRUCTURE & CASING
The tower enclosure is made in special alloy (Mg-Al-Zn) coated steel panels, originally imported from Nippon Steel or Posco. These panels exhibit superior corrosion resistance, and self-heal when scratched during the service period. The panels are bolted and sealed for water tightness. The casing is complete with maintenance access doors for internal inspection convenience.
DRY COOLING COILS
The dedicated dry cooling coils in GKM Series is used exclusively for the purpose of dry cooling, fitted with particularly shaped aluminum fins around the coils tubes, to maximize surface area of heat transfer. The standard coils tubes is made in stainless steel 304, of tube wall thickness 0.6mm, or red copper of wall thickness 0.8mm. Different thickness can be met on request. Each coil is tested under continuous nitrogen gas pressure of 30 bar for 24 hours, to ensure no leaking point.
AXIAL FAN SECTION
The axial fan(s) are fitted with resin or al-alloy airfoil blades perfectly balanced and coupled to a weather proof three-phases electric motor. The fan casing is a galvanized steel cylinder to draw the air vertically and avoid the risk of recirculation. The tip speed of the impeller is limited to keep the noise level within acceptable limits.
ELECTRICAL CONTROL
Each dry tower is under control of an electrical control unit, or a group of towers can share a central control station. The control box can be made in powder coated carbon steel, or stainless steel on options, with or without weather proof arrangement. In cases digital or remote control function required, the PLC can be applied and programmed according to the project demands.
SURFACE FINISH
The standard cooling tower is delivered in alloy coated steel finish without any additional painting, unless other color is ordered as an optional item.
-Quick response in 12 hours
-Professional and economical cooling solution for every client
-Considerate and complete after sales service
Below information are normally required to know for selection of a most proper tower model and solution:
| Application: | (Explanations: Where the cooling towers will be used for? e.g. for HAVC system, Air Compressors, Melting Furnaces, etc.) | |||
| * Water Flow Rate: | m³/h | (Explanations: How many Tons of water required per hour?) | ||
| * Inlet Water Temp.: | °C | (Explanations: Temperature of hot water to be cooled) | (also descriped as "water temperature drop") | |
| * Outlet Water Temp.: | °C | (Explanations: Temperature of cooled water, usually it shall be at least 3~4 °C higher than the wet-bulb temp.) | ||
| * Ambiant Temp.: | °C | (Explanations: Highest wet ambiant temp. of the location/area or city to install the tower is essential to know to evaluate the size of towers) | ||
| * Power Supply: | (Explanations: 380V/3 Phases is standard, which we could have in stock, but for customized towers, the delivery time could be longer) | |||
For easier discussions, 24 hours on line service available: Angela is online: skype: oasanjiu Mob./WhatsApp: 13559666650
Many thanks for your interests, and your inquires are always well attended!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $19995 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the chiller be supplied for my local voltage?
The standard configuration is 380 V, customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

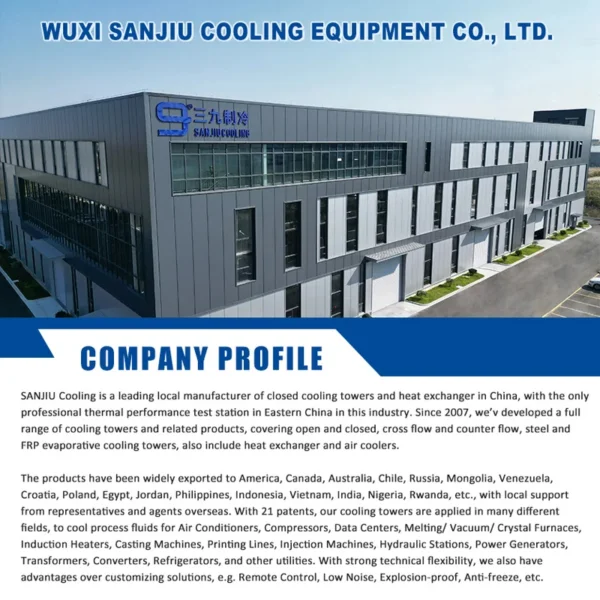

About the Manufacturer
