This circuit cooling tower is published with the manufacturer’s full specification — voltage three phases, 380~480v, AC, power max. 21.5kW. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Circuit Cooling Tower
- Power(W): max. 21.5kW
- Voltage: three phases, 380~480v, AC
- Material: Superdyma or alloy of magnesium aluminum zinc
- Warranty: 1 Year
- Certification: IS09001: 2008
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | three phases, 380~480v, AC |
|---|---|
| Cooling Type | Cross Flow |
| Power(W) | max. 21.5kW |
| Material | Superdyma or alloy of magnesium aluminum zinc |
| Core Components | Motor |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy To Operate |
| Place Of Origin | Jiangsu, China |
| Brand Name | SANJIU |
| Dimension(L*W*H) | depends on your kind option |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Water Flow | 25~300t/h |
| Production Time | Typically 3 weeks |
| Certification | IS09001: 2008 |
| Packaging Details | Standard packing ensures proper protection during transportation. |
| Port Of Dispatch | Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 30 sets per Month |
Product Details

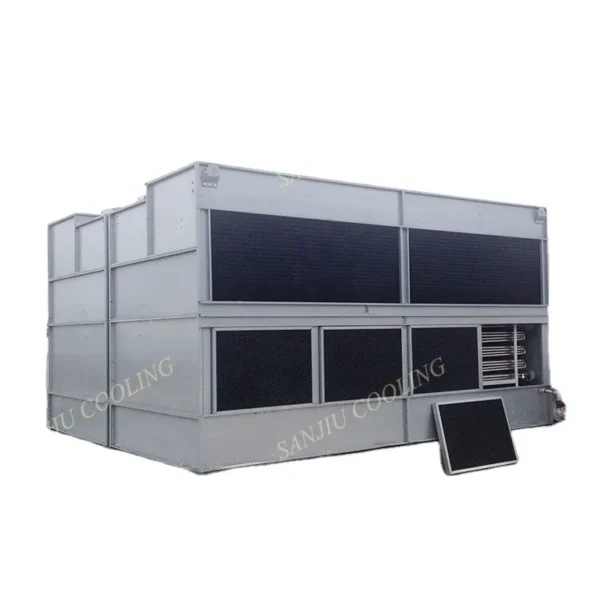

GHM Series Cross Flow Closed Water Cooling Towers

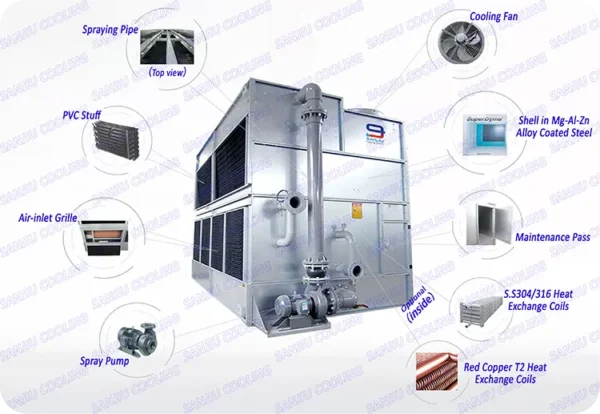

GHM Series is of capacities ranging from 25 to 300 tons/unit/hour, finished with alloy (Mg-Al-Zn) coated steel enclosure, stainless steel or copper heat exchange coils, and PVC fills. All raw materials are of virgin grade, with superior anti-corrosion features, and the longest service life in heavy duty environment. The enclosure can be also made in stainless steel 304 or 316L on customers’ request.
This series is of induced draft type. The cool air is inlet through a large surface of one side of the tower, then directed perpendicularly to the spray water flow through both the heat exchange coils and PVC stuff. Eventually the hot wet air is drawn upwards to the outside through the tower top removing the heat.

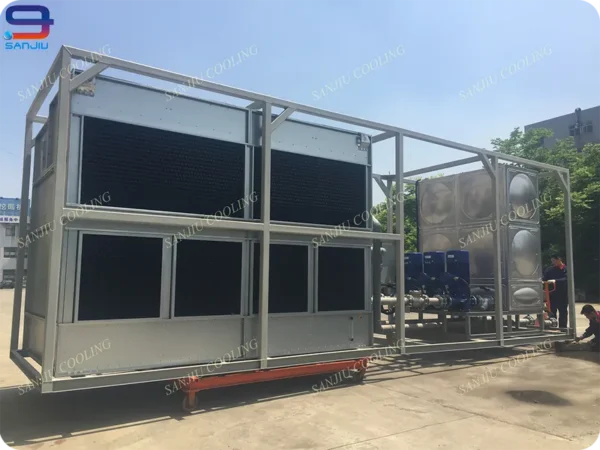

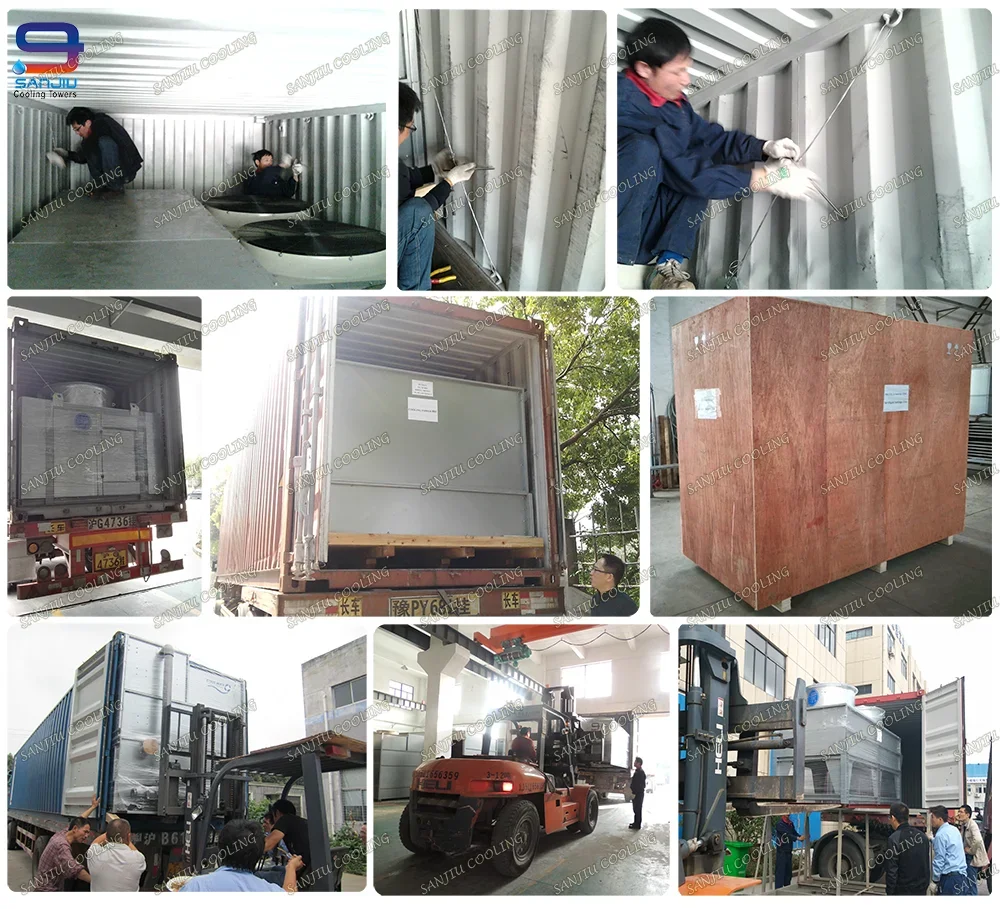

This cross-flow design is of high efficiency but lower initial and long term costs. Installation and maintenance is generally easy and economical. The towers dimensions can be customized to suit standard 20’ or 40’ containers to minimise delivery freight.
Closed Circuit Cooling Tower Quenching Bath Refrigeration Cooling Tower

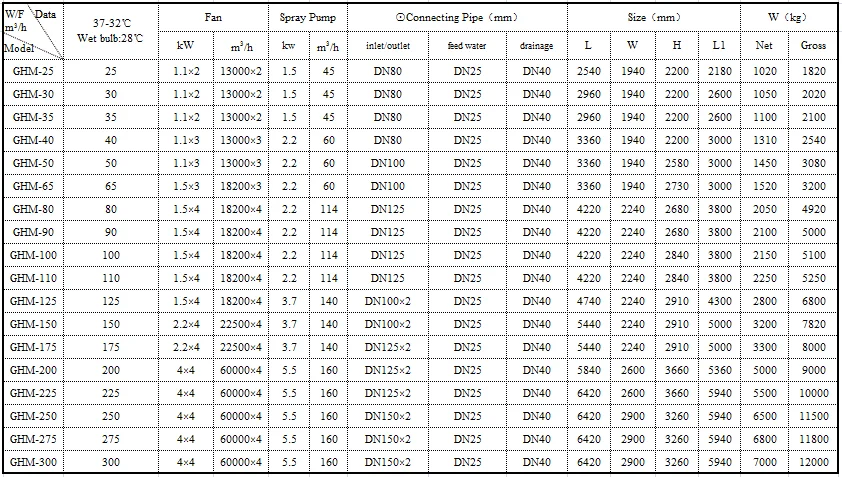

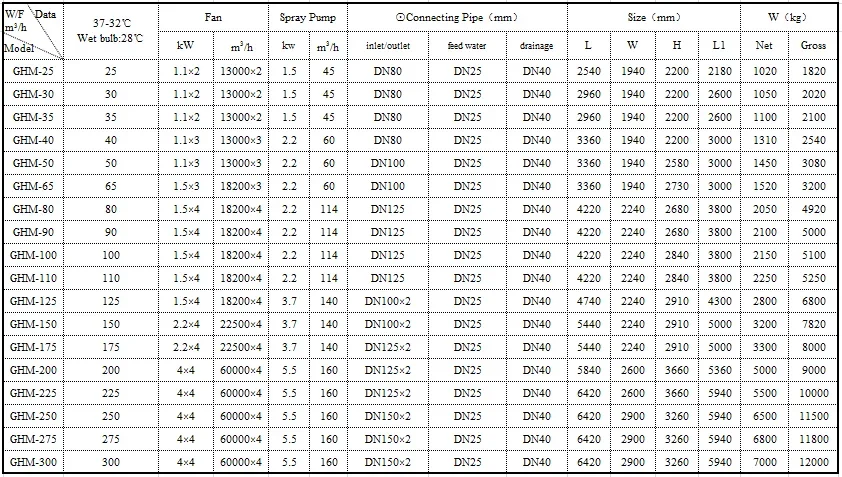

Note: All the data is under the condition of 28℃ wet temperature.
If any change of condition,the data will change.

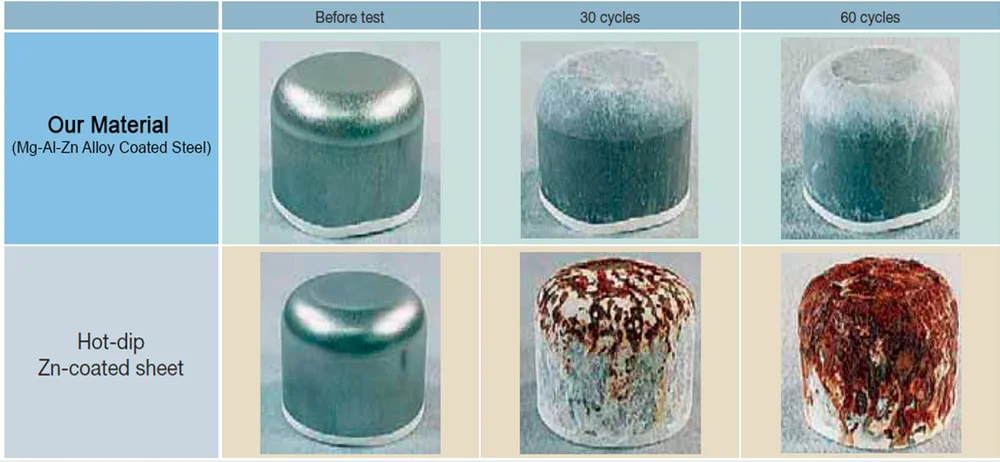

Closed water cooling tower shell is made in Mg-Al-Zn alloy coated steel, of "SuperDyma" series from company Nippon Steel, originally imported Japan. This special alloy coated steel is much better than galvanized steel in corrosion proof performance.
-Quick response in 12 hours
-Professional and economical cooling solution for every client
-Considerate and complete after sales service
| Application: | (Explanations: Where the cooling towers will be used for? e.g. for HAVC system, Air Compressors, Melting Furnaces, etc.) | |||
| * Water Flow Rate: | m³/h | (Explanations: How many Tons of water required per hour?) | ||
| * Inlet Water Temp.: | °C | (Explanations: Temperature of hot water to be cooled) | (also descriped as "water temperature drop") | |
| * Outlet Water Temp.: | °C | (Explanations: Temperature of cooled water, usually it shall be at least 3~4 °C higher than the wet-bulb temp.) | ||
| * Wet-bulb Temp.: | °C | (Explanations: Highest wet bulb temp. of the location/area or city to install the tower is essential to know to evaluate the size of towers) | ||
| * Power Supply: | (Explanations: 380V/3 Phases is standard, which we could have in stock, but for customized towers, the delivery time could be longer) | |||
For easier discussions, 24 hours on line service available: Angela is online: skype: oasanjiu Mob./WhatsApp: 13559666650
Many thanks for your interests, and your inquires are always well attended!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $5999 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this circuit cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this circuit cooling tower carry?
It is supplied with IS09001: 2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the circuit cooling tower be supplied for my local voltage?
The standard configuration is three phases, 380~480v, AC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuxi Sanjiu Cooling Equipment Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Wuxi Sanjiu Cooling Equipment Co., Ltd. range on HVACR Nexus.
