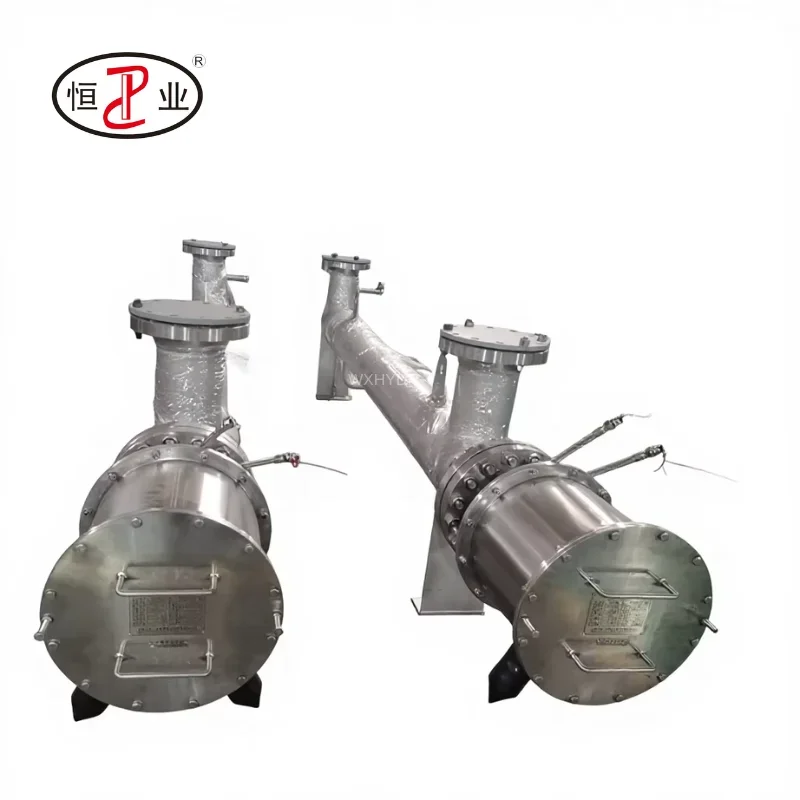

The circulation air heater listed here carries 380 V, 230KW Custom, documented exactly as the manufacturer publishes it. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Circulation Air Heater
- Power Source: Electric
- Voltage: 380 V
- Heating Capacity: 230KW Custom
- Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Pipeline Heater |
|---|---|
| Power Source | Electric |
| Voltage | 380 V |
| Material | Stainless Steel |
| Core Components | Pressure Vessel, Thermostats, Heating elememts |
| Key Selling Points | High-Accuracy, Easy To Operate, Eco-Friendly, Long Service Life, Automatic, Energy Saving, Accurate Temperature Control |
| Temperature Range | High-Temperature |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | 230KW Custom |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 500 |
| Brand Name | Hengye |
| Dimension(L*W*H) | Customizable |
| Working Temperature Range | 0 – 250 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
along the scientific designed path inside the electric heater. As a result, the temperature in the outlet of the heater can reach the process required temperature.
Model | Rated Power （KW） | Rated Voltage （V） | Rated Current （A） | Phase Number | Switch Capacity | Dynamic Cable Clamping Device Specification | Control Cable Clamping Device Specification | |||||
PGQ-□-10 | 10 | 380 | 15 | 3 | 25 | G1 | G3/4 | |||||
PGQ-□-100 | 100 | 380 | 150 | 3 | 225 | G3 | G3/4 | |||||
PGQ-□-200 | 200 | 380 | 300 | 3 | 400 | G3 | G3/4 | |||||
PGQ-□-300 | 300 | 380 | 450 | 3 | 630 | G3 | G3/4 | |||||
PGQ-□-400 | 400 | 380 | 600 | 3 | 1000 | G3 | G3/4 | |||||
PGQ-□-500 | 500 | 380 | 750 | 3 | 1250 | G3 | G3/4 | |||||
PGQ-□-800 | 800 | 380 | 1200 | 3 | 1600 | G3 | G3/4 | |||||
PGQ-□-1000 | 1000 | 380 | 1500 | 3 | 1250*2 | G3 | G3/4 | |||||
PGQ-□-1500 | 1500 | 380 | 2250 | 3 | 1250*3 | G3 | G3/4 | |||||
PGQ-□-2000 | 2000 | 380 | 3000 | 3 | 1250*4 | G3 | G3/4 | |||||
PGQ-□-2500 | 2500 | 380 | 3750 | 3 | 1250*5 | G3 | G3/4 | |||||
PGQ-□-3000 | 3000 | 380 | 4500 | 3 | 1600*5 | G3 | G3/4 | |||||
Heat effiency is near 100%, working Voltage and Phase line are base on your needs. | ||||||||||||
Heating Elements material and accessories customizable base on your needs | ||||||||||||
As products are customized, Please kindly tell us your brief project information, your request industrial heating equipment design
Technical Parameters detail such as heating medium(gas, liquid, etc), rated power, Explosion-proof grade, Design
Temperature,Design pressure,Corrosion Allowance,installation method,etc.
What kinds of customization could you offer?
Drawing-based customization,Full customization, ODM&OEM
What is your payment terms?
T/T,L/C
What is the lead time?
Generally, it will takes 3-4 months based on your quantity of order after receipt of your payment and customization confirmation.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this circulation air heater?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the circulation air heater be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuxi Hengye Electrical Heater Equipment Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wuxi Hengye Electrical Heater Equipment Co., Ltd. range on HVACR Nexus.
