Cold Room Deep Freezer, 220, 8.8KW

The cold room deep freezer listed here carries voltage 220 /380 /400V, 8.8KW, 5.4 kW, documented exactly as the manufacturer publishes it. Made by Shanghai Beis Industrial Co., Ltd. (6 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Cold Room Deep Freezer

• Model Number: BC-31
• Power: 8.8KW, 5.4 kW
• Voltage: 220 /380 /400V
• Refrigerant: R-22 R-404A R-407 R-408 R-507
• Noise Level: 40-60dB
• Warranty: 1 Year

Technical Specifications

Product Details

Main Components Specifics

• • Cold room cold storage structure:

  • PU and PIR insulated sandwich panel

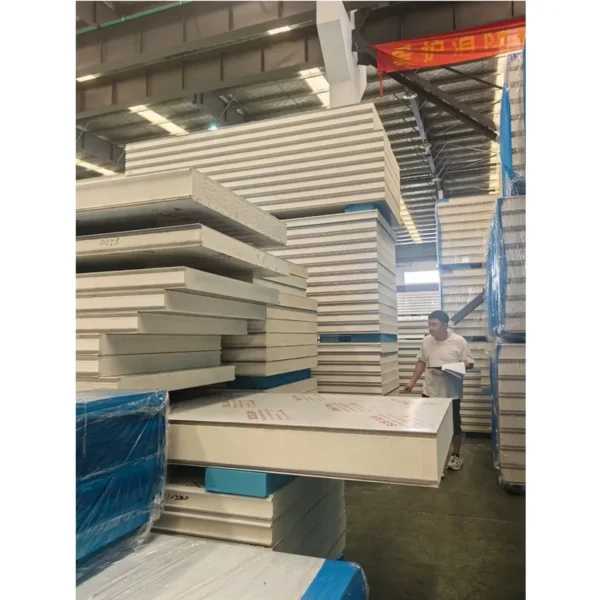

Cold Room PU Panel and PIR Panel

The cold room is covered by the polyurethane sandwich panels(PU panel or  PIR panels), the PU sandwich panel  which has good heat insulation and higher intensity, and can efficiency reduce the heat transmission waste caused by difference in the internal and external temperatures .

• Cold Room PU Panel and PIR Panel Feature

•


1.Fire proof grade : B1-B2 grade;
2.Certification : FM certification and IS0 9001;
3.Waterproof : rate <4%,40-42kg/m3 density;
thickness:,50mm, 100mm, 150mm, 200mm with two sides 0.426mm or 0.5mm thickness color steel / stainless steel (more thickness options)
5.Material: Polyurethane Panel (B1 / B2 ), environmentally friendly.
6.Door Option: Swing Door / Sliding Door / Hing Door option

Panel title	PU sandwich panel  or PIR sandwich panel
Material	Polyurethane foam inside and outside color steel, stainless steel or aluminum sheet
Thickness	50 mm / 100 mm / 150 mm / 200  mm
Panel Length	commonly under 12 meter (concerning the container size)
Density	42 kg/m³
Fire retardant	B1 or B2 grade

XPS panel （Extruded panel description）

Cold room XPS panel

Cold storage XPS panel

Flooring choose 50 mm thickness

2 and 3 layer XPS extruded board, cross place,

class B2 or B1 flame retardant

compressive strength ≥ 350 kPa

Excellent heat preservation and insulation

Cold room door

Cold room door contains many series:

1. Including hand style and automatic style

2. The opening style including the swing door, sliding door, CA cold room door

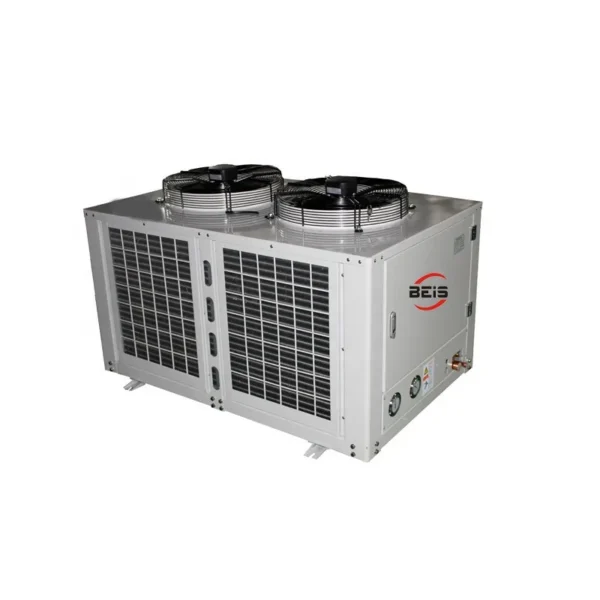

Compressor and Evaporator

We are using German Bitzer compressor, America Copeland compressor, Tecumesh compressor, Italy Frascold compressor and many more other compressor and evaporator brands as customer requirement

Application

Cold Storage/Cold Room (PU panel, XPS flooring, Compressor condensing unit)

Hotels and Restaurant, hospitals and blood bank, poultry slaughter, aquaculture and mushroom cultivation areas.

Pharmaceutical processing and logistics, beverage production and processing storage, beer production and cooling cold storage or cold room.

large-scale logistics Storage, injection molding, machine cooling, chemical product cooling, medical using areas.

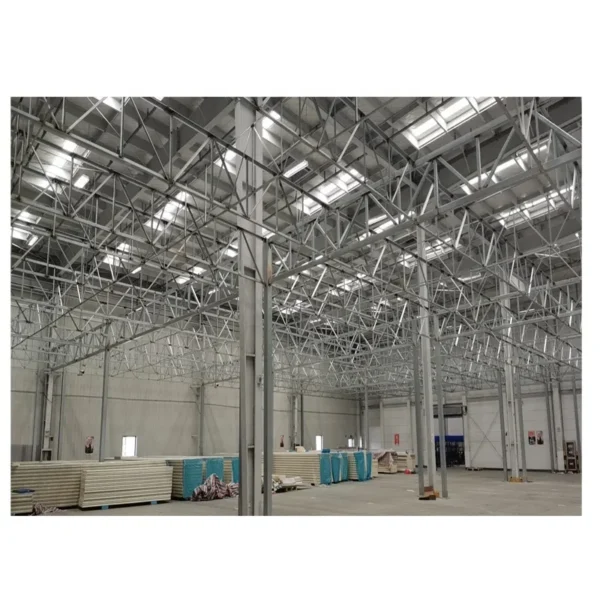

Overseas Project showcase

Uzbekistan government food chain cold storage project

1. Project Simple Introduction:

2. Completion Time: 40 days

3. Installation team: we 8 members + customer 10 members

4. Scales: 5000 M2 / height 6 m

5. Our technicians are working and eating with customer members reference photos

Cambodia Cold Storage Plan

1.1 Project Title: Cambodia Cold Storage 1.2 Project Location：Cambodia

1.3 The scheme follows the principle of "safety, efficiency and energy conservation" and takes into account the user's investment orientation, usage demand, local climate conditions and other aspects to achieve the optimal investment cost and efficiency ratio； Adopting "new technology, new equipment, new process and new material", the system is intelligent, the labor force is light and comfortable, the system is efficient and energy-saving, and the system risk is prevented。 The Cooling System design plan, which concerns the local ambiance, natural condition

Singapore Cold Storage Project

Project Simple Introduction: Completion Time: 40 days Installation team: four members Scales: 1000 M2 / height 4.5m

Canada Food Chain Project

1.1 Project Title: Canada Cold Storage 1.2 Project Location：Canada 1.3 Project Holder：MR David 1.4 Project Scale(height)：Cold Room Part : Chiller room and Freeze Room temperature: -5℃/-18℃

1.5 Construction Content：As the customer request, that all facilities and related materials reaching the Europe standard and CE
certificate. Compressor units are using the Spanish Kide Brand, JX insulated panels. The installation process goes smooth,
customer arrange local workers that join install together, this push the installation speed, and the work highly proud by
customers.The below photos are the project related pictures:

Related Products

Company Profile

Shanghai Beis Industrial Co., Ltd

Our projects and products in China domestic and overseas customers across the world.

Thousands of completed cold room projects and commercial refrigerators dealing with 40 countries more.

Our main overseas market for reference

Shanghai Beis Industrial Co., Ltd is located in Shanghai China. Which is a group company that professionally producing commercial refrigeration and cold room one-stop solution business. We provide the customized products including OEM and ODM services.

Our commercial refrigeration business contains the commercial refrigerator, kitchen refrigeration, chest
freezer, beverage and back-bark cooler. Our product are certified with CE, ROHS, SASO, NSF, ISO 9001.

And now our products have sold more than 40 countries. Various new design collections and cold room projects are coming out each month. The factory owns the proficient skill and updated machines.

Our Services & Strength

Cold room cold storage one-stop solution constructor, commercial refrigeration equipment manufacturer, PU sandwich panel, compressor condensing unit and evaporator designer and producer. cold room light, door and related components maker

FAQ

Please send your enquiry including the information as below(Cold room/Cold storage):

1. What is your cold room/cold storage used for?
Example: Vegetable / Fruit / Fish / Medical usage

2. What the temperature required?
Example: If you know what the temperature required for your storage goods, tell us. if don't know, tell us what does the cold room used for? we will recommend the cold room temperature for you

3. What is the cold room size and how many tons of goods would be put inside?
Example: 10*10*4 mm and 100 tons fish / 15*45*4 mm and 500 tons vegetables

4. What countries votage/phase/hertz?
Example: 400v/3/60hz or 380/3/50hz

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–3 set: US $1280 / set
  • 4–6 set: US $1000 / set
  • 7+ set: US $800 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cold room deep freezer?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the cold room deep freezer be supplied for my local voltage?

The standard configuration is 220 /380 /400V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shanghai Beis Industrial Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shanghai Beis Industrial Co., Ltd. range on HVACR Nexus.
