Cold room floor panel — 220V-240V, material Fireproof board. The complete factory specification follows. Made by Foshan Haiyao Frozen Equipment Co., Ltd. (10 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cold Room Floor Panel
- Model Number: Customized
- Power Supply: 220V-240V
- Voltage: 380-415v,50/60hz
- Material: Fireproof board
- Foaming Material: Bayer
- Refrigerant: R404a
Technical Specifications
| Climate Type | N-ST |
|---|---|
| Type | Cold room |
| Installation | Freestanding |
| Temperature Control | Digital Control |
| Cooling System | Fan Cooling |
| Power Supply | 220V-240V |
| Material | Fireproof board |
| Appliance Type | Beverage Cooler, Undercounter Refrigerator, Merchandiser Refrigerator, Drawer Refrigerator, Chef Base, Compact Refrigerator, Reach In Refrigerator |
| Style | Single-Temperature |
| Energy Efficiency Rating | Level 2 Energy Efficiency |
| Number Of Shelves | As needed Provided |
| Number Of Doors | 3 Door, 4 Door, 1 Door, 2 Doors |
| Defrosting | Automatic Defrost |
| Special Feature | Refrigerated storage |
| Refrigerator Style | Upright |
| Freezer Type | Upright |
| Control Type | Digital, Electronic |
| Cooling Mode | AIR COOLING |
| Plug Type | Us Plug, Japanese Plug, Swiss Plug, European Plug, Australian Plug, British Plug |
| Voltage | 380-415v,50/60hz |
| Model Number | Customized |
| Place Of Origin | Guangdong, China |
| Brand Name | HaiYao |
| Dimensions | Customized |
| Refrigerant | R404a |
| Panel Thickness | 50mm,75mm,100mm,150mm,200mm |
| Type Of Door | Hinge door, convex door, sliding door |
| Foaming Material | Bayer |
| Temperature Range | -40 C to +20 C |
| Product Type | Polyurethane Insulation Cold Storage |
| Application Of Industry | Food Industry |
| Compressor | Copeland Bitzeror Tecumseh |
| Condition | New |
| Selling Units | Single item |
| Single Package Size | 580X230X240 cm |
| Single Gross Weight | 1060.000 kg |
Product Details

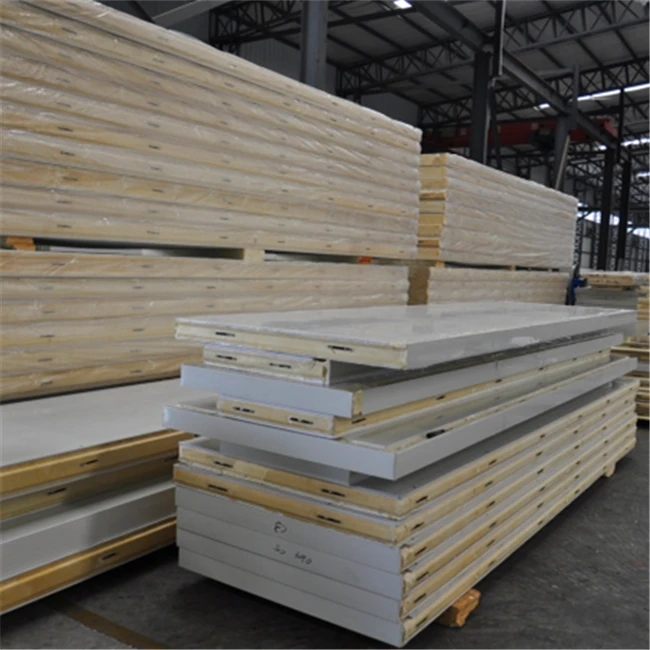

Good quality cold room floor panel wall panel with cam lock
Features
1. The cold room panel is durable in use, color lasting & coated layer keeping.
2. It is made with Bayer polyurethane material by high pressure foaming. The cold room panel
density is up to 40kg/m3 or above.
3. The internal cold room floor panel of our cold room is made by 1.0mm galvanized steel
and durable for anti-scratch.
4. The hinged door panel of our cold room is made by heavy duty door hinge, heavy duty door lock and hydraulic door closer.
5. The connection of our cold room panels are made with PE sealing rubber which is with high
quality sealing.

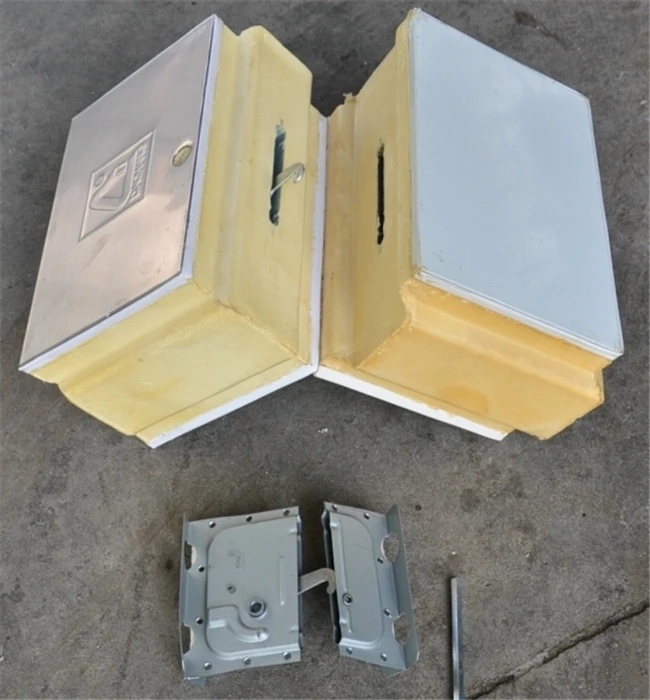

6. The connection of our cold room is with cam lock construction and excentric fasteners for tight connection and sealing of the cold room.
Polyurethane panels specification

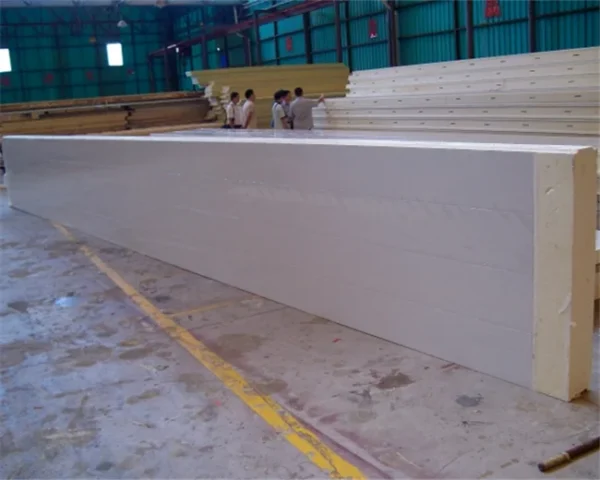

Standard Coldroom is Polyurethane panels are of 100% Polyurethane insulation, they have certain dimension, standard width is 1183mm, the maximum length is 12 meter. Equipped with highly efficient refrigeration units. Panel has a flame retardant.
Standard Coldroom is Polyurethane panel steel finish.
A. Stucco embossed aluminum
B. Stainless steel
C. Painted galvanized steel
D. PVC steel
Panel thickness
Panel THK(mm) Operating Temp.
50mm 5C (or above)
75mm -5C(or above)
100mm -25C (or above)
150mm -45C (or above)
200mm -55C (or above)
Our panel advantage
1. Our panel foaming material is Italy Brand BASF . The whole panel average density above 40kg/m3 which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in .
Pictures

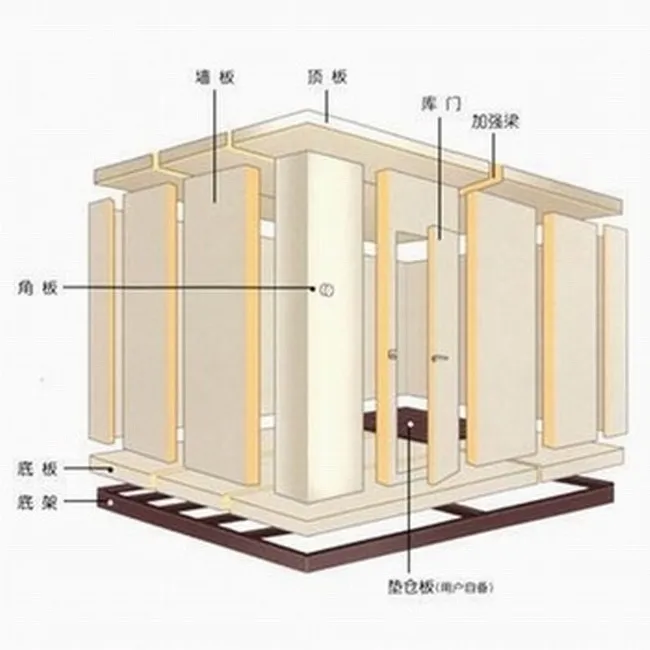

EASY TO ASSEMBLE AND DISASSEMBLE

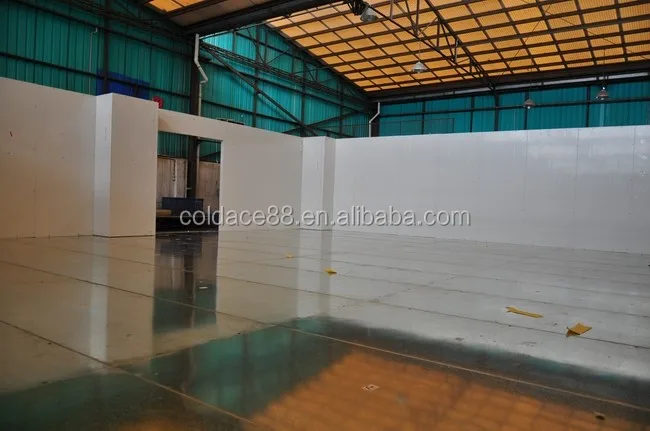

GALVANIZED STEEL FLOOR

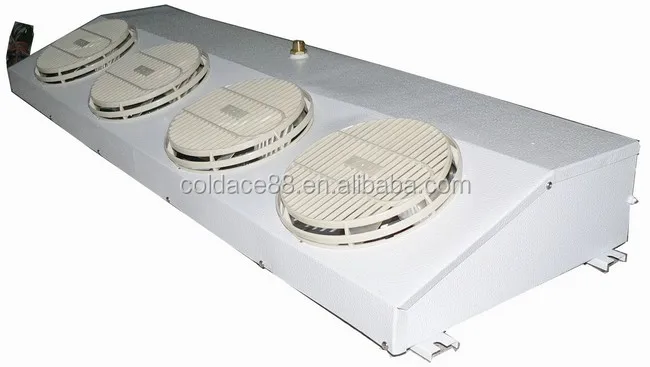

4 FANS VAPORATOR
COPELAND COMPRESSOR UNIT
We are a manufacturer which mainly deals with researching, developing, manufacturing of Cold room, Refrigeration Equipments and kitchen equipment. For many years of development, we have been established our own researching and developing department and quality control system. We focus on each kind of product, in order to make more excellent products to our customer. Our major products are Cold storage, Refrigeration Equipments, Cold Room Equipments, Bench Refrigeration, cake display showcase, Upright showcase, ice cream display showcase,solar power fittings and Kitchen Refrigerators etc.
1. Can I make an order with mixed product?
Yes, our MOQ( minimum order quantity) is one piece / set / unit.
2. Can I use my logo?
Yes, we accept customers' logo for OEM order.
3. Can I customize the products?
Yes, please contact us for your custom designs.
4. How about the warranty?
The warrenty of the products from us is one year.
If your order is enough, we would like to give away 1%-2% accessories.
5. How can I pay?
We accept T/T, L/C or other payment terms.
6. How about the lead time?
We need about 15-30 days to prepare products.
7. What is the best price you can offer?
The best prices depend on the order quantity. Please leave us a message with your purchase details, such as QUANTITY, VOLTAGE, SPECIFICATION etc. We will respend you as soon as possible within 24 hours.
8. Can not find your favorite?
We are a professional manufacturer in this industry. We would like to provide full solution for OEM clients.
Ordering and Pricing
- Minimum order quantity: 100 square meter
- Volume pricing:
- 100–999 square meter: US $29 / square meter
- 1000+ square meter: US $27 / square meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cold room floor panel?
The standard minimum order quantity is 100 square meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the cold room floor panel be supplied for my local voltage?
The standard configuration is 220V-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
