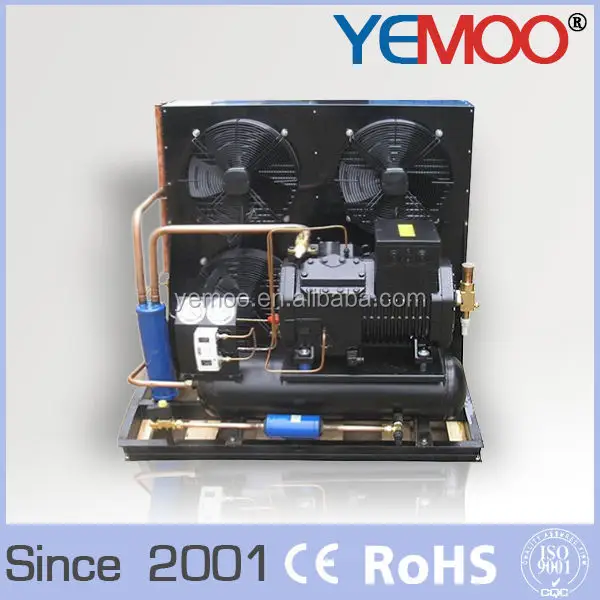

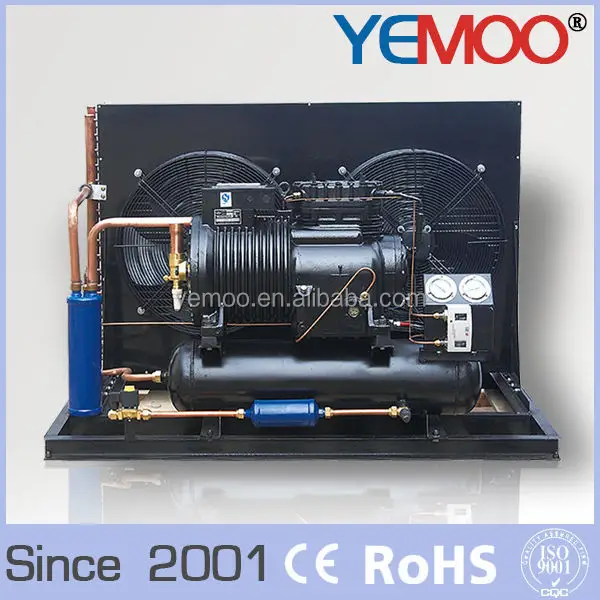

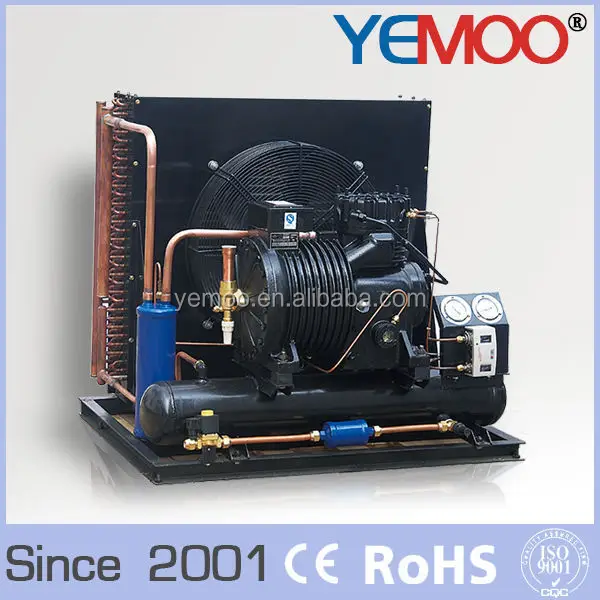

Cold room refrigeration unit — 380V-420V / 50Hz / 3 phase, power source AC Power. The complete factory specification follows. Made by Hangzhou Yemoo Refrigeration Equipment Co., Ltd. (13 years on the platform, typical reply ≤7h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cold Room Refrigeration Unit
- Model Number: YMB4-100A
- Horsepower: 10HP
- Power Source: AC Power
- Voltage: 380V-420V / 50Hz / 3 phase
- Refrigerant Gas: R22,R404a,R507a or R134a
- Warranty: 1 year guarantee
Technical Specifications
| Place Of Origin | Zhejiang, China |
|---|---|
| Model Number | YMB4-100A |
| Brand Name | YEMOO |
| Warranty | 1 year guarantee |
| Voltage | 380V-420V / 50Hz / 3 phase |
| Horsepower | 10HP |
| Cylinders Of Compressor | 4 |
| Refrigerant Gas | R22,R404a,R507a or R134a |
| Power Source | AC Power |
| Range Of Eva. Temp. | -5 ~ -40℃ |
| Fitting Enviroment Temp. | -10 ~ 45℃ |
| Gross Weight (KG) | 315 |
| Other | mono block air cooled cold room refrigeration condensing unit |
| Packaging Details | Carton/ plywood/ Wooden case |
| Port Of Dispatch | Shangai / Ningbo |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 2000 pieces per Month |
Product Details
Characteristics:
1.Mono block air cooled cold room refrigeration condensing unit for medium & high temperature (environment +12oC~ -10 oC)
2.Mono block air cooled cold room refrigeration condensing unit for low temperature & frozen environment (-10 oC ~ -30 oC)
3.Equipped with YEMOO semi-hermetic piston compressor
4.Air cooled condensers are punched by high velocity ram machine. Folded by secondary operation :condenser coils are expanded by mechanical tube expansion to obtain high heat exchanging capacity.

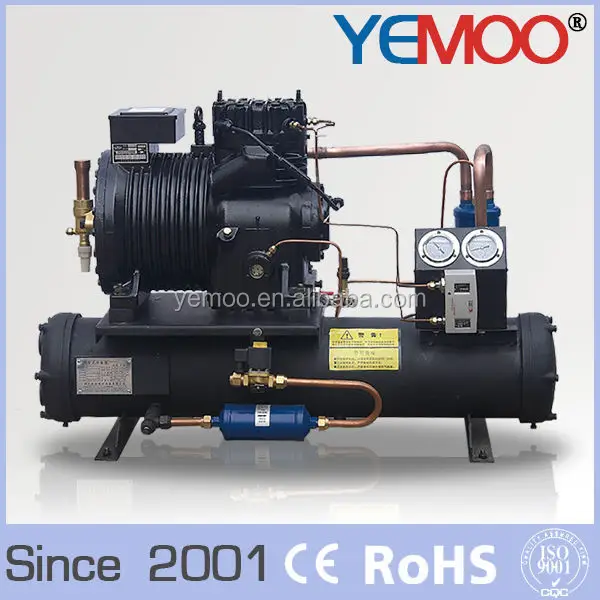

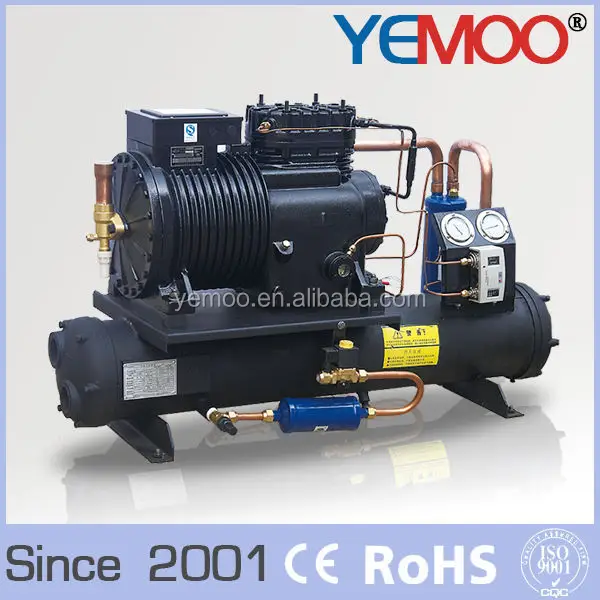

5.Shell &tube water condensers use high efficient wire-whorled copper pipes which can highly increase condensers’ heat exchanging efficient. Take small volume and keep light weight All condensers are produced and inspected strictly based on “Pressure Vessel of Refrigeration equipment” to ensure products’ quality.
6.Equipped with well-known brand of refrigeration parts:
1)Normal configuration: filter drier, solenoid valve, double pressure controller, high & low pressure meter.
2)Standard configuration :vibration absorber, oil separator, filter drier, sight glass. solenoid valve, double pressure controller, high & low pressure meter.
7.We offer additional parts to meet your special requests.
Other components:
Receiver, solenoid valve, dry filter, sight glass, higher pressure meter, low pressure meter, pressure controller, unit frame
Optional components:
Shock absorber, oil separator, gas liquid separator
If you need any further information, please feel free to contact us.
We offer customize service, OEM welcomed!
| Technical data | Air cooling condensing unit for low temperature | ||||||||
| Unit model | YMB4-030A | YMB4-040A | YMB4-050A | YMB4-080A | YMB4-100A | YMB4-150A | YMB4-200A | YMB6-300A | YMB6-400A |
| Compressor model | YMB4-030 | YMB4-040 | YMB4-050 | YMB4-080 | YMB4-100 | YMB4-150 | YMB4-200 | YMB6-300 | YMB6-400 |
| Norminal motor power (KW) | 2.2 | 2.94 | 3.67 | 5.88 | 7.35 | 11.02 | 14.7 | 22 | 29.4 |
| Refrigerant | R22/R404A/R507C/R134A | ||||||||
| Power | 380~420V-3PH-50Hz | ||||||||
| Range of Eva. Temp.(oC) | -5 ~ -40 oC | ||||||||
| Fitting environment Temp.(oC) | -10 ~ -35 oC | ||||||||
mono block air cooled cold room refrigeration condensing unit

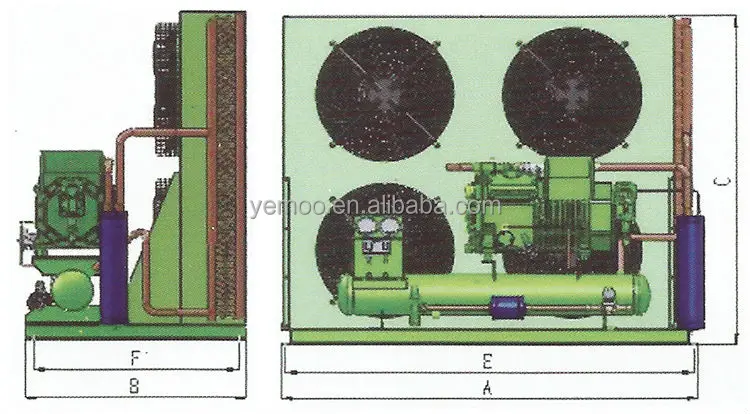

| Dimension and installing dimension | Condenser | Receiver | Dimension | Installation Size | Connecting tube | Weight | ||||
| Air Cap. | Volume | A | B | C | E | F | Air Inlet | Liquid | ||
| Model | M3/h | dm3 | mm | mm | mm | mm | mm | Ø(mm) | Ø(mm) | kg |
| YMB4-030A | 6000 | 6 | 1010 | 710 | 570 | 960 | 445 | 22 | 12 | 133 |
| YMB4-040A | 6000 | 8 | 1010 | 710 | 570 | 960 | 445 | 28 | 12 | 139 |
| YMB4-050A | 6000 | 10 | 1010 | 710 | 680 | 960 | 445 | 28 | 12 | 165 |
| YMB4-080A | 7200 | 17 | 1240 | 795 | 1000 | 1140 | 755 | 35 | 16 | 298 |
| YMB4-100A | 12000 | 17 | 1240 | 795 | 1100 | 1140 | 755 | 35 | 16 | 315 |
| YMB4-150A | 12000 | 22 | 1240 | 845 | 1200 | 1140 | 805 | 42 | 22 | 391 |
| YMB4-200A | 24000 | 25 | 1600 | 925 | 1200 | 1500 | 885 | 54 | 22 | 454 |
| YMB6-300A | 27000 | 40 | 1300 | 460 | 800 | 1260 | 420 | 54 | 22 | 349 |
| YMB6-400A | 36000 | 45 | 1440 | 460 | 800 | 1000 | 420 | 54 | 28 | 367 |
mono block air cooled cold room refrigeration condensing unit

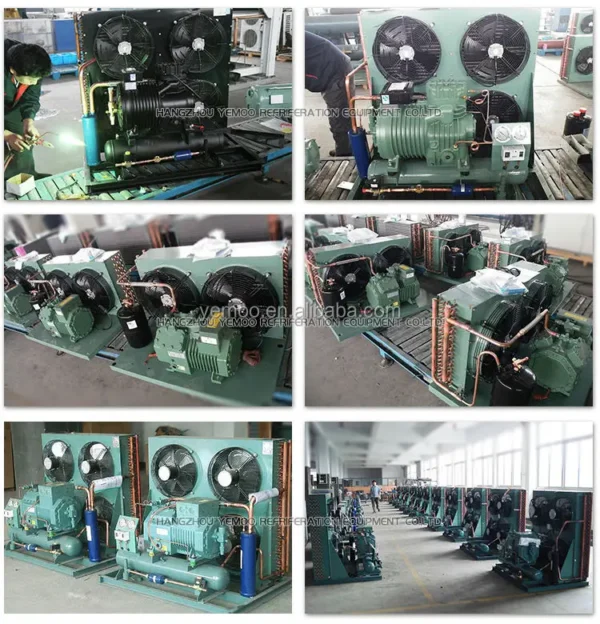

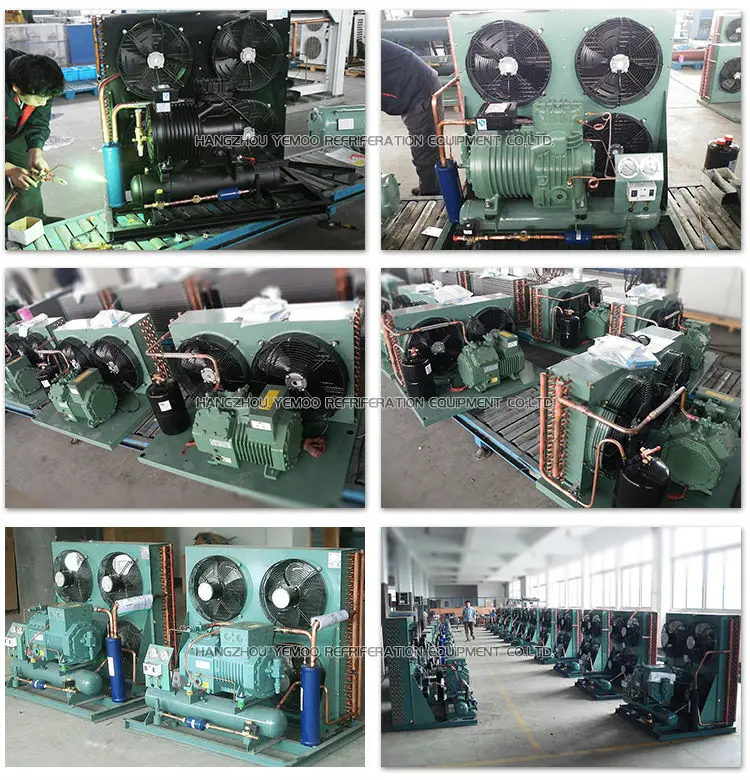

1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.
2.We insist on innovation,purchasing the international quality materials,strong technique support,strictly control the production.
3.We firmly believe quality first,perfect production responsibility system.
4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.
So,what Yemoo can support you ? It’s best price ratio products,perfect after-sales service guarantee.
Yemoo’s value is what we supply you is not only products,but also creating you most value.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cold room refrigeration unit?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year guarantee warranty. Spare parts and technical support remain available after the warranty period.
Can the cold room refrigeration unit be supplied for my local voltage?
The standard configuration is 380V-420V / 50Hz / 3 phase. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
