Key specification for this cold room storage: 380V/3P/60HZ, 61.8KW. Everything below is reproduced from the factory data sheet. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cold Room Storage
- Voltage: 380V/3P/60HZ
- Cooling Capacity: 61.8KW
- Refrigerant: R404A/R507A
- Warranty: 1 Year
- Place Of Origin: Anhui, China
- Feature: Container
Technical Specifications
| Compressor Brand | Bitzer |
|---|---|
| Voltage | 380V/3P/60HZ |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Feature | Container |
| Video Outgoing-Inspection | Provided |
| Core Components | compressor, condenser, evaporator |
| Key Selling Points | High-Accuracy |
| Place Of Origin | Anhui, China |
| Brand Name | Meluck |
| Dimension(L*W*H) | 10*10*3 |
| After-Sales Service Provided | Overseas service center available |
| Refrigerant | R404A/R507A |
| Compressor | Bitzer |
| Compressor Type | Semi-hermetic |
| Color | Blue+Green |
| Cooling Capacity | 61.8KW |
| Cooling Water | 19m3/h |
| Cooling Type | Water-cooled |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

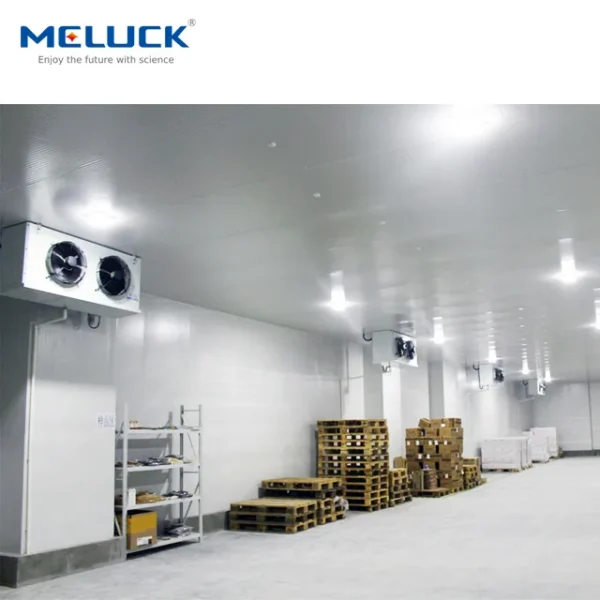

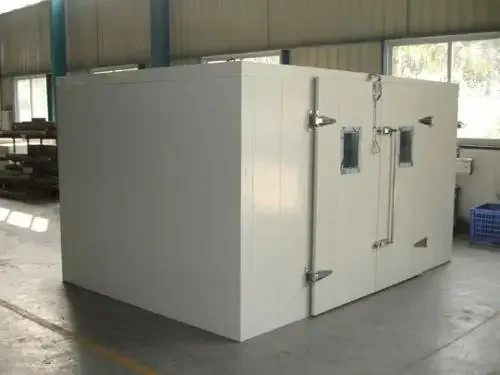

| Walk in Chiller Room | Walk in Freezer Room | Walk in Blast Freezer Room |
 |  |  |
| Chiller Room: -5~15C, most kind of fruits,vegetables,eggs,flowers,processing workshop,beer,beverage can keep storage in good quality within this cold room. | Freezer room:-23~-15C,frozen meat,fish,chicken,ice cream, seafood after frozen in blast freezer room can be kept in freezer room. | Blast freezer room: Blast Freezer room (also called blast freezer, shock freezer) is with lower storage temperature from -40°C to -35°C, it is equipped with more thicker doors, PU panels and more powerful condensing units than normal cool room. |

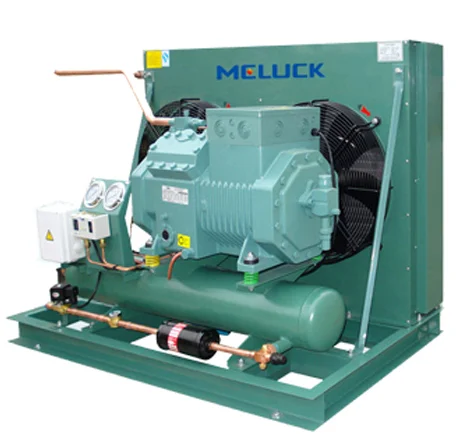

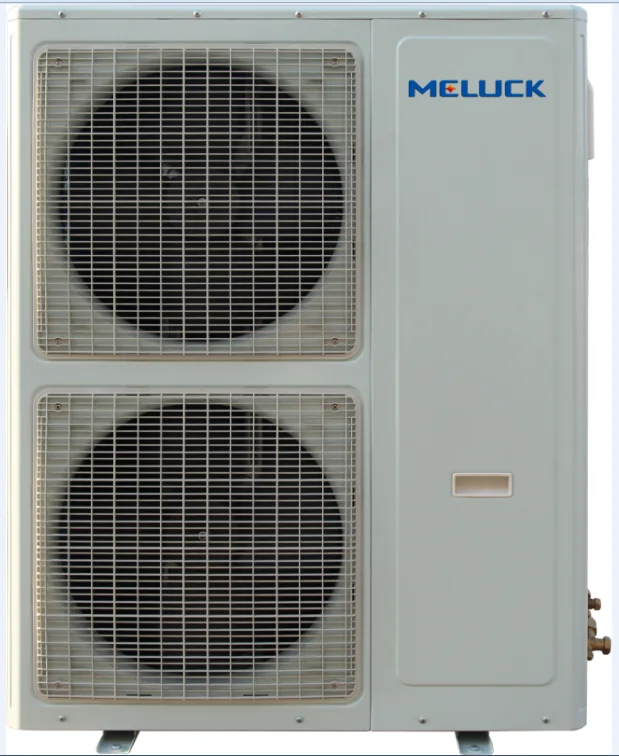

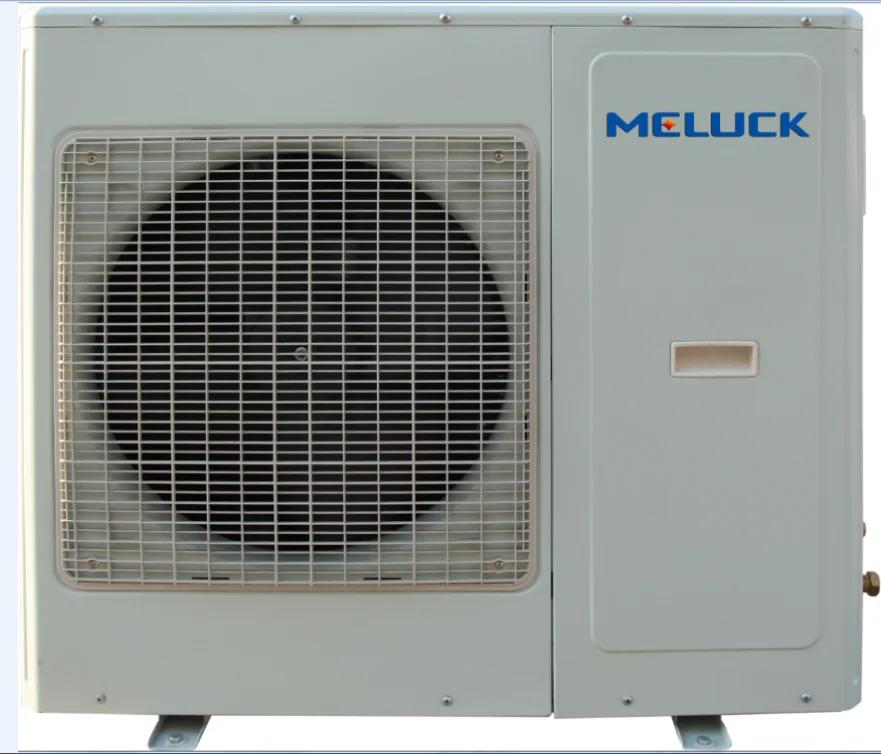

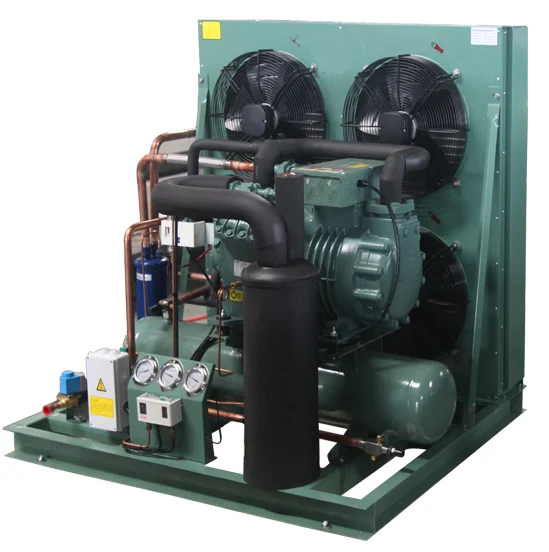

| Condensing Unit |

|
•Compressor Optional:1-Hermetic Copeland Scroll 2-Bitzer semi-hermetic or Screw •Condenser:Air cooled or Water cooled(for higher ambient temperature) •Frame:can be stell shell with spray painting or open type on stell frame •Voltage:Copeland scroll-220V/1PH/50HZ or 60HZ 380V-415V/3Ph/50HZ or 60HZ Bitzer:220V~415V/3PH/60HZ •Refrigerant:R22/R404a/R410a •Capacity:Singe compressor 2HP-50HP
|

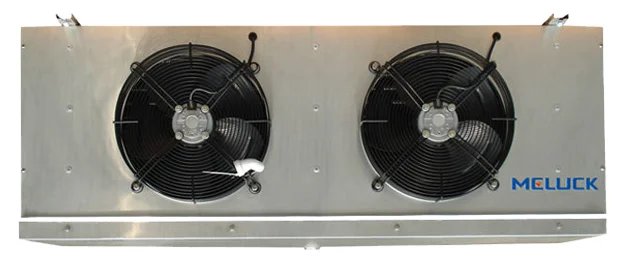

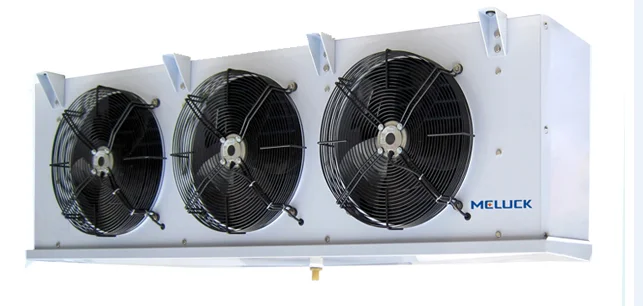

| Evaporator |
| • Shell: Stell with spraying,Aluminum,SS304 •Temperature:DL -5~5C(fin space 4.5mm) DD -15~-20C(fin space 6.0mm) DJ -25C(fin space 9.0mm) •Fan:EBM,Weiguang,Maer
|
|
| Installation Components |

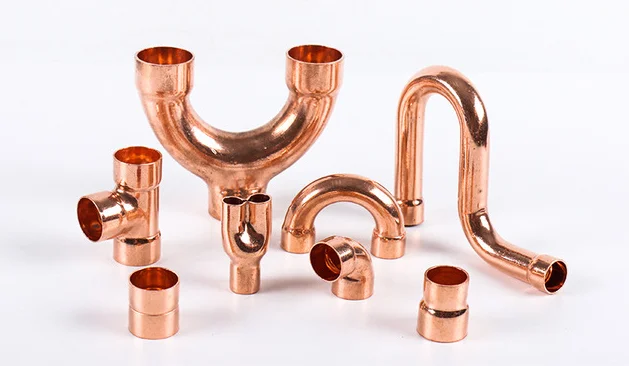

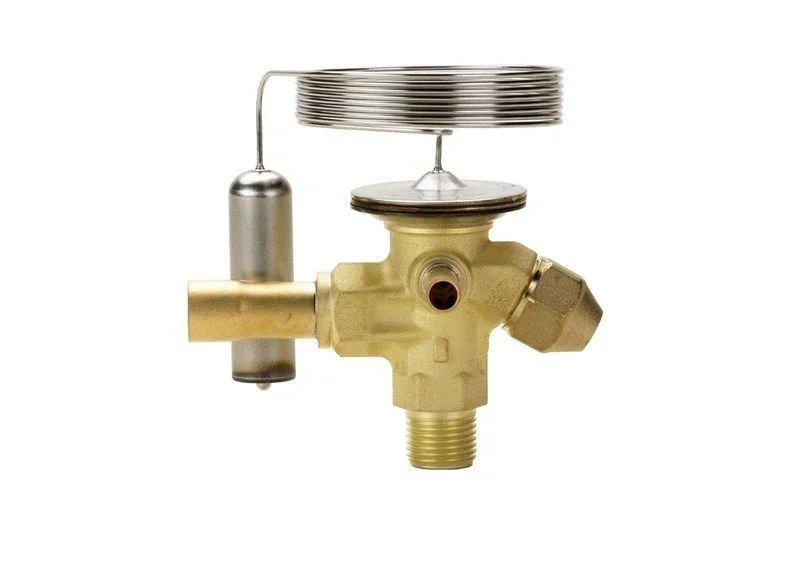

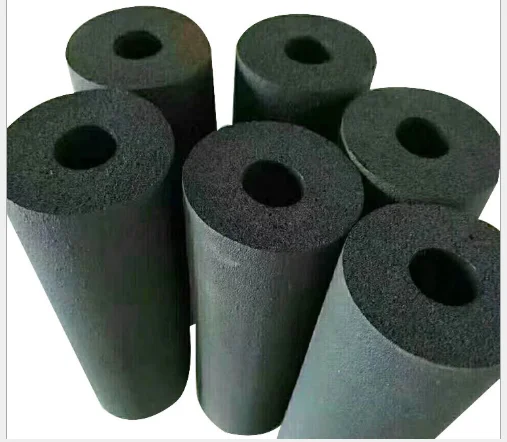

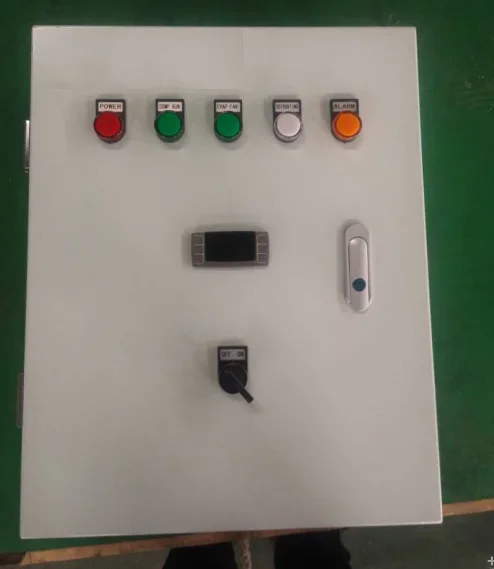

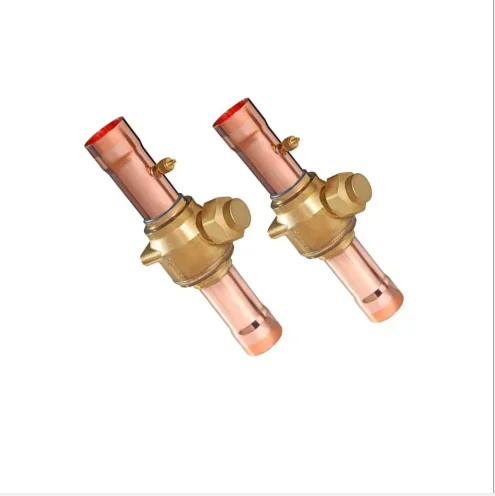

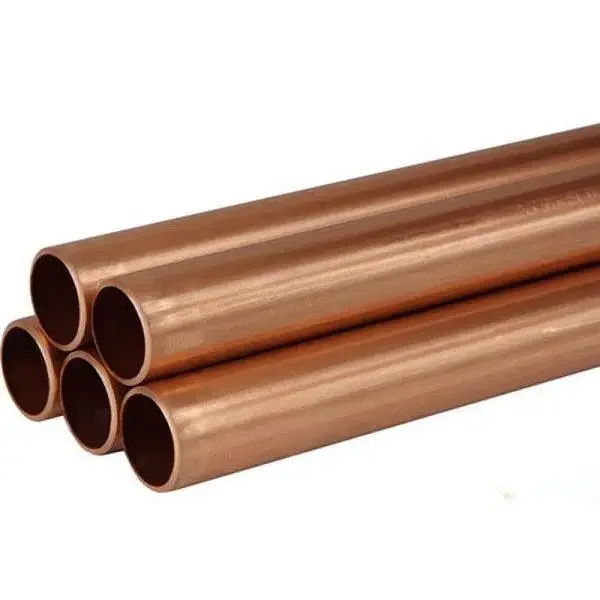

| Copper tubes,Valves,Connections,Electric Controller box,Expansion valve,Insulation cotton | |
| PU Insulation Panel
•Thickness: 50MM,75MM,100MM,120MM,150MM
•Cover:Steel painting,SS304,SS316,Aluminum
•Density:38-42kg/m³
•Fireproof:B1(PIR) or B2(PUR) |  |
  |

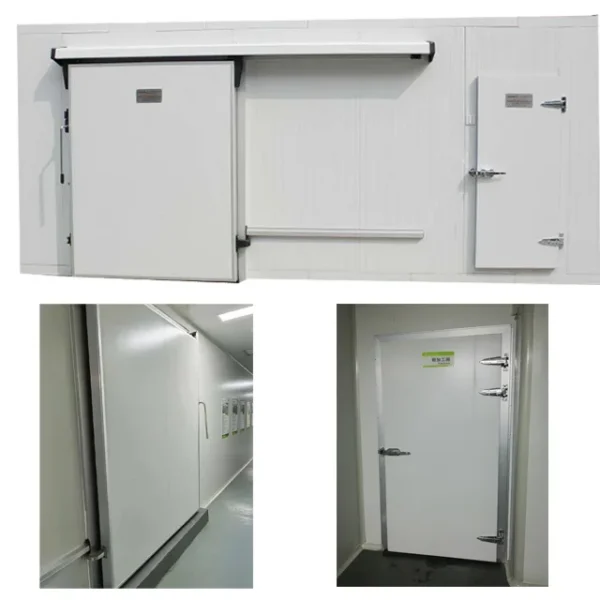

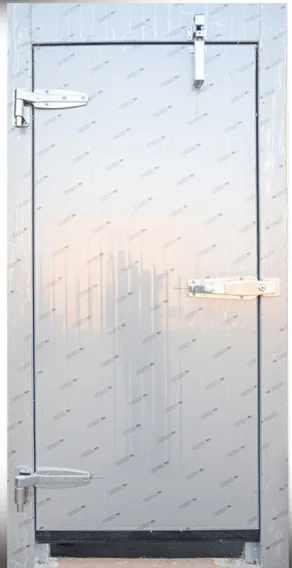

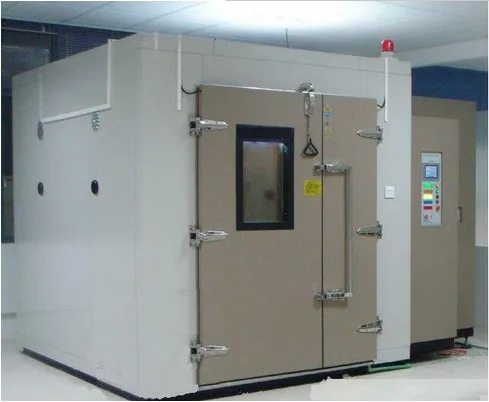

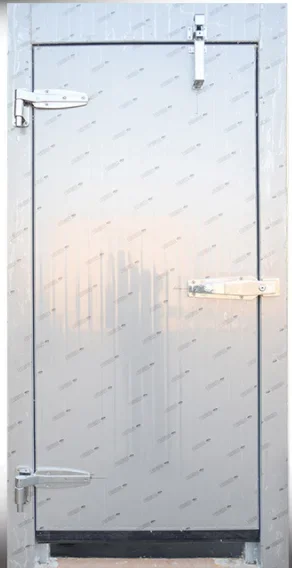

| Door: Hinged door, Manual or Electric control Sliding door |
     |

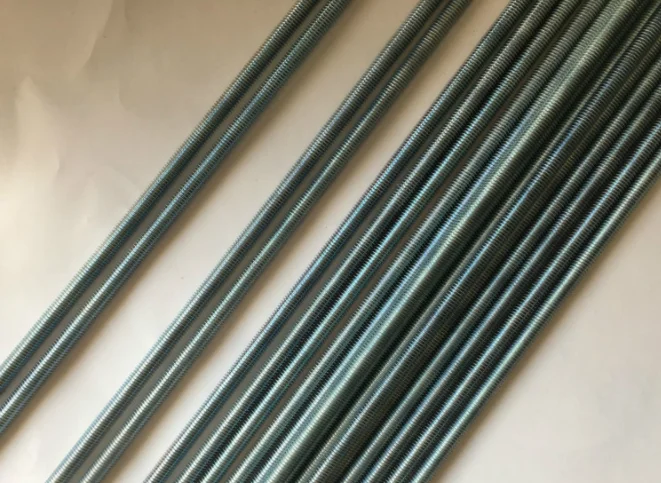

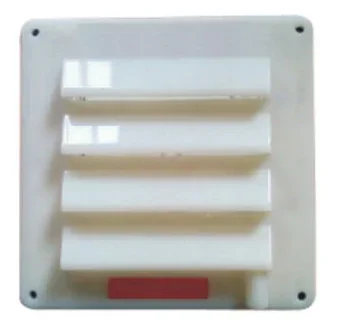

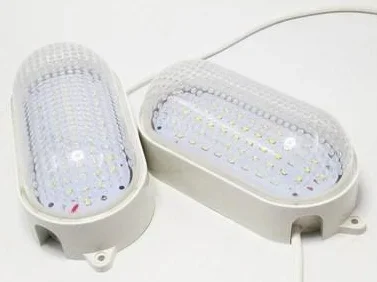

| Installation Accessories:Light,Sealing,PE film,Balance Window,Mushroom screws |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cold room storage?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cold room storage be supplied for my local voltage?
The standard configuration is 380V/3P/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Anhui Meluck Refrigeration Air-Condition Equipment Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Anhui Meluck Refrigeration Air-Condition Equipment Co., Ltd. range on HVACR Nexus.
