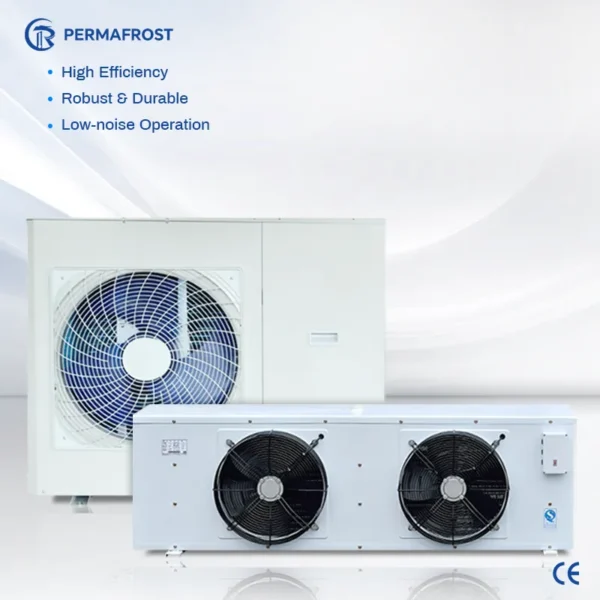

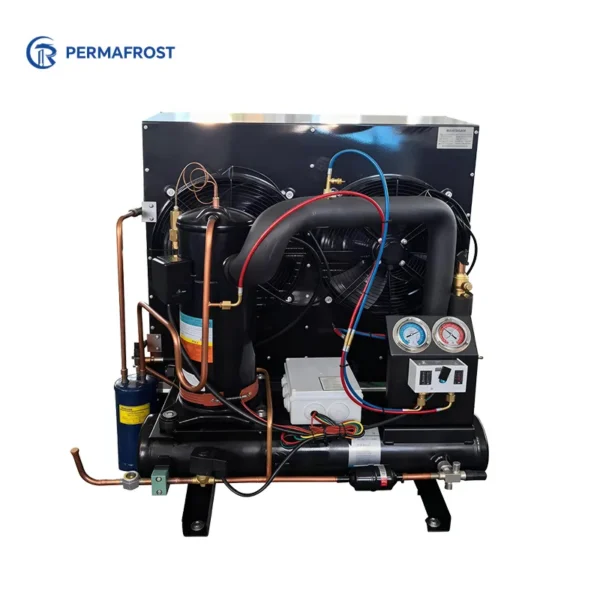

Condensing unit — 220 V, 110 V, Customized, cooling capacity 70~90d 60~70d. The complete factory specification follows. Made by Permafrost Refrigeration (changzhou) Co., Ltd. (1 year on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Condensing Unit
- Voltage: 220 V, 110 V, Customized
- Cooling Capacity: 70~90d 60~70d
- Refrigerant: R-404A, 507A
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Compressor Type: semi-hermetic
Technical Specifications
| Cooling Capacity | 70~90d 60~70d |
|---|---|
| Temperature | -20~-10C, -10~10c |
| Voltage | 220 V, 110 V, Customized |
| Compressor Type | semi-hermetic |
| Refrigerant | R-404A, 507A |
| Compressor Brand | Emerson |
| Core Components | Pressure Vessel, Motor, Evaporate |
| Warranty | 1 Year |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Easy To Operate, Competitive Price |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 200 |
| Dimension(L*W*H) | 200X150X200mm |
| Selling Units | Single item |
| Single Package Size | 200X100X200 cm |
| Single Gross Weight | 200.0 kg |
Product Details

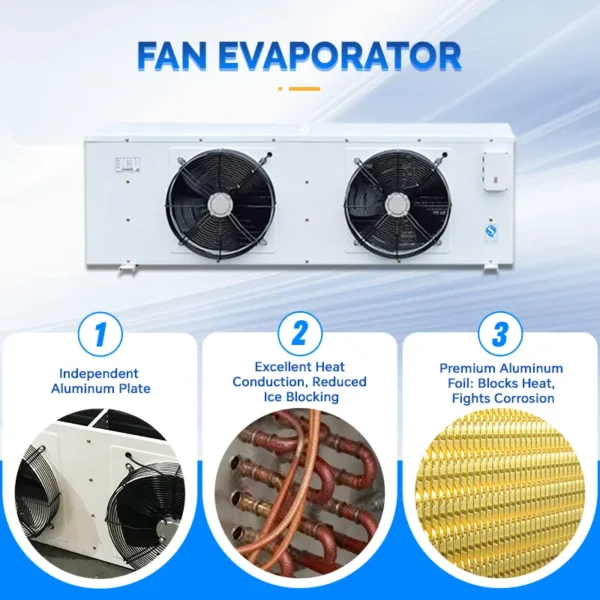

Technical Data of ZJDD Series (High Temperature) | ||||||||||||||||||
Model | Refrigeration Capacity (kW) | Cooling Surface (m²) | Fan | Defrost Heater | ||||||||||||||
Qty | Fan Diameter Φ (mm) | Air Flow (m³/h) | Fan Power (kW) | Coil Defrost Power (kW) | Drip Pan Power (kW) | Voltage (V) | ||||||||||||
ZJDD-10 | 2 | 10 | 2 | 300 | 2×1563 | 2×0.07 | 0.32×4 | 0.25×2 | 380 | |||||||||
ZJDD-15 | 2.8 | 15 | 2 | 300 | 2×1563 | 2×0.07 | 0.32×4 | 0.25×2 | 380 | |||||||||
ZJDD-22 | 3.7 | 22 | 2 | 300 | 2×1563 | 2×0.07 | 0.5×4 | 0.35×2 | 380 | |||||||||
ZJDD-30 | 5.7 | 30 | 2 | 350 | 2×2290 | 2×0.14 | 0.5×6 | 0.35×2 | 380 | |||||||||
ZJDD-40 | 7.5 | 40 | 2 | 400 | 2×6570 | 2×0.18 | 0.5×6 | 0.35×2 | 380 | |||||||||
ZJDD-60 | 11.4 | 60 | 2 | 500 | 2×6570 | 2×0.45 | 0.61×8 | 0.61×2 | 380 | |||||||||
ZJDD-80 | 15.2 | 80 | 2 | 500 | 2×6570 | 2×0.45 | 0.81×8 | 0.81×2 | 380 | |||||||||
ZJDD-100 | 18.7 | 100 | 3 | 500 | 3×6570 | 3×0.45 | 0.81×8 | 0.81×2 | 380 | |||||||||
ZJDD-120 | 22.4 | 120 | 3 | 500 | 3×6570 | 3×0.45 | 1.02×10 | 1.02×2 | 380 | |||||||||
ZJDD-140 | 26.2 | 140 | 3 | 500 | 4×6570 | 4×0.45 | 1.02×10 | 1.02×2 | 380 | |||||||||
ZJDD-160 | 30.0 | 160 | 4 | 500 | 4×6570 | 4×0.45 | 1.02×10 | 1.02×2 | 380 | |||||||||
ZJDD-200 | 37.4 | 200 | 3 | 550 | 3×8720 | 3×0.60 | 1.02×10 | 1.02×2 | 380 | |||||||||
ZJDD-250 | 46.8 | 250 | 4 | 550 | 4×8720 | 4×0.60 | 1.02×10 | 1.02×2 | 380 | |||||||||
Remark | Coldroomtemp-18℃;st=7℃ | |||||||||||||||||
Finspace: | 6.0mm | |||||||||||||||||
Can provide models with water defrost and perform non-standard design | ||||||||||||||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $300 / set
- 10+ set: US $250 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 220 V, 110 V, Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

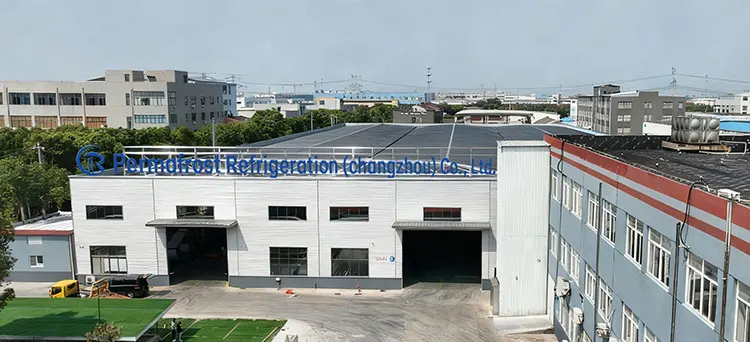

About the Manufacturer
This product is produced by Permafrost Refrigeration (changzhou) Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Permafrost Refrigeration (changzhou) Co., Ltd. range on HVACR Nexus.
